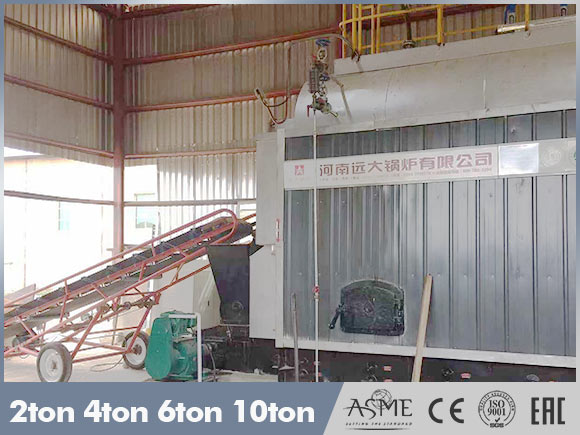

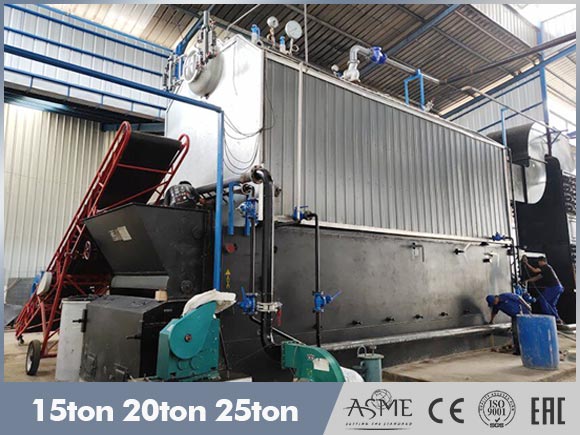

SZL Biomass Water Tube Boiler
- Capacity:2-50ton/hr; 1.4mw-35mw
- Horsepower:150hp-3000hp(bhp)
- Pressure:0-3.8Mpa; 0-38Bar
- Fuel:Biomass, Wood, Pellets, Coal, Ricehusk, Palm Shells, Solid Waste
- Features:Doubel drums water tube boiler / SZL A or D boiler / water tube biomass boiler / water tube wood boiler / solid fuel fired boiler
Biomass Wood Boiler waste/pellets/shells/husk/palm fibre

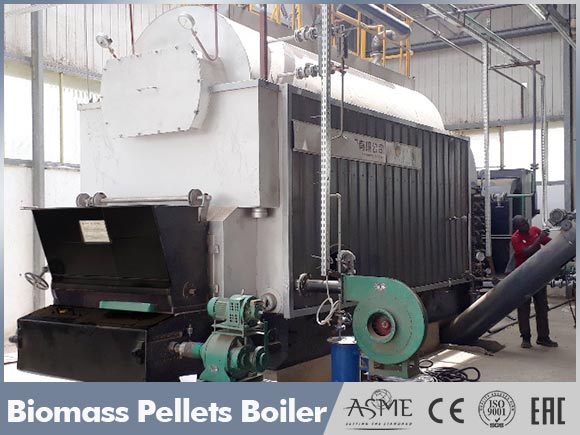

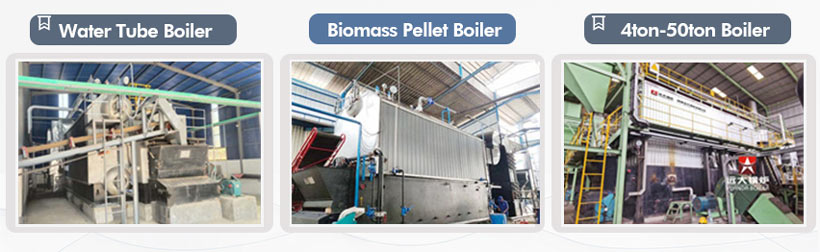

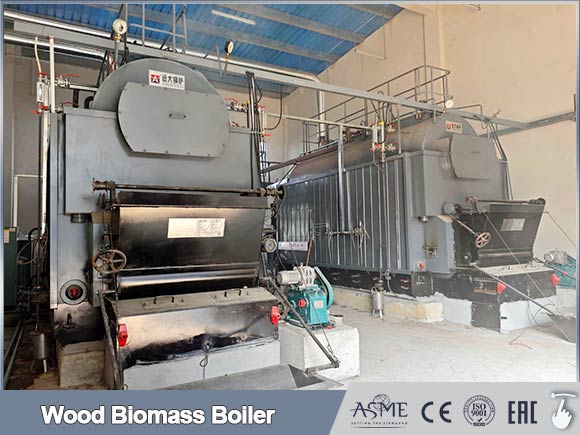

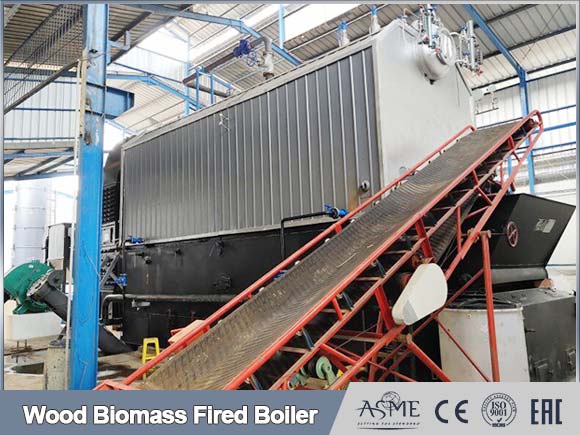

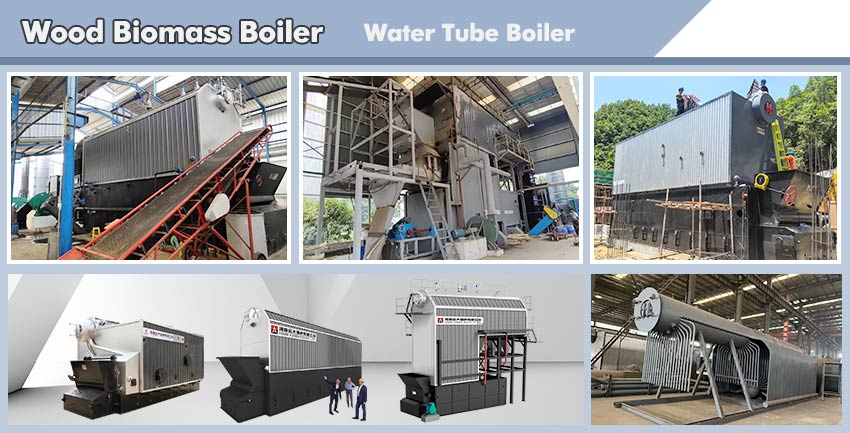

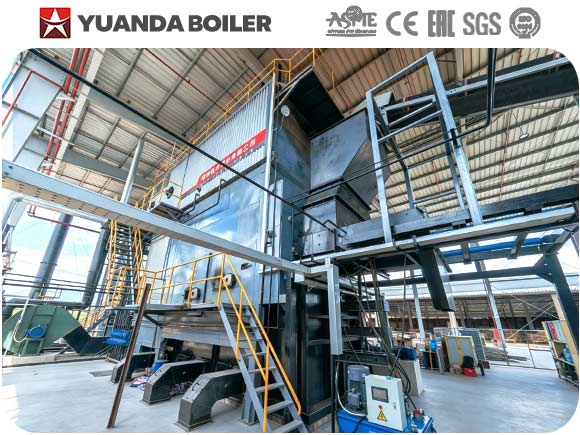

SZL water tube biomass boiler, package shop-assembled water tube boiler with double steam drums grate stoker boiler. You can choose Kinds of boiler grate for fuel combustion: chain grate, travelling grate, reciprocating step grate, dumping grate, fixed grate;

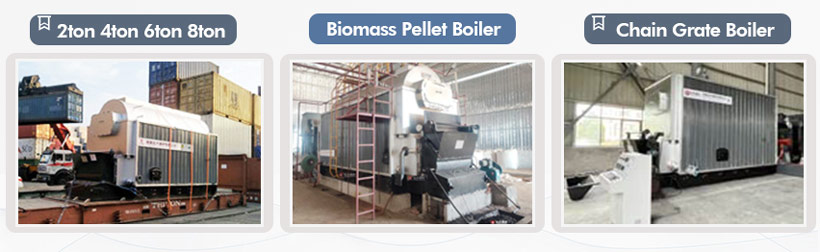

1. The 2tph-8 tph boiler is package boiler and 8tph-35 tph is shop-assembled structure, which is composed of 2 parts, upper part is heat absorbing surface and lower part is combustion equipment.
2. Professional boiler manufacturing in China, 0.2-40ton biomass boiler solution for your project, help you choose suitable biomass boiler model.
3. The boiler system equipment including grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc.
4. Kinds of grate device for combustion: Chain grate, Travelling grate, Reciprocating step grate, Dumping grate, Fixed grate...
Technical advantages:
1. Design the cyclone chamber structure in furnace, help second combustion and dust separation, achieve dust removal, energy saving and environmental protection.
2. Independ wind chamber structure, improve the biomass fuel burning efficiently, help protect boiler pipes, avoid bad effect for boiler sturcture.
3. Large furnace volume, strong adaptability for biomass fuel & solid waste, such as husk, palm shells, coconuts, peanut shells, walnut shells.
4. Membrane water wall construction, increase high heat transfer coefficient, good heat transfer effect, low heat loss, good air tightness and good performance of furnace wall.
Whole System Equipment List | ||||
---|---|---|---|---|
Boiler Body | Forced/ID Fan | Slag Remover | Water Softener & Tank | Steam Header |
Control Cabinet | Dust Collector | Water Pumps | Chimney | Boiler Sample-Water Cooler |
Biomass Feeding Device | Grate Speed Regulator | Economizer | Pipes & Gauges & Valves & Instrument | |
PS: If you need price list for all items, ask by shirley@yuanda-boiler.com |

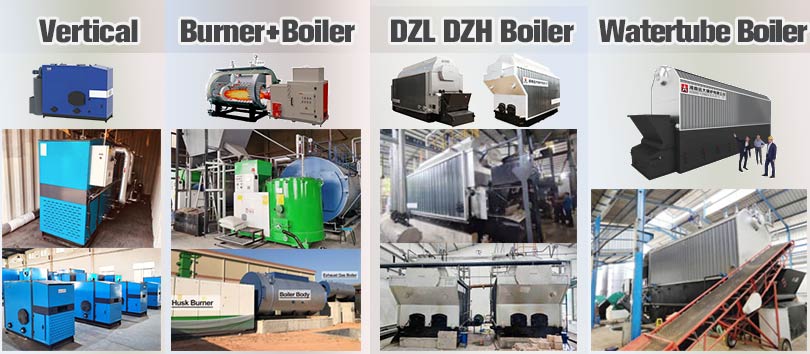

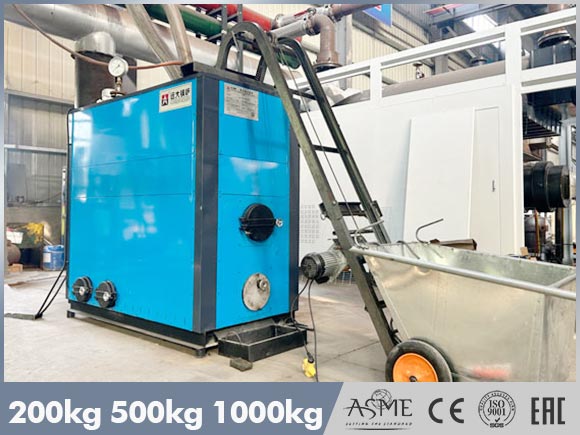

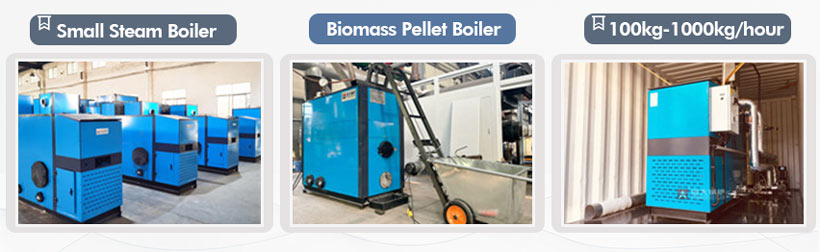

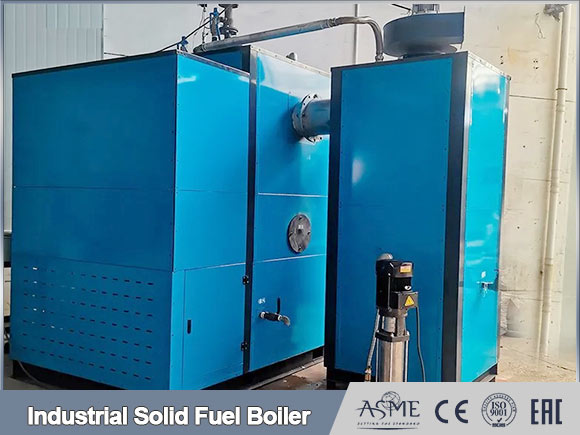

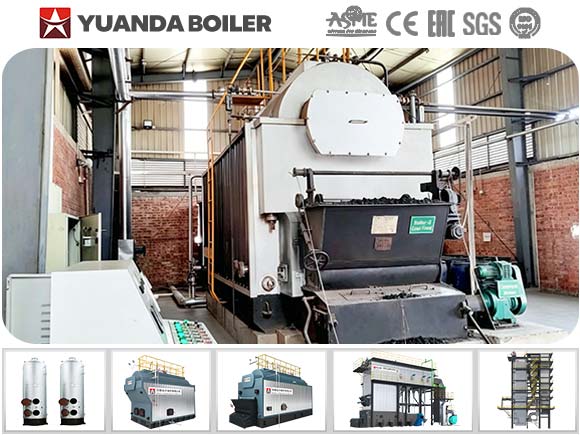

Horizontal biomass boiler vertical biomass boiler
Why Choose Us
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.

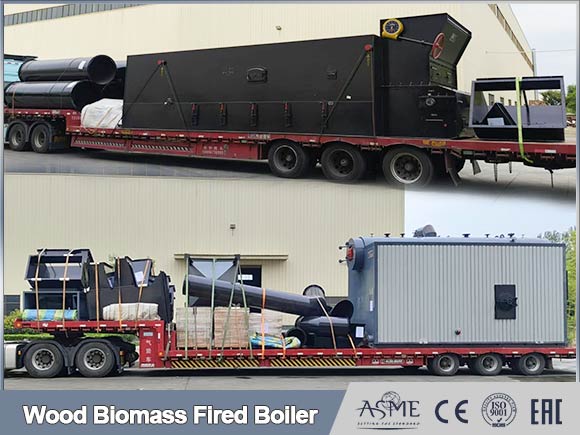

3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
Global Boiler Worldwide
1. Offer catalogue, various boiler model for choose, inquire one you prefer.
2. Technical discussion on boiler system solution for your company use.
3. Warmly welcome all customers come to visit the production base
4. Trustable after sale service, for boiler installation, training operators.
5. Whole life service for boiler consult, contact us whenever.
We are one of the leading enterprises which first obtained the national boiler manufacturing license in China. Until 2019, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !
SZL Series Steam Boiler Technical Parameter Table | |||||||||
---|---|---|---|---|---|---|---|---|---|
Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption(Kg/h) | max transportation weigh(t) |
SZL2 | 2 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >83.13 | 6.76 | 130.7 | 385.8 | 22 |
SZL4 | 4 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >84.23 | 5.1 | 142 | 807 | 29 |
SZL6 | 6 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >84.81 | 8.4 | 142 | 1209 | 34 |
SZL8 | 8 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >85.02 | 9.4 | 149.1 | 1563.9 | 40.5 |
SZL10 | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >86.2 | 8.35 | 152.7 | 2149.3 | 24 |
SZL12 | 12 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >86.56 | 12.8 | 148.7 | 2399.7 | 37 |
SZL15 | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >86.29 | 15.2 | 149.8 | 2568.4 | 24.7 |
SZL20 | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >86.8 | 15.5 | 147.4 | 4266.9 | 26 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
