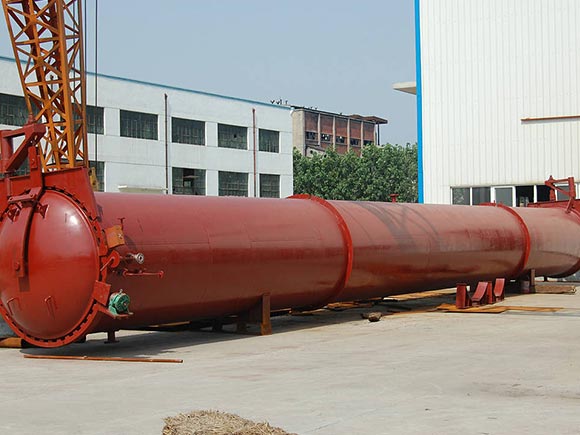

Autoclave is a horizontal cylinder device, when curing the aerated concrete, there is hydrothermal reaction (CaO-SiO2-H2O) happened in autoclave. It has the advantages of wide applicability, good treat efficiency, large capacity, reasonable layout, and safety operation, etc. Yuanda Boiler could design and manufacture various forms of autoclave according to customers’ requirements.
1. Different door opening form, there are two forms of side opening and upper opening for the user to select.
2. Autoclave is is equipped with safety valves, pressure gauges, temperature measuring components, intake and exhaust valves, sealed small valves and other necessary valve instruments.
3. The autoclave produced by our company is advanced in design, strict in manufacturing, and strictly follows the relevant national pressure vessel specifications.
1. Autoclave door with quick open structure and safety interlock.
2. Protection device for preventing operation problems.
3. Simple installation, good sealing and long service life and so on.
4. Flexible seat design, adjust to the thermal expansion and cold contraction of kettle body.
5. Good compatibility with the auxiliary equipment, short installation period, low investment cost.
Autoclave, Widely used in aerated concrete block, concrete pipe pile, high curing gypsum and other building materials, as well as rubber products, wood drying, preservative treatment and other production projects that. require pressure steam curing.
Get Quick Quote & Professional Proposal For Your Project, Contact us Now !
Tailor-made boiler service, Email us at any time:firstname.lastname@example.org
|Model||Axe body size||Thickness
|Highest working pressure
|Highest working temperature （°C）||Design pressure （Mpa）||Design temperature （°C）||Working medium||Total length mm||width (mm)||Height (mm)|
|FGZCS1.3-2x31x14/16||Φ2.0||14 or 16||31||1.3||198||1.4||198||33300||2980||3340|
