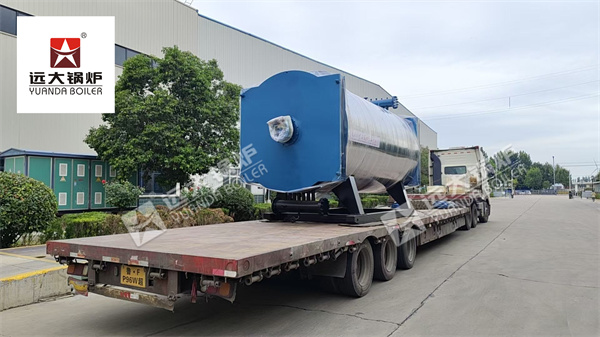

2900 kW Thermal Oil Boiler for Beta Gypsum Factory in Macedonia

Yuanda 500kw Electric Thermal Oil Heater Boiler, Heating Thermal Oil 300/280°C. No pollution industrial oil heating system.

The 5600kW diesel fired thermal oil boiler is designed for chemical plants in Saudi Arabia, providing stable heat at temperatures up to 280°C with an output pressure of 6 bar. This system ensures precise temperature control for reactors, dryers, and chemical processing lines, offering high efficiency, safety, and reliable continuous operation.

YYQL series Vertical gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

The 900kW electric thermal oil boiler provides stable and precise temperature control for plastic extrusion and molding processes in Peru’s plastic industry. Using electricity as a clean energy source, it ensures high efficiency, uniform heating, and zero emissions. Ideal for energy-saving industrial applications requiring continuous heat supply.

YGL 2900kW Biomass/Wood Thermal Oil Boiler | High-Temperature Heating System Bangladesh
YGL vertical wood biomass thermal oil heater boiler, manual feeding type, low consumption cost thermal oil heater boiler.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

700KW 600000kcal Thermal Oil Heater Boiler

YYQW series horizontal coil heater thermal oil boiler 240kw 350kw 700kw 1050kw 1400kw2100kw 2800kw 3500kw 4200kw 5600kw 7000kw

Gas/Diesel Thermal Oil Boiler
YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YLW coal fired thermal oil boiler is a kind of new type heating equipment, the fuel could be coal, biomass or flue gas, the heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. It is an safe and low energy consumption boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The boiler medium is working under liquid state, so it is safe and reliable.

YY(Q)W series gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

Yuanda YYQW Horizontal type diesel/gas/lpg fired thermal oil boiler 350kw 500kw 700kw 1400kw 2100kw 2800kw 3500kw 4200kw 5600kw 7000kw 14000kw.
ASME qualified thermal oil boiler deliver to Malaysia.

YYQW horizontal thermal oil boiler / 200kw-14000kw boiler / three-coil oil heater, high efficiency thermal oil boiler, 100% safety ensurance.
most used in textile, bitumen, plywood, gloves, textile, asphalt, foods, heating tanks, heating crude oil, oil refinery…..

Full automatic PLC ON/OFF controller, free settable thermal operation temperature and working time, automatic temperature control, automatic over-pressure/ over temperature interlock chain stop protection, visible system’s working states (burner’s states, system working pressure/ oil temperature) on screen etc.

Optimize your heat transfer capabilities in the food factory with the 700kw Thermal Oil Heater Boiler. Specifically designed for the food industry, this boiler provides efficient and reliable heat transfer using thermal oil as the medium. With its 700kw capacity, it meets the heat requirements of food processing and production. The thermal oil system ensures precise and consistent temperature control for various food manufacturing processes. Trust the 700kw Thermal Oil Heater Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the food industry. Experience reliable and high-quality heat transfer for your food factory operations.

Yuanda YYQL series vertical thermal oil boiler.
Fuel: diesel lpg gas oil
Capacity: 1400kw, 1200,000kcal
Thermal-oil heating systems for Resins — precise temperature control, low-pressure safe operation, high efficiency and multi-zone heating.
PLC remote monitoring and tailored designs ensure consistent product quality and reliable production.

YQ(Y)W series gas-fired/oil-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.

This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).

Elevate your heat transfer capabilities with the 1400kw Gas Fired Hot Oil Boiler YYQW Horizontal Boiler. Specifically designed for efficient heat transfer, this horizontal boiler utilizes gas as its fuel source. With a capacity of 1400kw, it provides reliable and consistent heat for various industrial applications. The YYQW design ensures optimal heat transfer efficiency, making it suitable for a wide range of heating processes. Trust the Gas Fired Hot Oil Boiler YYQW Horizontal Boiler to deliver clean and efficient heat, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with this advanced horizontal boiler solution.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Yuanda YYQL series vertical thermal oil boiler.
Fuel: diesel lpg gas oil
Capacity: 1400kw, 1200,000kcal
Thermal-oil heating systems for Resins — precise temperature control, low-pressure safe operation, high efficiency and multi-zone heating.
PLC remote monitoring and tailored designs ensure consistent product quality and reliable production.

YY(Q)W series adopting high quality corrugated coil to carry the heat conduction oil, increase the heat transfer area, reasonable gap between coil tubes to fit the hot expansion and cold contraction . Average coil tubes’ working life more than 17years.

Calentador Fluido Termico Eléctrica de 900kW de Yuanda Boiler fue instalada con éxito en una fábrica de producción de película plástica en Perú.

Two 1800 kW vertical gas-fired thermal oil boilers supplied for a lubricant oil manufacturing plant in Peru, providing stable and efficient high-temperature heat for industrial processes.

Aquecedor de fluido térmico de biomassa tipo grelha de corrente.
Aquecedor de fluido térmico alimentado por biomassa de cavacos de madeira.

Industrial electric thermal oil heater boiler 10kw-1000kw

China famous YLW1400 series woodchips woodwaste fired thermal oil boiler, automatic conveyer feeding woodchips to combustion stoker. Thermal oil boiler inner adopt multi loop square coil structure, help improve thermal efficiency.

YYQW series diesel gas fired thermal oil heater boiler, horizontal three pass three coils thermal oil heating system. 7000kw 6million kcal thermal oil boiler for oil gas field.

Elevate your heat transfer capabilities in the chemical industry with the 1400kw Hot Oil Boiler. Specifically designed for the chemical industry, this boiler provides efficient and reliable heat transfer using hot oil as the medium. With its 1400kw capacity, it meets the heat requirements of various chemical processes and production. The hot oil system ensures precise and consistent temperature control, making it suitable for a wide range of chemical manufacturing processes. Trust the 1400kw Hot Oil Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the chemical industry. Experience reliable and high-quality heat transfer for your chemical industry operations.

Oil Boiler For Chemical Industry.
Yuanda Horizontal Diesel Gas Fired Thermal Oil Heater Boiler For Industrial Use.

The Industrial Helical Coil Thermal Oil Heater is a highly efficient and reliable heating system designed for industrial applications that require uniform and precise temperature control. Using thermal oil as the heat transfer medium, it provides indirect heating at temperatures up to 200–350°C under low operating pressure. The heater features a helical coil structure, ensuring optimal heat transfer, compact design, and long service life. It is widely used in industries such as chemical, textile, food, plywood, bitumen, and oil processing.

Yuanda Thermal Oil Heater Boiler
Fuel options: diesel, lpg, gas, heavy fuel oil, dual fuel
Structure: Vertical or Horizontal
Capacity: 240kw-14000kw
YYQW series three coils three pass oil heater boiler. High efficiency energy saving thermal oil heating system.

Two 1800 kW vertical gas-fired thermal oil boilers supplied for a lubricant oil manufacturing plant in Peru, providing stable and efficient high-temperature heat for industrial processes.

Gas/Diesel Thermal Oil Boiler
YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

Electric thermal oil boiler provides stable and precise temperature control for plastic extrusion and molding processes in Peru’s plastic industry. Using electricity as a clean energy source, it ensures high efficiency, uniform heating, and zero emissions. Ideal for energy-saving industrial applications requiring continuous heat supply.
