Chaudière à Biomasse Bois Bagasse Balles Riz Coques de Noix Coco et Cajou et Palmiste

Biomass Steam Boiler 8Ton/hour In Palm Oil Mill
Site: Indonesia
Boiler Model: SZF8-1.25-SCII
Boiler Fuel: Biomass, Palm Fibre, Palm Kernel Shells

Chaudière à vapeur à tubes d’eau 8tonnes/heure biomasse bois balle de riz bagasse coquilles de palmiste chaudière à vapeur à combustible solide. Chaudière à vapeur à biomasse surchauffée pour turbine à vapeur de production d’électricité.

1. DZH series stoker boiler is manual feeding type, burning coal, wood, biomass, solid waste. Suitable capacity is 1ton to 8ton.
2. Available to burning all kinds of solid waste, coal, agro waste, biomass waste, wood chips.

1ton 2ton 4ton 6ton 8ton 10ton solid fuel steam boiler, Chain Grate Stoker Boiler automatic feeding biomass coal boiler.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

Enhance the sustainability of your pharmaceutical industry operations with the 10tph Biomass Burner Boiler. Designed specifically for the pharmaceutical industry, this biomass burner boiler utilizes renewable biomass fuel to provide efficient heat and steam generation. With its high capacity, it ensures reliable and consistent performance for your production processes. The biomass burner reduces carbon emissions and promotes eco-friendly energy solutions. Trust the 10tph Biomass Burner Boiler to deliver sustainable and cost-effective heating and steam supply, meeting the specific needs of the pharmaceutical industry and contributing to a greener future.

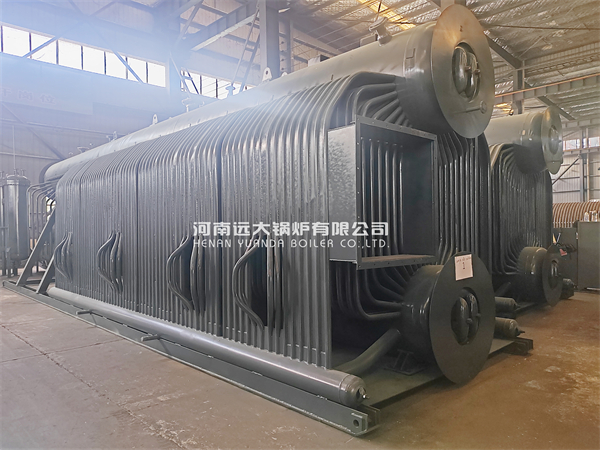

SZL Series Water Tube Boiler Double Drums Chain Grate Coal Fired Boiler For Production Heat & Power

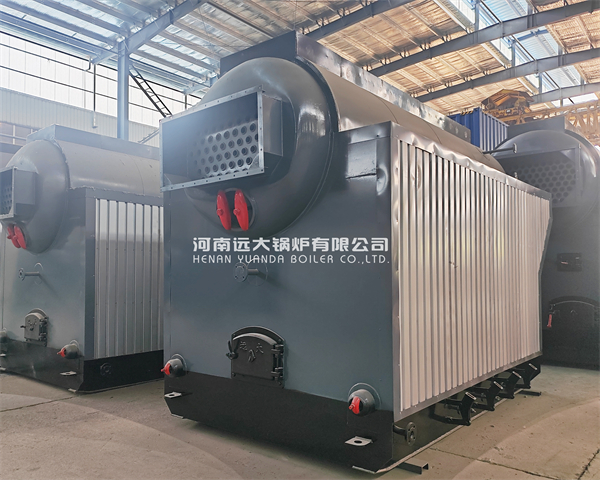

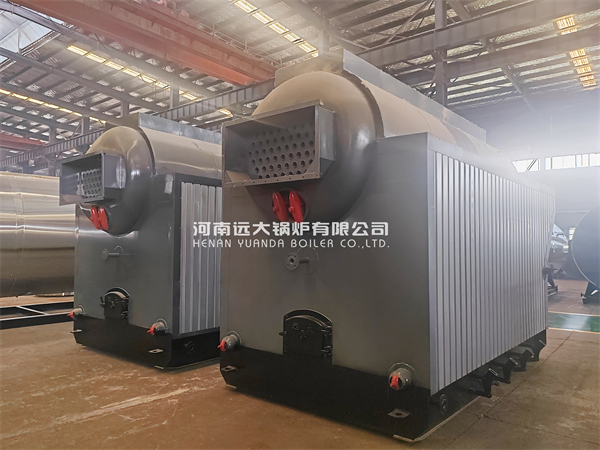

DZH series manual coal/wood/biomass fired boiler, travelling grate boiler. Inner water-tubes & fire-tubes design.

Industrial biomass hot air generator furnace, use for drying clay.

SZL water tube biomass boiler, is double drums offset furnace structure (“D” type boiler or “A” type boiler). Its has advantages of high technology, environmental and energy saving. Thermal capacity in 2ton-50ton.

Industrial Biomass Hot Water Boiler 100kw-14000kw, Burning Wood Ricehusk Bagasse Sawdust Biomass pellets Solid fuel.

8ton industrial biomass fired steam boiler with reciprocating grate combustion stoker. SZW series water tube biomass boiler 4ton 6ton 8ton 10ton 15ton 20ton.

Vietnam Furniture Factory Project, 15Ton/Hour Reciprocating Grate Boiler Biomass Fired Steam Boiler, Water Tube Double Drums A Type Layout Boiler.
Boiler burning wood waste, woodchips, sawdust, biomass, solid fuel.

Boiler advantages
1.Design the cyclone chamber inside the chamber of the stove
When the high temperature smoke through the cyclone chamber,smoke rotate with high speed and burn thoroughly.Improve the heat efficiency of boiler,the big dust settle down ,achieve the result of secondary combustion and first dust removal.
Energy conservation,high efficiency,environment friendly.
This design obtains national patient.
2.Separate wind chamber structure
Make air regulation sensitive and make wind uniformly in landscape orientation in the reliable longitudinal wind chamber.
Resolve the wind plug,wind channeled,partial burn phenomenon.
The design obtains national patent.

China manufacture Vertical Biomass/Wood Thermic Fluid Heater (Thermal Oil Heater Boiler) , application in wood drying, wood industry

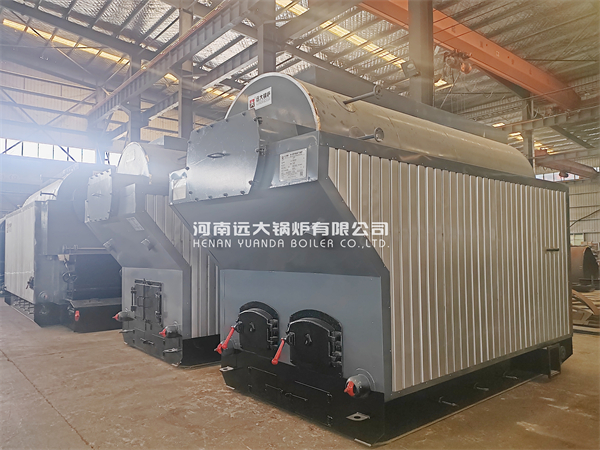

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

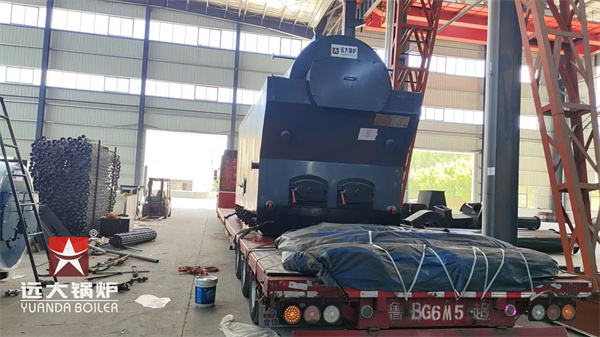

DZH series wood biomass coal fired steam boiler 4ton/hour travelling grate boiler, single drum water-tube fire-tube boiler.

Safe Operation
DZH series is equipped with automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, visible system’s working states on screen.

SZL series chain grate biomass boiler, automatic-feeding biomass system, high efficiency combustion, low consumption cost.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

Yuanda Boiler supply oil gas boiler, wood biomass boiler, coal boiler, electric boiler, fire tube boiler, water tube boiler, horizontal boiler, vertical boiler.

YLW Horizontal wood/biomass thermal oil boiler.
Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

Thermal oil boiler could instead steam boiler for industrial production, to improve productivity. Yuanda thermal oil boilers are widely used for petroleum chemical industry, Oleochemical industry, Synthetic fiber industry, textiel printing and dyeing industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food indstry, electrical equipment industry, coking industry, etc.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

The DZL/DZH new water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and famous Harbin institute of Technology and director of Beijing Institute of Light Boiler.
1.Boiler model:DZL/DZH
2.Boiler capacity:1-20ton/h
3.Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature:184 °c,194°c, 204°c,226°c(As long as below 226°c,we can do it)
5.Fuel:coal,biomass
6.Structure:horizontal water-fire tube, single drum
7.Type:There are two types.One is DZL chain grate stoker automatic feeding fuel and removing dregs type. Another is DZH hand operated moving grate type which needs labour to feed fuel and remove the dregs.
8.Application:Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

Elevate the central heating system in your villages project with the powerful 4200kw and 7000kw Biomass Hot Water Boiler. Designed specifically for central heating applications, this boiler utilizes biomass as a sustainable and renewable energy source. With its high capacity, it ensures efficient and reliable hot water supply for large-scale projects. The biomass fuel option reduces carbon emissions and promotes eco-friendly heating solutions. Trust the 4200kw and 7000kw Biomass Hot Water Boiler to deliver consistent and environmentally conscious heating, improving comfort and sustainability in your villages project.

Chaudière à biomasse à tubes d’eau série SZL SZW, Elle est dotée d’un four à double tambour décalé (disposition D ou A) et d’une structure à membrane à paroi d’eau. Elle utilise un dispositif de combustion parfaitement adapté à la biomasse. Cette chaudière présente les avantages d’une technologie de pointe, d’une protection de l’environnement et d’une économie d’énergie.
Types d’appareils à combustion : grille à chaîne, grille mobile, grille à gradins alternatifs, lit fluidisé bouillonnant, grille fixe basculante

8Ton biomass fired boiler, the complete system including boiler and burner, biomass burner inner use step grate combustion design, boiler is double drums water tube boiler.
