Wood Fired Boiler
- Our Products：Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Capacity：0.1ton-75ton, 70kw-35000kw
- Fuel：Wood, biomass, ricehusk, coal, briquette, solid waste
- Usage：For Industrial heating drying process, Power generation
- Manufacture Standard：GB CE ASME DOSH EAC
Wood Fired Boiler

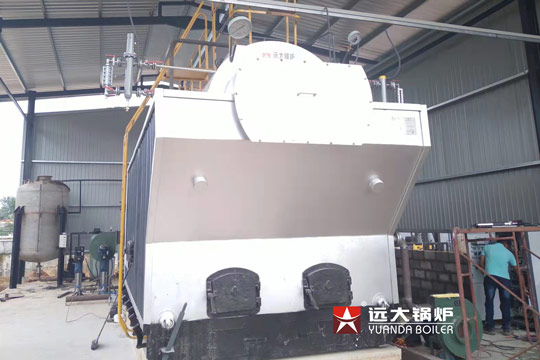

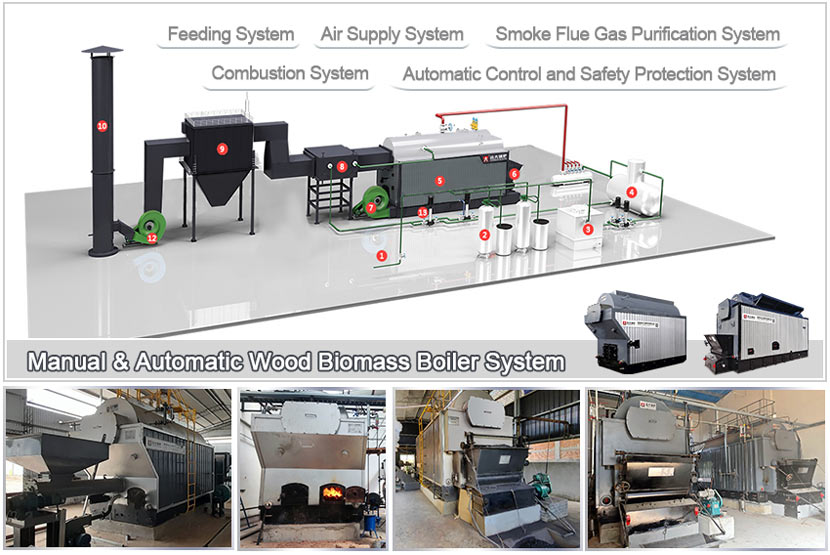

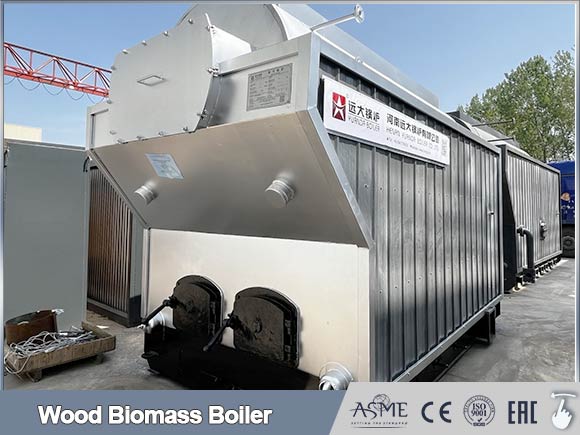

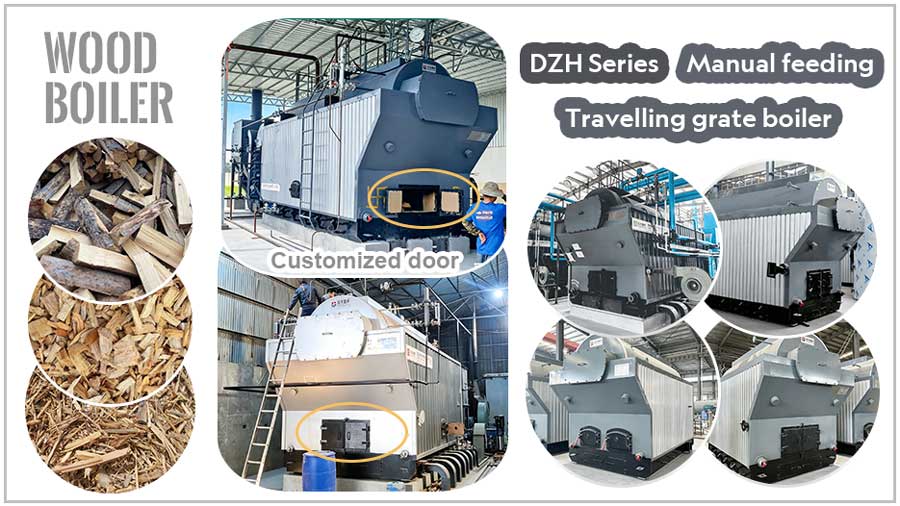

DZH series wood fired travelling grate boiler is a horizontal three-pass steam boiler designed for burning wood and other solid biomass fuels.
It adopts a water-tube and fire-tube combination structure with a manual feeding travelling grate stoker, providing stable combustion, reliable steam output, and good fuel adaptability.

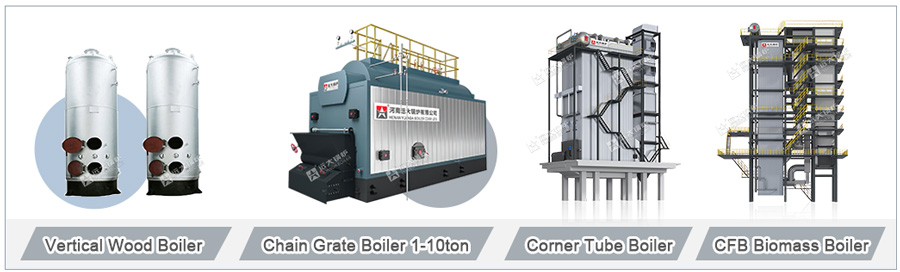

Other Options:
Wood Boiler Features
1. Wood & Biomass Fuel Adaptability

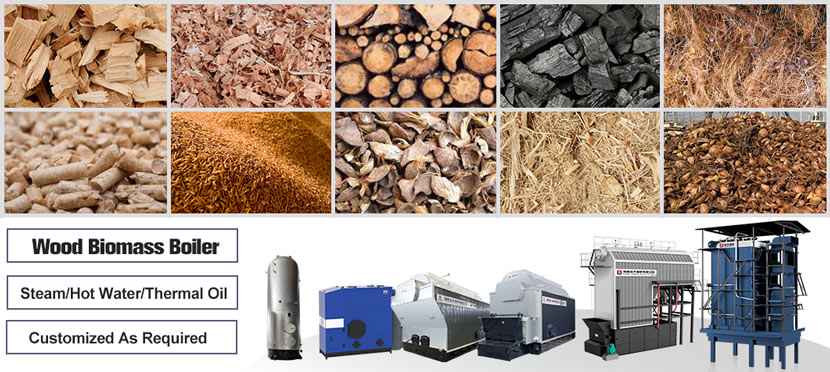

Designed for various wood fuels, including wood logs, wood chips, wood waste and biomass briquettes. The furnace and grate can be customized according to fuel size, moisture and calorific value.

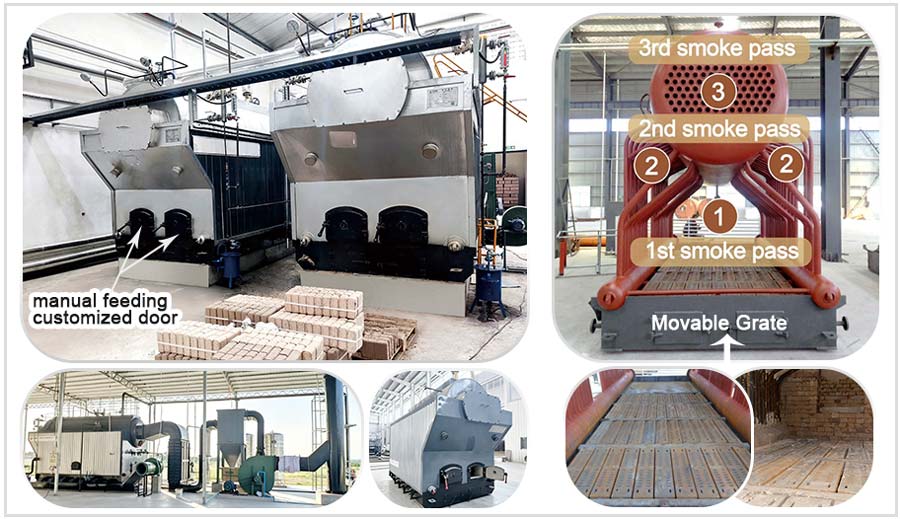

2. Water-Tube & Fire-Tube Combination Structure
Water-wall tubes form the main radiant heating surface, while fire tubes and wing-shaped convection passages enhance heat transfer and improve the overall boiler efficiency.
3. Travelling Grate Combustion
The moving grate provides continuous fuel movement and uniform air distribution, helping biomass fuel burn more completely while reducing clinker formation and unburned carbon.
4. Three-Pass Flue Gas Design
The three-pass flue gas path increases the heat-transfer distance and allows more heat to be absorbed by the boiler, reducing heat loss through exhaust gases.
5. Stable Steam Output
A properly designed furnace, heating surface and steam-water separation system provide sufficient and stable steam for industrial production processes.
6. Simple Operation & Maintenance
The manual feeding design has a relatively simple structure, low automation requirements and easy maintenance, making it suitable for small and medium-sized industrial plants.
7. Durable Boiler Construction
High-quality materials, reinforced structural design and strict manufacturing and inspection procedures help ensure reliable operation and a long service life.

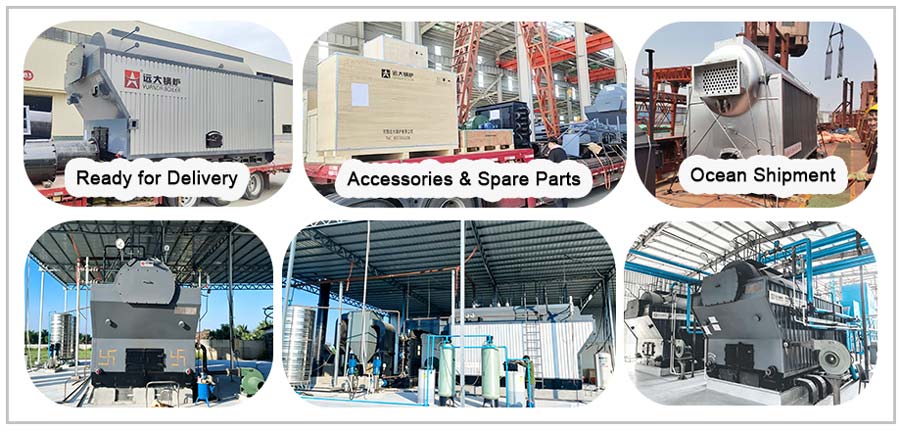

.jpg)

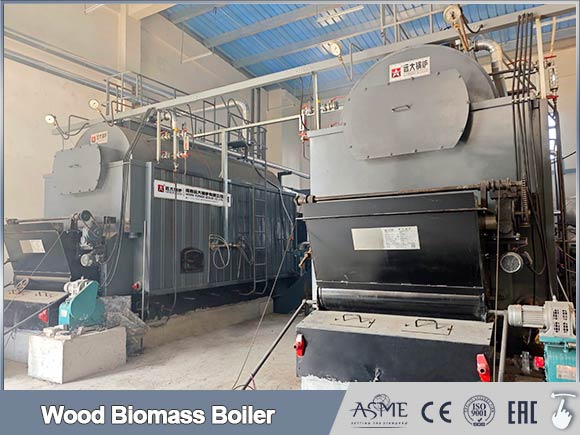

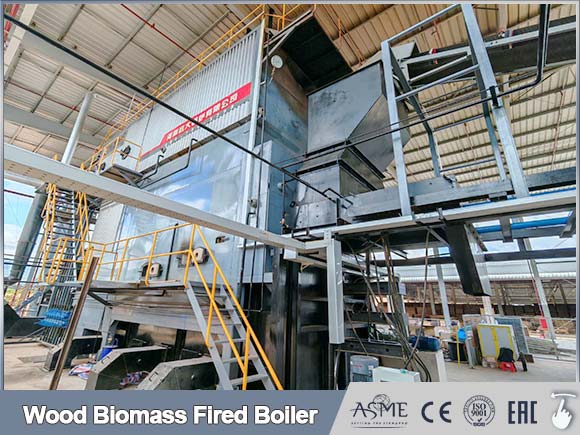

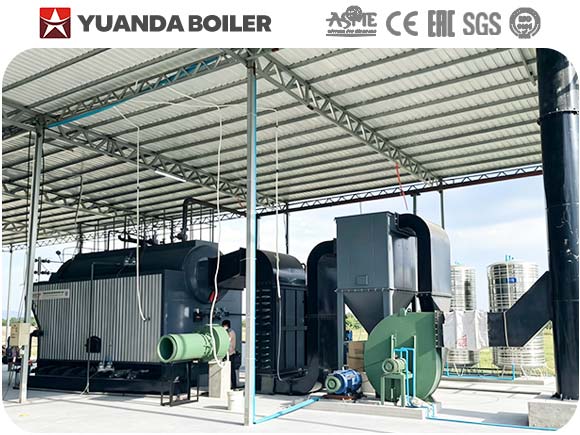

Yuanda Boiler Projects
Global sales service cover 135 countries & regions.

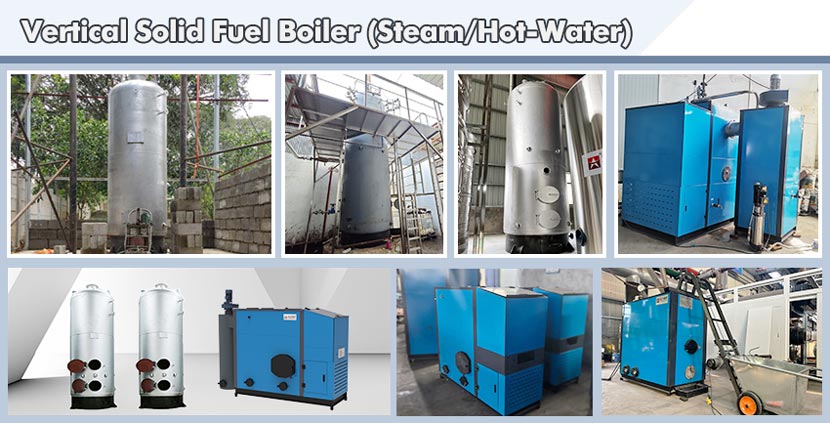

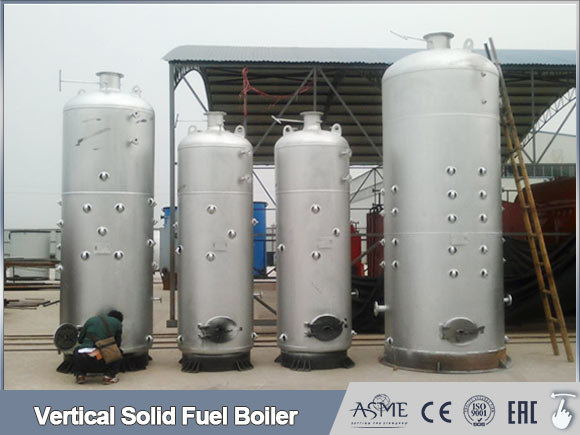

Related Vertical Boiler

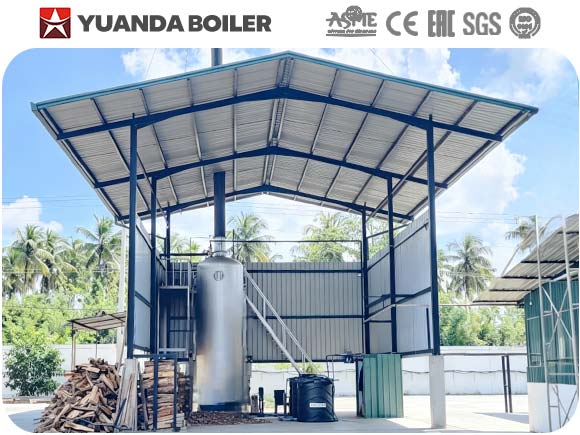

LSG series water tube cross tube boiler 500kg & 1000kg.

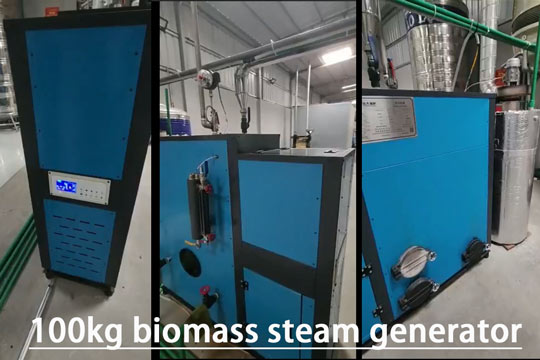

LSS series water tube steam generator 100kg 200kg 300kg 500kg 1000kg 1500kg 2000kg
Watch Videos
View More by https://www.youtube.com/@yuandaboiler
About us Yuanda Boiler
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | Feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | Max transportation weigh(t) |
|---|---|---|---|---|---|---|---|---|---|
| DZH1 | 1 | 1.0mpa-4.5mpa | 100°C-450°C | 20/104°C | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZH2 | 2 | ＞82 | 4.75 | 126.41 | 386.47 | 15 | |||
| DZH4 | 4 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 | |||
| DZH6 | 6 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 | |||
| DZL1 | 1 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 | |||
| DZL2 | 2 | ＞82 | 4.77 | 106.34 | 393.77 | 22 | |||
| DZL4 | 4 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 | |||
| DZL6 | 6 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 | |||
| DZL8 | 8 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 | |||
| SZW6 | 6 | ＞87 | 8.4 | 142 | 1209 | 34 | |||
| SZW8 | 8 | ＞87 | 9.4 | 149.1 | 1563.9 | 40.5 | |||
| SZW10 | 10 | ＞87 | 8.35 | 152.7 | 2149.3 | 24 | |||
| SZW12 | 12 | ＞87 | 12.8 | 148.7 | 2399.7 | 37 | |||
| SZW15 | 15 | ＞87 | 15.2 | 149.8 | 2568.4 | 24.7 | |||
| SZW20 | 20 | ＞87 | 15.5 | 147.4 | 4266.9 | 26 | |||
| SZW25 | 25 | ＞87 | ...... | ||||||
| DHW35 | 35 | ＞87 | |||||||
| DHW45 | 45 | ＞87 | |||||||
| DHW55 | 55 | ＞87 | |||||||
| DHW65 | 65 | ＞87 | |||||||
| DHW75 | 75 | ＞87 | |||||||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
