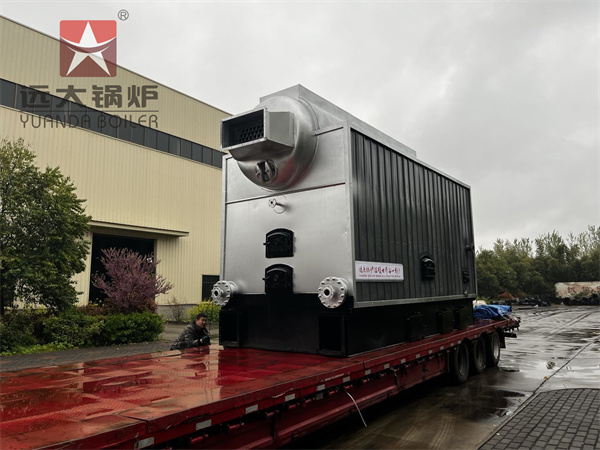

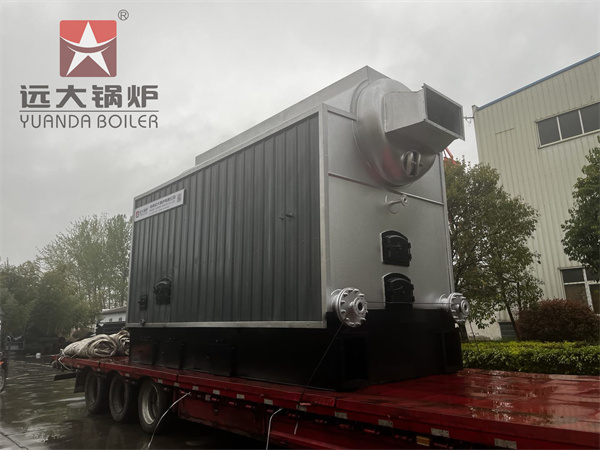

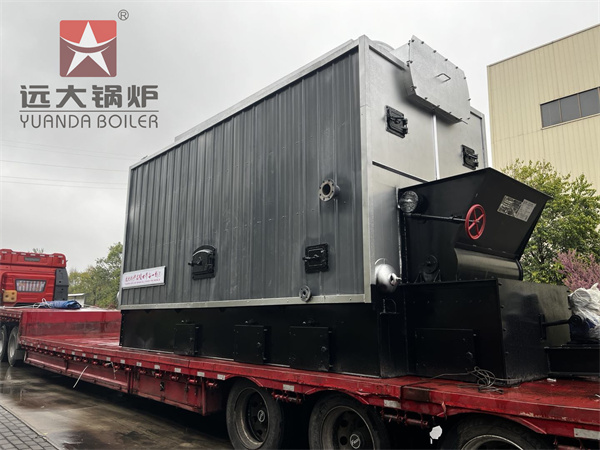

Automatic Biomass Hot Water Boiler 2800kw For Wood Pellets Production Line

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

SZL water tube biomass boiler, is double drums offset furnace structure (“D” type boiler or “A” type boiler). Its has advantages of high technology, environmental and energy saving. Thermal capacity in 2ton-50ton.

SZL series high efficiency biomass boiler, inner water tube structure, 2ton 4ton 6ton 8ton 10ton 12ton 15ton 20ton 30ton biomass waste fired boiler, high tech deign double drums & water membrane wall deign.
Yuanda biomass boiler can burn solid waste, biomass pellets, ricehusk, palm shells, palm kernel shells fibre, coconuts shells, peanute shells, sawdust, wood waste, wood pellets, wood log, woodchips, agro forest waste…

SZL series biomass-fired steam boiler is package or shop-assembled water tube boiler with double steam drum and chain grate stoker structure. 4-6 tph boiler is package boiler and 6-35 tph is shop-assembled structure, which is composed of 2 parts, upper part is heat absorbing surface and lower part is combustion equipment. The former part of boiler body is surrounded by membrane wall, its upper part connects with boiler drum and lower part connects with header, which forms a combustion chamber to absorb the radiated heat from furnace; there are dense convection tube bundle between the back side of upper and lower drum, the high temperature smoke enters a separate economizer after flushing heat absorbing surface then discharge from chimney.

Upgrade your steam boiler system with the efficient and automated SZL Series Automatic Biomass Pellets Boiler. This water tube steam boiler is specifically designed to utilize biomass pellets as a renewable and environmentally friendly fuel source. With its automatic operation, it ensures convenient and hassle-free steam production. The water tube design maximizes heat transfer efficiency and ensures optimal energy utilization. Trust the SZL Series Automatic Biomass Pellets Boiler to deliver consistent and clean steam for a wide range of industrial applications. Enhance your productivity and reduce carbon footprint with this advanced steam boiler system.

Better fuel adaptability
Comparing with DZL boiler, DZH boiler has better adaptability on fuels, it can fire coal, rice husk, nut shell, sawdust, waste wood pieces, also can fire wood logs, straws. But, DZH boiler can only support manual fuel feeding, and manual ash remove.

DZL biomass fired steam boiler with chain grate device
1.Automatic feeding, automatic ash remove function.
2.Long life time, more than 10 years.
3.62 years experience for manufacturing, mature technology.
4.Big furnace and heating area, advanced design.
5.Full automatic control, Protection devices for overheating, over pressure, lacking water, leak detection, flame out
6.Enough steam output, less heat dissipation, high thermal efficiency.lowest fuel consumption, lower power consumption.
7.with 95% high efficiency dust collector, more Eco-friendly.
8.The featured structure of the boiler: Threaded pipe, Airfoil flue , Convex tube plate , The backwater towards high temperature tube plate, Simple loop circuit, Dust separated chamber, big furnace, compact structure so on.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

DZL series coal/biomass fired steam boiler is single drum, and adopt three-pass fire and water tubes. Both sides of the wall around the furnace are radiation heating surface.Two wings of furnace are convective heating surface.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

Elevate the central heating system in your villages project with the powerful 4200kw and 7000kw Biomass Hot Water Boiler. Designed specifically for central heating applications, this boiler utilizes biomass as a sustainable and renewable energy source. With its high capacity, it ensures efficient and reliable hot water supply for large-scale projects. The biomass fuel option reduces carbon emissions and promotes eco-friendly heating solutions. Trust the 4200kw and 7000kw Biomass Hot Water Boiler to deliver consistent and environmentally conscious heating, improving comfort and sustainability in your villages project.

dzl biomass steam boiler,chain grate biomass boiler 4ton,china biomass fired boiler

Optimize your heat generation in the furniture industry with the Automatic Biomass Thermal Oil Heater. Specifically designed for the furniture industry, this thermal oil heater utilizes biomass as a sustainable and renewable fuel source. With its automatic operation, it ensures convenient and hassle-free heat production. The thermal oil system provides consistent and efficient heat transfer for various furniture manufacturing processes. Trust the Automatic Biomass Thermal Oil Heater to deliver reliable and clean heat, improving productivity and reducing environmental impact in the furniture industry. Experience efficient and eco-friendly heating solutions tailored to your furniture manufacturing needs.

Upgrade your central heating system with the containerised biomass hot water central heating boiler. Designed for efficiency and sustainability, this boiler utilizes biomass as its energy source, reducing environmental impact. With its containerized design, it offers easy transportation and installation, making it an ideal solution for projects in Hungary. Enjoy reliable and eco-friendly hot water supply for your central heating needs. Trust the containerised biomass hot water central heating boiler to deliver efficient and environmentally-friendly heating solutions for your home or commercial space.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

Safe Operation
DZH series is equipped with automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, visible system’s working states on screen.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

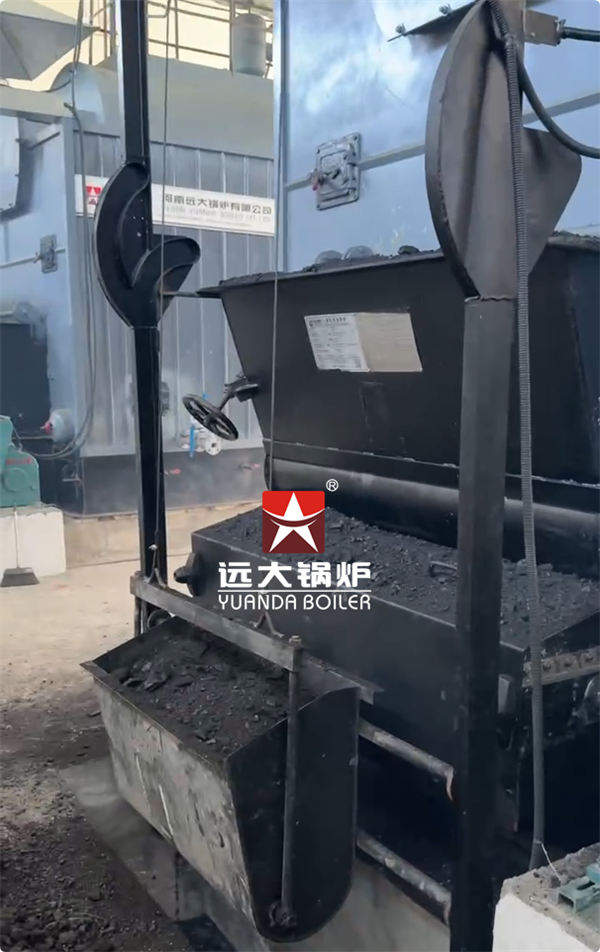

DZL 4200kw biomass hot water boiler 4200kw, widely used for central heating, water heating system in wood drying, heating & drying in wood pellets productions line.

Boiler advantages
1.Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2.Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3.Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4.Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5.Self support
Cancel the steel frame, save steel material.
6.New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

DZL boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. The combustion traveling chain grate can feed the fuels automatically, with different rolling speed can adapt different fuels’ burning speed. Also, the small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

YLW coal fired thermal oil boiler is a kind of new type heating equipment, the fuel could be coal, biomass or flue gas, the heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. It is an safe and low energy consumption boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The boiler medium is working under liquid state, so it is safe and reliable.

China high tech design biomass boiler, water tube membrane-walll design, double water drums boiler. It is automatic biomass feeding boiler, with high thermal efficiency >88%. Availbale to burning woodchips, pellets, husk, coconuts waste, palm shells waste, wood logs, agro waste…

Thermal oil boiler(also called organic heat carrier furnaces) generally use coal, oil, and gas as fuels, take heat-conducting oils as the medium, force liquid to circulate in the liquid medium by using oil circulation pump, transferring heat energy to the heating equipment, then heat-conducting oil return to furnace and reheating.Boiler can reach high temperature at low pressure,control medium operating in high-precision.

DZH boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. Most important, the combustion fixed chain grate can also suit any kind of biomass. The small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Enhance the sustainability of your pharmaceutical industry operations with the 10tph Biomass Burner Boiler. Designed specifically for the pharmaceutical industry, this biomass burner boiler utilizes renewable biomass fuel to provide efficient heat and steam generation. With its high capacity, it ensures reliable and consistent performance for your production processes. The biomass burner reduces carbon emissions and promotes eco-friendly energy solutions. Trust the 10tph Biomass Burner Boiler to deliver sustainable and cost-effective heating and steam supply, meeting the specific needs of the pharmaceutical industry and contributing to a greener future.

Automatic biomass bruner boiler, fire tube biomass boiler.
700kw biomass sawdust burner boiler, high efficiency hot water boiler for wood kiln drying.

Optimize your heat generation in the furniture industry with the Automatic Biomass Thermal Oil Heater. Specifically designed for the furniture industry, this thermal oil heater utilizes biomass as a sustainable and renewable fuel source. With its automatic operation, it ensures convenient and hassle-free heat production. The thermal oil system provides consistent and efficient heat transfer for various furniture manufacturing processes. Trust the Automatic Biomass Thermal Oil Heater to deliver reliable and clean heat, improving productivity and reducing environmental impact in the furniture industry. Experience efficient and eco-friendly heating solutions tailored to your furniture manufacturing needs.
