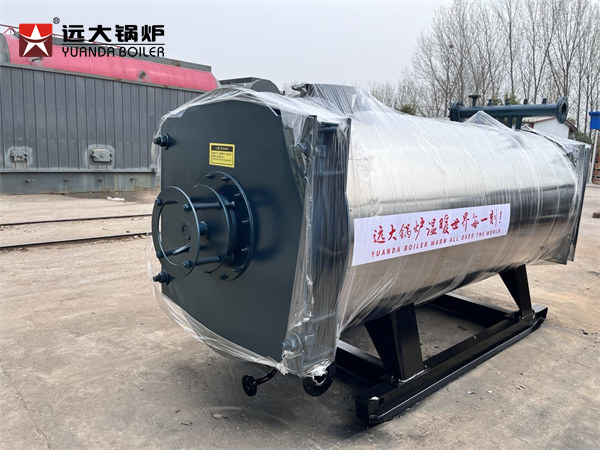

Moldova 550KW Thermal Oil Boiler Gas Fired Boiler Delivery

Yuanda 500kw Electric Thermal Oil Heater Boiler, Heating Thermal Oil 300/280°C. No pollution industrial oil heating system.

The 900kW electric thermal oil boiler provides stable and precise temperature control for plastic extrusion and molding processes in Peru’s plastic industry. Using electricity as a clean energy source, it ensures high efficiency, uniform heating, and zero emissions. Ideal for energy-saving industrial applications requiring continuous heat supply.

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

YGL 2900kW Biomass/Wood Thermal Oil Boiler | High-Temperature Heating System Bangladesh
YGL vertical wood biomass thermal oil heater boiler, manual feeding type, low consumption cost thermal oil heater boiler.

The 5600kW diesel fired thermal oil boiler is designed for chemical plants in Saudi Arabia, providing stable heat at temperatures up to 280°C with an output pressure of 6 bar. This system ensures precise temperature control for reactors, dryers, and chemical processing lines, offering high efficiency, safety, and reliable continuous operation.

YYQL series Vertical gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

YLW series thermal oil heater is horizontal type boiler with coal or biomass as the fuel. The combustion equipment is chain grate. Coal or biomass thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier.

YYQW horizontal coil thermal oil heater boiler 350kw 500kw 700kw 1400kw 2100kw 2800kw 3500kw 4200kw 5600kw 7000kw.

YLW series biomass thermal oil boiler 1400kw, 1200000kcal.
Horizontal chain grate, automatic feeding, thermal oil heating system.

YYQW series horizontal coil heater thermal oil boiler 240kw 350kw 700kw 1050kw 1400kw2100kw 2800kw 3500kw 4200kw 5600kw 7000kw

Elevate your bitumen plant operations with the efficient and reliable Gas Fired Thermal Oil Boiler. Specifically designed for bitumen plants, this boiler utilizes gas as its fuel source to provide precise and consistent heat. With a capacity of 120,0000Kcal, it ensures optimal heat transfer for bitumen production and processing. The Gas Fired Thermal Oil Boiler enhances productivity and efficiency in bitumen plants, delivering clean and efficient heat. Trust this advanced boiler to meet the demanding requirements of bitumen production, ensuring high-quality output. Experience reliable and high-quality heat transfer for your bitumen plant operations.

Yuanda high efficiency thermal oil heater boiler, in horizontal type.
Thermal capacity in 240kw-14000kw 200,000kcal-12000,000kcal.

Small diesel gas fired thermal oil heater boiler, also named thermic fluid heater. 200000kcal thermal capacity 240kw thermal oil boiler for oil mill. Thermal oil heating system, temperature in 250degree.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YY(Q)W series hot oil boiler is horizontal type boiler with oil or gas as the fuel. Thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier, through the circulating pump to transfer the heat to other required heating equipments

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.High operating temperatures can be achieved under very atmospheric conditions. Greatly reduce operating pressure and safety requirements of the high-temperature heating system, improve the reliability of the system and equipment;
2. Satisfy all different temperature heating and cooling process requirements in a wider temperature range, besides, it can achieve the high-temperature heating and low-temperature cooling process requirements by using same heat-conducting oil in same system and same time. Reduce the complexity of system and operation;
3. The water treatment system and equipment are omitted, improve system thermal efficiency, reduce maintenance workload of equipment and pipelines. So that we can reduce the initial investment and operating costs of the heating system;
4. In the case of accidental system leakage, heat-conducting oil and open flame may burn. This is a problem need to pay attention compared to the water vapor system. However, promise there is no leakage, operating under low pressure, its operation safety is higher than that of water and steam systems.

Industrial biomass wood fired thermic fluid heater, automatic feeding chain grate boiler.
Yuanda YLW series horizontal thermic fluid heater 700kw 1400kw 2800kw 3500kw 4200kw 5600kw 7000kw 14000kw 17500kw.

Elevate your heat transfer capabilities with the 1400kw Gas Fired Hot Oil Boiler YYQW Horizontal Boiler. Specifically designed for efficient heat transfer, this horizontal boiler utilizes gas as its fuel source. With a capacity of 1400kw, it provides reliable and consistent heat for various industrial applications. The YYQW design ensures optimal heat transfer efficiency, making it suitable for a wide range of heating processes. Trust the Gas Fired Hot Oil Boiler YYQW Horizontal Boiler to deliver clean and efficient heat, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with this advanced horizontal boiler solution.

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

YY(Q)W series of organic heat carrier boiler is quick-fitting forced circulation fuel oil(gas)boiler,this series boiler’s is compact structure,the heating area is constituted by closed coil pipes from inside(or internal and external),inside coil pipes are the radition heating surface.Fuel in inside theinner coil pipe form the combustion chamber,the fuel burn inside and release heat and absorb most of the quantity of heat after radiation heating,high temperature flue gas transfer heat through convection heating surface,then go into the air preheater (or waste heat boiler) to heat the required air(or water) ,the low temperature flue gas from boiler discharge directly to the chimney then to the atmosphere.

Thermal oil heater advantages
1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

China famous YLW1400 series woodchips woodwaste fired thermal oil boiler, automatic conveyer feeding woodchips to combustion stoker. Thermal oil boiler inner adopt multi loop square coil structure, help improve thermal efficiency.

Yuanda horizontal thermal oil heater boiler, powered by diesel/gas/lpg. Automatic control system with PLC. High efficiency running, low consumption cost.

The Industrial Helical Coil Thermal Oil Heater is a highly efficient and reliable heating system designed for industrial applications that require uniform and precise temperature control. Using thermal oil as the heat transfer medium, it provides indirect heating at temperatures up to 200–350°C under low operating pressure. The heater features a helical coil structure, ensuring optimal heat transfer, compact design, and long service life. It is widely used in industries such as chemical, textile, food, plywood, bitumen, and oil processing.

Caldera de aceite termico Calentador de fluido termico por diesel, gas, electricidad, carbon de biomasa de madera

YGL vertical wood biomass thermal oil heater boiler, manual feeding type, low consumption cost thermal oil heater boiler for plywood industry indonesia.

Two 1800 kW vertical gas-fired thermal oil boilers supplied for a lubricant oil manufacturing plant in Peru, providing stable and efficient high-temperature heat for industrial processes.

Yuanda Biomass Wood Fired Thermal Oil Heater Boiler 17500kw 25ton 15million kcal.
Semi-assembly delivery to Vietnam,

Project: Vertical thermal-oil heating boiler for reactor heating, producing alkyd in Nigeria
Yuanda YYQL series vertical thermal oil boiler.
Fuel: diesel lpg gas oil
Capacity: 1400kw, 1200,000kcal

thermal oil heater coil,coil oil boiler,hot oil boiler

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Thermal oil heater by gas, diesel, lpg.
YYQW horizontal thermal oil heater boiler, high efficiency hot oil heating system.
1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

Optimize your textile dyeing processes with the efficient and reliable 2100kw Thermic Fluid Heater. Specifically designed for textile dyeing applications, this heater provides efficient heat transfer using thermic fluid as the medium. With its 2100kw capacity, it meets the heat requirements of textile dyeing processes, ensuring precise and consistent temperature control. The Thermic Fluid Heater enhances productivity and efficiency in textile dyeing, delivering clean and efficient heat transfer. Trust this advanced heater to meet the demanding requirements of textile dyeing, ensuring high-quality results. Experience reliable and high-quality heat transfer for your textile dyeing operations.

The Thermic Fluid Heater enhances productivity and efficiency in rubber products productions, delivering clean and efficient heat transfer. Trust this advanced heater to meet the demanding requirements of heating, ensuring high-quality results. Experience reliable and high-quality heat transfer for yourrubber products productions process.

Industrial electric thermal oil heater boiler 10kw-1000kw

YY(Q)W series gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.
