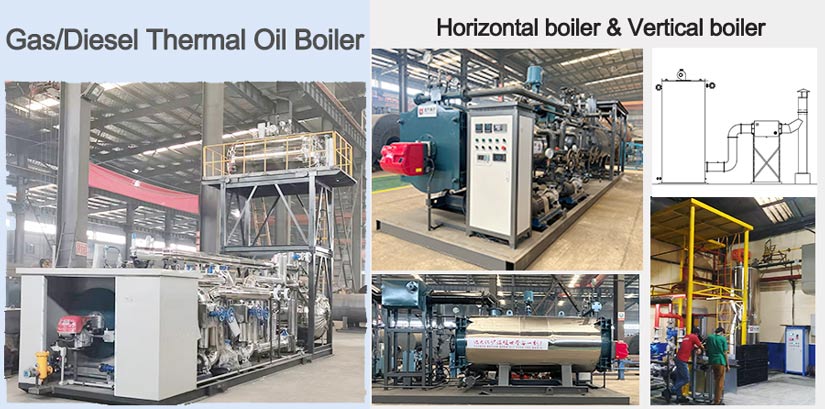

Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
  • Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
  • Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
  • Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
  • Gas/Oil fired thermal oil boiler, diesel thermal oil boiler
  • Gas/Oil fired thermal oil boiler, diesel thermal oil boiler

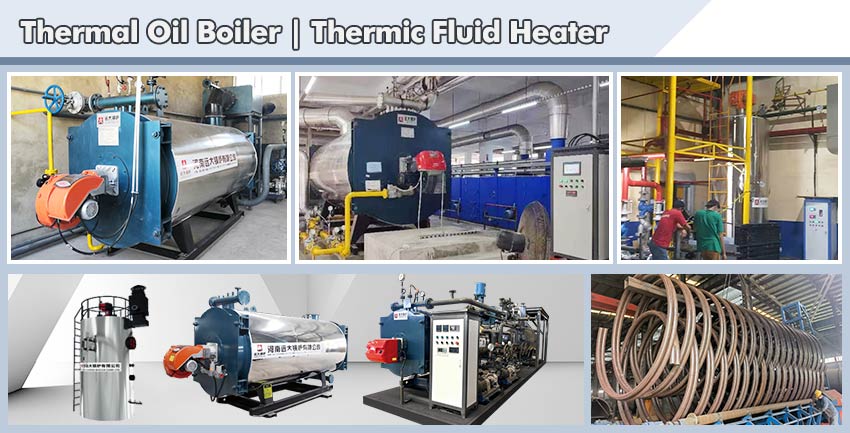

Gas/Oil Fired Thermal Oil Boiler

  • Capacity:200kw-14000kw; 200,000kcal-12,000,000kcal
  • Heating temperature:0-360°C
  • Fuel:Natural gas, lpg, diesel, heavy oil, exhaust gas, dual fuel, etc
  • Industry:Textile, wood products, rubber, buildings material, heating tank...
  • Features:YYQW horizontal thermal oil boiler / circulating oil system boiler / 200kw-14000kw thermal oil boiler / three-coil oil heater
Get price Send Message
Introduction

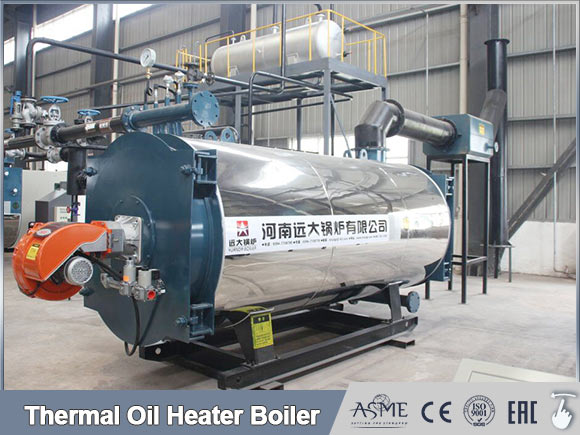

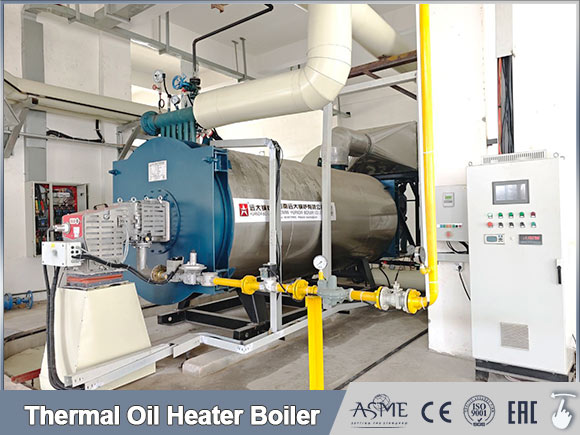

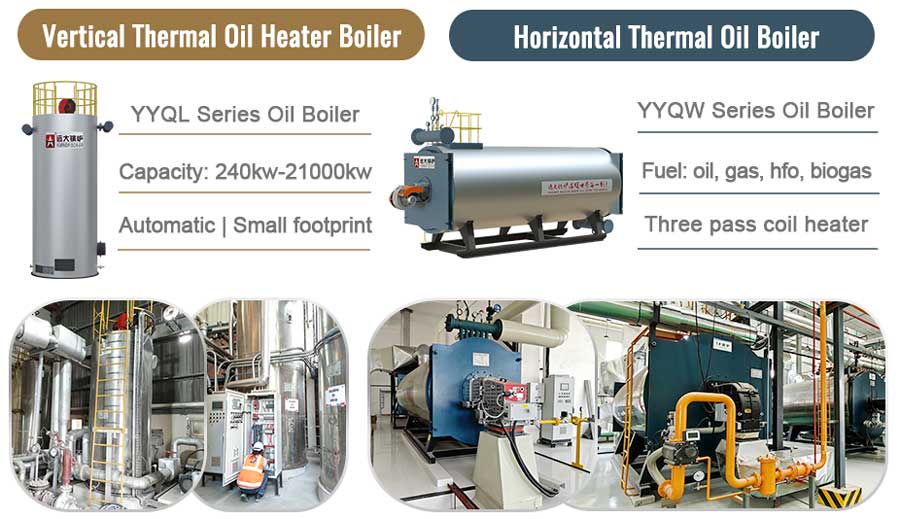

Plan A  YYQW Horizontal  gas oil thermal oil boiler

YYQW thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil. Explain how boiler heating oil circulately as following:

1. Feeding tansfer oil into boiler through oil-gas seperator powered by oil-pump.

2. Full-oil boiler, cold oil will stay forced circulating for 6-8Hours, sametime exhaust the gas in oil.

3. Then running thermal oil boiler, deliver the heat between heating equipment and boiler. It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

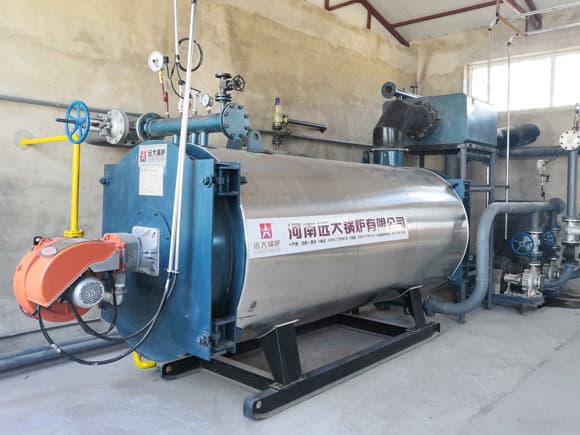

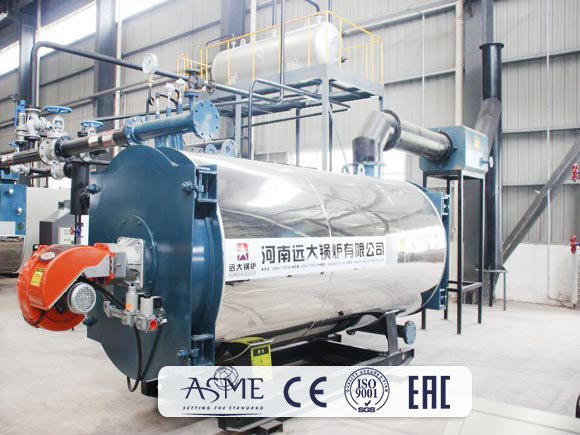

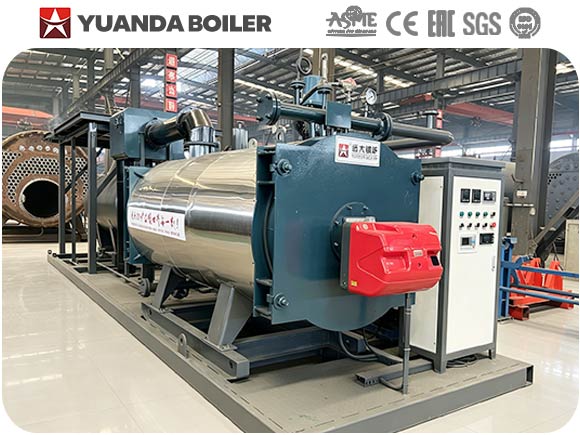

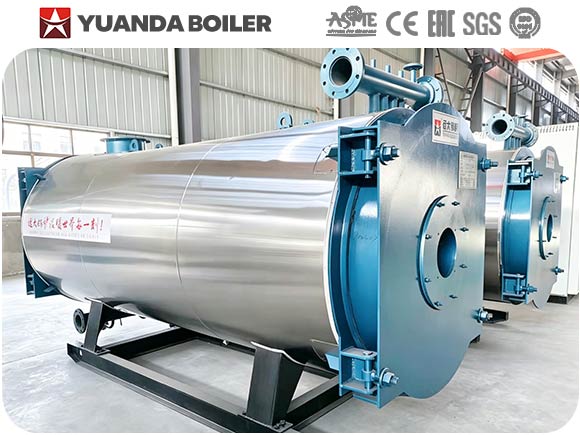

horizontal thermal oil boilergas thermal oil boiler

1. It is easy and convenient to install the boiler, only setting the boiler on the foundation.

2. Heating surface formed by round coils, reducing thermal load of tubes surface, ensure safety.

3. Furnace dimensions matching with combustion flame, positive pressure combustion,high radiation heat efficiency.

4. Coil pipe, thermal oil boiler structure is compact, saving the floor area of boiler room.

5. An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

Gas/Oil fired thermal oil boiler, Hot Oil Heater Boiler Gas/Oil fired thermal oil boiler, Hot Oil Heater Boiler

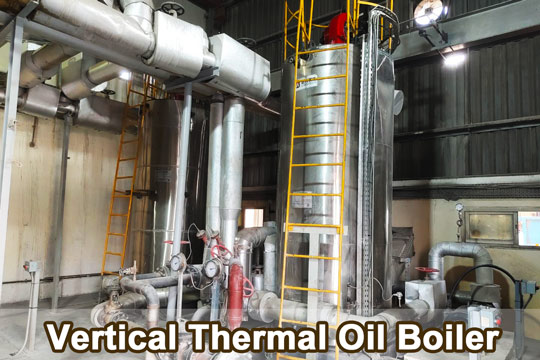

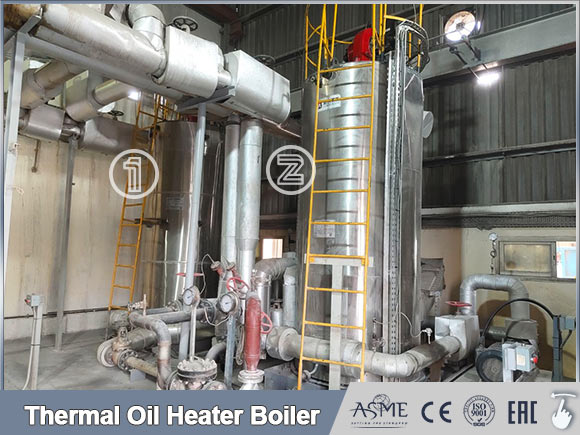

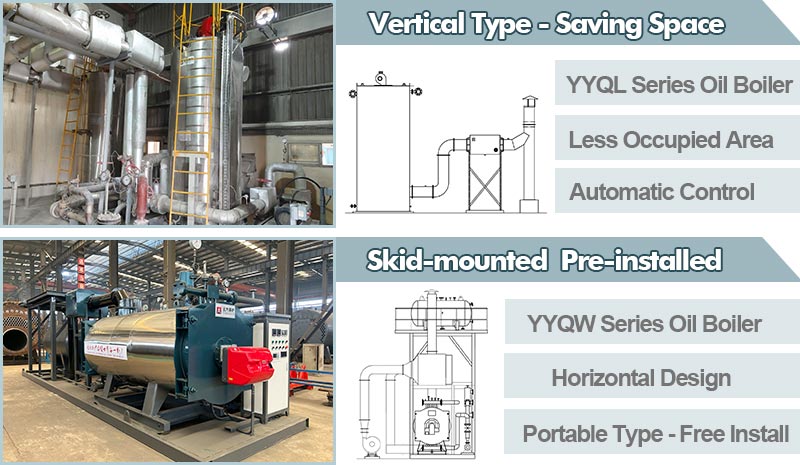

Plan B  YQL Vertical  gas oil thermal oil boiler

YQL thermal oil boiler, its vertical type, help saving boiler room area, heating coil three pass structure, boiler body is composed of outer oil, middle oil, inner oil and rear oil.

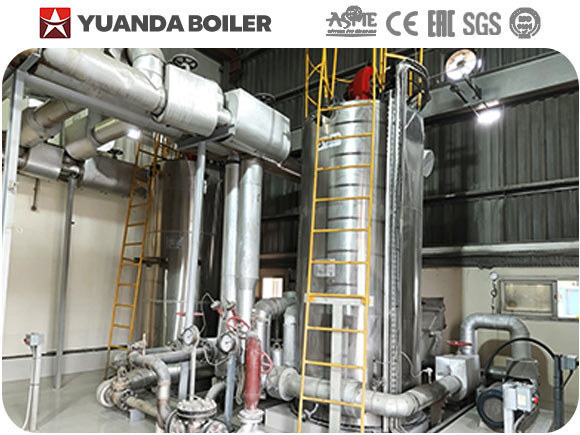

vertical thermal oil boiler

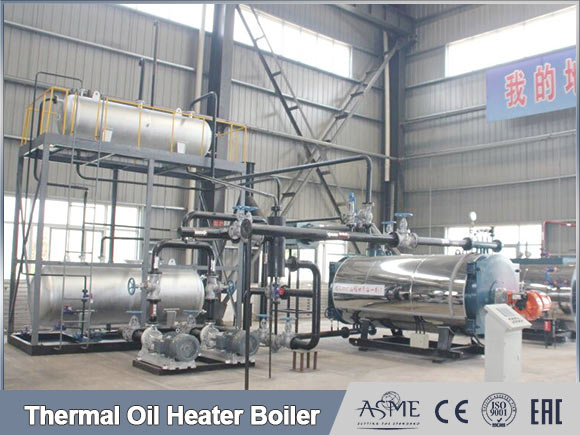

Thermal Oil Heater Boiler Unit Equipment List
Boiler Body Oil Storage Tank Oil Expansion Tank Oil Gas Separator PLC Control Panel
Gas/Oil Burner Oil Circulating Pumps Flue Gas Pipe & Chimney Economizer Gauges & Valves & Instrument
PS: If you need price list for all items, ask by shirley@yuanda-boiler.com

You may like

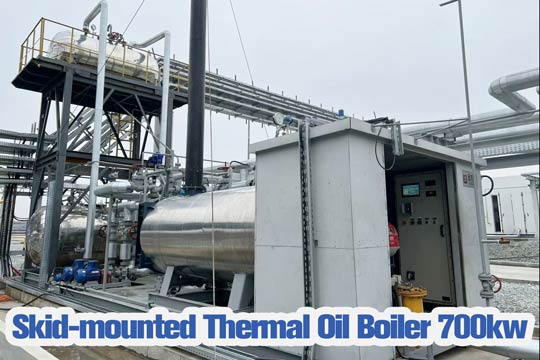

vertical wood oil heater boiler  portable skid-mounted oil heater boiler

vertical wood thermal oil boiler

Why Choose Us ?

1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.

2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.

3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.

4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.

Global Boiler Service

1. Offer catalogue, various boiler model for choose, inquire one you prefer.

2. Technical discussion on boiler system solution for your company use.

3. Warmly welcome all customers come to visit the production base

4. Trustable after sale service, for boiler installation, training operators.

5. Whole life service for boiler consult, contact us whenever.

gas oil boilercoal boiler

We are one of the leading enterprises which first obtained the national boiler manufacturing license in China. Until 2019, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !

Parameter
Model Rated power(KW) Rated pressure (Mpa) Thermal oil temperature(℃) Thermal efficiency(%) Fuel comsumption max transportation weigh(t)
light diesel oil(kg/h) natural gas(Nm³/h)
YY(Q)W-700Y(Q) 700 0.8/1.0 250-320 >96 61.3 73.6 3
YY(Q)W-1400Y(Q) 1400 0.8/1.0 250-320 >96 122.6 147.1 4
YY(Q)W-3000Y(Q) 3000 0.8/1.0 250-320 >96 249.2 296.4 10
YY(Q)W-3500Y(Q) 3500 0.8/1.0 250-320 >96 305.6 366.8 10.2
YY(Q)W-4200Y(Q) 4200 0.8/1.0 250-320 >96 367.5 436.6 16.5
YY(Q)W-5600Y(Q) 5600 0.8/1.0 250-320 >96 489.6 586.8 23.6
YY(Q)W-7000Y(Q) 7000 0.8/1.0 250-320 >96 612.3 726.9 28
Note: Parameter is for reference only, if any changes should follow the factory technical data.
