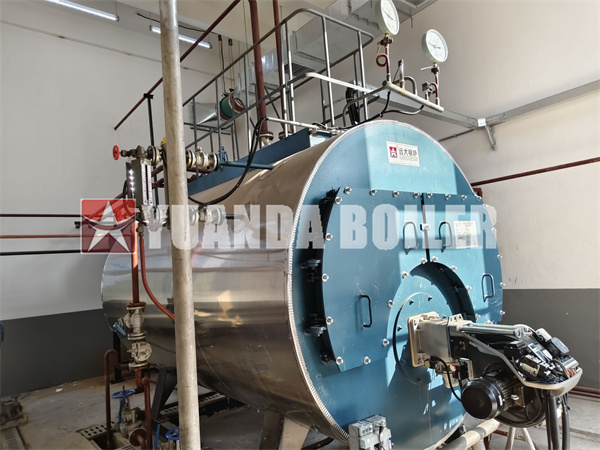

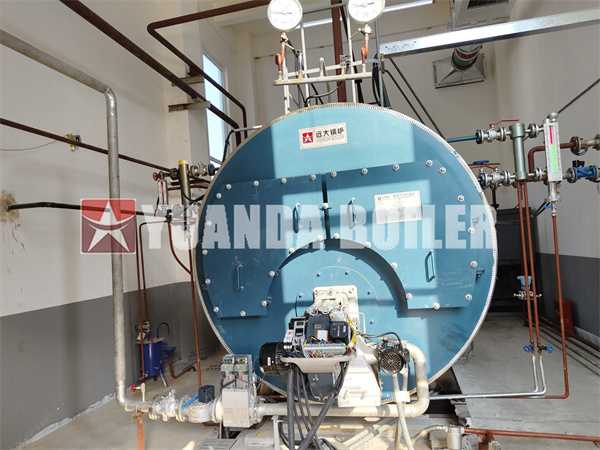

2Ton Biogas Fired Steam Boiler Fire Tube Horizontal Three Pass Biogas Steam Boiler 2000kg

YYQL series Vertical gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

Small 500kg gas steam boiler, LHS Series ASME Certified High Quality Gas Steam Boiler Deliver To America

Horizontal fire tube three pass wet back structure boiler, high efficiency low cost steam boiler.

0.5TON-20TON Fire tube oil gas steam boiler, with high efficiency, full-automatic system with PLC control, low NOx emission environmental friendly.

800KG/HOUR exhaust gas steam generator boiler, design for diesel turbine exhaust gas reuse.
Reuse waste heat (exhaust gas) to heat water, generating hot water or steam.

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

The 5600kW diesel fired thermal oil boiler is designed for chemical plants in Saudi Arabia, providing stable heat at temperatures up to 280°C with an output pressure of 6 bar. This system ensures precise temperature control for reactors, dryers, and chemical processing lines, offering high efficiency, safety, and reliable continuous operation.

Yuanda WNS series high efficiency steam boiler oil gas fired boiler.
Capacity: 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 12ton 15ton 20ton.

3Ton fire tube steam boiler has been successfully installed at a food processing factory in Indonesia.
The three-pass wet-back design ensures high thermal efficiency, stable steam production, and low fuel consumption. This installation will significantly improve the plant’s production capacity, providing reliable and clean steam for cooking, sterilization, and other food processing operations.

30Ton water tube oil gas fired boiler, double drums d type boiler.

2sets 10Ton Steam Boiler Diesel/Gas Power Boiler With Advantages High Efficiency, Low Running Cost, Low NOx emission.

Industrial water tube structure steam generator boiler, waste heat exhaust gas steam boiler 4000kg/hour.

2sets 10Ton Steam Boiler Diesel/Gas Power Boiler With Advantages High Efficiency, Low Running Cost, Low NOx emission.

ASME Certificated Gas Oil Fired fire tube steam generator boiler delivery to Costa Rica.
WNS series high efficiency steam boiler oil gas fired boiler. Capacity: 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 12ton 15ton 20ton.

LHS Series vertical type steam boiler is equipped with high-quality pressure relief valve, water level electrode, water level gauge, pressure gauge, pressure controller, and other accessories to ensure boiler’s reliable operation.

0.5TON-20TON Fire tube oil gas steam boiler, with high efficiency, full-automatic system with PLC control, low NOx emission environmental friendly.

0.5ton-20ton/h Fire Tube Steam Boiler Diesel/Gas Power Boiler With Advantages High Efficiency, Low Running Cost, Low NOx emission.

Each 1800kw Horizontal fire tube gas heating boiler, industrial gas vacuum hot water boiler for hotel buildings central heating.

YYQW series horizontal coil heater thermal oil boiler 240kw 350kw 700kw 1050kw 1400kw2100kw 2800kw 3500kw 4200kw 5600kw 7000kw

Poly Group Factory Indonesia, successfully runnning the 6ton/hour diesel lpg gas fired steam boiler. and one set 2100kw diesel gas fired thermal oil heater boiler.

Yuanda YYQW Horizontal type diesel/gas/lpg fired thermal oil boiler 350kw 500kw 700kw 1400kw 2100kw 2800kw 3500kw 4200kw 5600kw 7000kw 14000kw.
ASME qualified thermal oil boiler deliver to Malaysia.

Steam Boiler purchased by Chile customer in 2017.

Spining Screw Factory use steam boiler as an important role during the productions process, steam supply heat energy for help drying, etc.

Yuanda WNS series high efficiency steam boiler 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 12ton 15ton 20ton.

0.5TON-20TON Fire tube oil gas steam boiler, with high efficiency, full-automatic system with PLC control, low NOx emission environmental friendly.

20Ton Fire Tube Steam Boiler Diesel/Gas Power Boiler With Advantages High Efficiency, Low Running Cost, Low NOx emission.

WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
1. Model:WNS
2. Capacity:500kg/h-20ton/h
3. Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)
4. Stem temperature:below 224 degree
5. Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil
6. Structure: three pass fire tube wet back

WNS fire tube steam boiler and hot water boiler.

Portable 10 ton steam generator boiler had been successfully supplied to a client in Chile. Providing a reliable and flexible steam solution for industrial production.

Industrial biogas fired steam boiler 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 15ton 20ton

Yuanda WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology, equipped with international first-level brand burners and valve groups, and independently developed high-matching PLC control system to realize muitiple linkages. The lock protection function protects the equipment running safely.

Advantages
1. 100% Safety Control Boiler & Strict Boiler Quality Control
2. Energy Saving & High Efficiency
3. High Quality Steam-Wetness Below 1%

Boiler Auxiliaries
1. Burner: We use stable brand burner, we have closed cooperation with Baltur, Riello, Unigas, Oilon etc.
2. Economizer: Recycle exhausted smoke to heat feed water, increase 40 ℃ to the feed water before boiler, reduce exhausted smoke temperature below 95 ℃, save fuel at least 6% per hour
3. Control panel: PLC program system + 10” Touch Screen | Voice function | Designed with converter to save electricity | With protection devices for overheating, overpressure, lacking water, gas leak detection, flameout etc.
4. Valves & Gauges: Pressure transmitter | Danmark brand Pressure Controller | Pressure Gauge | Electric Connecting Pressure Gauge
5. Feeding Water Pump: Offer 2 sets Vertical stainless type, China Top No. brand of CNP

WNS fire tube boiler, WNS means horizontal type furnace combustion boiler with gas/oil burner. Its fire-tube boilers and flue gas three pass boiler, special wet back structure make sure long using lifespan.
Horizontal package shell boiler / fire tube boiler / gas diesel oil burner boiler / automatic steam or hot water boiler / portable boiler

YY(Q)W series hot oil boiler is horizontal type boiler with oil or gas as the fuel. Thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier, through the circulating pump to transfer the heat to other required heating equipments

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.High operating temperatures can be achieved under very atmospheric conditions. Greatly reduce operating pressure and safety requirements of the high-temperature heating system, improve the reliability of the system and equipment;
2. Satisfy all different temperature heating and cooling process requirements in a wider temperature range, besides, it can achieve the high-temperature heating and low-temperature cooling process requirements by using same heat-conducting oil in same system and same time. Reduce the complexity of system and operation;
3. The water treatment system and equipment are omitted, improve system thermal efficiency, reduce maintenance workload of equipment and pipelines. So that we can reduce the initial investment and operating costs of the heating system;
4. In the case of accidental system leakage, heat-conducting oil and open flame may burn. This is a problem need to pay attention compared to the water vapor system. However, promise there is no leakage, operating under low pressure, its operation safety is higher than that of water and steam systems.

100kg, 200kg, and 300kg diesel/gas steam generator boilers designed for distillation systems. Ideal for essential oil extraction, alcohol distillation, herbal distillation, and small industrial processing. Fast steam output, low fuel consumption, easy installation, and stable performance for continuous distillation operations.

China industrial gas hot water boiler for central heating application, automatic fire tube hot water heater boiler for buildings heating. Low NOx heating boiler for warehouse central heating.

This series boiler is three return fire tube steam boiler. It is equipped with good performance burner and advanced techniques. The burning control, water feed, programs run, etc, is full automatic. This fantasy boiler is safe and reliable, and also has the advantage of compact structure, simple operation, easy installation, high efficiency, less pollution and noise,etc.

SZS water tube steam boiler, double drums boiler with water membrane wall structure.

Yuanda WNS series high efficiency steam boiler 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 12ton 15ton 20ton.

Yuanda WNS series high efficiency steam boiler 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 12ton 15ton 20ton.

1400KW thermal heat, 1200000kcal fuel oil powered thermic fluid heater, working in chemical industry.

Poly Group Factory Indonesia, successfully runnning the 6ton/hour diesel lpg gas fired steam boiler. and one set 2100kw diesel gas fired thermal oil heater boiler.

Optimize your rubber gloves production line with the efficient and reliable 3M Kcal Thermal Oil Boiler. Specifically designed for rubber gloves production, this boiler utilizes thermal oil as the heat transfer medium. With a capacity of 3M Kcal, it provides precise and consistent heat for various stages of the production process. The Thermal Oil Boiler ensures efficient and reliable heat transfer, enabling optimal quality and production efficiency in rubber gloves manufacturing. Trust this advanced boiler to deliver clean and efficient heat, enhancing productivity and meeting the specific requirements of the rubber gloves production line. Experience reliable and high-quality heat transfer for your rubber gloves production operations.

Fire Tube Hot Water Boiler 350kw 700kw 1050kw 1400kw 2100kw 2800kw 3500kw 4200kw 5600kw 7000kw 14000kw

Upgrade your steam generation capabilities with the efficient and reliable SZS Series Gas Fired Boiler. This water tube boiler is designed to provide optimal performance for a wide range of applications. With its gas-fired operation, it ensures cost-effectiveness and reduced environmental impact. The 25Tph capacity meets the demands of various industrial processes. The water tube design maximizes heat transfer efficiency, ensuring efficient and reliable steam generation. Trust the SZS Series Gas Fired Boiler to deliver consistent and clean steam, enhancing productivity and efficiency in your operations. Experience reliable and high-quality steam with this advanced water tube boiler solution.

Elevate your bitumen plant operations with the efficient and reliable Gas Fired Thermal Oil Boiler. Specifically designed for bitumen plants, this boiler utilizes gas as its fuel source to provide precise and consistent heat. With a capacity of 120,0000Kcal, it ensures optimal heat transfer for bitumen production and processing. The Gas Fired Thermal Oil Boiler enhances productivity and efficiency in bitumen plants, delivering clean and efficient heat. Trust this advanced boiler to meet the demanding requirements of bitumen production, ensuring high-quality output. Experience reliable and high-quality heat transfer for your bitumen plant operations.

Компания Yuanda Boiler поставляет промышленные паровые котлы, водогрейные котлы, термомасляные котлы. Компания Yuanda Boiler сертифицирована по стандарту EAC.

Yuanda boiler company since 1956, qualified with ISO CE ASME EAC Certificates.
