Gas/Oil Boiler (fire tube boiler)
- Capacity：0.5-50t/h, 350-28000kw
- Horsepower：30hp-3000hp(bhp)
- Pressure：0-3.8Mpa, 0-38Bar
- Fuel：Natural gas, lpg, diesel, heavy fuel oil, crude oil, dual fuel, exhaust gas

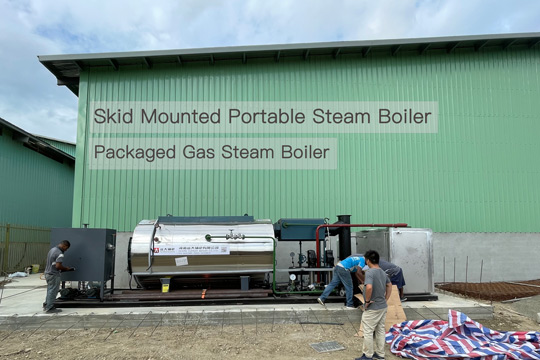

- WNS series：Horizontal package shell boiler / fire tube boiler / gas diesel oil burner boiler / automatic steam or hot water boiler / portable boiler

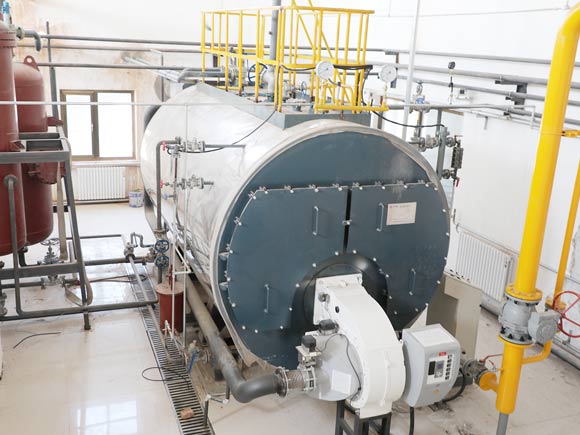

WNS horiontal fire tube steam (hot-water) boiler
(use gas, diesel, lpg, heavy oil, dual fuel, exhaust gas)
WNS fire tube boiler, WNS means horizontal type furnace combustion boiler with gas/oil burner. Its fire-tube boilers and flue gas three pass boiler, special wet back structure make sure long using lifespan.
Advantages WNS boiler features
1. 100% Safety Control Boiler & Strict Boiler Quality Control
1)All welding strictly meet the requirements of China NB/T 47014(JB/T 4708)
2)Anti Dry Heating Control System with double safety valves, double water level gauges, double secure of safe operation
3)With explosion-proof door with fire viewer, If burner failure ignition, this door can release the pressure out, protect the damage to welding parts
2. Energy Saving & High Efficiency
1)Spiral fire tube, the advanced technology, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing
2)Spirally corrugated furnace & Wet back structure, increased 10% heating area, avoid damaged by heat expansion, reduce the back tube sheet temperature and protect it from cracking
3. High Quality Steam-Wetness Below 1%
1) We equip a steam separation under the steam output port.
2)With continuous water feed function,Make the water level is stable instead of big differences
3)Bigger water tank design, boiler with bigger water volume and bigger steam space
Remark Boiler Auxiliaries
1. Burner: We use stable brand burner, we have closed cooperation with Baltur, Riello, Unigas, Oilon etc.
2. Economizer: Recycle exhausted smoke to heat feed water, increase 40 ℃ to the feed water before boiler, reduce exhausted smoke temperature below 95 ℃, save fuel at least 6% per hour
3. Control panel: PLC program system + 10” Touch Screen | Voice function | Designed with converter to save electricity | With protection devices for overheating, overpressure, lacking water, gas leak detection, flameout etc.
4. Valves & Gauges: Pressure transmitter | Danmark brand Pressure Controller | Pressure Gauge | Electric Connecting Pressure Gauge
5. Feeding Water Pump: Offer 2 sets Vertical stainless type, China Top No. brand of CNP
Related products: vertical fire tube boiler | portable boiler | thermal oil boiler | gas fired hot oil boiler
Why Choose Us ?
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
Global Boiler Service
1. Offer catalogue, various boiler model for choose, inquire one you prefer.
2. Technical discussion on boiler system solution for your company use.
3. Warmly welcome all customers come to visit the production base
4. Trustable after sale service, for boiler installation, training operators.
5. Whole life service for boiler consult, contact us whenever.
6. Until 2020, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !
| WNS Series Steam Boiler Technology Parameter Table |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Boiler model
|
Rated capacity |
Rating pressure |
Feed temperature |
Steam temperature |
Active grate area | Thermal efficiency |
Weight | Dimensions | ||||
| Light oil |
Heavy oil |
Natural gas |
Liquid gas |
City gas |
||||||||
| t/h | MPa | ℃ | ℃ | Kg/h | Kg/h | m3/h | m3/h | m3/h |
% |
Ton | mm | |
| WNS1-1.0-Y(Q) |
1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 29 | 176 | 91 | 4.3 | 3561×1690×1910 |
| WNS 2-1.25- Y(Q) |
2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 57.3 | 346 | 92 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-Y(Q) |
3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 82 | 510 | 92.1 | 8 | 4330×2248×2564 |
| WNS4-1.25- Y(Q) |
4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 109 | 682 | 93 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- Y(Q) |
5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 140 | 87 | 93 | 12.5 | 5970×2360×2796 |
| WNS6-1.25- Y(Q) |
6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 164 | 1020 | 93.2 | 16.5 | 5500×2600×2990 |
| WNS8-1.25- Y(Q) |
8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 209 | 1321 | 93.5 | 24.8 | 6450×2800×3200 |
| WNS10-1.25- Y(Q) |
10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 264 | 1654 | 93.5 | 26.8 | 6800×2900×3394 |
| WNS15-1.25- Y(Q) |
15 | 1.25 | 105 | 194 | 940 | 965 | 1182 | 400 | 2417 | 93.5 | 38 | 7150×3200×3540 |
| WNS20-1.25- Y(Q) |
20 | 1.25 | 105 | 194 | 1250 | 1301 | 1597 | 520 | 3299 | 93.5 | 55 | 8200×3400×3826 |
