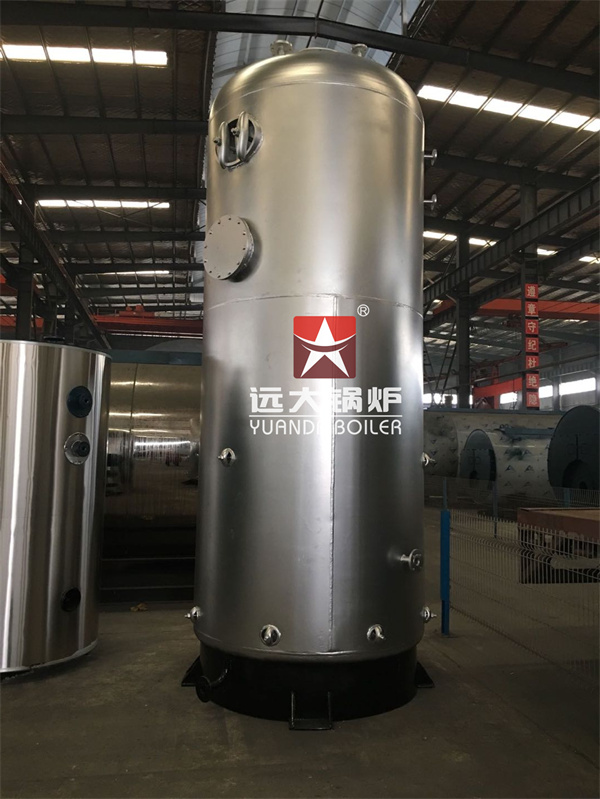

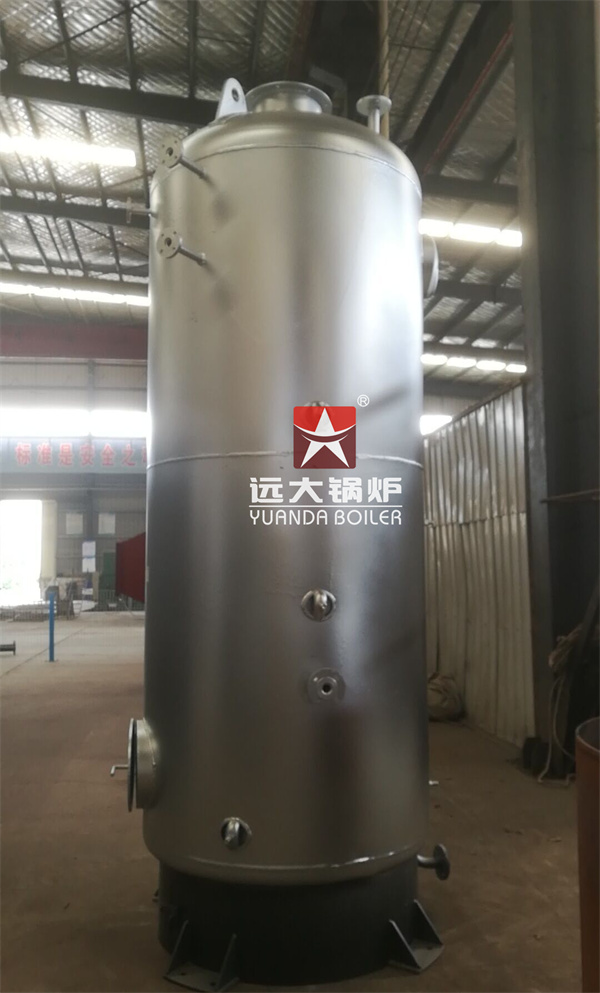

Vertical Cross Tube Coal Boiler for Textile, Laundry & Food Factory

dzl biomass steam boiler,chain grate biomass boiler 4ton,china biomass fired boiler

DZL Biomass Fired Boiler advantages

1. Reliable Operation:
The heating surface of boiler is reasonably settled, the water circulation fluent, to ensure that each heating furnace cool down timely, and ensure the boiler running safety.

2. Easy Maintenance:
The top of boiler barrel set manhole, serviceman can enter to inspect and maintain. The front smoke box easy to open, serviceman can easy and clear inspect, provide excellent conditions for correctly handle.

3. Full Combustion:
In the cooperation of blower, and reasonable design of furnace structure, the fuel can be fully burning, can remove the black smoke effectively.

4. High Efficiency Grate:
Boiler grate use matching coal fuels grate, avoid the problem of air leakage, fuel leakage and uneven ventilation, and easy operation, have lots of advantages compared to traditional grate.

5. Easy to Remove Ash:
Set several remove ash hole on boiler, can remove ash timely and efficiently, to avoid ash deposition in boiler making the boiler running is affected or thermal efficiency is dropped etc. To ensure stability of boiler loading.

6. High Security:
Feed water system adopt computer controlling, automatic feed water. Equip with water lack protection and over pressure protection devices, security and reliable.

7. Long Life and Durable:
Excellent professional design, advanced production processes, strict quality inspection control, is the quality assurance of each boiler, the service life of normal use boiler all above 20 years.

8. Environmental Protection and Low Noise:
The boiler smoke is low emission, and equip with high efficiency dust remove device at boiler end, low noise fans, to make the smoke emission reach to nation environmental protection requirements.

Chaudière à biomasse à tubes d’eau série SZL SZW, Elle est dotée d’un four à double tambour décalé (disposition D ou A) et d’une structure à membrane à paroi d’eau. Elle utilise un dispositif de combustion parfaitement adapté à la biomasse. Cette chaudière présente les avantages d’une technologie de pointe, d’une protection de l’environnement et d’une économie d’énergie.
Types d’appareils à combustion : grille à chaîne, grille mobile, grille à gradins alternatifs, lit fluidisé bouillonnant, grille fixe basculante

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

YGL series vertical type wood/biomass thermal oil boiler.

SZL biomass steam boiler 6ton & 8ton, deliver to bangladesh, for textile factory.
Water tube structure double drums steam boiler, with high efficiency.
Yuanda industrial biomass steam boiler 1ton 2ton 4ton 6ton 8ton 10ton 15ton 20ton.

Industrial wood biomass coal solid fuel fired boiler, chain grate boiler, travelling grate boiler, fixed grate boiler, reciprocating grate boiler.
Steam Boiler, Hot Water Boiler, Thermal Oil Boiler.

Vertical cross tube boiler, burning coal, charcoal, wood.
Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, water tubes cross tubes (convection tubes) etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.
Compact vertical cross tube boiler design with coal or wood firing, suitable for small factories requiring stable steam output. Fast heating, low installation space, and easy manual operation. Ideal for food, textile, and workshop applications.

The 2000kg steam generator boiler adopts automatic control and high-efficiency combustion technology. It’s an energy-saving solution for medium-size production lines.

Caldera de Biomasa Lena Madera Bagazo, Caldera para biomasa fibra de palma, Caldera Combustible Solido

LSS series water tube steam generator steam boiler.
Industrial wood biomass fired steam generator boiler 100kg 200kg 300kg 500kg 1000kg 1500kg 2000kg.

Automatic biomass bruner boiler, fire tube biomass boiler.
700kw biomass sawdust burner boiler, high efficiency hot water boiler for wood kiln drying.

SZL biomass steam boiler 6ton & 8ton, deliver to bangladesh, for textile factory.
Water tube structure double drums steam boiler, with high efficiency.
Yuanda industrial biomass steam boiler 1ton 2ton 4ton 6ton 8ton 10ton 15ton 20ton.

The boiler is mainly based on manual feeding mode, and a purge feeding device can be added. It is suitable for burning rice husks, melon seed shells, sunflower seed shells, and peanut shells.

DZH boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. Most important, the combustion fixed chain grate can also suit any kind of biomass. The small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

China industrial biomass wood fired boiler, with reciprocating grate stoker. 1ton-75ton biomass fired boiler for all industries production heat and power generation.

Vertical cross tube boiler, burning coal, charcoal, wood.
Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, water tubes cross tubes (convection tubes) etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.
vertical coal boiler with cross tube heat exchange, delivering stable steam for dyeing, washing, sterilizing, and processing. Low fuel consumption and long working life.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

DZH series manual coal/wood/biomass fired boiler, travelling grate boiler. Inner water-tubes & fire-tubes design.

YLW Horizontal wood/biomass thermal oil boiler.
Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

Thermal oil boiler could instead steam boiler for industrial production, to improve productivity. Yuanda thermal oil boilers are widely used for petroleum chemical industry, Oleochemical industry, Synthetic fiber industry, textiel printing and dyeing industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food indstry, electrical equipment industry, coking industry, etc.

20ton biomass fired steam boiler, delivery to Pakistan. Biomass Steam Boiler For Textile Factory.
SZL water tube coal/biomass chain grate boiler 2ton 4ton 6ton 8ton 10ton 12ton 15ton 20ton 25ton 30ton.

Industrial biomass fired steam boiler 4ton per hour, with reciprocating grate combustion stoker.
Automatic feeding biomass boiler in pet food factory.

Industrial Bagasse Boiler For Electricity Power Generation

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

DZH series stoker boiler is manual feeding type, burning coal, wood, biomass, solid waste. Suitable capacity is 1ton to 8ton.
travelling grate boiler,wood steam boiler,biomass steam boiler.

Industrial biomass wood fired thermic fluid heater, automatic feeding chain grate boiler.
Yuanda YLW series horizontal thermic fluid heater 700kw 1400kw 2800kw 3500kw 4200kw 5600kw 7000kw 14000kw 17500kw.

Thermal oil boiler(also called organic heat carrier furnaces) generally use coal, oil, and gas as fuels, take heat-conducting oils as the medium, force liquid to circulate in the liquid medium by using oil circulation pump, transferring heat energy to the heating equipment, then heat-conducting oil return to furnace and reheating.Boiler can reach high temperature at low pressure,control medium operating in high-precision.

Yuanda Biomass Wood Fired Thermal Oil Heater Boiler 17500kw 25ton 15million kcal.
Semi-assembly delivery to Vietnam,

DZL chain grate biomass boiler 1ton 2ton 3ton 4ton 6ton 8ton 10ton, automatic biomass feeding steam boiler.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

Chain Grate Stoker Boiler 1ton 2ton 3ton 4ton 6ton 8ton 10ton 15ton 20ton.

Vietnam Project Reciprocating Grate Biomass Boiler Water Tube Boiler SZW Series, Wood Biomass Burning Boiler For Wood Drying

The small coal/biomass fired steam boiler offers a traditional heating solution with stable steam output. Easy to operate and maintain, it’s ideal for small-scale manufacturing and processing plants.

Vertical Coal/Wood Boiler
Vertical boiler, it burn coal, charcoal, wood, pellets. Used as steam boiler, hot water boiler for heating.
Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, horizontal water tube, vertical tube, convection tubes etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.

Vietnam Project Reciprocating Grate Biomass Boiler Water Tube Boiler SZW Series, Wood Biomass Burning Boiler For Wood Drying

High quality control
In manufacturing processes, we has adopting steel strength test, automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test,etc, to make sure all finished products is qualified.

Biomass steam boiler, Biomass hot water boiler, Biomass thermal oil boiler.
Types: Chain grate boiler, Reciprocating grate boiler, Fixed grate boiler, travelling grate boiler, Bubbling bed boiler, Fluidized bed boiler.

China dzl series biomass fired steam boiler with chain grate stoker, 1ton 2ton 4ton 6ton 8ton 10ton 15ton 20ton chain grate biomass boiler.

Industrial biomass pellet boiler, small scale hot water boiler 70kw 150kw 200kw 300kw 350kw 500kw 700kw 1000kw 1400kw.

Yuanda DZL series water tube & fire tube boiler, with single drum. Automatic feeding or manual feeding coal wood biomass soild fuel boiler.

DZH series stoker boiler is manual feeding type, burning coal, wood, biomass, solid waste. Suitable capacity is 1ton to 8ton.

Vertical cross tube boiler, burning coal, charcoal, wood.
Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, water tubes cross tubes (convection tubes) etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.

2000kg 2ton manual feeding coal biomass fired steam boiler in bangladesh textile garments factory

DZH series wood biomass coal fired steam boiler travelling grate boiler, single drum water-tube fire-tube boiler. 1ton 2ton 4ton 6ton 8ton Biomass Fired Steam Boiler.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

Upgrade your central heating system with the containerised biomass hot water central heating boiler. Designed for efficiency and sustainability, this boiler utilizes biomass as its energy source, reducing environmental impact. With its containerized design, it offers easy transportation and installation, making it an ideal solution for projects in Hungary. Enjoy reliable and eco-friendly hot water supply for your central heating needs. Trust the containerised biomass hot water central heating boiler to deliver efficient and environmentally-friendly heating solutions for your home or commercial space.

Vertical cross tube boiler, burning coal, charcoal, wood.
Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, water tubes cross tubes (convection tubes) etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.

300kg 500kg 1000kg 1500kg 2000kg steam generator boiler, adopts automatic control and high-efficiency combustion technology. It’s an energy-saving solution for medium-size production lines.

LSS series water tube steam generator steam boiler.
Industrial wood biomass fired steam generator boiler 100kg 200kg 300kg 500kg 1000kg 1500kg 2000kg.

LSS series water tube steam generator steam boiler.
Industrial wood biomass fired steam generator boiler 100kg 200kg 300kg 500kg 1000kg 1500kg 2000kg.

Chaudière à biomasse à tubes d’eau série SZL SZW, Elle est dotée d’un four à double tambour décalé (disposition D ou A) et d’une structure à membrane à paroi d’eau. Elle utilise un dispositif de combustion parfaitement adapté à la biomasse. Cette chaudière présente les avantages d’une technologie de pointe, d’une protection de l’environnement et d’une économie d’énergie.
Types d’appareils à combustion : grille à chaîne, grille mobile, grille à gradins alternatifs, lit fluidisé bouillonnant, grille fixe basculante

Yuanda water tube biomass boiler with biomass burner. 10ton/hour steam boiler, automatic biomass burner boiler.

Boiler design advantages
1. Adopting automatic screw feeding, with reasonable second air technology and half gasification structure
helping fuel combust completely, the thermal efficiency can reach more than 90%. Stable flame, producing
steam cautiously.
2. Primordial dust emissions density is low:The volume of the coal biomass-fired steam boiler is large and there is a dust
separation device, so the primordial dust emissions density will be controlled much lower than the standard allowed.
3. Control system: Installing microcomputer to operate with one-button, people just set the process, and it can
work automatically during the operating time. Once any abnormal situation to happen, stopping automatically
with sound-light alarm, and pointing to the failure code, so it saves time to maintain.
4. Our protected device is safe and reliable. Selecting superior pressure controller, safety valve, low water alarm,
overpressure alarm, over-temperature alarm, in order to make boilers operate safely.
5. Heating fast:There are many spiral gas tubes in the boiler and almost half of the coal fired steam boiler shell
can be heated, so the temperature can up soon.
6. It is simple to clean slag only after burning completing.
