Small Industrial Vertical Steam Boiler for Low-Cost Production

SZL water tube biomass boiler, is double drums offset furnace structure (“D” type boiler or “A” type boiler). Its has advantages of high technology, environmental and energy saving. Thermal capacity in 2ton-50ton.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

8Ton biomass fired boiler, the complete system including boiler and burner, biomass burner inner use step grate combustion design, boiler is double drums water tube boiler.

Chaudière manuelle à grille mobile au charbon, au bois et à la biomasse de la série DZH. Conception à tubes d’eau et à tubes de fumée.
Chaudière à biomasse Yuanda d’une capacité de 0,5 à 50 tonnes, largement utilisée dans les chaînes de production en usine ou pour la production d’électricité.

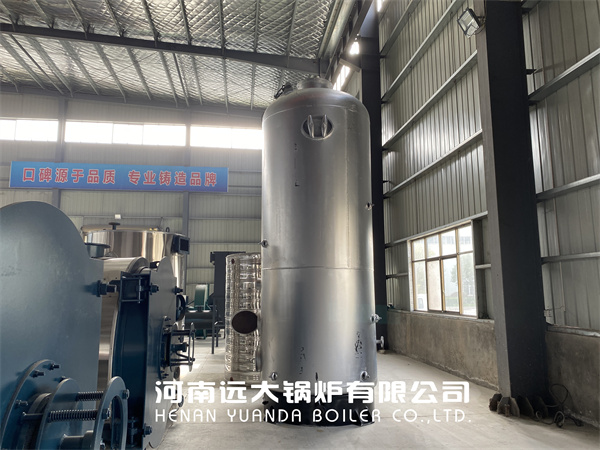

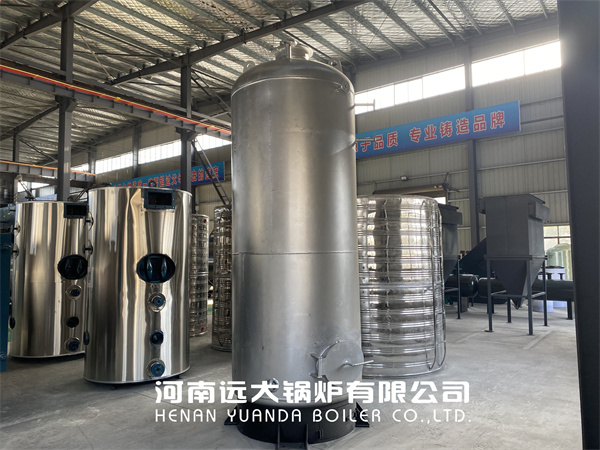

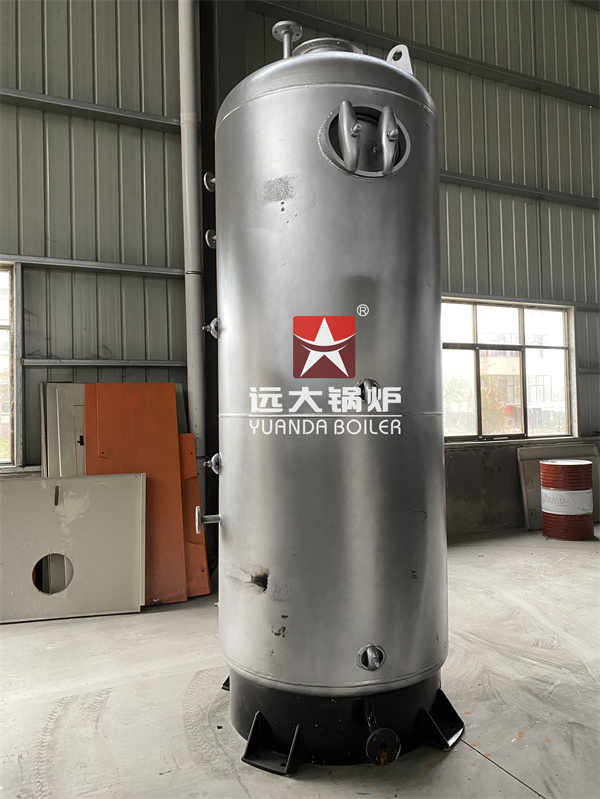

Vertical cross tube boiler, burning coal, charcoal, wood.
Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, water tubes cross tubes (convection tubes) etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.
Compact vertical cross tube boiler design with coal or wood firing, suitable for small factories requiring stable steam output. Fast heating, low installation space, and easy manual operation. Ideal for food, textile, and workshop applications.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.
