Caldera de Vapor /Agua Caliente
- Capacidad del Producto：10bhp-70bhp; 70bhp-2100bhp
- Power：Gas/oil, Coal/Biomass/Wood/pellets, Electricty
- Industria Aplicada:：Foods, Garment, Textile, Paper, Brewery, Ricemill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building, Chemical, etc
- Used For：Hotel, Restaurant, Hospital, House, School, Buildings, etc.
Capacity: 0.1t/h-50t/h; 100kw-35000kw; 10hp-3000hp
Fuel: Gas Oil Lpg, Coal Wood Biomass, Electricity

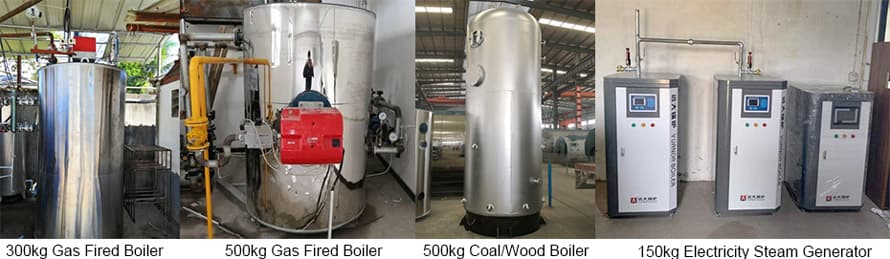

Vertical boiler, steam boiler/hot water boiler 50Kg-2000Kg, powered by different fuel, such as gas, diesel, heavy oil, coal, wood, biomass, pellets, jute, solid waste, electricity......
1. steam boiler
1. Caldera de vapor, capacidad vertical de caldera pequeña en 20bhp-21,000bhp
2. Generador de vapor, principalmente capacidad de producción en 5bhp-70bhp
3. Todo podría ser alimentado por: gas / petróleo / pellets de biomasa / Carbón / electricidad
4. Utilizado para la línea de producción necesita vapor, como alimentos, restaurantes, hoteles, prendas de vestir, lavandería, lácteos, aves, cervecerías, etc.
Know More Specification and Pricelist Now by shirley@yuanda-boiler.com
.jpg)
2. hot water boiler
1. Caldera de agua caliente, pequeña capacidad vertical de caldera de agua caliente en 36kw-1400kw
2. Generador de agua caliente, capacidad térmica en 36kw-1400kw
3. Todo podría ser alimentado por: gas / petróleo / Carbón / pellets de biomasa / electricidad
4. Utilizado para el sistema de calefacción, en casa, hotel, escuela, edificios, fábrica de alimentos, prendas de vestir, textiles, etc.
Know More Specification and Pricelist Now by shirley@yuanda-boiler.com
.jpg)
Boiler Application
For Heating/Drying/Steam turbine, widely used for industries such as Foods, Beverage, Juice, Milk production line, Textile, Paper, Animal feed mills, Garments, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Oil refinery, Ediable oil, Plywood, Wood treatment, Building materials, Chemical, Hotel, Hospital, Greenhouse, Center heating, etc
Which kind boiler you need ?
① Steam boiler for heating & drying system in factory production...
② Hot water boiler for center heating/hotel/hosipital/greenhouse...
③ Thermic oil heating, for heating, dyeing machine, bitumen, food...
About Us---Yuanda Boiler
① Our boilers projcts have covered 88 Countries all over the world.
② Offer tailer-made boiler, make boiler solution for your project.
③ Global service for boiler insatll, guiding, training operators.
④ Reliable boiler quality, whole life service druing boiler operating.
④ Any other requirments, contact us by shirley@yuanda-boiler.com
| LHS Series Steam Boiler Parameter | ||||||
|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Feed water temperature(℃) | Steam temperature(℃) | Thermal efficiency(%) | Boiler weigh(t) |
| LHS0.3 | 0.3 | 0.4 | 20 | 151 | 90 | 1.2 |
| LHS0.5 | 0.5 | 0.4 | 20 | 151 | 91 | 1.7 |
| LHS0.5 | 0.5 | 0.7 | 20 | 170 | 91 | 1.7 |
| LHS0.7 | 0.7 | 0.4 | 20 | 151 | 91.3 | 2 |
| LHS0.7 | 0.7 | 0.7 | 20 | 170 | 91.3 | 2 |
| LHS1 | 1 | 0.4 | 20 | 151 | 92 | 2.6 |
| LHS1 | 1 | 0.7 | 20 | 170 | 92 | 2.6 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||
| LHS Series Hot Water Boiler Parameter | ||||||
|---|---|---|---|---|---|---|
| Model | Rated capacity(MW) | Rated pressure (Mpa) | Feed water temperature(℃) | Steam temperature(℃) | Thermal efficiency(%) | Boiler weigh(t) |
| LHS0.21 | 0.21 | 0.4 | 95 | 70 | 90 | 1.2 |
| LHS0.35 | 0.35 | 0.4 | 95 | 70 | 90 | 1.7 |
| LHS0.49 | 0.49 | 0.4 | 95 | 70 | 91 | 2 |
| LHS0.7 | 0.7 | 0.4 | 95 | 70 | 91 | 2 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||
