Vertical Oil Gas Water Tube Boiler
- Capacity：30kw-1400kw; 50kg-2000kg
- Pressure：0-1.0Mpa 1bar-10Bar
- Fuel：Natural gas, lpg, diesel light oil
- Application：Small Sacle Processing Industry, Such Food Industry, Brewery, Dairy Products, Laundry...
- Contact information：Email: shirley@yuanda-boiler.com

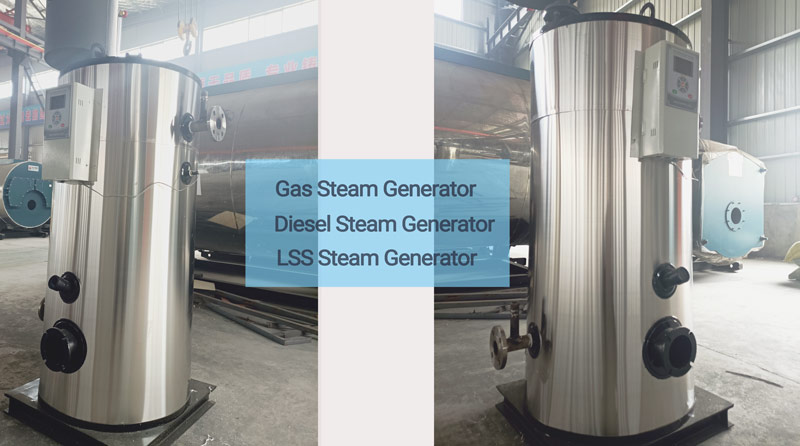

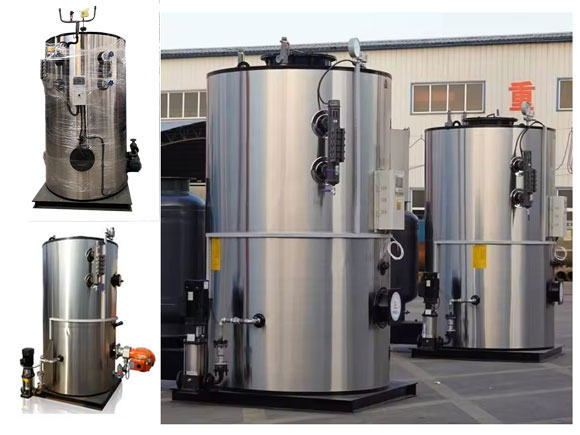

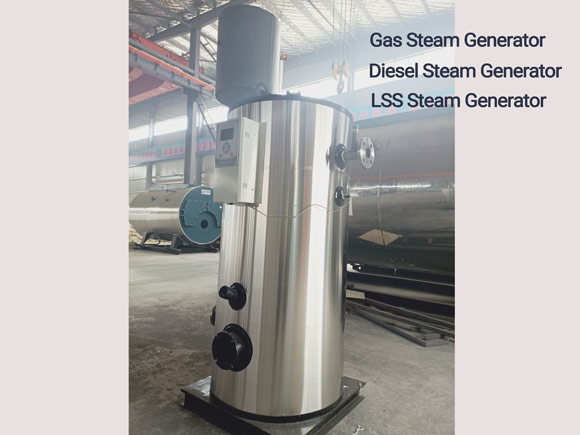

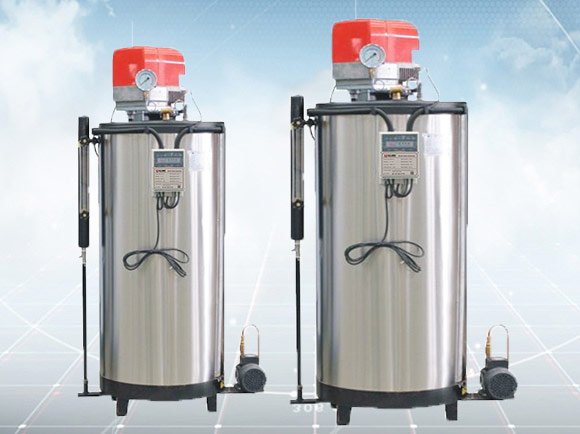

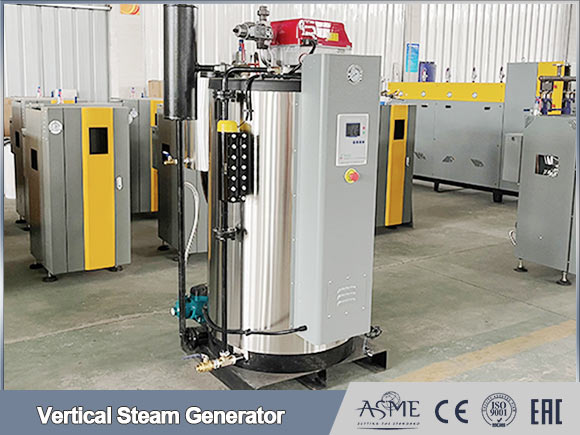

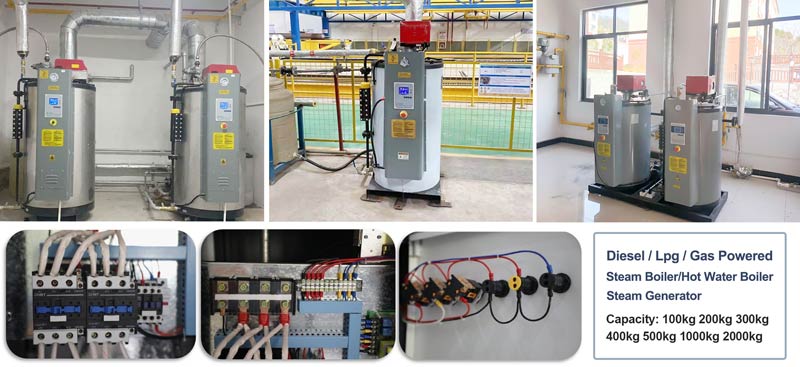

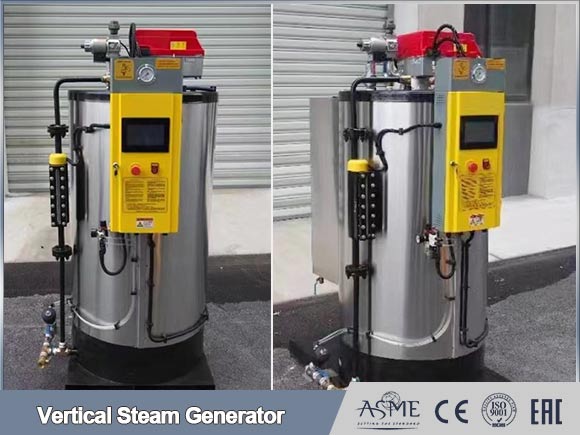

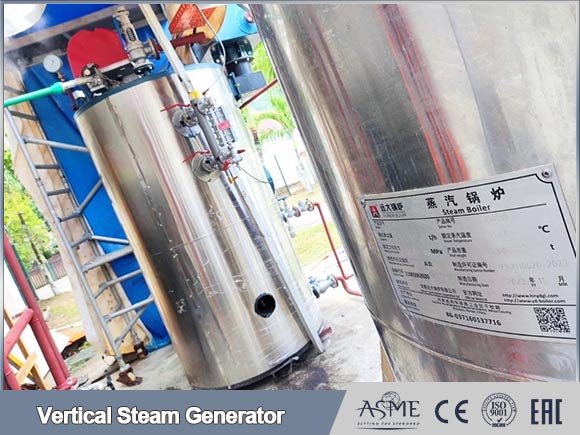

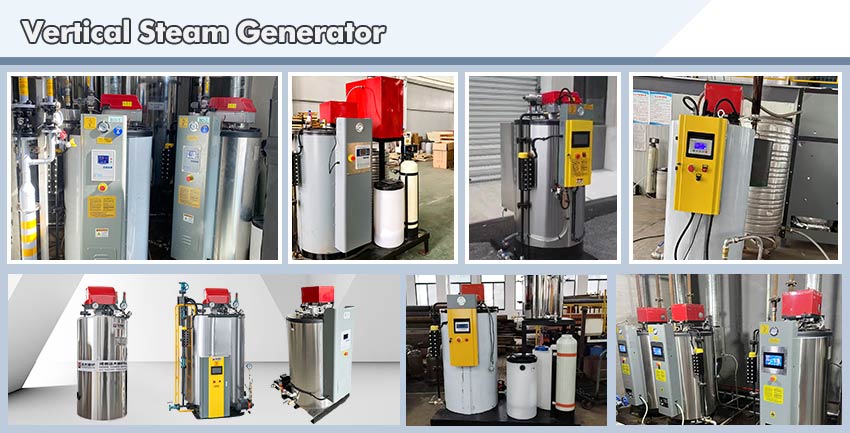

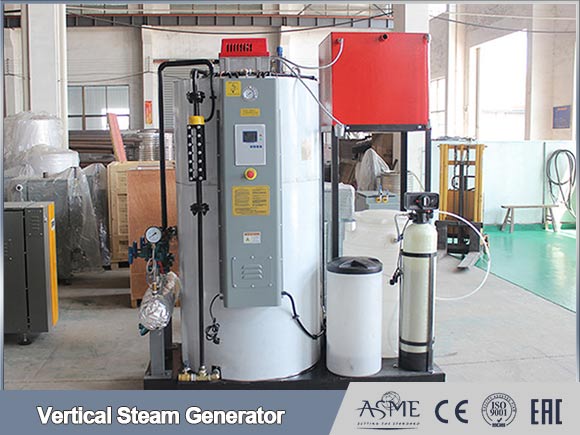

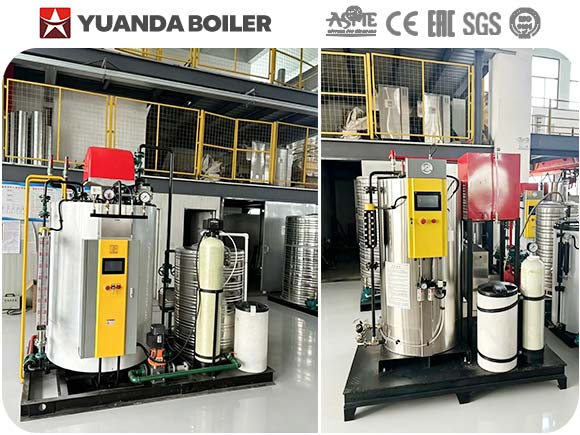

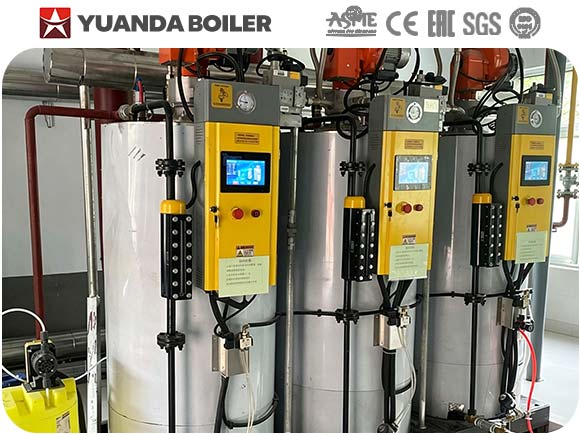

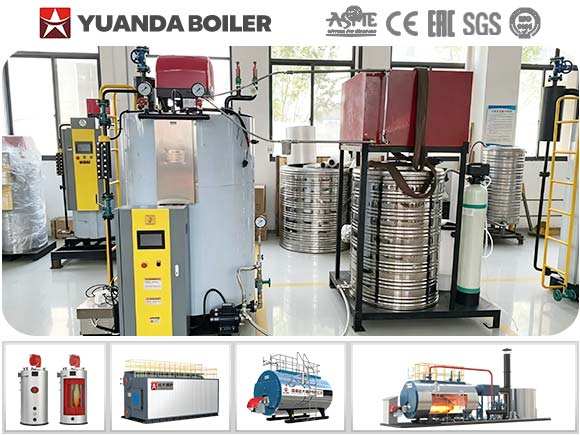

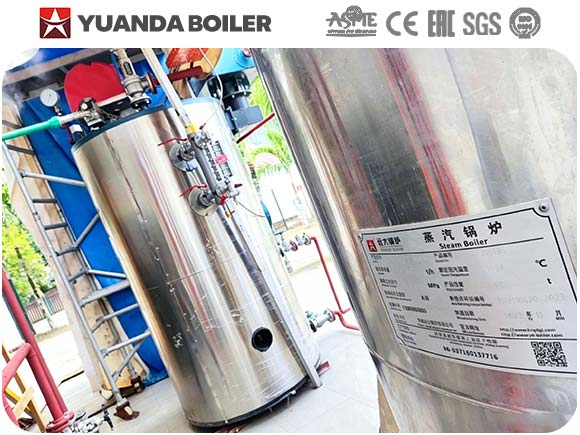

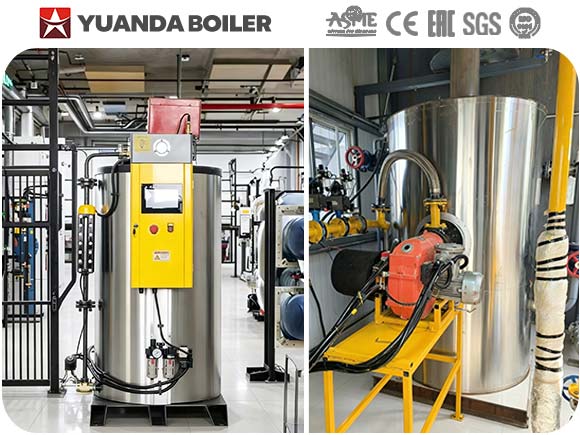

Gas/Diesel Steam Generator LSS Series
LSS series Vertical gas/diesel steam generator offer efficient and reliable steam generation suitable for various industrial and commercial applications where space-saving design, high efficiency, and quick response are required.
Vertical Design: The boiler is designed with vertical tubes, which allows for a compact and space-saving configuration, suitable for installations with limited space availability.
Water Tube Configuration: Water circulates through the vertical tubes while being heated by the combustion of gas or diesel fuel. This process generates steam or hot water for various applications.
Quick Startup and Response: Vertical water tube boilers often have quick startup times and rapid response to changes in steam or hot water demand, making them suitable for applications requiring immediate and consistent heat supply.
Control Systems and Safety Features: Advanced control systems regulate fuel input, combustion rates, water flow, and temperature for safe and efficient operation. Safety features such as pressure controls, temperature sensors, and safety shutdown mechanisms are integral components.
Design Features LSS steam generator
1. Boiler water volume is small, with quick start of cold furnace, when you start to use it, just need a short period of time.
2. Built-in multi steam and water separation technology,quality steam .
3. With multiple chain protection for water level,steam pressure,overheating ,which is safe and reliable
4. Fully skid-mounted ,centralized steam supply, could realize single independent or multiple units centralized control.
Product: Electric Steam Generator
Electric Steam Generator 6kw-350kw 10kg-500kg

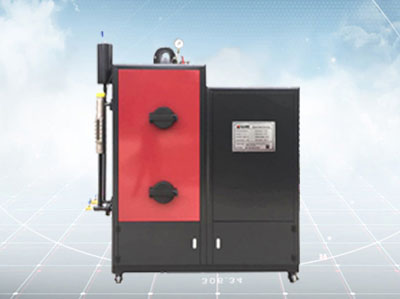

Product: Biomass Pellets Steam Generator
300kg-2000kg Automatic Wood Biomass Pellets Fired Steam Generator
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| LSS gas/diesel steam generator | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.25-0.7-Y.Q | LSS0.3-0.7-Y.Q | LSS0.5-0.7-Y.Q | ||
| Project | Unit | ||||||||
| Rated evaporation | Kg/h | 50 | 100 | 125 | 200 | 250 | 300 | 500 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
| Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 | 14 | 16 | 20 | 33 |
| Natural gas | Nm³/h | 3.5 | 7.3 | 9.2 | 14.5 | 19 | 22 | 36.5 | |
| LPG | Nm³/h | 3.3 | 5.7 | 7.2 | 11.4 | 7.5 | 17.3 | 28.7 | |
| City gas | Nm³/h | 8.5 | 18 | 22.5 | 34 | 43 | 52 | 88 | |
| Water capacity | L | 29 | 49.3 | 49.3 | 49.5 | 49.5 | 49.5 | 49.6 | |
| a Main steam valve diameter | DN | 15 | 25 | 25 | 32 | 32 | 32 | 50 | |
| b Safety valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 40 | |
| c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| d Blowoff Valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 25 | |
| Chimney diameter | DN | 80 | 125 | 125 | 150 | 150 | 150 | 250 | |
| Overall size | L | mm | 820 | 880 | 900 | 1400 | 1500 | 1500 | 1800 |
| W | mm | 890 | 1100 | 1150 | 1000 | 1100 | 1200 | 1300 | |
| H | mm | 1600 | 1800 | 1900 | 1000 | 2200 | 2200 | 2350 | |
| Weight | kg | 180 | 220 | 240 | 850 | 1150 | 1200 | 1680 | |
