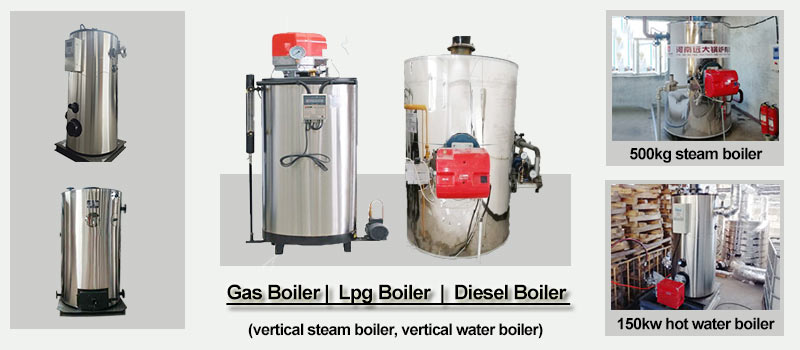

Vertical Gas/Lpg/Diesel Boiler
- Capacity:100kg-2000kg, 100kw-1400kw, 6hp-120hp
- Pressure:0-3.8Mpa, 0-38Bar
- Materials:Carbon steel, Stainless steel
- Heating use:Steam, Hot water

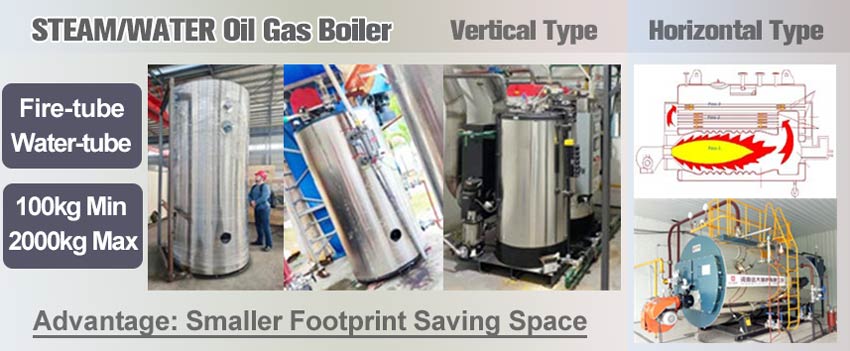

- Features:Vertical fire tube boiler / LHS gas oil boiler / small steam boiler/ small heating water boiler / small diesel boiler / small gas boiler

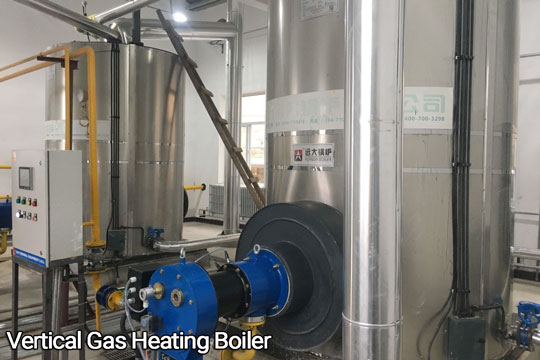

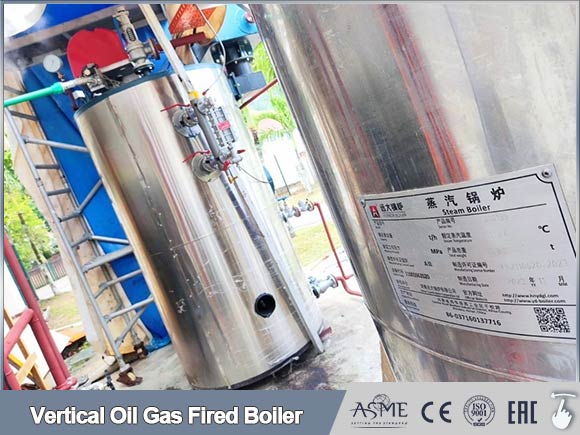

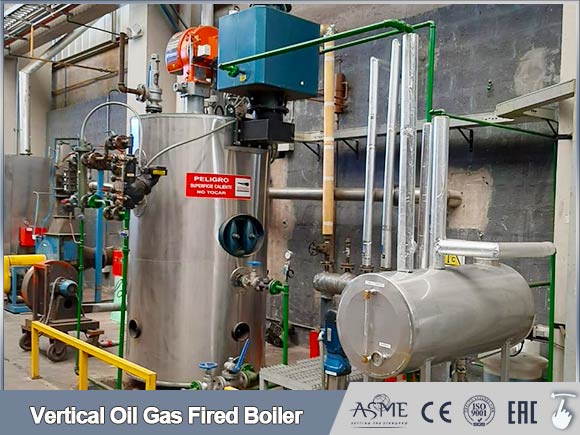

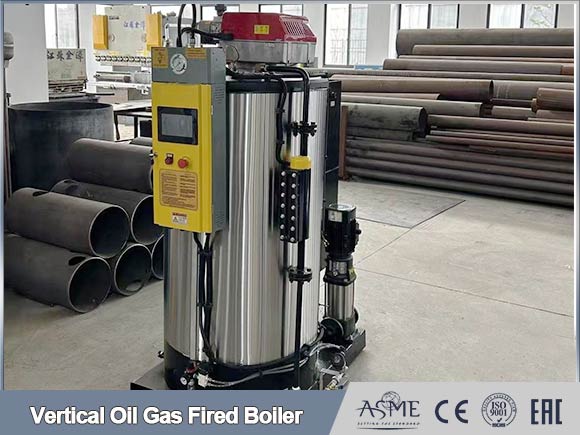

Vertical gas-fired (diesel-fired) boiler, mostly used as steam boiler, hot water boiler.
Capacity: 100kw-1400kw, 100kg-2000kg, 6hp-120hp(bhp)
Vertical gas/diesel fired boiler, vertical type low pressure (1bar-15bar) two pass fire tube boilers, applicable to various fuels such as diesel, natural gas, and so on. The boiler has advantages of low cost, smaller area occupied, and quick steam generation.
Core Technology: Adopt three-pass structure with top-fired burner, the flame can completely spread from the top to the bottom and burn sufficiently. The gas need to make a three pass heat transfer, so the heat loss is reduced and the thermal efficiency is higher.
Gas/Lpg/Diesel Boiler Advantages
1. Low pressure operation, safe and quick steam generation,vertical type, small area occupied, low investment cost
2. Adopt unique heat resistance design, big heating area, high thermal efficiency
3. Big furnace design, make sufficient combustion, high combustion efficiency
4. Multi-protection for over pressure, over temperature, water shortage, flameout to ensure the boiler saftey operation.

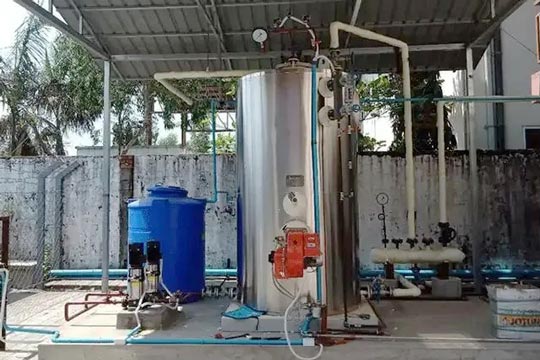

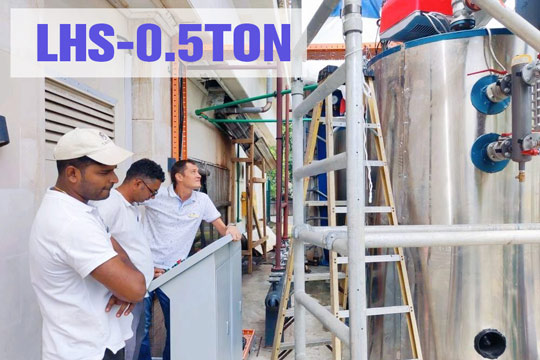

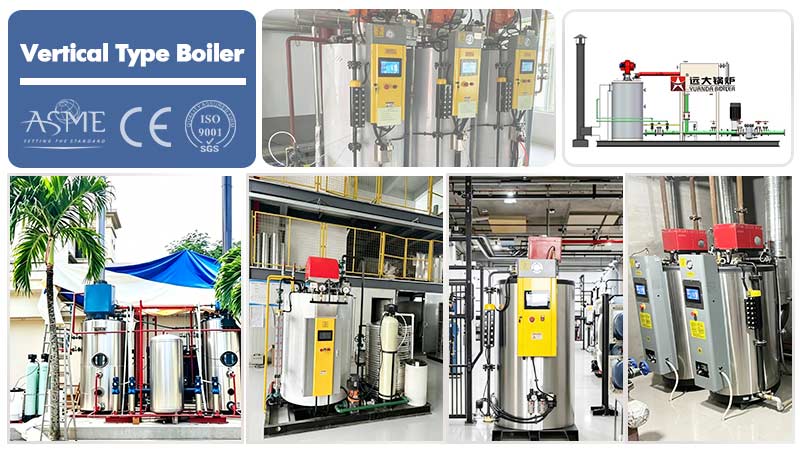

Project 500kg Gas Boiler in Ecuador

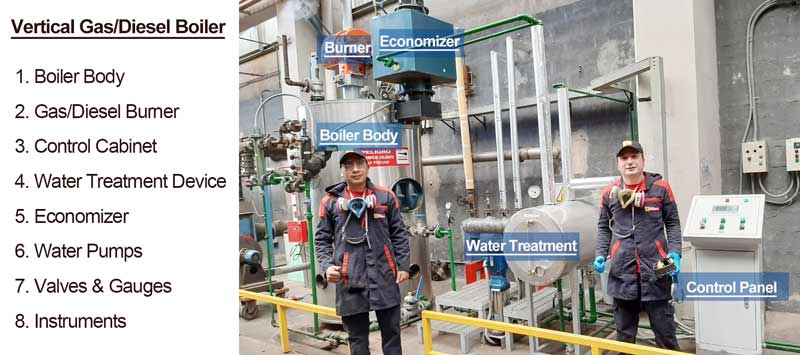

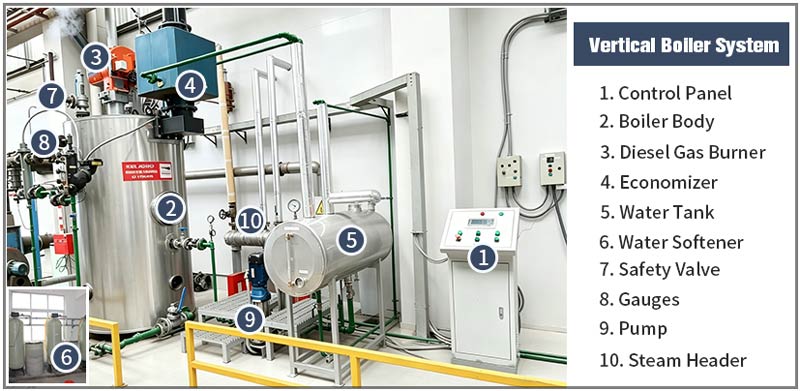

Auxiliaries Features

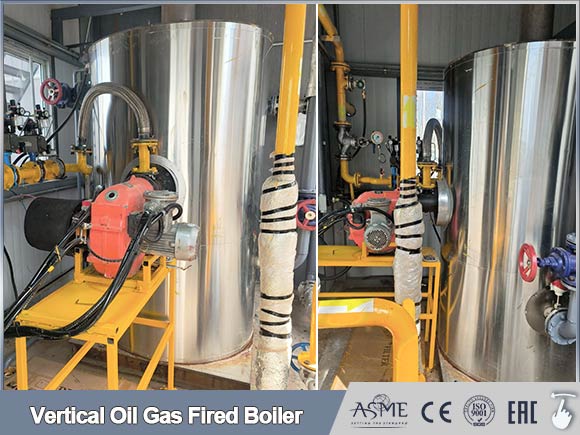

1. Italy brand burner
Gas/diesel burner use Baltur, Riello (standard accessories:burner, programming controller , valves group, filter). International first grade burner brand, high quality and stable perfermance.
2. Safety control system
1)Control feed water pump, water level senser, pressure controller.
2)Alarm when water level low or higher then limit value, interlock when water level super low or super high.
3)Alarm and interlock for over high pressure.
4)Control the feed water pump feeding water when the water level is low.
3. Water Pumps
1)Pump brands: CNP pump, Grundfos, International famous brand, vertical type stainless centrifugal pump
2)Beautiful appearance, compact structure, low energy consumption, 50% less than horizontal type.

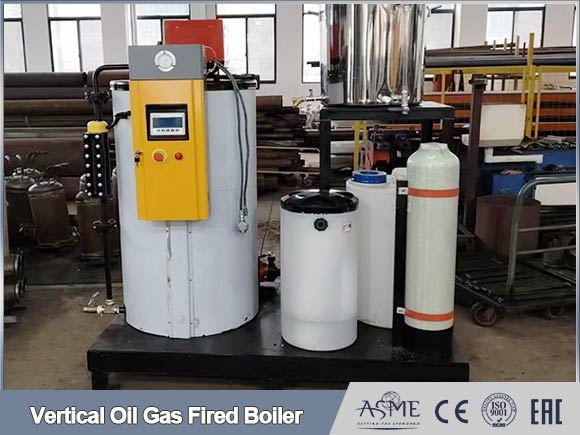

4. Water Treatment Equipment
USA fleck water softener, flow type, durable & economical
Our Boiler Strict Quality Control
1. All materials should be inspected before prodcution and each steel have its ID code which can trace its quality test.
2. 100% Non-Destructive Inspection report of steel plate tube & welding rod.
3. Hydraulic test: make sure strength and tightness of pressure parts.
4. Third part inspection report: By China Henan Boiler Inspection Institute.
Why Choose Us ?
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
Service After-sale Service
1. Full-life After-sale Service

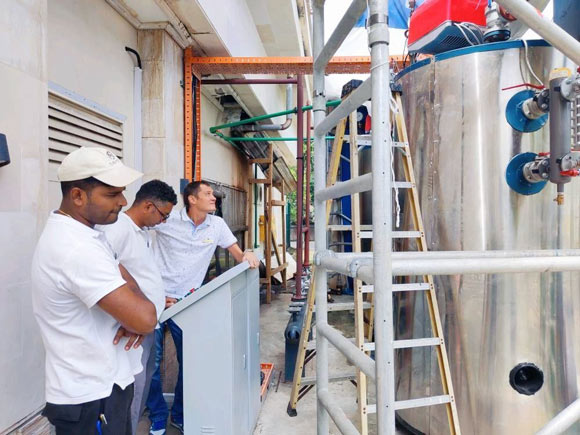

2. Onsite Operation Training Service
3. Online Monitoring System
4. Engineer Abroad Installation and Commissioning Service
5. Training Service Content:
-Boiler basic knowledge
-Boiler structure introduction on site
-Boiler control theory
-Boiler burner theory and adjusting method
-Boiler water treatment introduction and water quality test method
-Boiler operation training
-Boiler room system introduction
-Boiler debugging introduction
-Introduction of Boiler faults, reason and solution
-Field simulation solves all kinds of common failures
-Boiler maintenance introduction
LHS Series Steam Boiler Parameter | ||||||
---|---|---|---|---|---|---|
Model | Rated capacity(t/h) | Rated pressure (Mpa) | Feed water temperature(℃) | Steam temperature(℃) | Thermal efficiency(%) | Boiler weigh(t) |
LHS0.3 | 0.3 | 0.4 | 20 | 151 | 90 | 1.2 |
LHS0.5 | 0.5 | 0.4 | 20 | 151 | 91 | 1.7 |
LHS0.5 | 0.5 | 0.7 | 20 | 170 | 91 | 1.7 |
LHS0.7 | 0.7 | 0.4 | 20 | 151 | 91.3 | 2 |
LHS0.7 | 0.7 | 0.7 | 20 | 170 | 91.3 | 2 |
LHS1 | 1 | 0.4 | 20 | 151 | 92 | 2.6 |
LHS1 | 1 | 0.7 | 20 | 170 | 92 | 2.6 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
