Portable Skid-mounted Containerised Mobile Boiler
- Our Products：Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Fuel：Diesel, Gas, Lpg, Heavy Oil, Waste Oil, etc
- Pressure：1bar-38bar
- Structure：Mobile Containerised type, Skid Mounted type
- Manufacture Standard：ISO CE ASME DOSH EAC
Gas Oil Boiler Portable Boiler
With advantages of "Automatic" "Environmental" "Easy Install" "Easy Operate" "Clean-energy Boiler". Our products are certified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, ensuring high quality and compliance with international standards.
Introduction Portable Diesel Gas Boiler

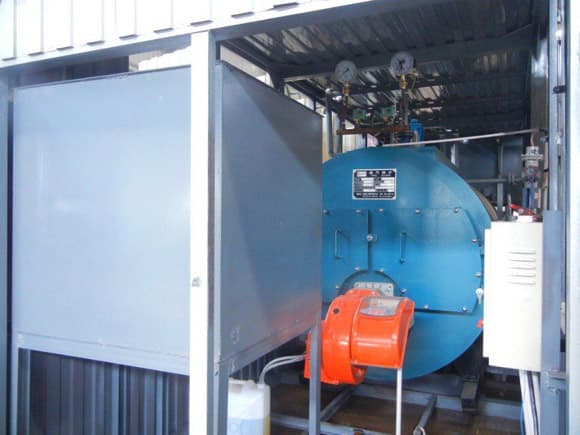

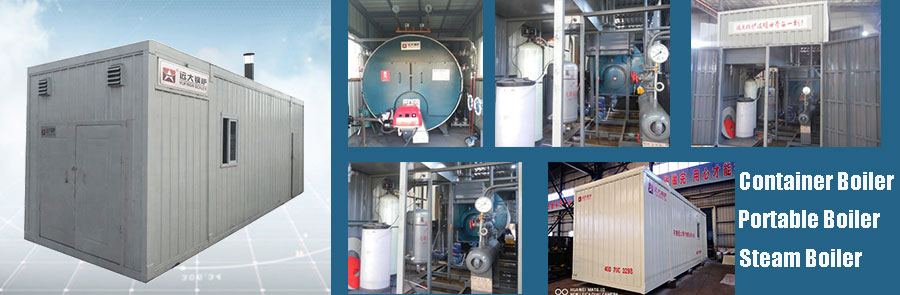

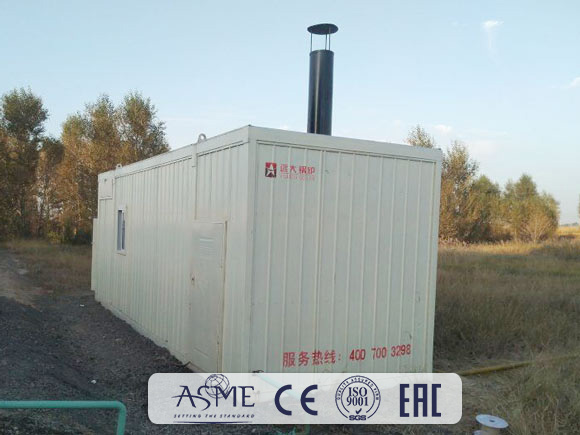

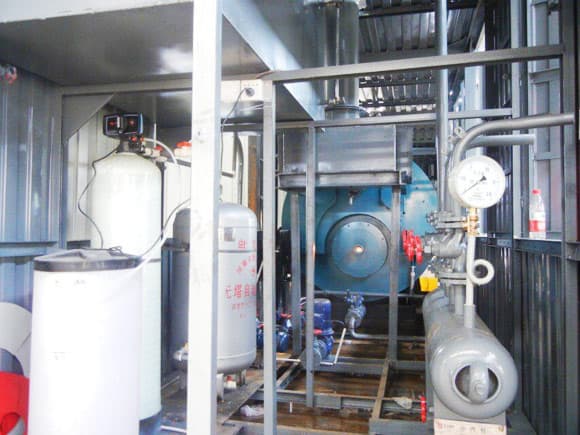

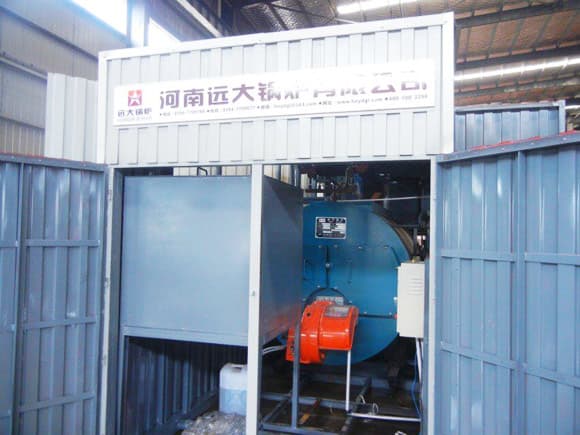

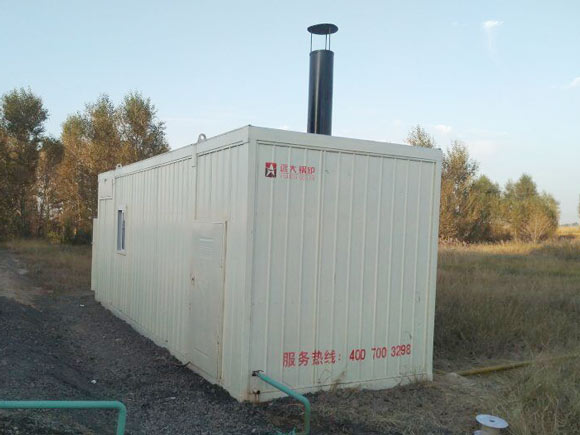

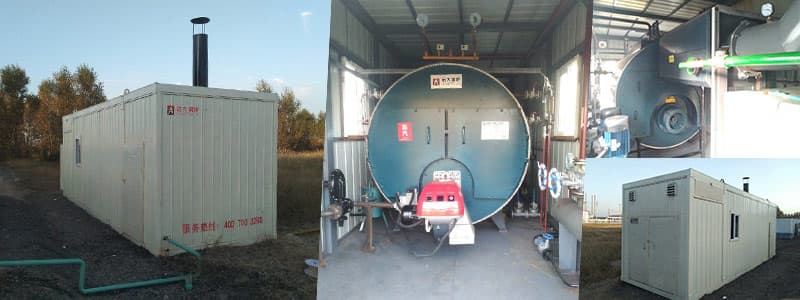

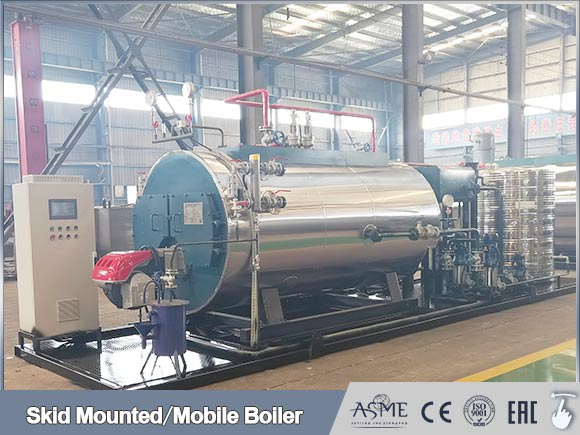

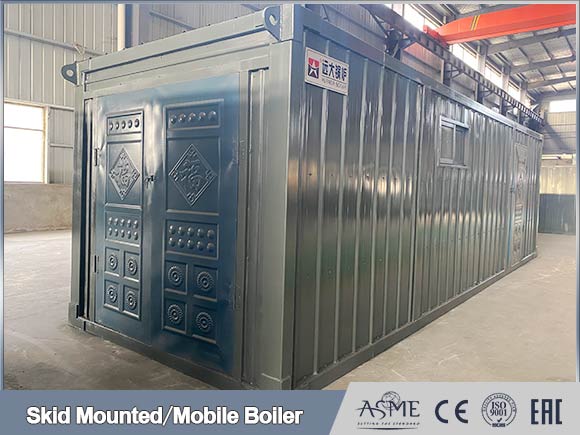

WNS Series Containerised Mobile Boiler & Portable Skid Mounted Boiler

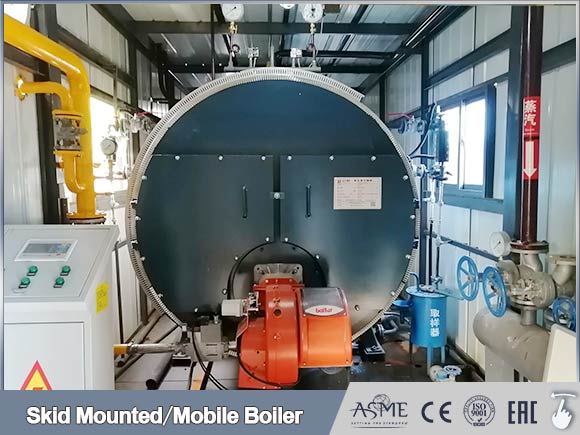

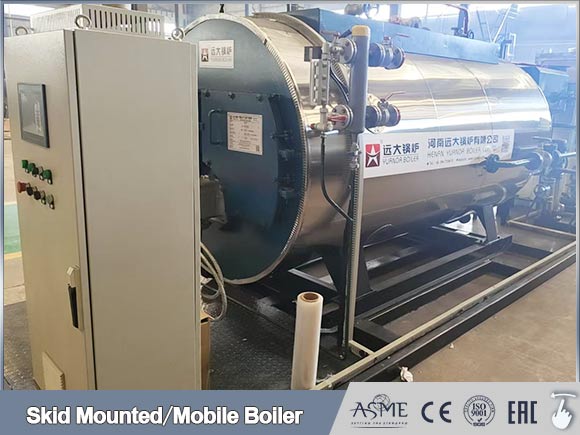

Liquid Fuel Oil Diesel Gas Boiler, in Containerised or Skid Mounted Type. Before delivery, we will Install Boiler & Buner & All Accessories ready in container or plat form, Only need simple works for boiler running.
Features Fire Tube Boiler

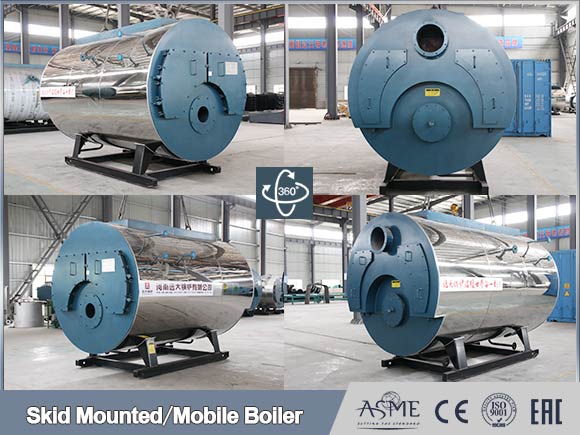

WNS series horizontal three pass fire tube oil gas boiler, packaged boiler, wet back structure, spirally tubes & corrugated furnace. With advantages of Fully automatic control system, High thermal efficiency 99% energy saving, Low emission control (meet internatonal standard).
Structures of Fire Tube Boiler
WNS boiler features
1. 100% Safety Control Boiler & Strict Boiler Quality Control
1)All welding strictly meet the requirements of China NB/T 47014(JB/T 4708)
2)Anti Dry Heating Control System with double safety valves, double water level gauges, double secure of safe operation
3)With explosion-proof door with fire viewer, If burner failure ignition, this door can release the pressure out, protect the damage to welding parts
2. Energy Saving & High Efficiency
1)Spiral fire tube, the advanced technology, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing
2)Spirally corrugated furnace & Wet back structure, increased 10% heating area, avoid damaged by heat expansion, reduce the back tube sheet temperature and protect it from cracking
3. High Quality Steam-Wetness Below 1%
1) We equip a steam separation under the steam output port.
2)With continuous water feed function,Make the water level is stable instead of big differences
3)Bigger water tank design, boiler with bigger water volume and bigger steam space

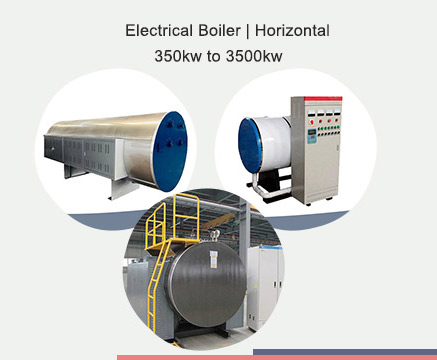

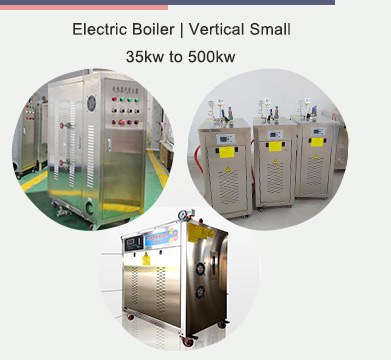

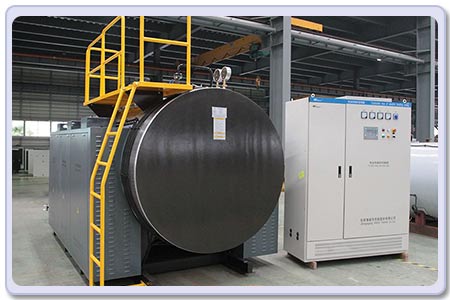

Related Electric Boiler
Mobile Electric Steam Boiler. Portable Electric Steam Generator.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| Oil Gas Boiler | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
|---|---|---|---|---|---|---|---|---|---|
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5 | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3 | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6 | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10 | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15 | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20 | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
