Manual Coal/Wood Fired Boiler
- Model：DZH
- Capacity：0.5t/h-50t/h
- Type：Steam boiler, Hot water boiler
- Fuel：Coal, wood log, wood chips, waste fabric, jhute, solid fuel, etc
- Industry：Foods, Garment, Textile, Paper, Brewery, Ricemill, Printing & Dyeing, Poultry feed, Sugar, Packaging, Plywood, Building material, Chemical, etc

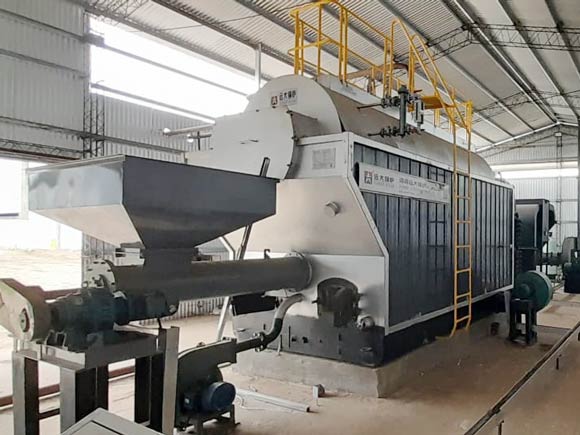

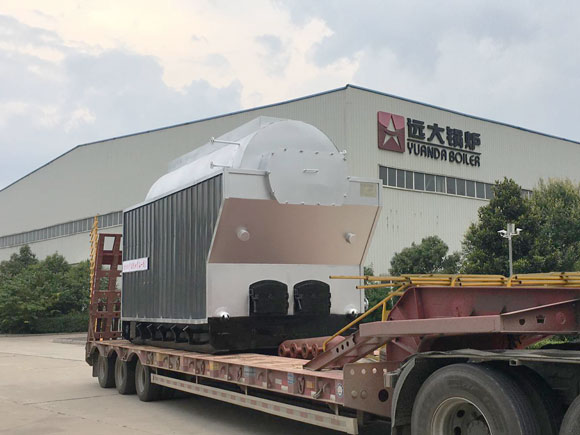

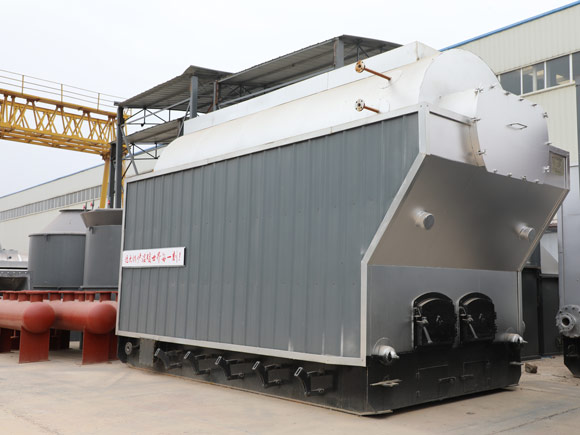

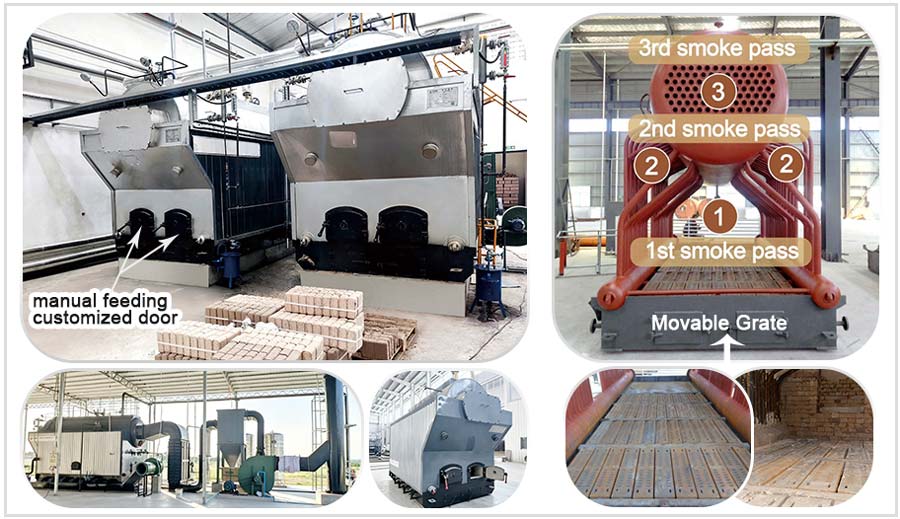

DZH series coal/wood fired boiler equipped with fixed grate, water-fire tube three return boilers, radiation heat surface in furnace water wall and stove sides. convection heat surface in furnace flanks and threaded tube.
Auxiliaries of Coal/Wood Fired Boiler

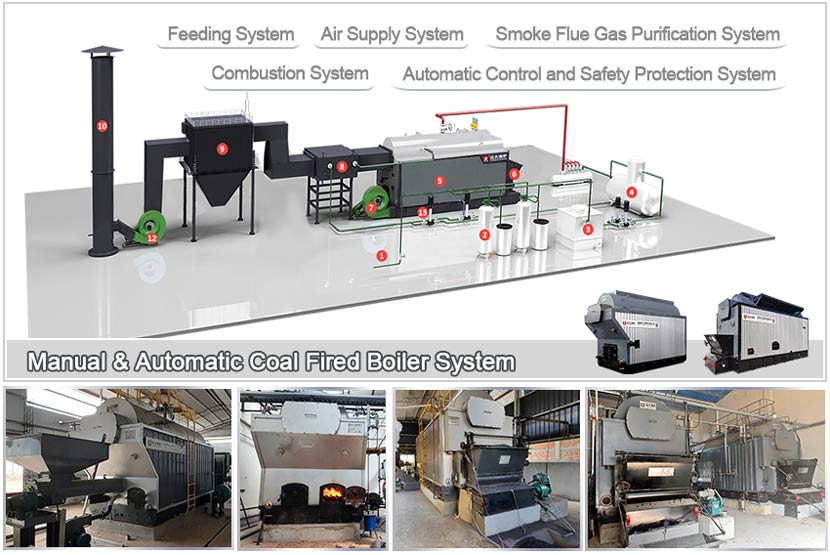

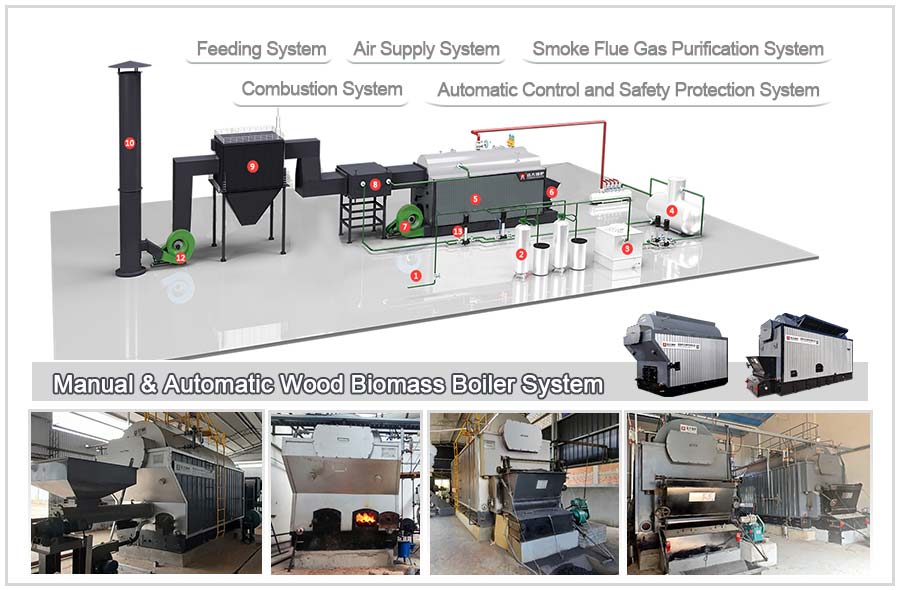

1. whole boiler system including grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc.
2. There are types of grates for your choose, Show different grates for reference as follows. our grate boilers mainly use grates including : Chain grate (also call travelling grate), Reciprocating grate, Dumping grate, Fixed grate.
Boiler Application & Cases
Beverage factory, Food processing industry, Ketchup industry, Textile factory, Printing and dyeing factory, Garment factory, Paper mill, Plywood factory, Poultry feed mill, Refinery, Rice mill, Noodle factory, Sugar mill, Wood processing industry, Carton factory, Cardboard factory, Dyeing mill, Leather factory, Packaging industry, Central heating, Greenhouse, Hospital, Rubber factory, Slaughterhouse, Soap factory, Bitumen plant, etc.
.jpg)
Boiler Selection:
Boiler inquiry: Known about boiler requirements for your projects, email us: shirley@yuanda-boiler.com
Technical discussion: Offer professional boiler system plan for your choose
Factory visit: Warmly welcome all customers come to visit the production base
Vertical Coal/Wood Fired Boiler (200-2000kg/hr)
- LSG series coal or biomass steam boiler is vertical type structure with small steam capacity. The combustion equipment is moving grate. The boiler uses the general combustion technique. Coal or biomass fuel is fed by workers manually.
• Quick steam output • Easy installation & operation
• Lower fuel consump cost • High thermal efficiency
Grate Boiler Coal Fired (1-10ton/hr)
DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. With compact structure, scientific construction technology, precise manufacture, high technical maturity and stable operation.
• Strong steam output power • Easy installation & operation
• Large stove furnace • Automatic feeding system
SZL Water Tube Grate Boiler (2-50ton/hr)
SZL series boiler has a double-drum offset hearth (D or A type layout), unique stove furnace design, great apply for biomass fuel, ensure fuel burning entirely, environmental protection and energy conservation.
• Membrane water wall • Unique boiler design patent
• Large furnace & wide fuel fire • Indenpend wind chamber
| Boiler Model | Rated |
Rated |
Feed water temperature |
Steam |
Active |
Exhaust |
Design |
Fuel |
Main part |
Main part |
Delivery Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| t/h | MPa | ℃ | ℃ | ㎡ | ℃ |
% |
Kg/h | Ton | mm | ||
| DZL1-1.0-AII | 1 | 1 | 20 | 184 | 1.85 | 157 | 80 | 118 | 14.2 | 5488×2200×2832 | Package |
| DZL2-1.25-AII | 2 | 1.25 | 20 | 194 | 3.4 | 163 | 80 | 238 | 23.2 | 5900×2500×3256 | Package |
| DZL4-1.25-AII | 4 | 1.25 | 60 | 194 | 5.18 | 180 | 80 | 472 | 28 | 6829×2550×3484 | Package |
| DZL6-1.25-AII | 6 | 1.25 | 60 | 194 | 7.55 | 166 | 80 | 685 | 47.6 | 7695×3180×4074 | Package |
| DZL10-1.25-AII | 10 | 1.25 | 105 | 194 | 12 | 151 | 80 | 1128 | 56 | 7746×3773×3441 | Assembled |
| DZL15-1.25-AII | 15 | 1.25 | 105 | 194 | 18 | 161 | 81 | 1698 | 18.8 | 8650×2300×2500 | Assembled |
| DZL20-1.25-AII | 20 | 1.25 | 105 | 194 | 22.9 | 150 | 81 | 2241 | 19.1 | 8915×3373×3337 | Assembled |
