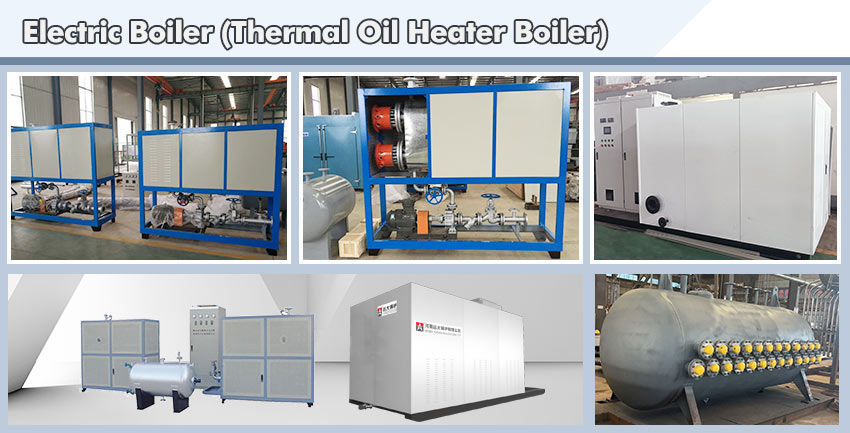

Electric Thermal Oil Heater Boiler Liquid Fluid Heater
- Our Products:Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Capacity:35kw-70000kw 10,000kcal-6000,000kcal
- Usage:Bitumen, Textile, Food, Chemical, Plastics, Rubber, Paper, Plywood, Synthetic fiber, etc.
- Manufacture Standard :GB, ISO, CE, ASME, DOSH, EAC

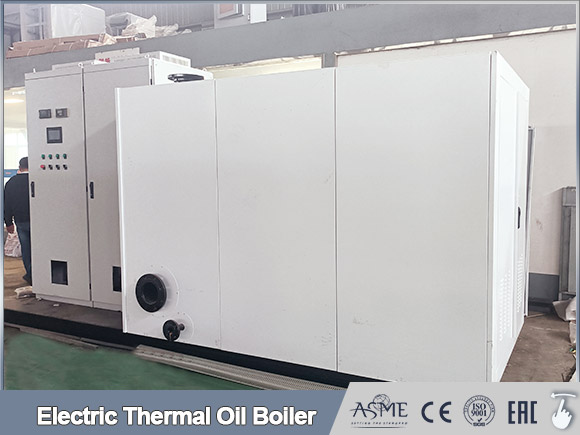

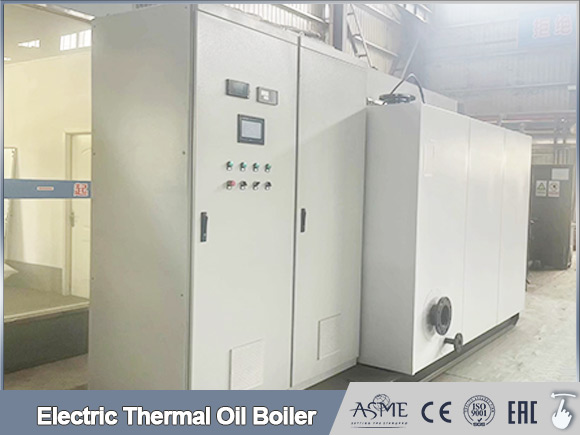

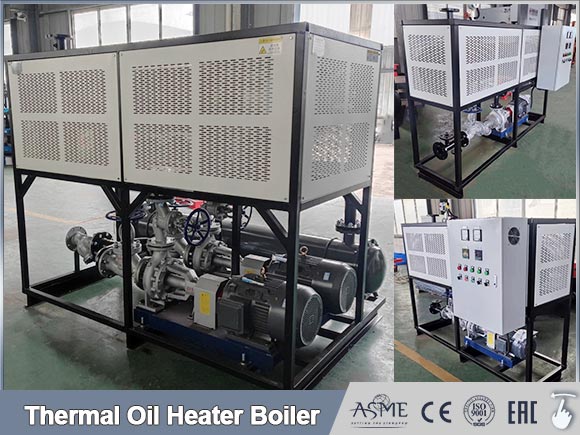

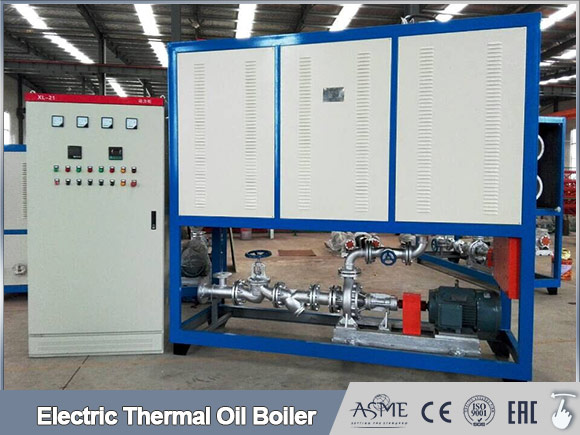

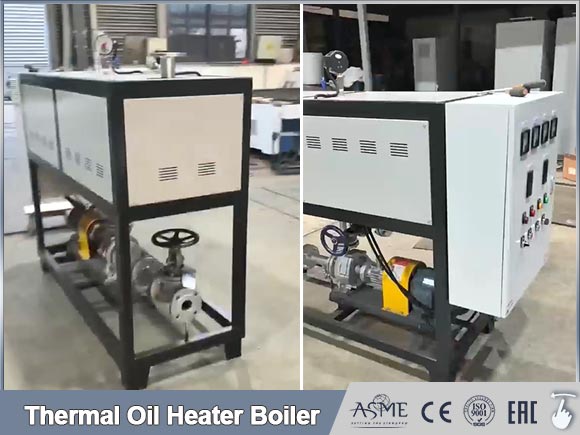

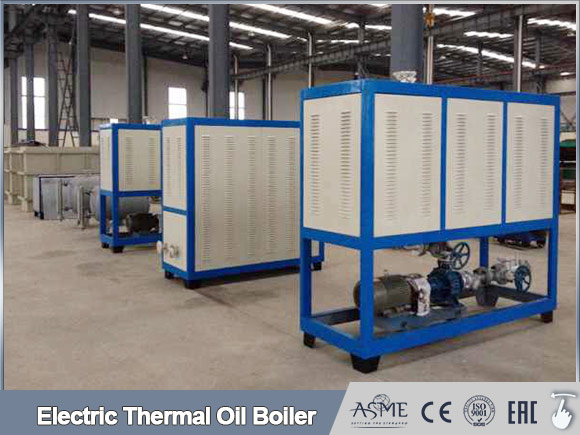

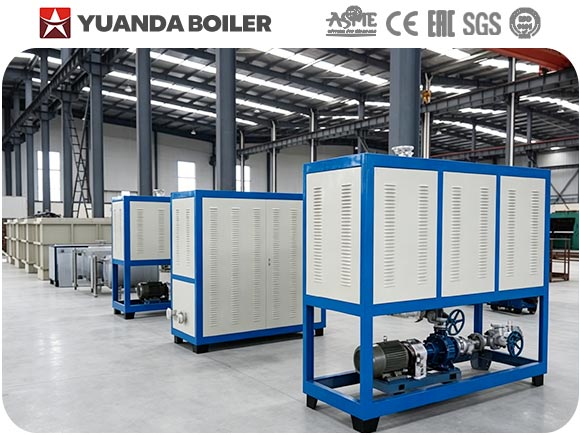

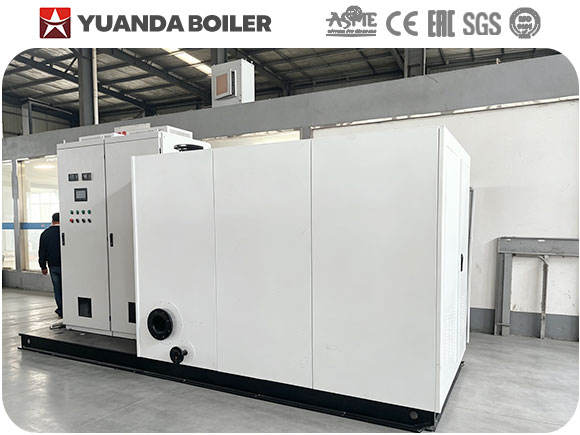

Electric Thermal Oil Heater Boiler

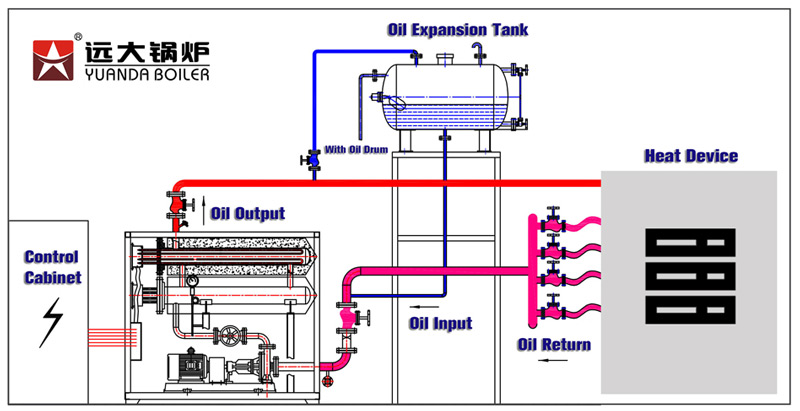

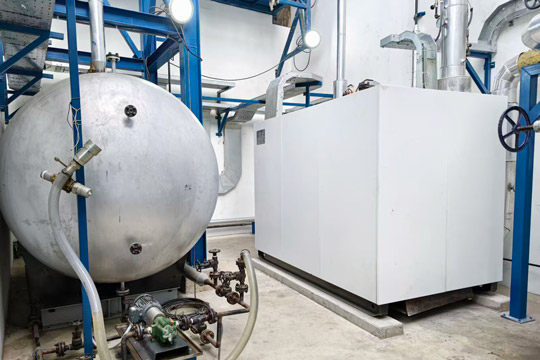

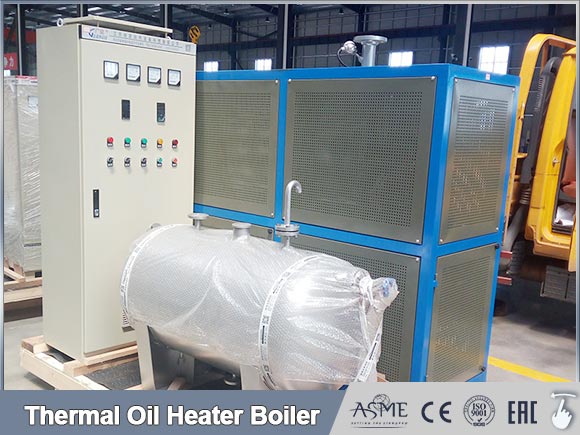

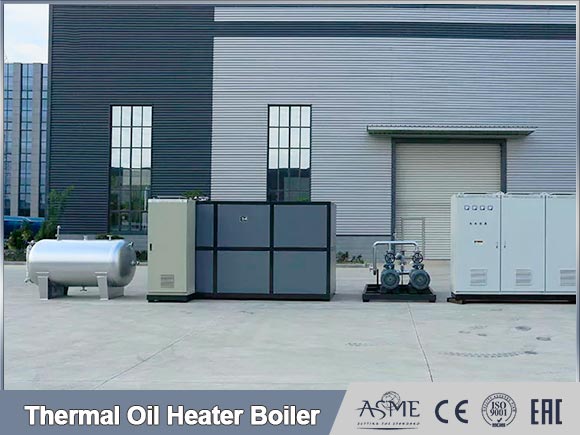

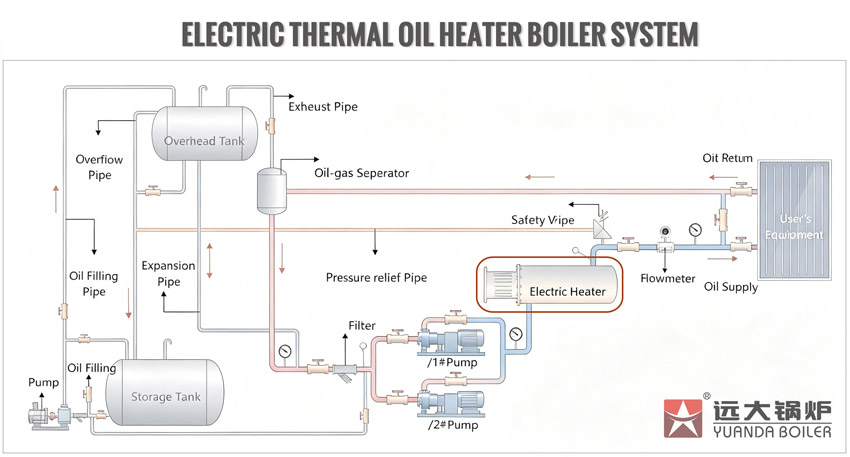

Thermal Oil Heating System

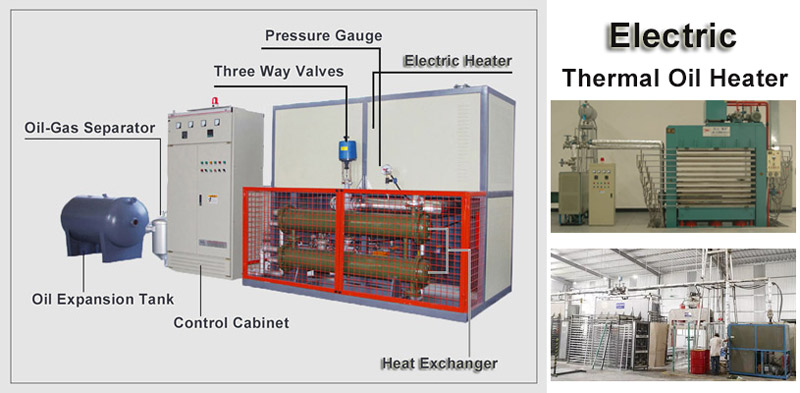

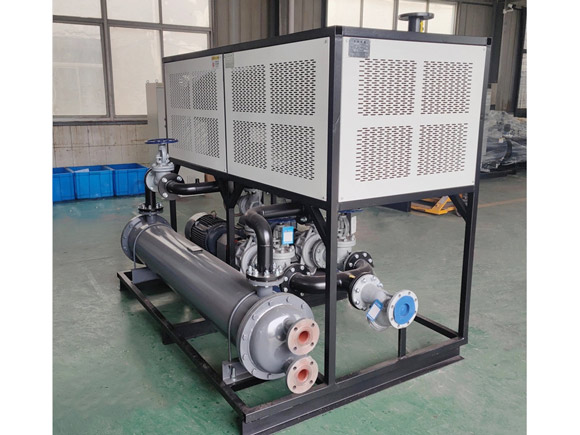

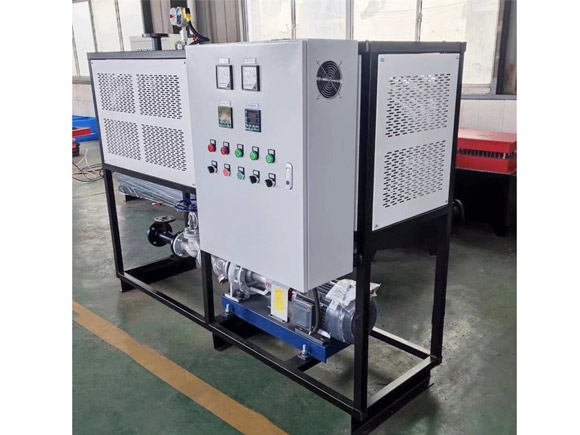

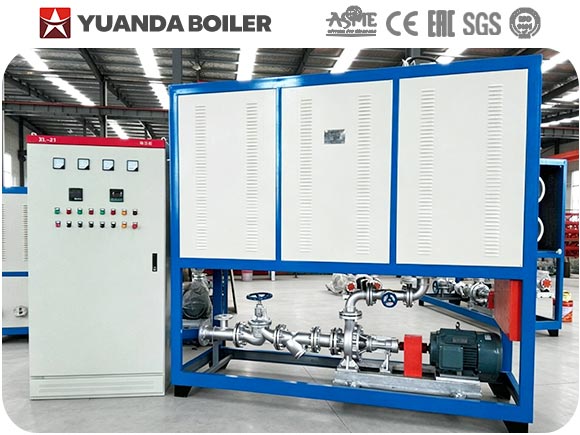

Electric thermal oil heater, consists of the main parts (including electric heater host , high-temperature oil pump and Y-shape filter) expansion tank, control cabinet and piping. All the components of the system must work together in harmony for proper performance.

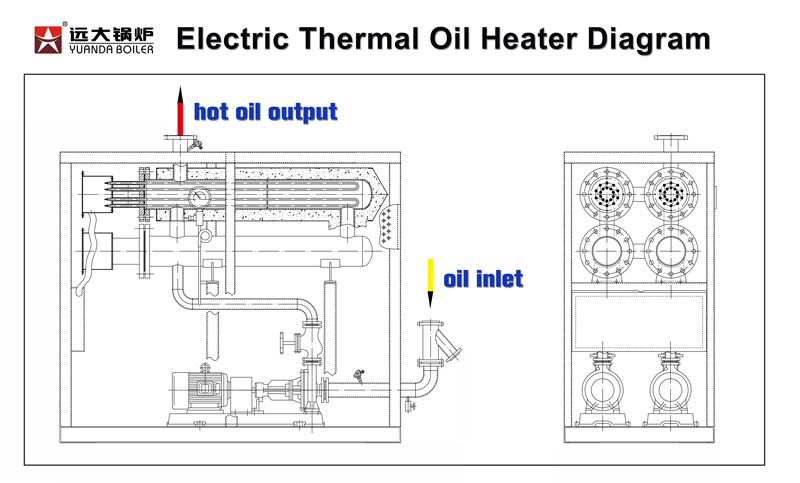

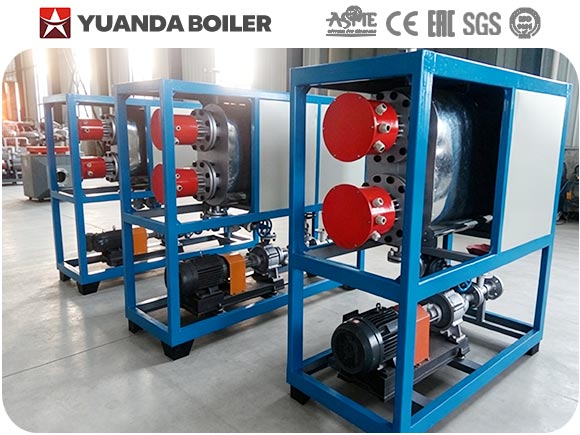

Oil Heater Inner Structure
Electric thermal oil heater is a particular kind of forced circulation industrial heater that uses electric as power, and takes thermal oil as its medium. The pump in the system circulates thermal oil to heat using equipment, releasing heat there and back to the heater for reheat again.It can be made as normal type or explosion proof type according to different safety level requirement.
Advantages Electricity Heating Boiler
1.Work at a low work pressure
Compared with steam boiler, thermal oil boiler which has a lower work pressure could heat up to a higher temperature. Under a small pressure max 0.6mpa, it could heat thermal oil temperature to 200°C-350°C, ensure 100% safety.
2.High heating temperature
Electric heating thermal oil heater can reach a temperature of 350°C under the low pressure and the heating temperature automatic control.
3.No Pollution
Electric heating thermal oil heater is provided with new electrical heating system, using electricity instead of coal, saving cost, protecting environment without pollution.
4.High thermal Efficiency
Electric heating thermal oil heater has high efficiency up to 95%, and achieve stable heating and accurate temperature control.
5. Safety100%, electric oil heater has complete operational control and security monitoring devices.
6. Compared with steam boiler, electric thermal oil heaters work without water, it use thermal oil as medium and there is no oil loss druning running. To make heats efficiently, customers replace high quality thermal oil every five years.

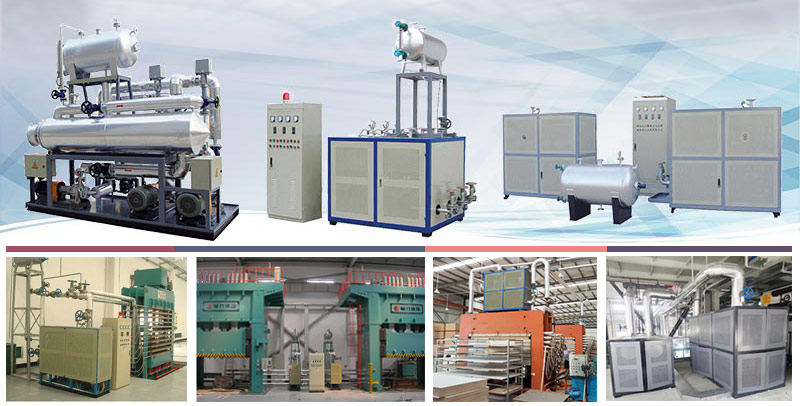

Applications Thermal Oil Heater
1. Mostly use in textile, bitumen, plywood, gloves, textile, asphalt, foods, heating tanks, heating base oil, chemical industry, refinery oil, oil mill, etc.
2. Yuanda Boiler have sold boiler to 132 countries worldwide, With international manufacture standard ISO CE ASME DOSH.
Related Thermal Oil Heater
Power: Gas, lpg, diesel, coal, wood, biomass, solidwaste
Model: Vertical type, horizontal type, portable type, skid type, containeried type
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
2. Qualified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 132 countries all over the world, trustable quality & services for lifespan.
Model | Reted capacity | Rated pressure | Oil Volume | Dimension(MM) | Hot Oil Pump | Total Power | Weight | Oil Expansion Tank | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
(KW) | (*104kcal/h) | (Mpa) | (L) | L | W | H | Flow(m³/h) | Lift(M) | Power(Kw) | Kw | Kg | L | |
YDW10 | 10 | 0.8 | 0.6 | 15 | 1100 | 500 | 1100 | 6 | 27 | 1.5 | 11.5 | 200 | 100 |
YDW18 | 18 | 1.5 | 0.6 | 23 | 1600 | 500 | 1250 | 6 | 27 | 1.5 | 19.5 | 200 | 130 |
YDW24 | 24 | 2 | 0.6 | 28 | 1950 | 650 | 1450 | 12.5 | 30 | 3 | 27 | 350 | 150 |
YDW36 | 36 | 3 | 0.6 | 48 | 1950 | 650 | 1450 | 12.5 | 30 | 3 | 39 | 350 | 200 |
YDW48 | 48 | 4 | 0.6 | 48 | 1950 | 650 | 1450 | 18 | 40 | 5.5 | 53.5 | 350 | 230 |
YDW60 | 60 | 5 | 0.6 | 52 | 1950 | 650 | 1450 | 18 | 40 | 5.5 | 65.5 | 350 | 230 |
YDW70 | 70 | 6 | 0.6 | 60 | 2150 | 700 | 1750 | 30 | 48 | 7.5 | 77.5 | 550 | 280 |
YDW90 | 90 | 7.5 | 0.6 | 68 | 2150 | 700 | 1750 | 30 | 48 | 7.5 | 97.5 | 550 | 280 |
YDW120 | 120 | 10 | 0.6 | 105 | 2200 | 700 | 1880 | 30 | 48 | 7.5 | 127.5 | 750 | 300 |
YDW150 | 150 | 12.5 | 0.6 | 195 | 2200 | 900 | 1880 | 30 | 48 | 7.5 | 157.5 | 750 | 300 |
YDW180 | 180 | 15 | 0.6 | 230 | 2200 | 1000 | 1880 | 45 | 48 | 11 | 191 | 1200 | 320 |
YDW240 | 240 | 20 | 0.6 | 260 | 2300 | 1000 | 1950 | 80 | 38 | 15 | 255 | 1200 | 350 |
YDW300 | 300 | 25 | 0.6 | 358 | 2800 | 1200 | 2000 | 80 | 38 | 15 | 415 | 1750 | 450 |
YDW500 | 500 | 40 | 0.6 | 510 | 2800 | 1500 | 2000 | 80 | 38 | 15 | 515 | 1850 | 550 |
YDW700 | 700 | 60 | 0.6 | 638 | 3000 | 1800 | 2150 | 80 | 38 | 15 | 715 | 2200 | 650 |
… | … | … | … | … | … | … | … | … | … | … | … | … | … |
GYD1400 | 1400 | 120 | 0.6 | 2100 | 3600 | 2900 | 2150 | 80 | 85 | 37 | 1437 | 6500 | 1200 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
