SZL Water Tube Grate Boiler
SZL Water Tube Grate Boiler
SZL Water Tube Grate Boiler
  • SZL Water Tube Grate Boiler
  • SZL Water Tube Grate Boiler
  • SZL Water Tube Grate Boiler

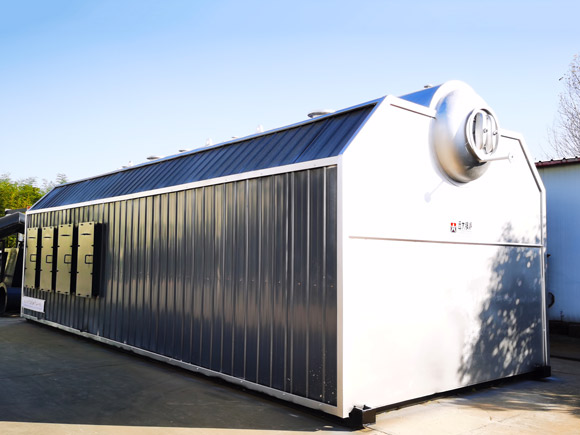

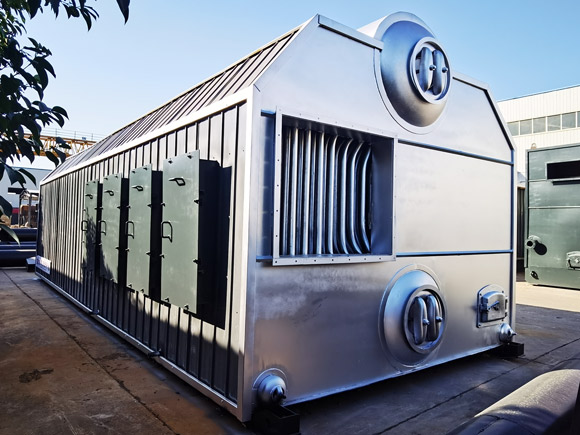

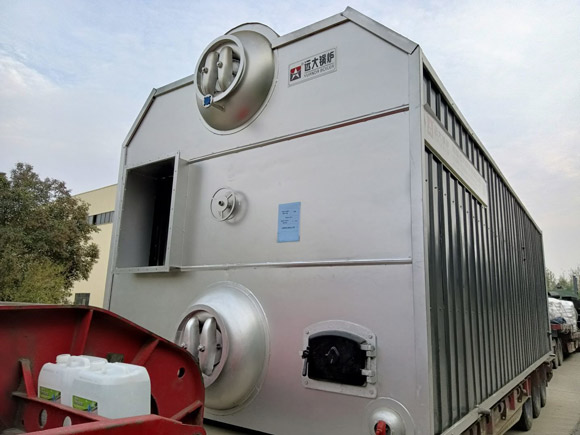

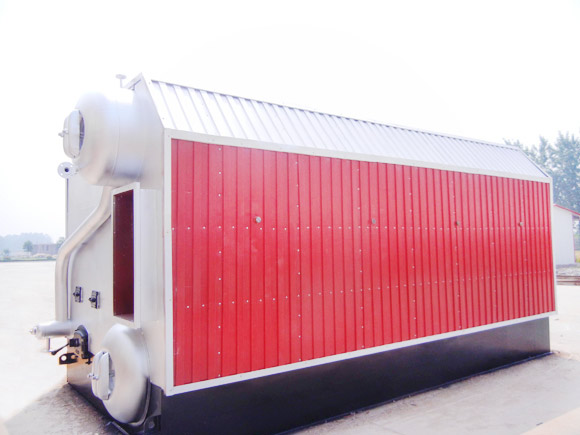

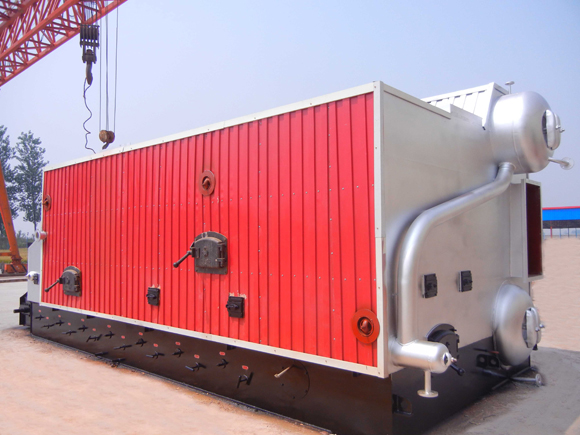

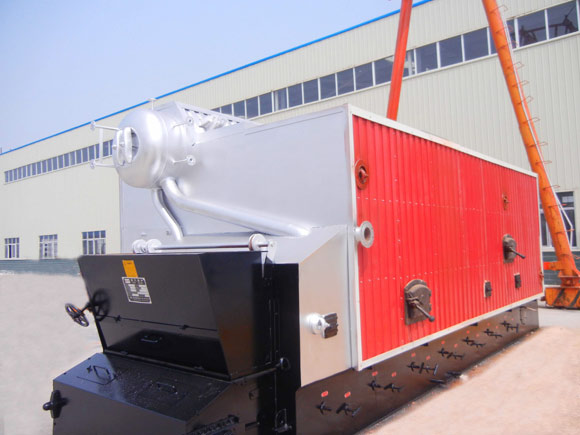

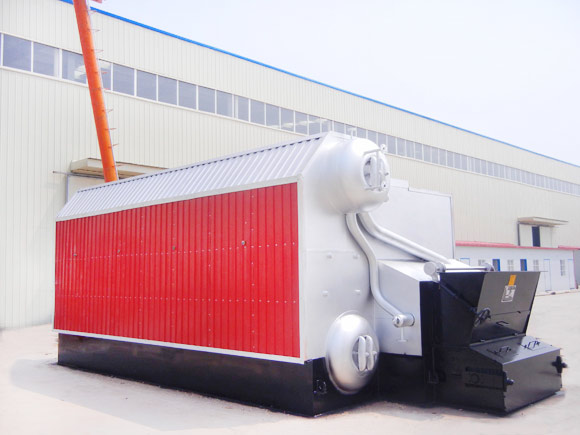

SZL Coal Water Tube Boiler

  • Capacity:2-50ton/hr; 1.4mw-35mw
  • Pressure:0-3.8Mpa; 0-38Bar
  • Horsepower:150hp-3000hp(bhp)
  • Fuel:Coal, biomass, wood, waste fabric, shells, husk, jute, etc.
  • Features:Doubel drums water tube boiler / SZL A or D boiler / water tube coal boiler / water tube biomass boiler / solid fuel fired boiler
Get price Send Message
Introduction

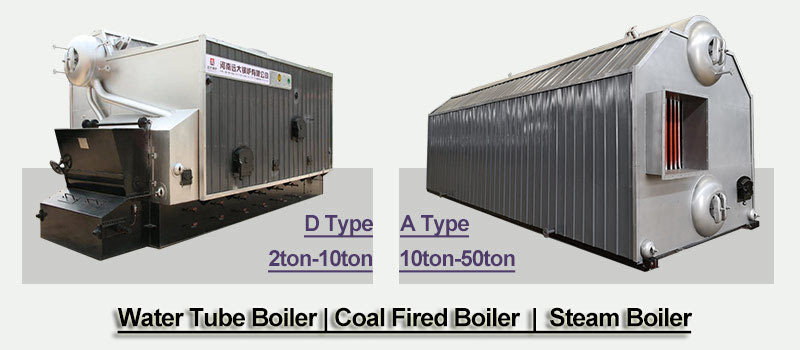

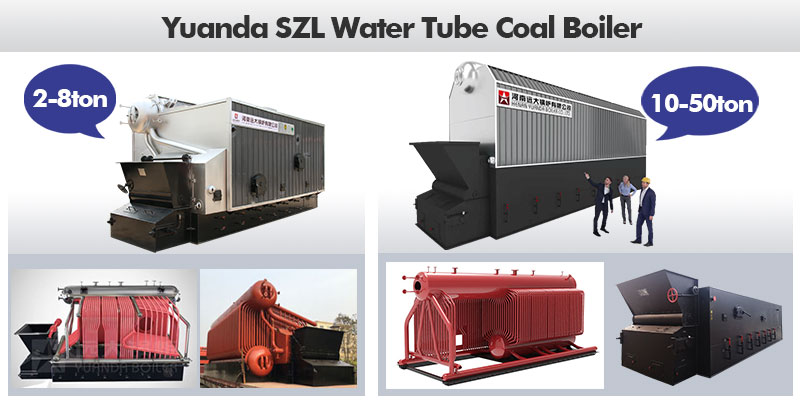

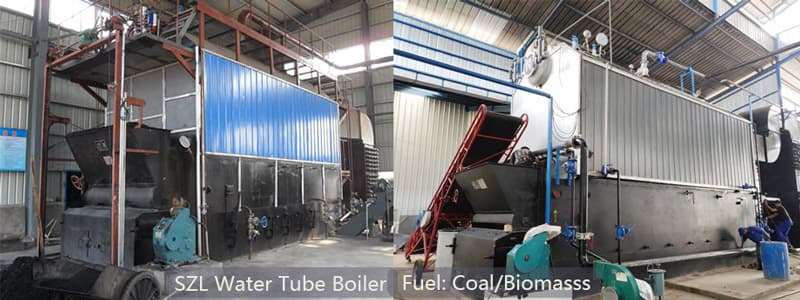

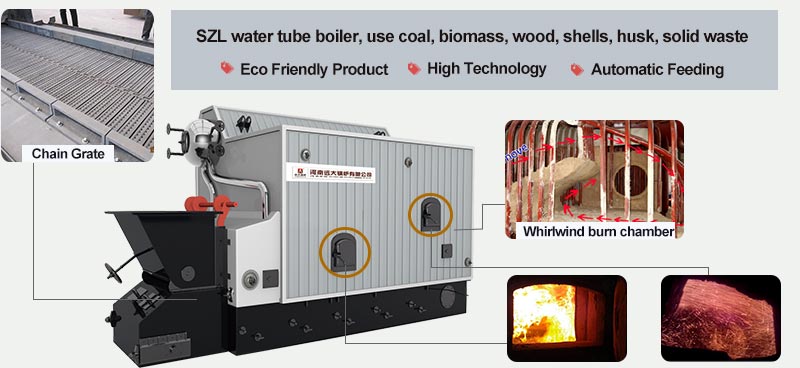

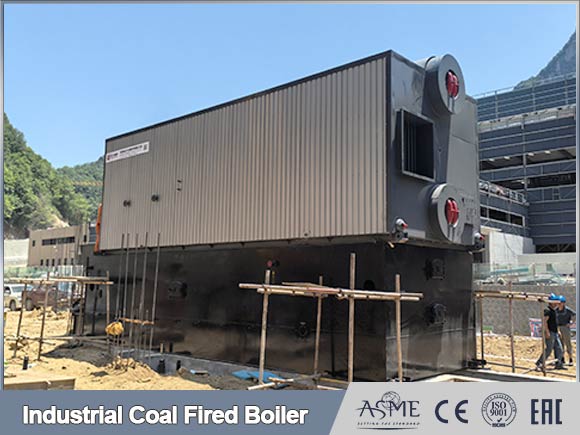

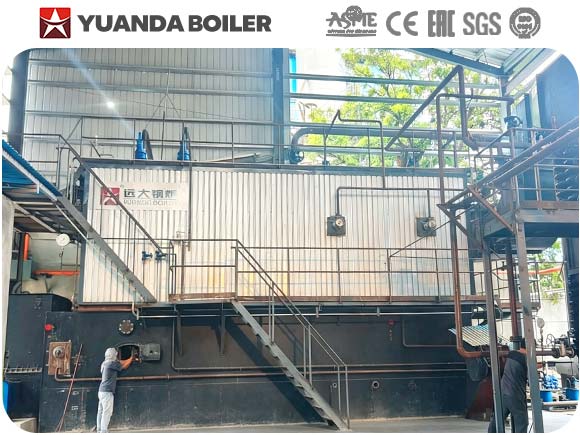

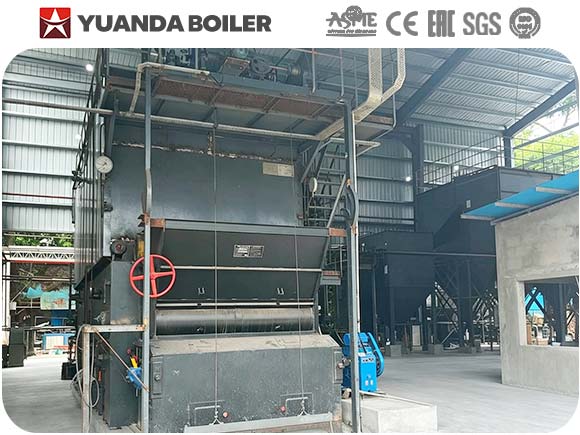

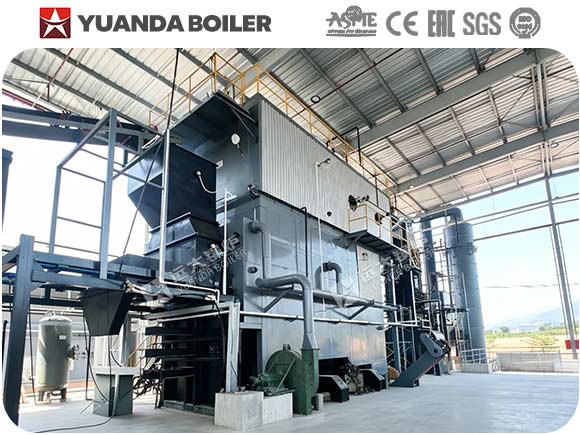

SZL water tube coal boiler it is package shop-assembled water tube boiler with double steam drums and chain grate stoker structure. 2-8 tph boiler is package boiler and 8-35 tph is shop-assembled structure, which is composed of 2 parts, upper part is heat absorbing surface and lower part is combustion equipment. SZL water tube boiler has wide fuel adaptability, wide range fule including coal, biomass, wood chips, ricehusk, pellets, shells, straw, bagasse, palm oil shell, solidetc.

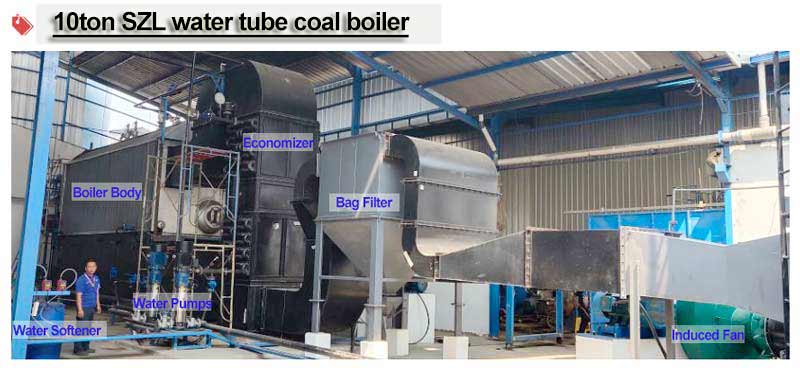

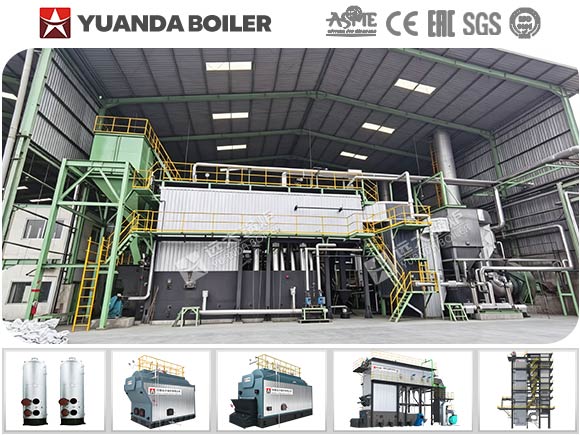

Whole System  all equipment including grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc. Different grate machine including Chain grate, Travelling grate, Reciprocating step grate, Dumping grate, Fixed grate...

Advantages technical features

1. By adopting the water-cooling system in packaged boilers which is usually used in power plant boilers, the boiler can achieve large heat transfer area, high heat transfer efficiency, low heat loss, good air tightness, and no distortion or dust leakage of the brickwork.

2. The front and back water-cooling wall tubes stretch themselves to the upper side of the chain grate, which increases the heating surface and overload capacity. The frames of the front and the rear arch are made of water-cooling tube wall, together with high-alumina cement, which can avoid the defects of the cracking and collapsing of the arch and extend its lifespan.

3. The distance between the front shaft and the rear shaft of the grate stoker is longer than other similar type domestic products. In this way, the combustion time of the fuel in the furnace is extended and the fuel combustion is more sufficient and the carbon content in the slag is decreased. Meanwhile, the actual heating surface of the grate is increased and the overload capacity is remarkably enhanced.

4. There are six independent wind chambers arranged lengthways and each chamber has an independent air adjuster, which can respectively adjust the air volume in each chamber so as to achieve the best combustion effect.

 SZL coal boiler, chain grate boiler, coal steam boiler, water tube boiler

Recommend  gas oil water tube boiler & vertical water tube boiler:

1) Vertical water tube boiler, 100kg-2000kg steam boiler, 100kw-1400kw hot water boiler, it cost small occupy area of vertical type, suitable small capacity, low cost and long lifespan.

2) SZS water tube boiler, 8-40ton/hr gas/oil fired boiler, adopts double drums "D-type" vertical arrangement, full-membrane wall structure, reasonable and compact layout, realize large-capacity boiler overall quick installation, less investment in boiler house infrasturcture and short installation period.
water tube boiler


Know More

Why Choose Us ?

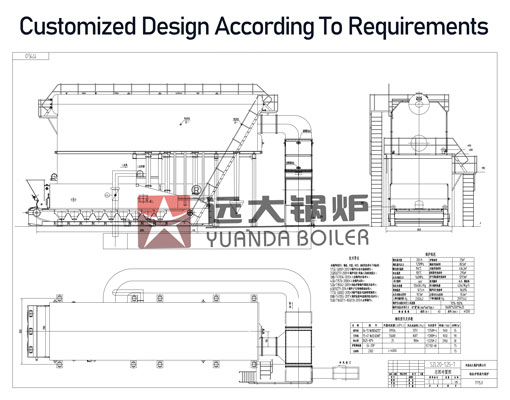

1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.

2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.

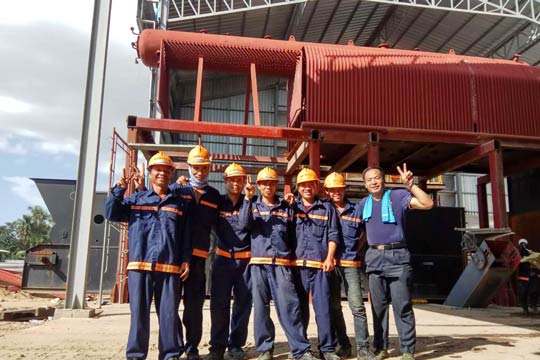

3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.

4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.

Global Boiler Service

1. Offer catalogue, various boiler model for choose, inquire one you prefer.

2. Technical discussion on boiler system solution for your company use.

3. Warmly welcome all customers come to visit the production base

4. Trustable after sale service, for boiler installation, training operators.

5. Whole life service for boiler consult, contact us whenever.

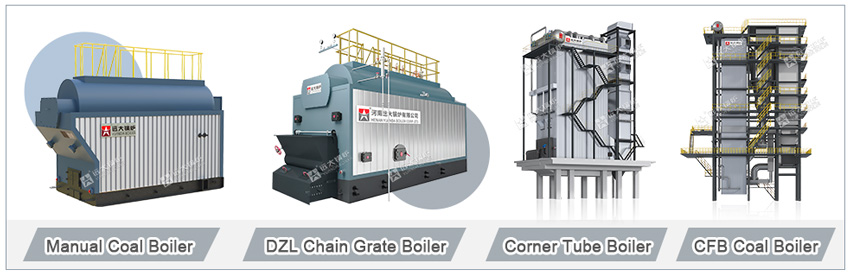

gas oil boilercoal boiler

We are one of the leading enterprises which first obtained the national boiler manufacturing license in China. Until 2019, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !

Yuanda Boiler Factory

Parameter
SZL Series Steam Boiler Technical Parameter Table
Model Rated capacity(t/h) Rated pressure (Mpa) Rated steam temperature(℃) feed temperature(℃) Thermal efficiency(%) Boiler water volume(m³) Exhaust temperation(℃) Fuel comsumption(Kg/h) max transportation weigh(t)
SZL2 2 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >83.13 6.76 130.7 385.8 22
SZL4 4 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.23 5.1 142 807 29
SZL6 6 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.81 8.4 142 1209 34
SZL8 8 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >85.02 9.4 149.1 1563.9 40.5
SZL10 10 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.2 8.35 152.7 2149.3 24
SZL12 12 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.56 12.8 148.7 2399.7 37
SZL15 15 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.29 15.2 149.8 2568.4 24.7
SZL20 20 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.8 15.5 147.4 4266.9 26
Note: Parameter is for reference only, if any changes should follow the factory technical data.
