Coal Fired Boiler

  • Capacity:0.1t/h-50t/h; 100kw-35000kw
  • Pressure:0.1Mpa-3.8Mpa
  • Fuel:Coal, wood, biomass, briquette, waste fabric, jhute, solid waste, etc
  • Application:Foods, Garment, Textile, Paper, Brewery, Ricemill, Printing & Dyeing, Poultry feed, Sugar, Packaging, Plywood, Building material, Chemical
Get price Send Message
Model

coal fired boiler

Boiler Model: DZH DZL LSG SZL

Boiler Capacity: 200kg-50,000kg; 200kw-35 000kw

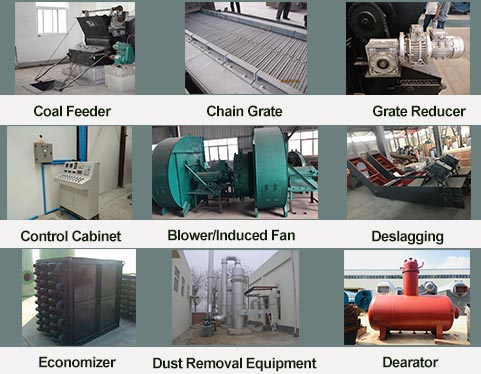

Introduction: We supply coal boiler in 0.3t-50t, Accodring your production demand, help you choose suitable coal boiler model, boiler solution design service. Our boiler system equipment including grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc. Kinds of boiler grate: Chain grate, Travelling grate, Reciprocating step grate, Dumping grate, Fixed grate...

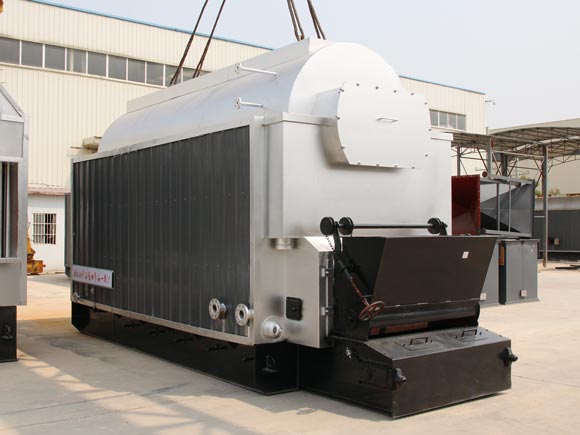

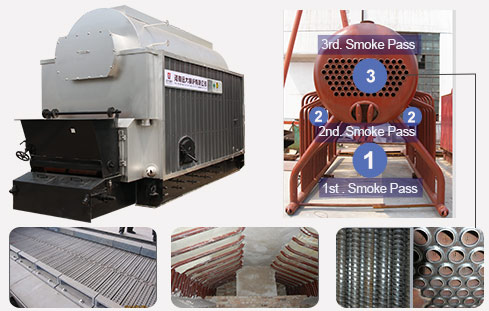

Plan A  DZL automatic chain grate coal boiler

DZL series package coal boilers, are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface,while the drum and the water walls on both sides from a radiation heating surface in the furnace.

DZL Coal boilercoal steam boiler

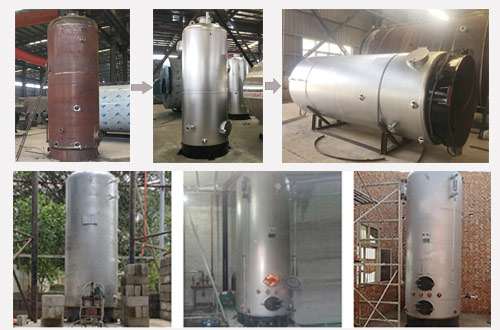

Plan B  vertical coal boiler 200kg-2000kg/200kw-1400kw

LSG/LSH series coal or biomass steam boiler is vertical type structure with small steam capacity. The combustion equipment is moving grate. The boiler uses the general combustion technique. Coal or biomass fuel is fed by workers manually. Advantages: Quick steam output. Easy installation & operation. Lower fuel consump cost & higher thermal efficiency.

Coal Fired Boiler, Coal Steam Boilercoal boiler

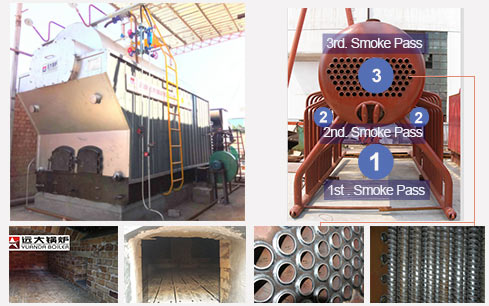

Plan C  DZH manual hand coal biomass boiler

DZH Manual type coal boiler, equipped with fixed grate, water-fire tube three return boiler, radiation heat surface in furnace water wall and stove sides. convection heat surface in furnace flanks and threaded tube.

DZH coal boilermanual coal boiler

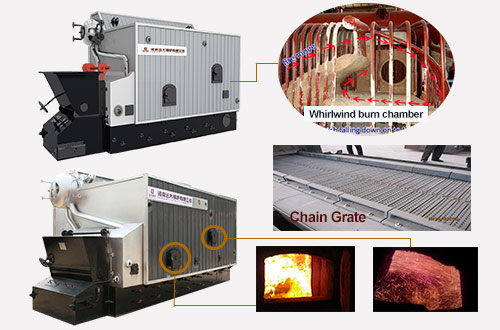

Plan D  SZL water tube coal boiler

Our company SZL type water tube boiler, "A" series & "D" series, adopt membrane water wall constructure, wide biomass fuel adaptability, high technology, environmental and energy-saving. we will help you choose one best-suitable boiler for your project.

---"D" series, SZL double drums offset furnace sturcture, package boiler capacity in 2ton-10ton.

---"A" series, double-drum A type layout, water tube assembly chain grate boiler, suitable for 10ton/12ton/15ton/20ton.

szl water tube boiler10ton water tube coal boiler

You may like

coal thermal oil boiler  biomass boiler


coal thermal oil boiler
biomass boiler

Why Choose Us ?

1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.

2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.

3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.

4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.

Global Boiler Service

1. Offer catalogue, various boiler model for choose, inquire one you prefer.

2. Technical discussion on boiler system solution for your company use.

3. Warmly welcome all customers come to visit the production base

4. Trustable after sale service, for boiler installation, training operators.

5. Whole life service for boiler consult, contact us whenever.

gas oil boilercoal boiler

We are one of the leading enterprises which first obtained the national boiler manufacturing license in China. Until 2019, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !

Yuanda Boiler Factory

Parameter
DZ Series Steam Boiler Technical Parameter Table
Model Rated capacity(t/h) Rated pressure (Mpa) Rated steam temperature(℃) feed temperature(℃) Thermal efficiency(%) Boiler water volume(m³) Exhaust temperation(℃) Fuel comsumption(Kg/h) max transportation weigh(t)
DZH1 1 1.0/1.25/1.6 184/194/204 20/104 >82 3.15 127.25 192.32 9
DZL1 1 1.0/1.25/1.6 184/194/204 20/104 >82 3.15 113.34 190.42 13.5
DZH2 2 1.0/1.25/1.6 184/194/204 20/104 >82 4.75 126.41 386.47 15
DZL2 2 1.0/1.25/1.6 184/194/204 20/104 >82 4.77 106.34 393.77 22
DZH4 4 1.0/1.25/1.6 184/194/204 20/104 >82 7.7 137.25 782.29 18.5
DZL4 4 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >82 8.2 124.49 756.89 27.6
DZH6 6 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >82 7.4 146.83 1169.57 25
DZL6 6 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >82 8.1 137.29 1148.68 35
DZL8 8 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >82 9.6 141.06 1602.44 38
Note: Parameter is for reference only, if any changes should follow the factory technical data.
