Boiler Heating For Greenhouse
- Heating Greenhouse Area：>300 sqm
- Heating Capacity：100kw-35 000kw
- Water Capacity：> 500 Ltrs
- Water Temperature：0°C-130°C
- Heating Power：Gas/Oil/Biomass/Coal/Electricity

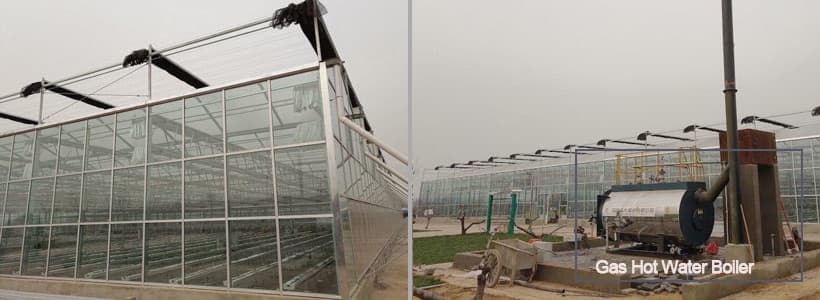

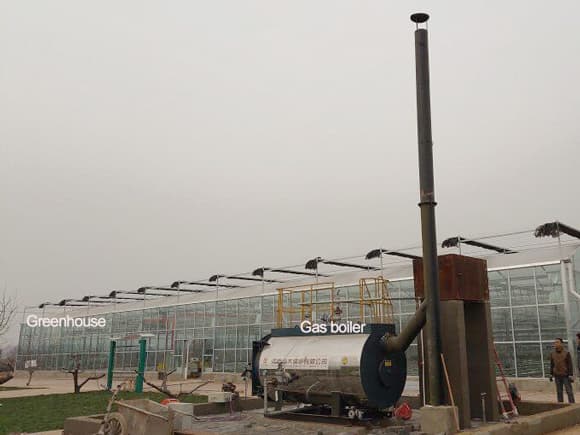

① Heating Water Boiler For Greenhouse/warehouse/buildings
Hot water boilers and coil fans together work for heating system in greenhouses for planting flowers, fruits, vegetables, etc. For heating area above 300 sqm, 5000 sqm, 10000 sqm, 20000 sqm.......
.jpg)
② Kinds of hot water boiler Fuel: gas, diesel, coal, wood, biomass
Heating Capacity: 100kw-35 000kw, 0.35mw-35mw
Heating Power: Gas/Lpg/Diesel/heavy oil; Coal/Biomass/Wood; Electricity

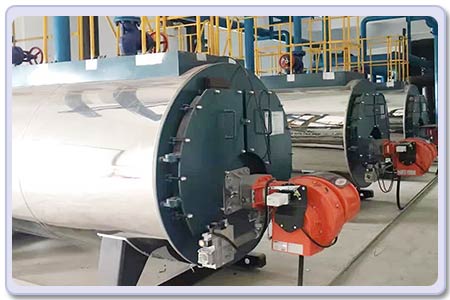

1. Gas/Lpg/Oil Hot Water Boiler, output hot water into heating system then return, heating water up to 130°C, WNS horizontal fire tube structure, higher efficiency 99.8%, clean energy and fully-automatically operation boiler.
2. Coal/Wood/Biomass Hot Water Boiler, hot water output for heating system, automatic package coal feeding boiler, equipped with economizer for energy-saving, if there be rich coal energy, it's more economizer than others.
③ How to calculate the heating capacity
Suppose: Heating 50tons 10℃ water into 42℃. (Theory: 1kg water needs about 1 Kcal to rise 1℃)
Now the feeding water is 10℃, rises to 42℃, so temperature difference is 42℃-10℃ = 32℃
50 tons water =50,000 kg, Heat up 1 ℃ for 50tons water =50,000 X 1 Kcal=50,000 Kcal
Conlusion: Heating up to 32℃=50,000 Kcal X 32=1,600,000 Kcal
Then, we will consider your needs and local market fuel price, make solution and offer best economic choice for you!
④ Request quote pls send your request as following:
1. Send required heating greenhouse area totally/dividely
2. Choose fuel economically, such as gas/lpg/oil, coal/biomass, electric
3. What's the temperature required in greenhouse?
4. What's materials made of your greenhouse/warehouse? Remark: Send by shirley@yuanda-boiler.com

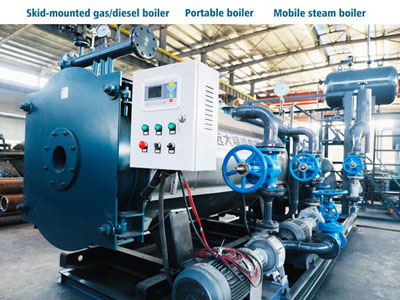

vertical fire tube boiler portable boiler thermal oil boiler coal wood biomass boiler
Why Choose Us ?
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
Global Boiler Service
1. Offer catalogue, various boiler model for choose, inquire one you prefer.
2. Technical discussion on boiler system solution for your company use.
3. Warmly welcome all customers come to visit the production base
4. Trustable after sale service, for boiler installation, training operators.
5. Whole life service for boiler consult, contact us whenever.
We are one of the leading enterprises which first obtained the national boiler manufacturing license in China. Until 2019, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !
| Model | Rated power(MW) | Rated pressure (Mpa) | Rated output temperature(℃) | Rated return water temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
|---|---|---|---|---|---|---|---|---|---|
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.35 | 0.35 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 31.6 | 36.6 | 2.65 |
| WNS0.7 | 0.7 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 60.4 | 69.3 | 4.66 |
| WNS1.4 | 1.4 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 122.8 | 146.1 | 6.53 |
| WNS2.1 | 2.1 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 192.3 | 227.1 | 7.3 |
| WNS2.8 | 2.8 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 246.1 | 286.5 | 8.1 |
| WNS4.2 | 4.2 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 367.1 | 412.6 | 15.1 |
| WNS5.6 | 5.6 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 490.2 | 543.7 | 18.2 |
| WNS7.0 | 7.0 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 593.6 | 660.7 | 25.6 |
| WNS10.5 | 10.5 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 936.5 | 998.8 | 29.1 |
| WNS14.0 | 14.0 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 1200.8 | 1330.7 | 47.8 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
