Exhaust Waste Gas Boiler

  • Heating Supply:Waste heat energy
  • Brief Intro:Exhaust gas boiler, refers to boiler use waste heat from various industrial processes, to heat water to a certain temperature steam, for heating, factory processing, steam turbine
  • Get Exhaust Gas Boiler Solution:shirley@yuanda-boiler.com
  • Whatsapp numbers:0086 18236986701
Get price Send Message
Introduction

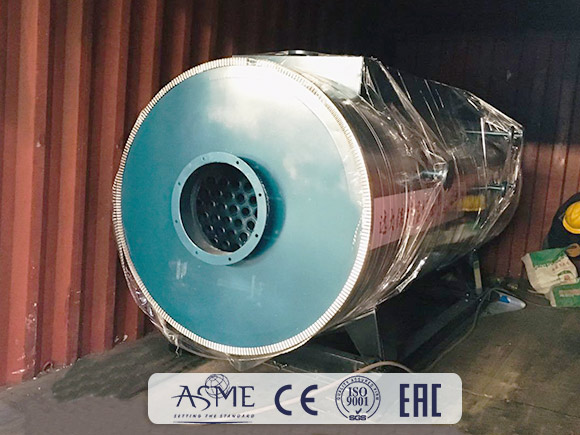

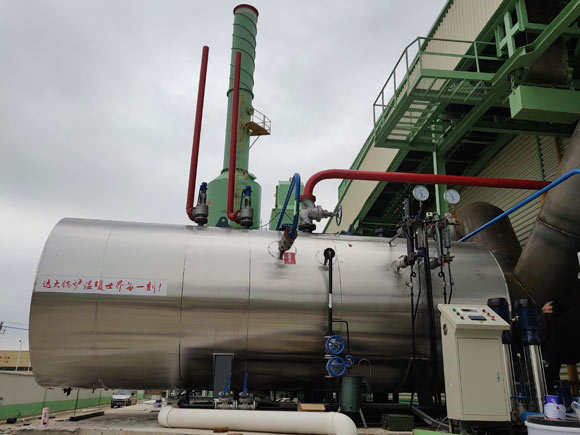

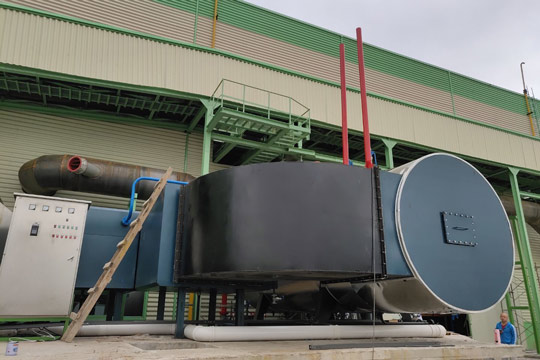

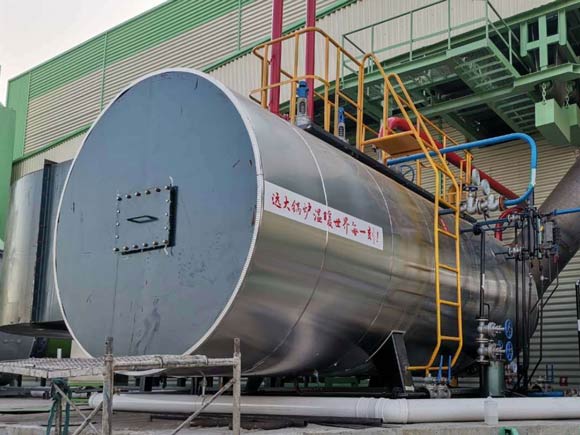

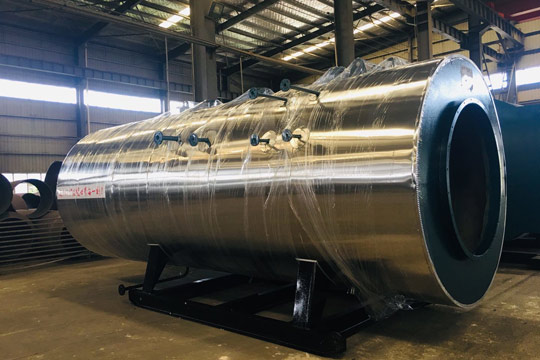

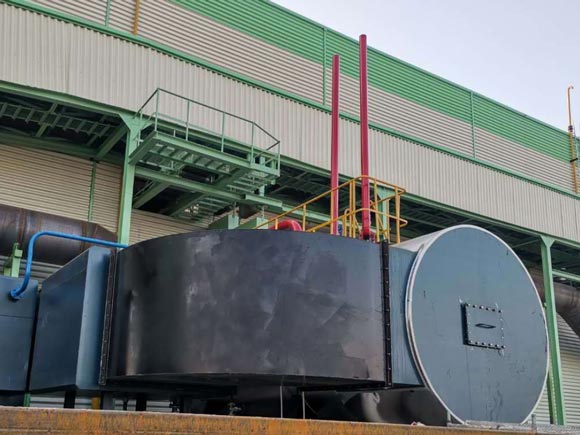

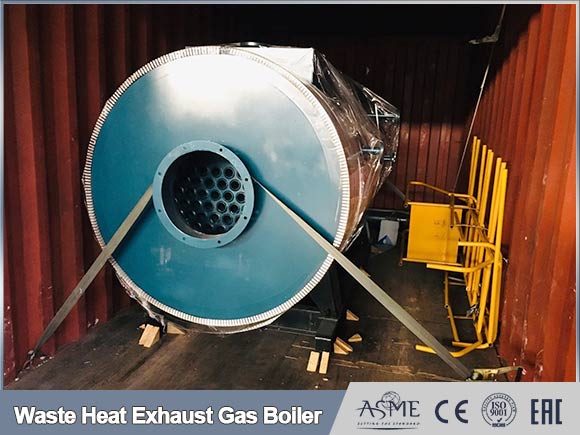

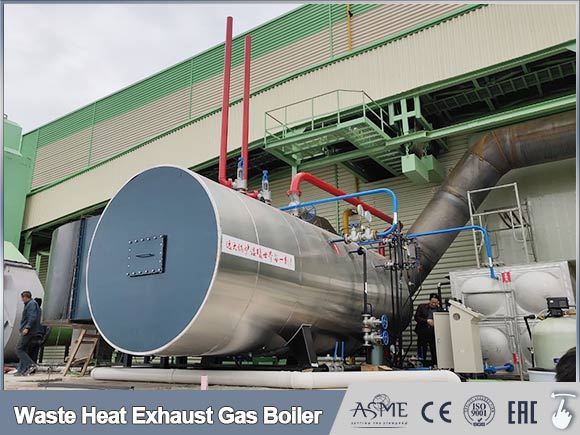

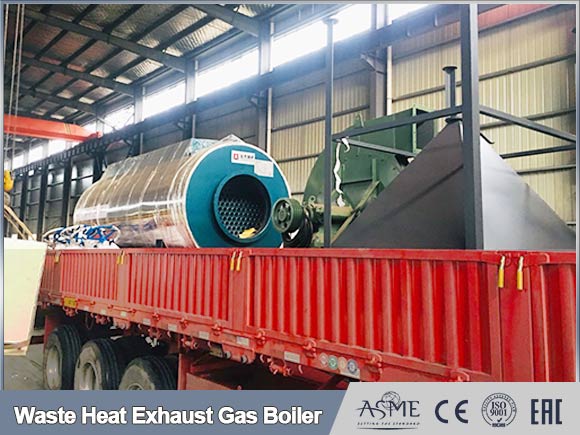

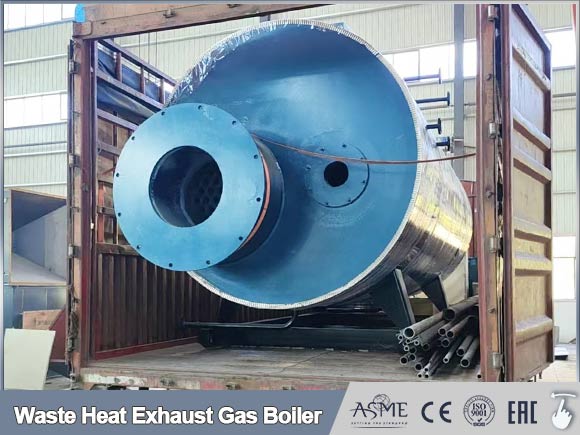

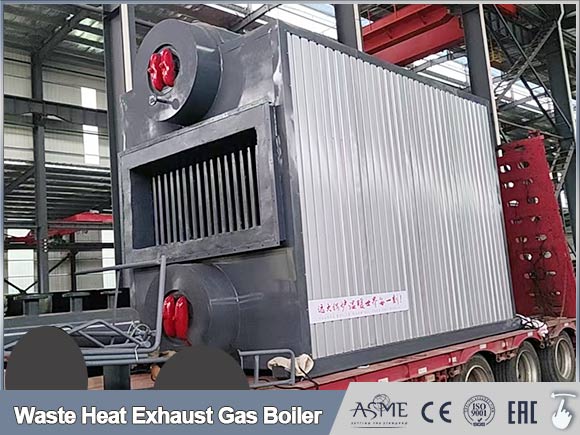

Exhaust gas boiler, waste heat recovery boiler

exhaust gas boiler

Exhaust gas boiler, refers to boiler use waste heat from various industrial processes, waste heat from waste materials, waste heat generated by the combustion of combustible substances, to heat water to a certain temperature.
Explain exhaust gas boiler model:  QC36/600-6.5-0.7

Q means boiler carrier heat is gas

C means boiler is under presse

36 means flow rate of boiler is 36 thousand cubic meters per hour

600 means exhaust gas temperature is 600 degrees

6.5 means rated steam capacity is 6.5tons per hour

0.7 means rated pressure is 0.7mpa

Parameters
Waste heat boiler design
Need to provide the parameters listed in the table below
One Industry
two Flue gas side parameters unit
1 Flue gas side pressure of boiler inlet Pa
2 Range of boiler inlet flue gas volume (standard condition) N m3/h
3 Design value of boiler inlet flue gas (standard condition) Nm3/ h
4 Temperature range of boiler inlet flue gas °C
5 Design value of boiler inlet flue gas temperature °C
6 Boiler outlet flue gas temperature ~℃
7 Composition of boiler inlet flue gas (volume percentage) %
  CO
  SO2
  SO3 (if any)
  CO2
  H2O
  O2
  N2
  HCL (if any)
8 Dust concentration of flue gas at boiler inlet g/Nm3
9 Required resistance on the flue gas side of the boiler body Pa
10 Requirements for total air leakage on the flue gas side of the boiler (if any) %
three Boiler side parameters
1 Rated steam capacity of the boiler (if any) t/h
2 Rated steam pressure of boiler MPa
3 Boiler rated steam temperature °C
4 Boiler feed water temperature °C
four Other required parameters
1 Elevation and size of smoke outlet of industrial furnace m
2 Estimated smoke outlet elevation of waste heat boiler m
3 Estimated land requirement for waste heat boiler (length m×width m×height m) m
4 Does the waste heat boiler need the supplier to support the top rain shed?
5 Boiler layout (vertical or horizontal layout)
6 Owner’s own compressed air pressure MPa
7 Whether the owner’s plant has its own natural gas source
8 Meteorological conditions of the owner’s plant (mainly local atmospheric pressure and seismic fortification intensity)
Fives Auxiliary machine
Parameter
