DZL Auto Biomass/Wood Boiler
- Capacity：0.1-50t/h, 100-28000kw
- Horsepower：10hp-3000hp(bhp)
- Pressure：0-3.8Mpa; 0-38Bar
- Fuel：Biomass, wood, ricehusk, shells, pellets, bagasse, jute, solid material
- Features：DZL biomass boiler / DZL wood boiler / automatic biomass boiler / water tube & fire tube boiler / biomass steam boiler or water boiler
DZL DZH biomass boiler, is horizontal three-pass water & fire tube boilers with grate combustion device. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides from a radiation heating surface in the furnace.
Whole system boiler & accessories including grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc. Kinds of boiler grate: Chain grate, Travelling grate, Reciprocating step grate, Dumping grate, Fixed grate...
DZL biomass boiler DZH biomass boiler

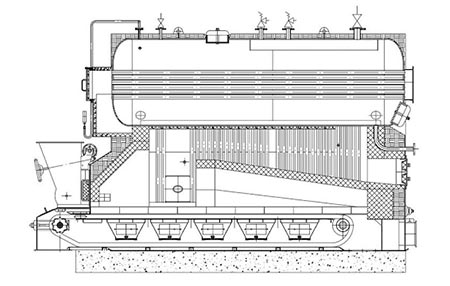

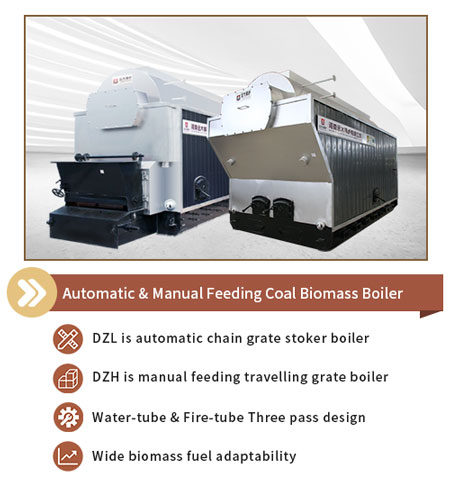

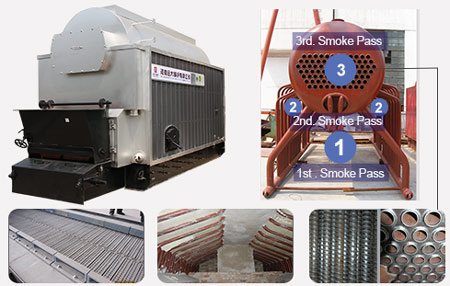

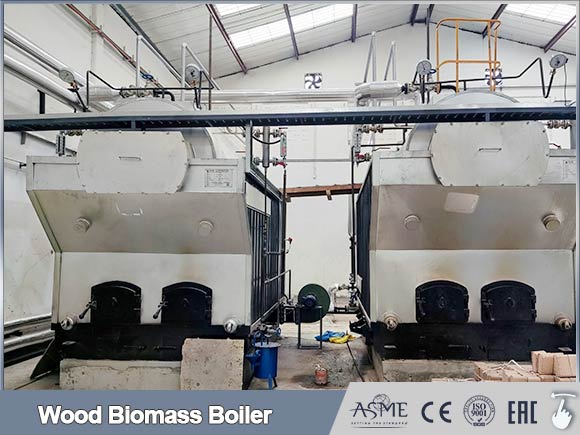

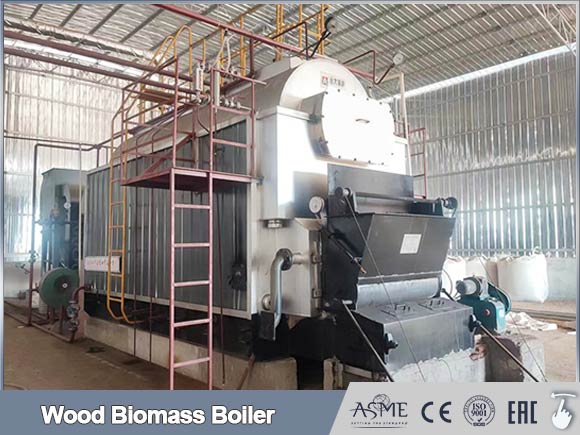

① DZL package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface,while the drum and the water walls on both sides from a radiation heating surface in the furnace.

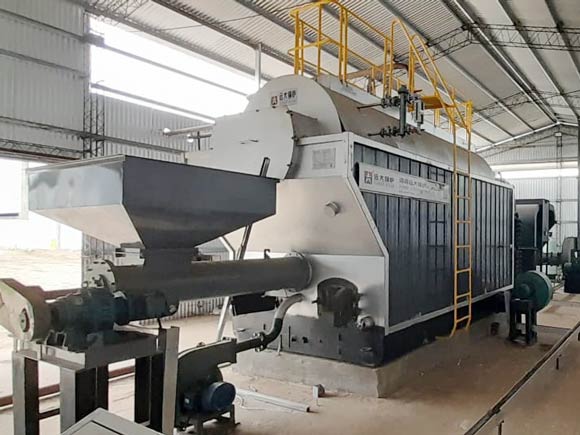

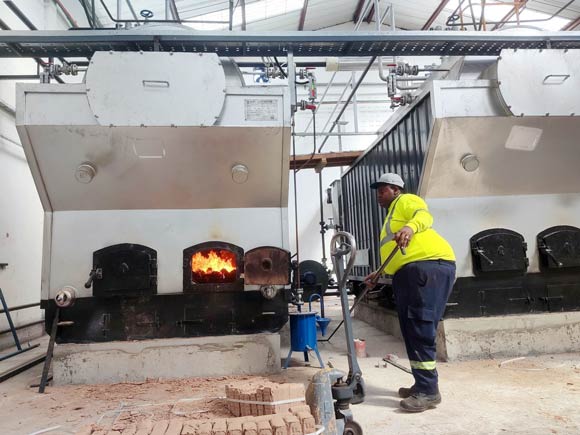

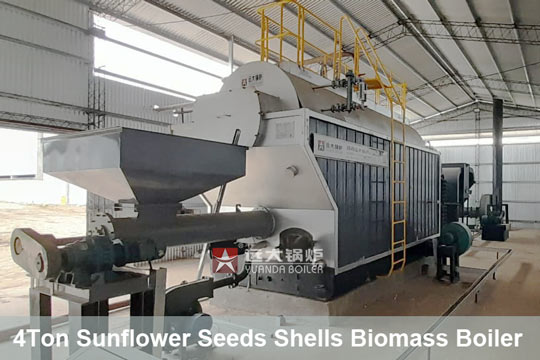

② DZH manual feed boiler, biomass fired boiler with travelling grate, it's the single drum type horizontal three return boilers with fire tubes and water tubes, radiation heat surface in furnace water wall and stove sides. convection heating surface in furnace flanks and threaded tube.
Advantages Special Design
1. It's a adaptable to a wide range of fuels including Biomass, wood, ricehusk, shells, pellets, bagasse, etc.
2. Thermal efficiency 5%-15% higher than other boilers, annual cost savings for 10tph boiler as high as USD70000
3. Saving money and time: custom designed and feeding system, slag discharge system, flue gas treatment system
4. Easy feeding and discharge, high level of automation that requires less operational and maintenance personnel
5. Safety assured by the advanced interlock control system

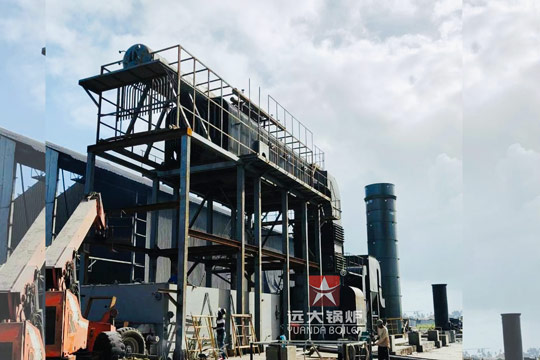

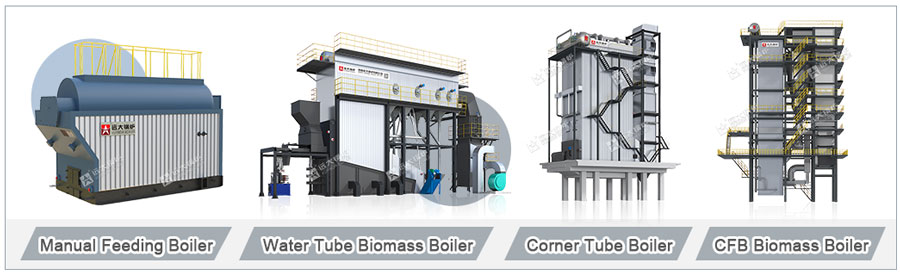

Projects Worldwide Service
Whole System All Equipment

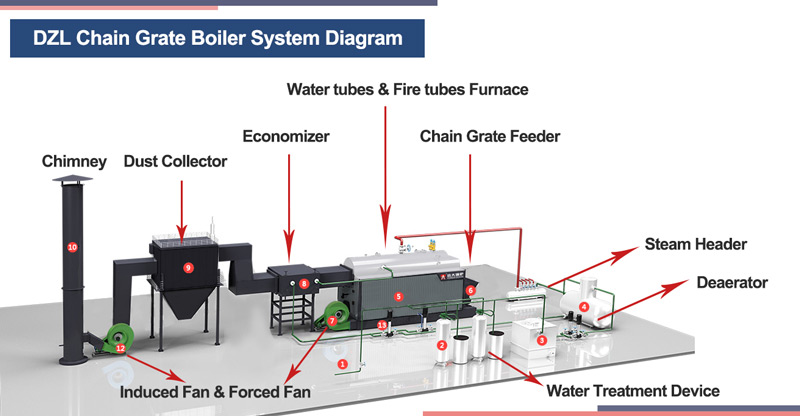

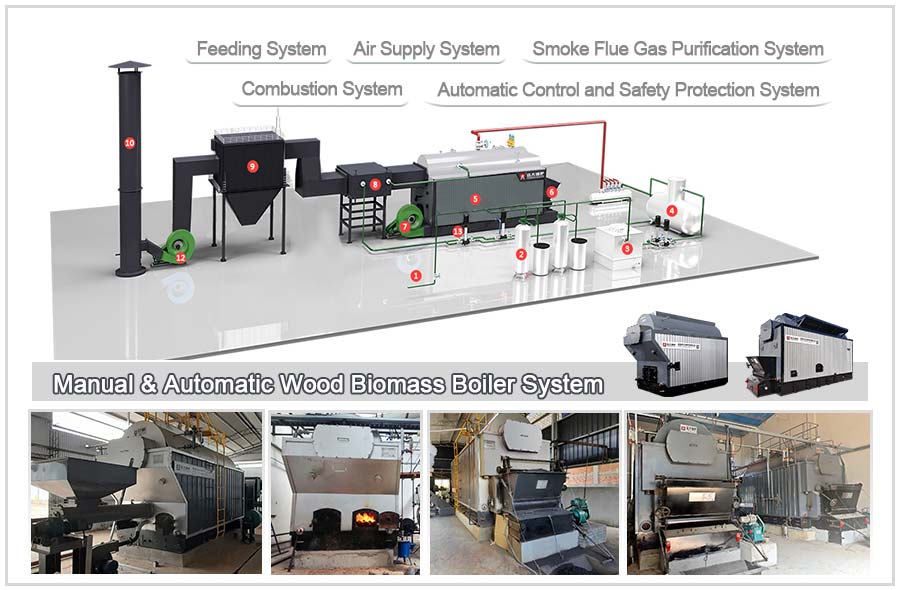

1. whole boiler system including grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc.
2. There are types of grates for your choose, Show different grates for reference as follows. our grate boilers mainly use grates including: Chain grate (also call travelling grate), Reciprocating grate, Dumping grate, Fixed grate.

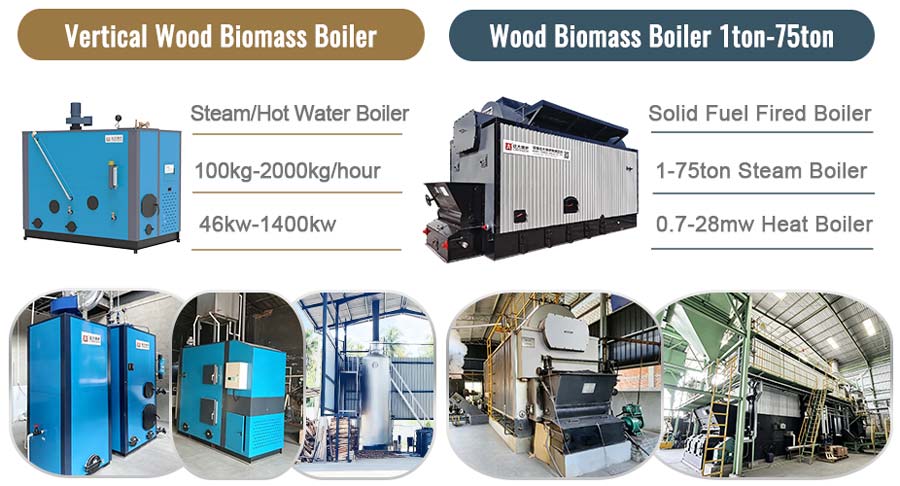

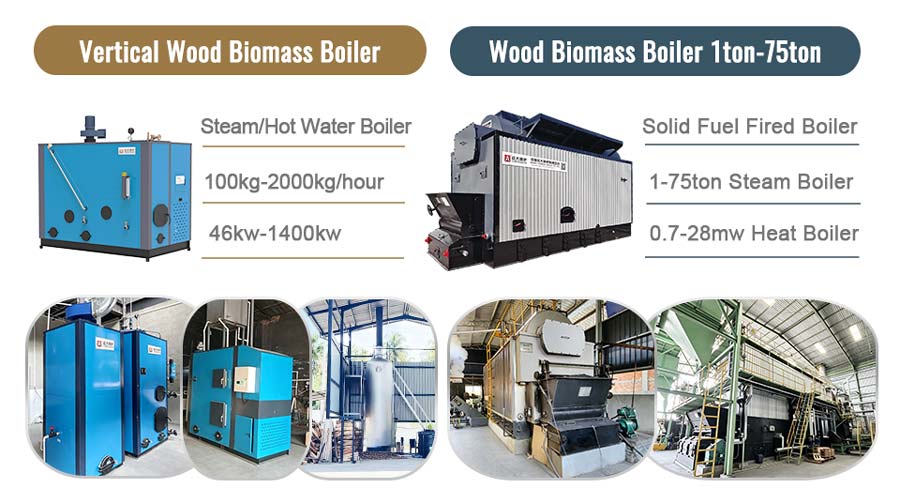

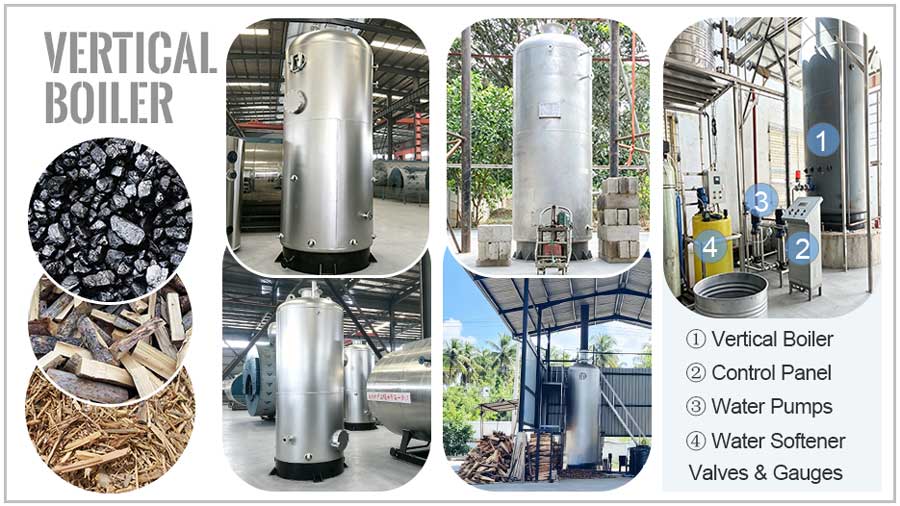

Vertical Wood Fired Boiler (200-2000kg/hr)

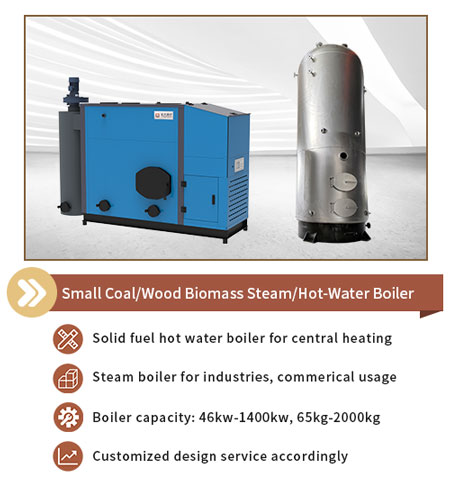

- LSG series coal or biomass steam boiler is vertical type structure with small steam capacity. The combustion equipment is moving grate. The boiler uses the general combustion technique. Coal or biomass fuel is fed by workers manually.
• Quick steam output • Easy installation & operation
• Lower fuel consump cost • High thermal efficiency

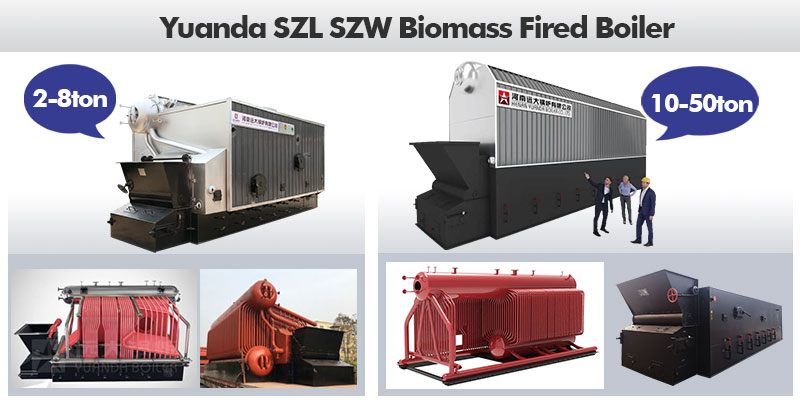

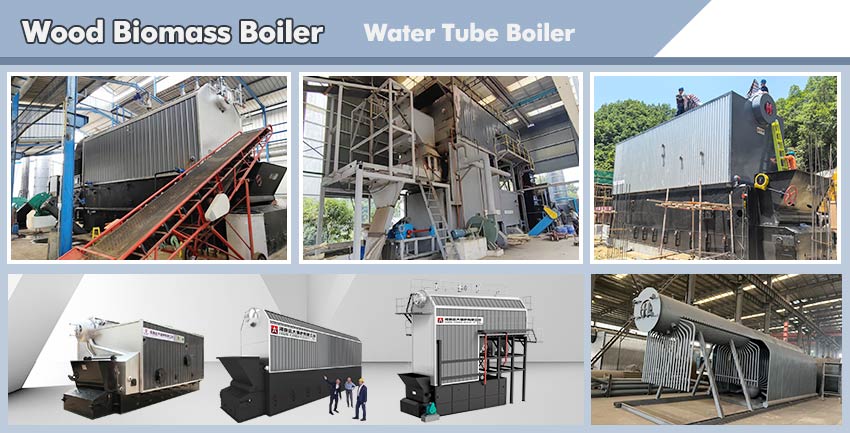

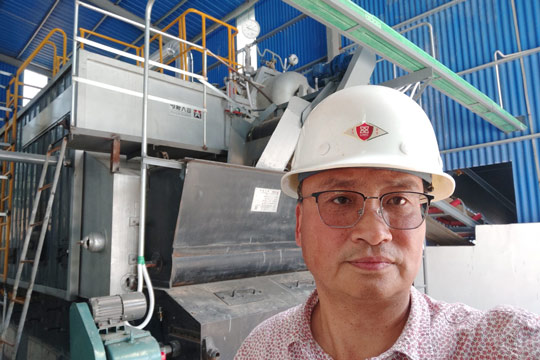

SZL Water Tube Grate Boiler (2-50ton/hr)

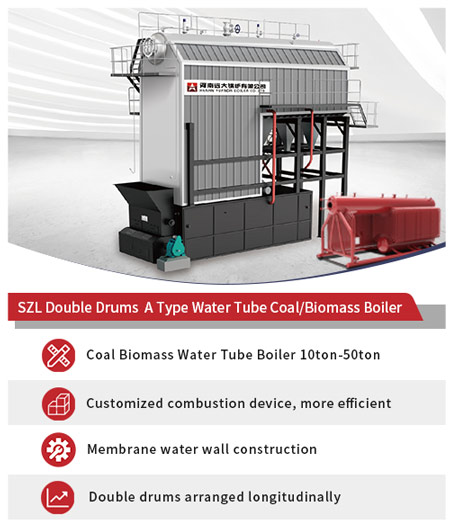

SZL series boiler has a double-drum offset hearth (D or A type layout), unique stove furnace design, great apply for biomass fuel, ensure fuel burning entirely, environmental protection and energy conservation.
• Membrane water wall • Unique boiler design patent
• Large furnace & wide fuel fire • Indenpend wind chamber
| DZ Series Steam Boiler Technical Parameter Table | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
