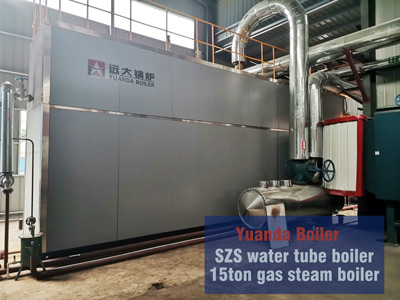

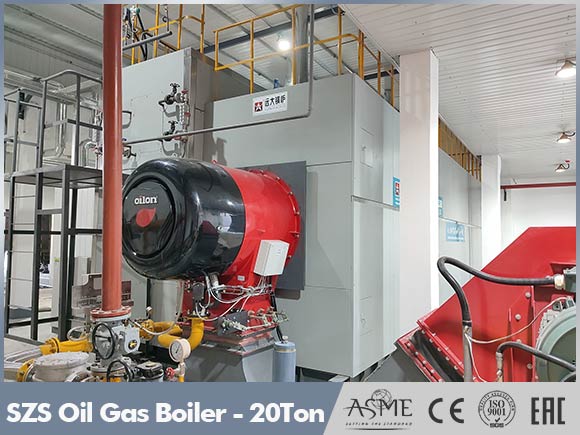

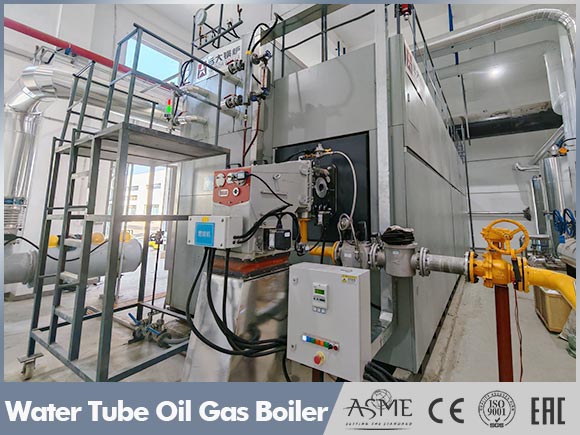

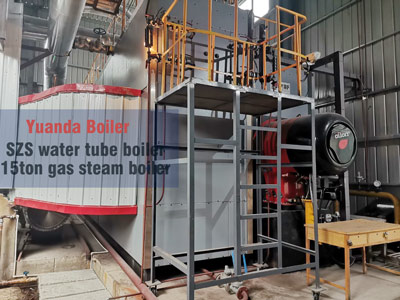

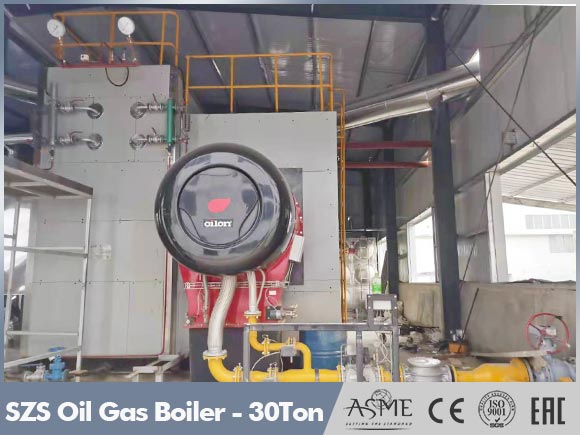

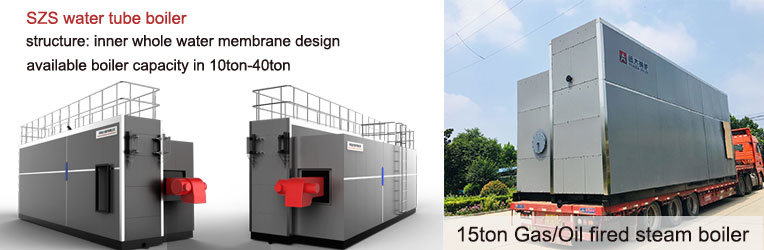

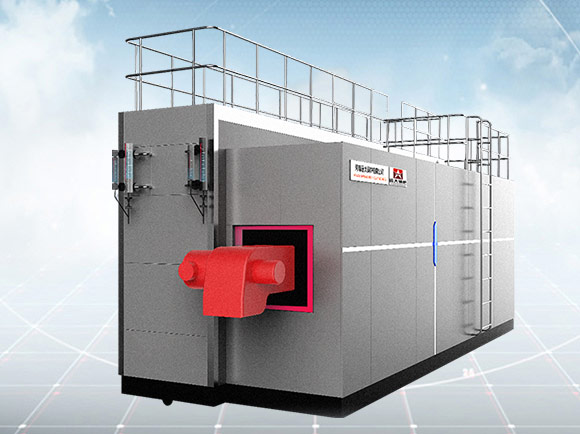

SZS Water Tube Boiler
- Capacity:10t/h-80t/h
- Horsepower:500hp-5000hp(bhp)
- Pressure:0-3.8Mpa; 0-38Bar
- Fuel:Natural gas, diesel/heavy oil, LPG, CNG, LNG, dual fuel, etc.
- Features:SZS water tube boiler / double drums burner boiler / water tube gas boiler / water tube oil boiler / water-membrane wall boiler

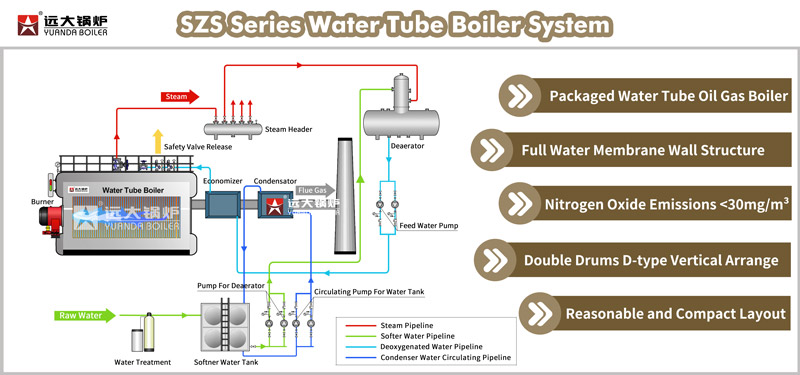

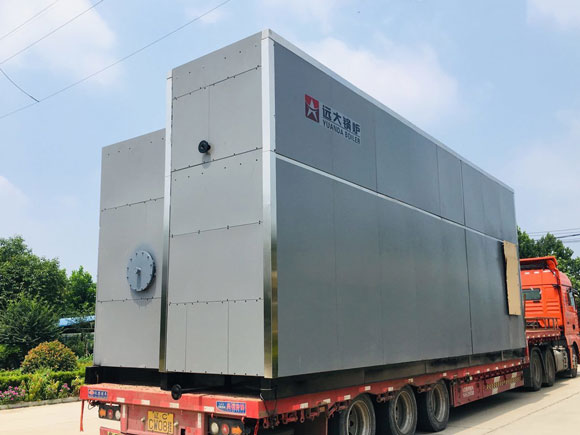

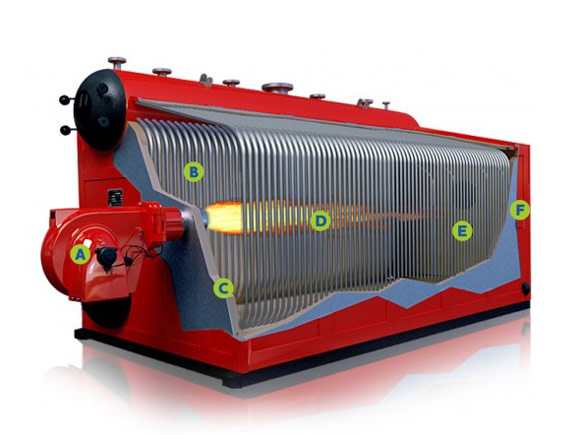

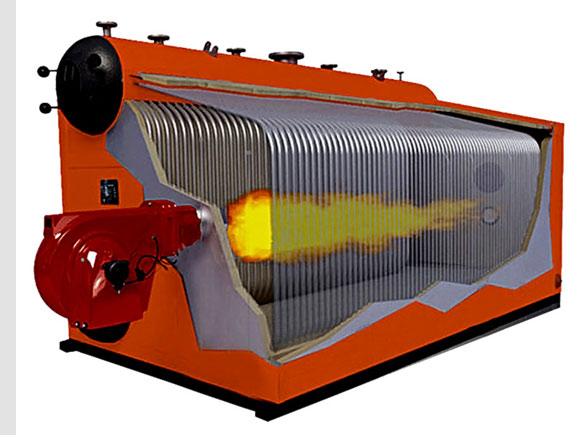

SZS water tube oil gas fired boiler, adopts double drums "D-type" vertical arrangement, full-membrane wall structure, reasonable and compact layout, realize large-capacity boiler overall quick installation, less investment in boiler house infrasturcture and short installation period.
Features & Advantages:
1. The design of big combustion chamber furnace is applicable to a variety of fuels, which can achieve ultra-low nitrogen emission (NOX<30mg/m3);
2. The whole membrane type water wall structure is adopted around the furnace, which has good sealing performance, low heat loss, no smoke and smoke leakage;
3. This furnace adopts a unique composite water circulation structure, and the high temperature zone of the body adopts forced circulation to ensure reliable cooling of each part of the heated surface and prevent vaporization;
4. The flue gas condensation recovery device is arranged at the tail of the boiler, which can effectively reduce the exhaust gas temperature and improve the boiler thermal efficiency;
5. The boiler is equipped with manholes, inspection doors, explosion-proof doors and flame detectors. It is safe and reliable in operation and easy to overhaul;
6. The furnace adopts high-quality aluminum silicate insulation layer, which has good thermal insulation performance, and the outer layer uses pressed protective plate, which is beautiful and durable.
Yuanda Boiler Boilers Sale Service Already Cover 102 countries !
Why choos us ? Yuanda Boiler
1. Products Certificates Qualifications
Yuanda products comply with international boiler manufacturing inspection standards such as ISO ASME CE SGS DOSH EAC.
2. Professional & Trustable
Yuanda Boiler, has professional technical research and development team, mature production technician team, high-quality raw material suppliers, experienced installation engineer team (have been to more than 50 countries to be responsible for after-sales installation and commissioning services)
3. Yuanda Boiler Since 1956
Till now, Yuanda Boiler has a 66-year history of development, continuous innovation, continuous progress, and never stops. With a large number of loyal boiler users, the good reputation has also driven the promotion of the Yuanda brand, and the market share has been increasing.
4. Reliable Service For Life-time
Before-sale services | on-sale services | after-sale services. We always adhere to the principle of customer-oriented and customer service. Yuanda will provide life service for products forever, keep moving.
Our Boiler Strict Quality Control
1. All materials should be inspected before prodcution and each steel have its ID code which can trace its quality test.
2. 100% Non-Destructive Inspection report of steel plate tube & welding rod.
3. Hydraulic test: make sure strength and tightness of pressure parts.
4. Third part inspection report: By China Henan Boiler Inspection Institute.
SZS Series Steam Boiler Technical Parameter | ||||||||
---|---|---|---|---|---|---|---|---|
Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
SZS10-1.25/1.6/2.5/3.82-YQ | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >98 | 618 | 660 | 36 |
SZS15-1.25/1.6/2.5/3.82-YQ | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >98 | 927 | 987 | 45 |
SZS20-1.25/1.6/2.5/3.82-YQ | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >98 | 1256 | 1316 | 52.6 |
SZS25-1.25/1.6/2.5/3.82-YQ | 25 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >98 | 1545 | 1660 | 55.3 |
SZS30-1.25/1.6/2.5/3.82-YQ | 30 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >98 | 1856 | 1981 | 63.7 |
SZS40-1.25/1.6/2.5/3.82-YQ | 40 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | >98 | 2470 | 2630 | 77.4 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
SZS Series Hot Water Boiler Technical Parameter | ||||||||
---|---|---|---|---|---|---|---|---|
Model | Rated capacity(MW) | Rated pressure (Mpa) | Rated output temperature(℃) | Rated return water temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
SZS10.5 | 10.5 | 1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 912 | 975 | 30.8 |
SZS14 | 14 | 1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 1216 | 1300 | 40.9 |
SZS17.5 | 17.5 | 1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 1520 | 1625 | 51.3 |
SZS21 | 21 | 1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 1824 | 1950 | 52.6 |
SZS29 | 29 | 1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 2432 | 2600 | 69.5 |
SZS58 | 58 | 1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 4865 | 5200 | 162 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
