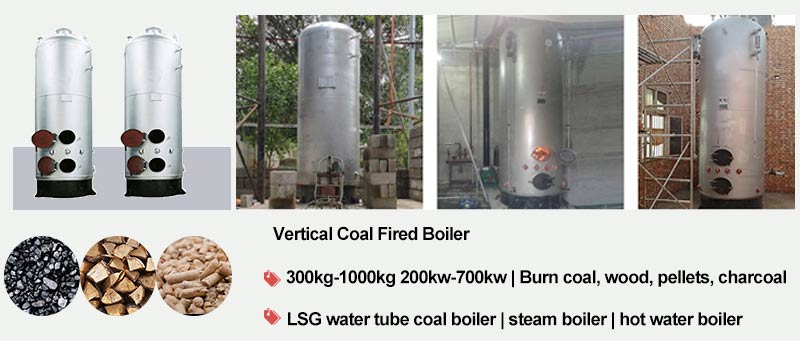

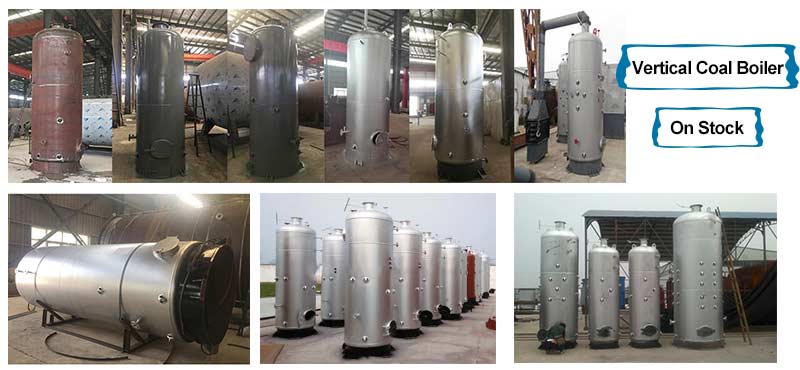

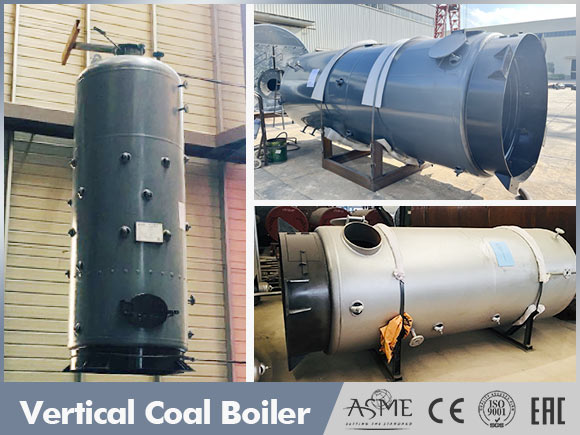

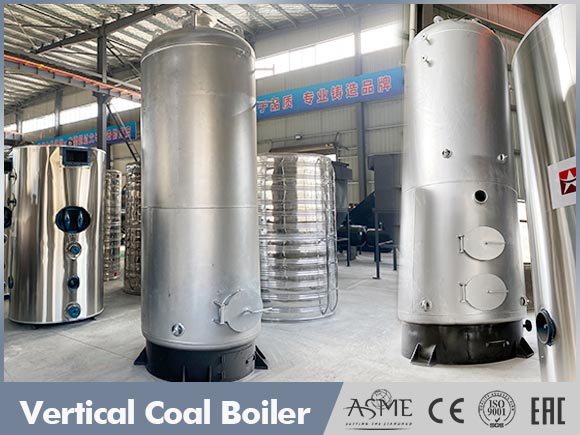

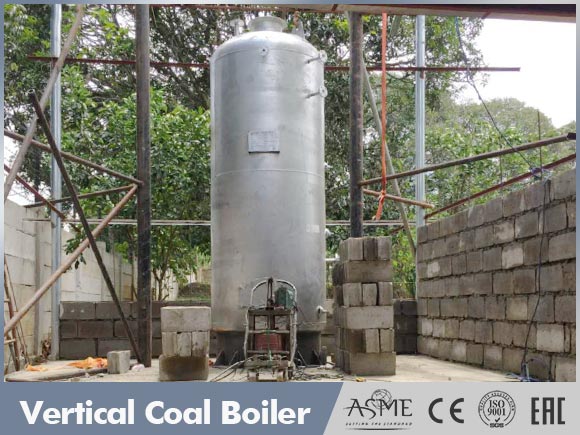

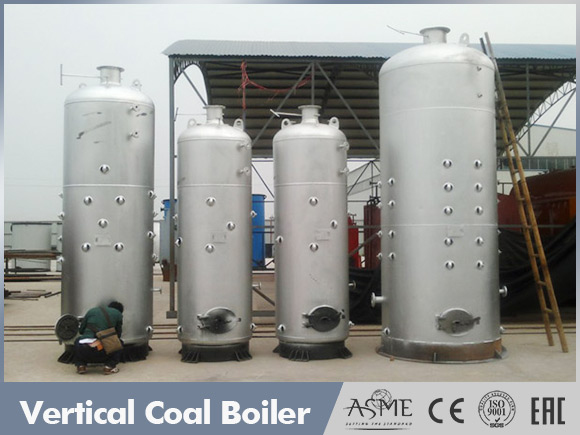

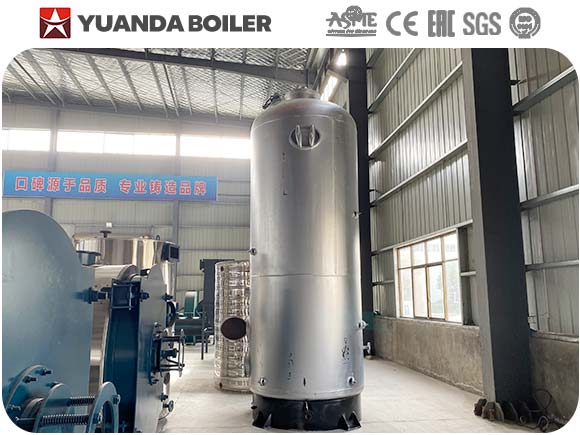

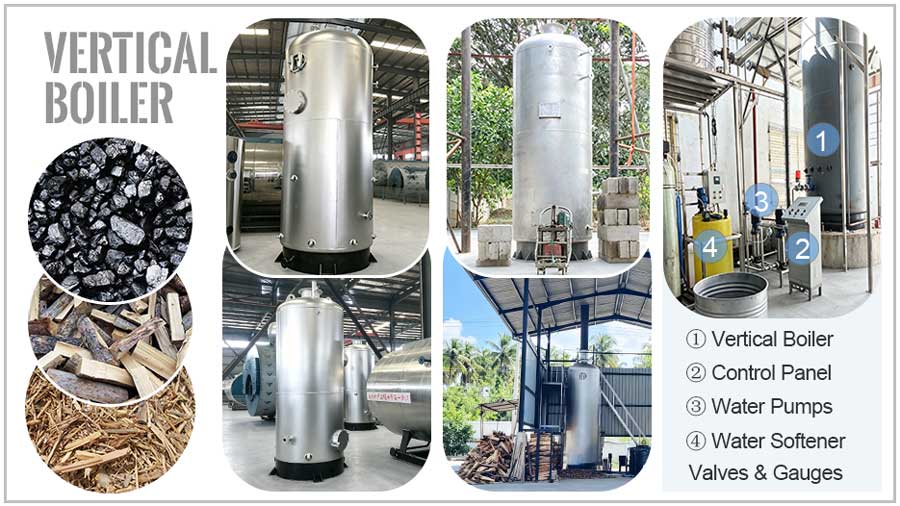

Vertical Coal/Wood Boiler
- Capacity：100kg-2000kg; 100kw-1400kw
- Horsepower：8hp-3000hp(bhp)
- Pressure：0-3.8Mpa; 0-38Bar
- Fuel：Coal, charcoal, briquette, wood, biomass, jhute waste, solid fuel...
- Features：LSG vertical coal wood boiler / water tube coal wood boiler / easy operate / long using lifespan / 100kg-2000kg boiler / 100kw-1400kw boiler
Vertical Coal/Wood Boiler
Vertical boiler, it burn coal, charcoal, wood, pellets. Used as steam boiler, hot water boiler for heating.

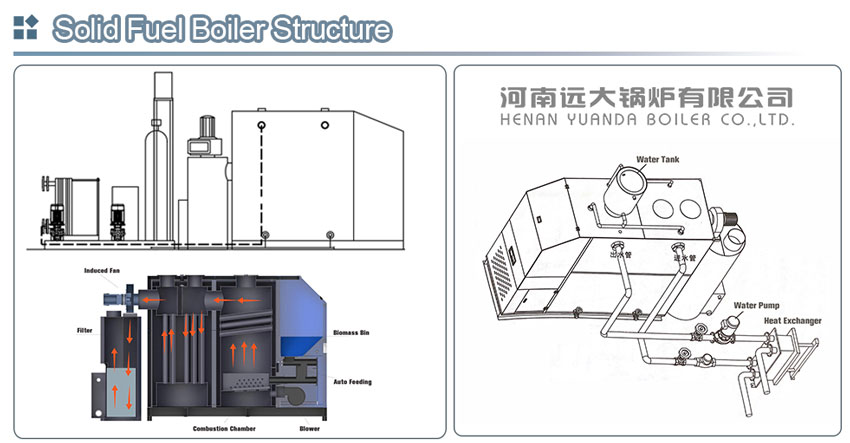

Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, horizontal water tube, vertical tube, convection tubes etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.
Advantages small vertical boiler
1. Low pressure operation, safety and quick run-on heating water, generate steam.
2. Vertical type, small area occupied, low investment cost.
3. Small one and simple structure boiler, easy for installation.
4. Double-deck fire grate combustion chamber design, flue gas burn twice, low fuel consumption
Our Boiler Strict Quality Control
1. Strength calculation report with applied materials information.
2. Hydraulic test report: ensure the standard working pressure and safety.
3. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
4. 100% X-ray inspection report (welding seam): to ensure the quality of the entire boiler.
5. Third-party inspection report: by Zhoukou Institute of Special Equipment Inspection & Technical Research.
You may like horizontal coal boiler
Why Choose Us ?
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
Service After-sale Service
1. Full-life After-sale Service
2. Onsite Operation Training Service
3. Online Monitoring System

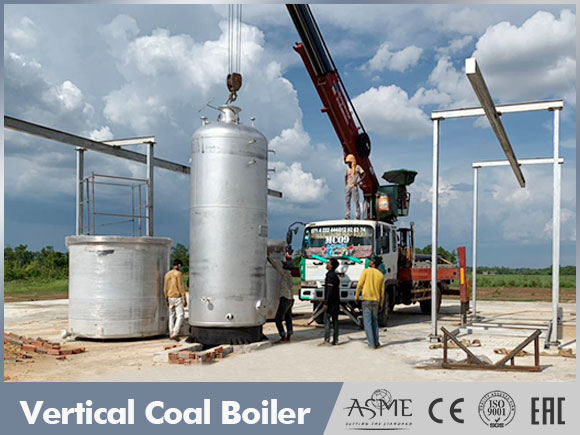

4. Engineer Abroad Installation and Commissioning Service
5. Training Service Content:
-Boiler basic knowledge
-Boiler structure introduction on site
-Boiler control theory
-Boiler burner theory and adjusting method
-Boiler water treatment introduction and water quality test method
-Boiler operation training
-Boiler room system introduction
-Boiler debugging introduction
-Introduction of Boiler faults, reason and solution
-Field simulation solves all kinds of common failures
-Boiler maintenance introduction
| Model | Rated evaporation(T/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Thermal efficiency(%) | Water capacity(L) | Fuel consumption(Kg/H) | power supply(V) |
|---|---|---|---|---|---|---|---|
| LSG0.08-0.7 | 0.08 | 0.7 | 170 | ≥90 | 29.5 | 12 | 220 |
| LSG0.12-0.7 | 0.12 | 0.7 | 170 | ≥90 | 29.5 | 17 | 220 |
| LSG0.16-0.7 | 0.16 | 0.7 | 170 | ≥90 | 29.5 | 25 | 220 |
| LSG0.23-0.7 | 0.23 | 0.7 | 170 | ≥90 | 29.5 | 33 | 220 |
| LSG0.30-0.7 | 0.3 | 0.7 | 170 | ≥90 | 47.5 | 50 | 220 |
| LSG0.50-0.7 | 0.5 | 0.7 | 170 | ≥90 | 29.5 | 75 | 220 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
