Package Gas/Diesel Boiler
- Capacity：0.1-50t/h, 100-28000kw
- Horsepower：10hp-3000hp(bhp)
- Pressure：0-3.8Mpa; 0-38Bar
- Fuel：Natural gas, lpg, diesel, heavy oil, hfo, dual fuel, etc
- Used for：Foods, Garment, Textile, Paper, Brewery, Ricemill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc

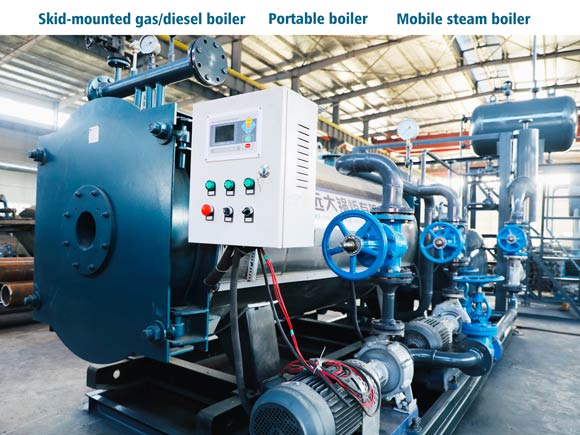

Portable boiler movable boiler skid-mounted boiler mobile steam boiler
.jpg)
Portable packaged boiler, all Boiler accessories installed in the Container boiler room or a platform, It's easier to transport everywhere if you need to use it. It's kind of Full automatic steam boiler that burning diesel fuel, help saving your time and energy, widely used in oil fields and outdoor fields.
Portable Boiler Advantages:
1. Packaged boiler, easier to transport everywhere, widely used in oil fields and outdoor fields
2. All Boiler accessories installed completely when you received it, don't need more install work
3. Generally, portable boiler use heating power : gas or diesel or heavy oil or electricicty

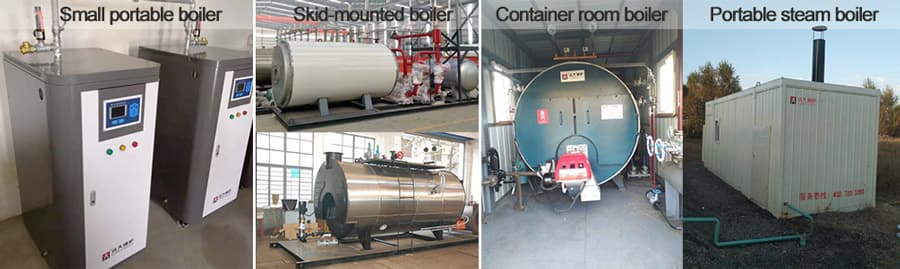

4. Portable steam boiler, skid-mounted steam/thermal oil boiler, container room boiler
4. Boiler heating medium could be water/steam/thermic oil, tranfer heating machine
Boiler Design Features
1. Packaged boiler, easier to transport everywhere, widely used in oil fields and outdoor fields
1. Advanced three pass wet back design, adopt three returns all wet back structure, thread smoke tube structure.
2. Advanced equipment endows Safe and reliable property:adopts corrugated furnace lamps, multi-chain protection.
3. Unique design of a large combustion chamber, increases the radiation heating furnace area, reducing the NOX emissions.
4. High efficiency 98%, with threaded pipe and high effective insulation materials and economizer, increas heat transfer efficiency.
5. High quality accessories: all accessories such as burners, pumps, water level controller, valves and other supporting instruments.
6. Simple maintenance: the manhole and hand hole is easy for user to maintain.

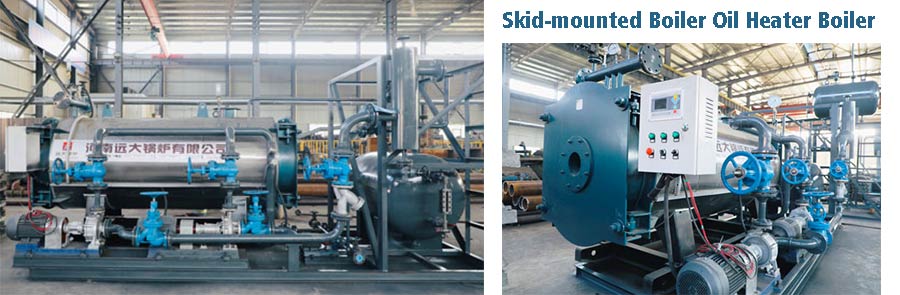

Vertical Thermal Oil Boiler / Portable Oil Heater
Yuanda Boiler-Trustable Manufacturer
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
1. Choose boiler: There are more various boiler model for choose, inquire one you prefer.
2. Technical discussion: Offer professional boiler system solution for your company use.
3. Factory visit: Warmly welcome all customers come to visit the production base
4. Global service: After sale service, arrange engineer for boiler installation, training operators.
5. Whole life service for boiler consult, contact us whenever.
Inquire now: Known about our boiler, Email us at any time: shirley@yuanda-boiler.com
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
|---|---|---|---|---|---|---|---|---|---|
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5-1.0/1.25/1.6-YQ | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1-1.0/1.25/1.6-YQ | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8-1.0/1.25/1.6/2.5-YQ | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10-1.0/1.25/1.6/2.5-YQ | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15-1.0/1.25/1.6/2.5-YQ | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20-1.0/1.25/1.6/2.5-YQ | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
