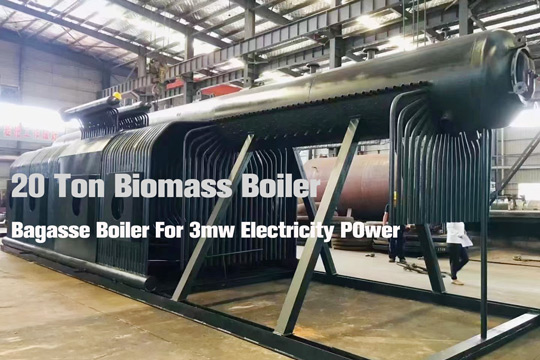

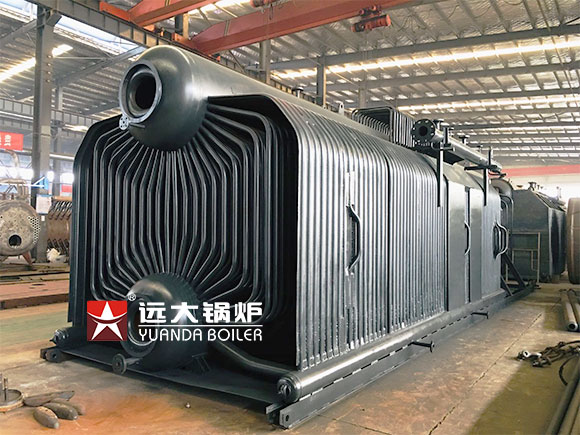

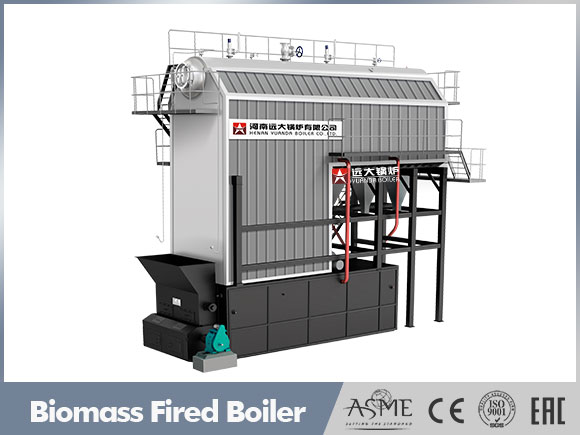

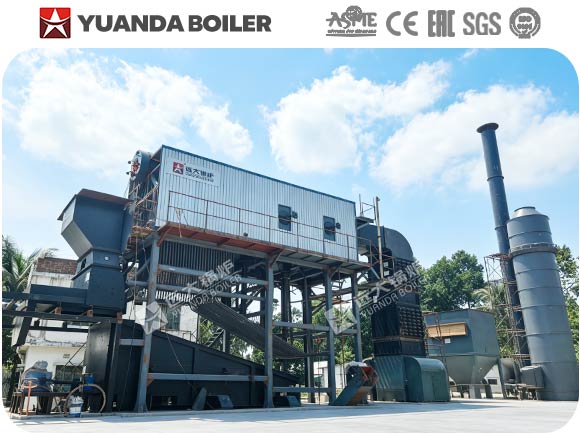

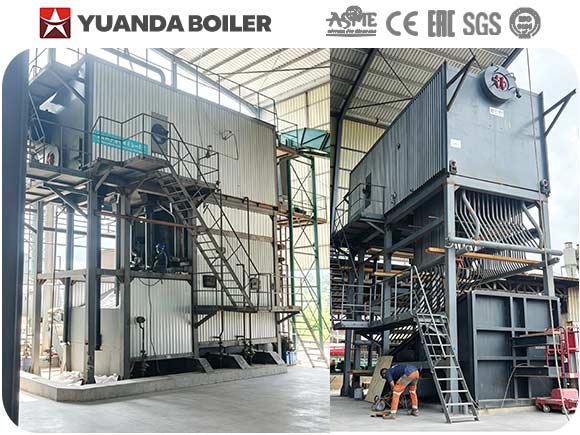

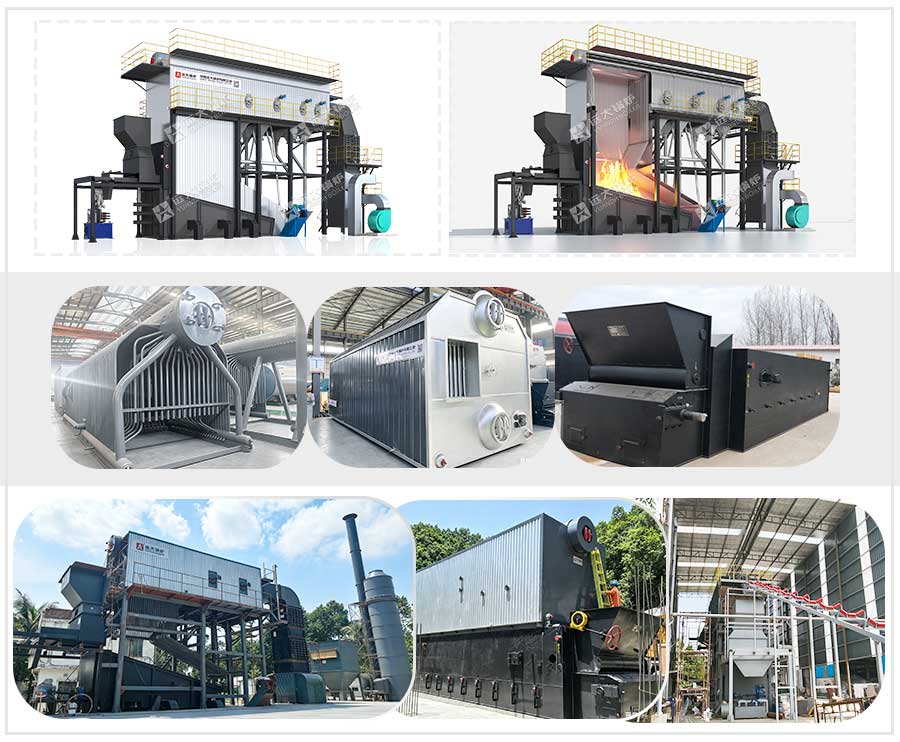

SZW Reciprocating Grate Biomass Boiler

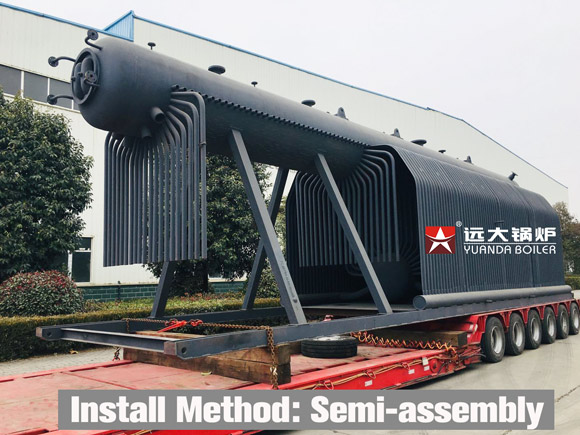

SZW Series Reciprocating grate /step grate boiler, it's double drums and water tube boiler, scientifically design stove furnace to reach a higher thermal efficiency and energy saving, also environment protection.

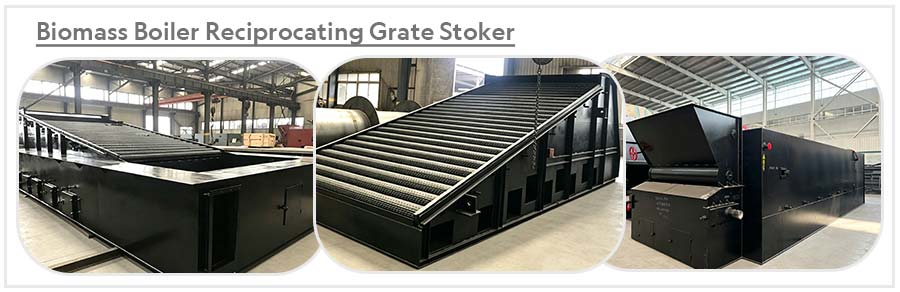

To burn difficult biomass fuels efficiently, it adopts reciprocating grate, to ensure stable combustion, automatic ash removal, and minimal slagging.

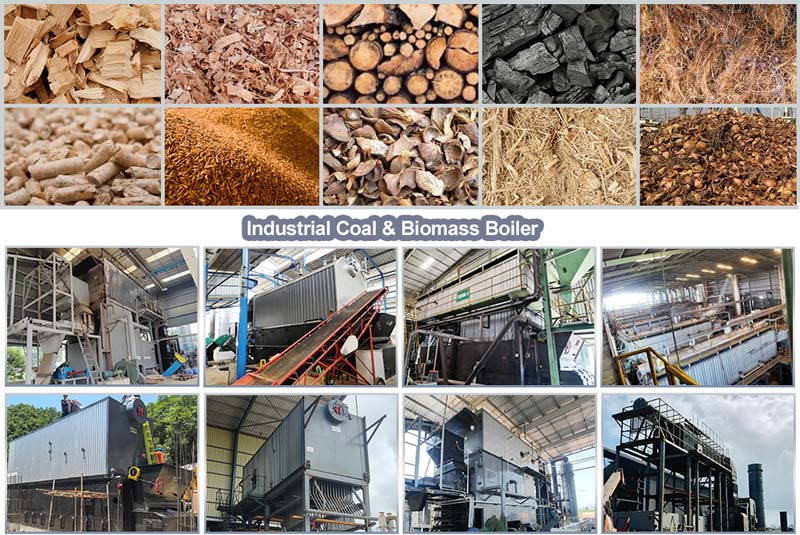

Typical Fuel as following:

Palm kernel shell (PKS)

Cashew nut shell

Palm fiber / palm husk

Rice husk

Bagasse (sugarcane waste)

High-moisture biomass fuels

Industrial solid waste with low heating value

 Features  Reciprocating Grate Boiler

Wide Fuel Flexibility

1. Handles high-ash, high-moisture, and slag-prone fuels

2. Burns mixed fuels: cashew shells, palm fiber, wood chips, husks, etc.

3. No need for expensive, uniform fuel

Reliable & Low Maintenance

1. Reciprocating grate breaks up slag automatically

2. Simple, robust mechanical design

3. Easy to operate and maintain

Cost Effective

1. Uses local, low-cost biomass waste

2. High efficiency (up to 88%)

3. Reduces fossil fuel dependence

 Technical Details  Biomass Boiler

Intelligent Combustion Control System

1. Multi-zone air distribution: Air is supplied in sections along the grate length, with independent airflow control for each zone.

2. Real-time oxygen monitoring: Combustion air is automatically adjusted based on flue gas oxygen content to maintain optimal combustion.

3. Layered temperature control: Different grate zones are temperature-controlled to prevent local overheating and slagging.

Anti-Slagging Design

1. Optimized front and rear arches: Enhance heat radiation and gas mixing for stable ignition.

2. Special grate bars: High-temperature and oxidation resistant, with clinker-breaking structure.

3. Multi-stage ash cleaning: Combination of mechanical cleaning and soot blowers keeps heating surfaces clean.

Environmentally Compliant Emissions

1. Low-NOx combustion: Air staging and flue gas recirculation reduce NOx formation.

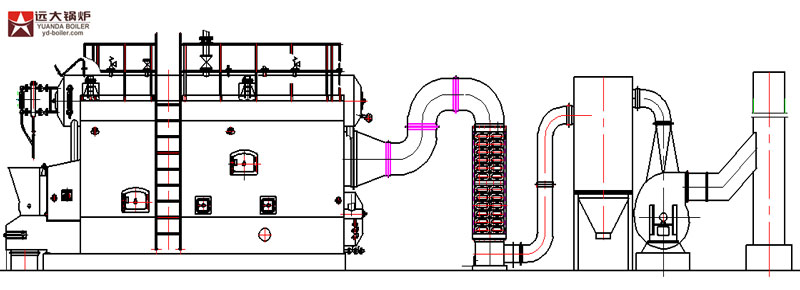

2. High-efficiency dust removal: Multi-cyclone or bag filter options meet strict emission standards.

3. Fly ash reuse: Collected ash can be reused as potassium fertilizer raw material, supporting resource recycling.
