Electrical Boiler
- Capacity:10kw-7000kw, 20kg-10000kg
- Work Pressure:3bar-25bar, 0.3-2.5Mpa
- Heat Temperature:0-300℃
- Application:Foods, Textile, Brewery, Dairy, Laundry, Packaging, etc
- Features:Steam Boiler, Hot Water Boiler, Steam Generator. Automatic running, No pollution, Quick start, Portable Type, Customized Service Design.
Electric Boiler 10kw-7000kw | 20kg-10000kg

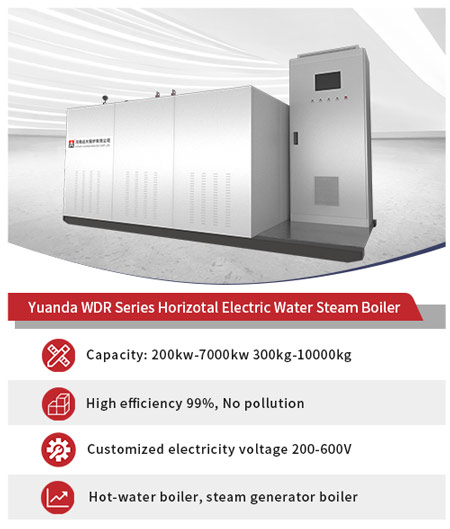

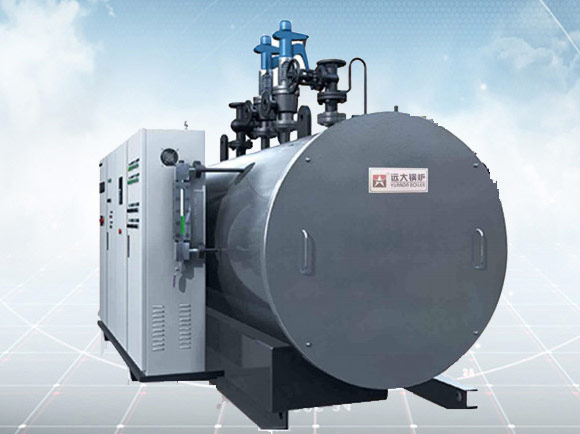

WDR series electric boiler, it is horizontal type electricity heating tube type boiler. It's kind of new high technology product which takes electricity as energy. With advantages of environmental protection, no pollution, no noise, convenient installation,small occupation, full automatic control and high thermal efficiency up to 98%.
Why choose electric boiler Advantages
Electric boiler is very popular as no-emission-pollute boiler. Lots of boss consider the invest cost of electric boiler when some factories plan to replace old boiler or increase factory productions scale.
Electric boiler design is kind composed of furnace, water supply, self-control, heating and safety protection system. It uses electricity to generate heat and generate steam with a certain pressure. With advantages of fully-automation (convenient use), no pollution, simple install easy-operation, high-efficiency, new modern deisgn, portable to move. Somewhere electricity cost is cheap in the local, it will be a great choice to get electric boiler.

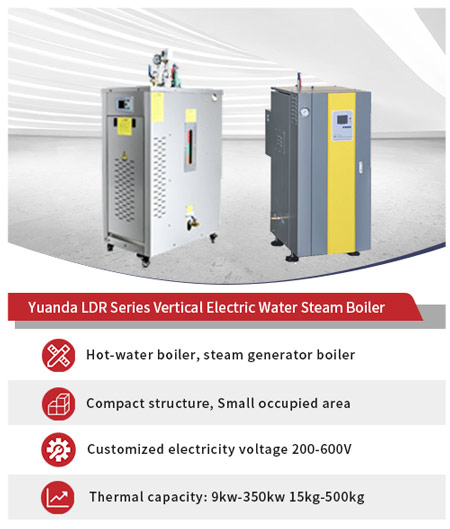

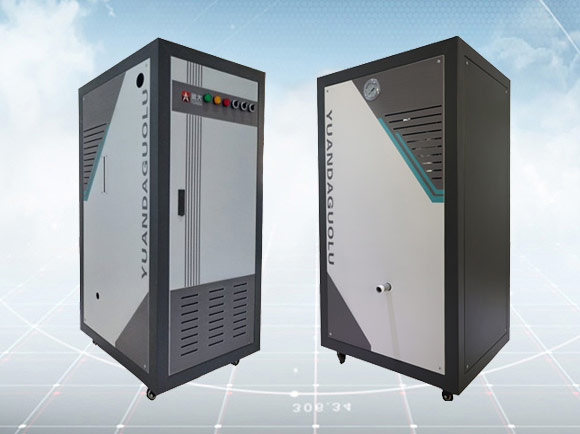

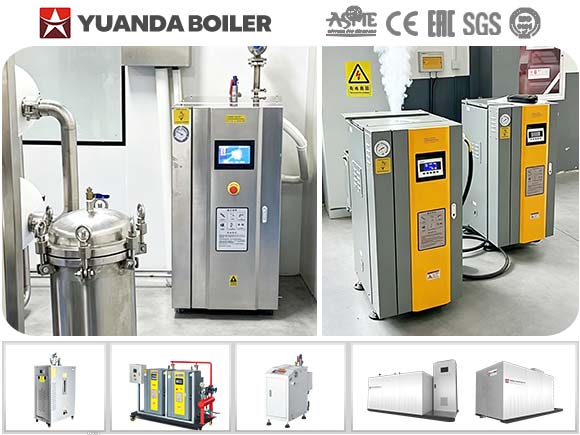

Note: vertical electric boiler, also named electric steam generator
It is small capacity, small occupied area, quick strating by one button. suitable for small steam capacity used in industries.
Electricity Consumption Calcaulate
Generally, 700kw electric boiler consumps 700 kw, in addition, auxiliary power consumption in 50kw-100kw roughly.
1) Take example, 1ton electric boiler (thermal capacity conversion: 1ton = 700kw). When boiler running at full load, it will generate 1ton steam per hour, thus electricity consumption is around 750KW.
2) Thus, 2ton electric boiler, electricity consumption is 1500KW.
3) Thus, 4ton electric boiler, electricity consumption is 3000KW.
Remark: If you need consumption cost analysis, contact shirley@yuanda-boiler.com
Inquiry Leave Message
1. Any plans to repalce old boiler ? New factory need boiler ? expansion or new business
2. Which industry business do your factory focus ? lets' talk about some details
3. Are there some technical requirments ? then we could offer quotation accordingly
4. Do you need our suggestion on how to choose a suitable boiler ? waiting for your message
Inquiry Email Address: shirely@yuanda-boiler.com
Specifications Electric Boiler

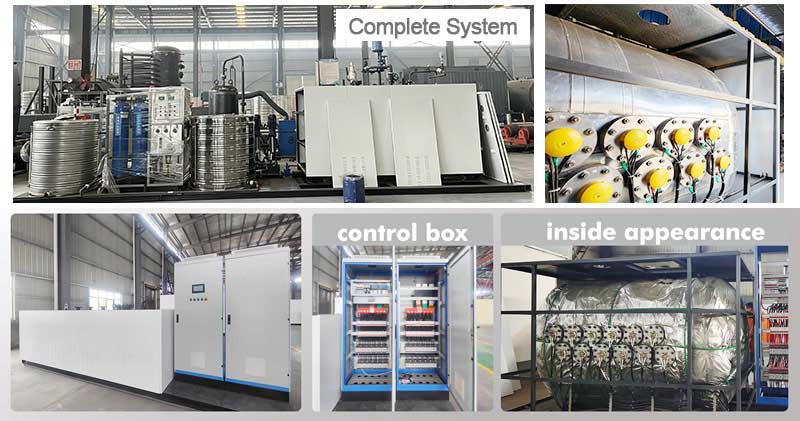

1. Stainless steel electric heating tube, each group heating elements is connected by a centralized beam flange independently. Simple structure, high mechanical strength, safety and reliability, easy replacement.
2. Quick start-up, good steam quality, strong operating load, fast to adjust and simple to operate.
3. Automatic to adjusts heating groups according to the temperature difference and load changes, help saving energy consumption.
5. Intelligent controller & micro display screen, display equipment status, operating parameters and fault alarms.With advantages of reliable performance, high degree of automation, and convenient use.
6. Boiler insulation use 12cm aluminum silicate board, ensures the long-term energy-saving operation of the boiler. Both ends of boiler is convenient for installation and maintenance.
7. Protective function
(1) Leakage: when detects the electricity leakage, will cut off the power supply automatically.
(2) Water shortage: When short of water, cut off the power supply and issue a alarm indication.
(3) The furnace shell is overheated: the boiler immediately stops running.
(4) Abnormal power supply: the boiler immediately stops running and chain sound and light alarm.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.

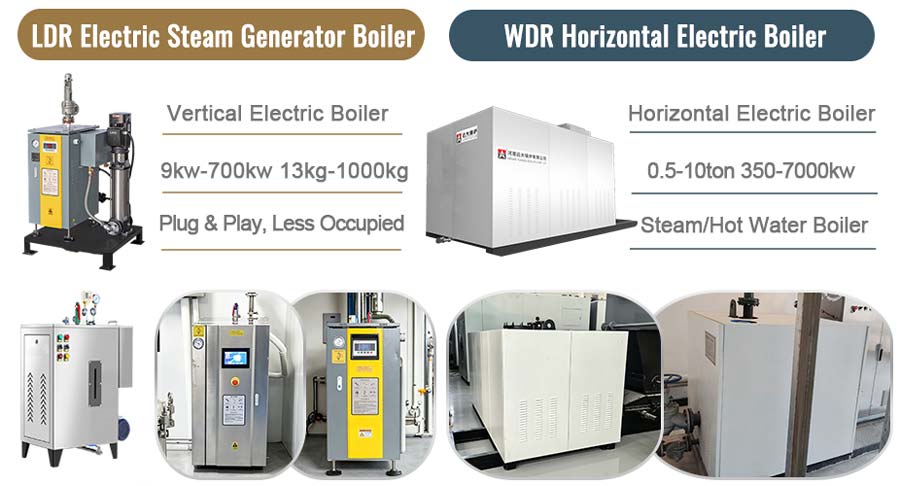

Model | Types | Thermal capacity (kg/h) | Thermal capapcity (kw) | Working pressure | Steam temperature | Thermal efficiency | Dimension (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|
LDR0.013 | Vertical | 13 | 9 | 0.3Mpa-1.5Mpa 3bar-15bar (Customized design) |
130ºC-194ºC (Customized design) |
98%-99.5% | 650*390*750 | 70 |
LDR0.017 | 17 | 12 | 650*390*750 | 75 | ||||
LDR0.025 | 25 | 18 | 750*450*1050 | 90 | ||||
LDR0.035 | 35 | 24 | 750*520*1050 | 95 | ||||
LDR0.05 | 50 | 36 | 750*580*1150 | 101 | ||||
LDR0.065 | 65 | 48 | 800*580*1200 | 115 | ||||
LDR0.075 | 75 | 54 | 800*580*1300 | 140 | ||||
LDR0.085 | 85 | 60 | 800*600*1300 | 145 | ||||
LDR0.1 | 100 | 72 | 860*650*1390 | 172 | ||||
LDR0.11 | 110 | 80 | 860*650*1390 | 185 | ||||
LDR0.125 | 125 | 90 | 860*650*1430 | 190 | ||||
LDR0.15 | 150 | 108 | 920*760*1600 | 245 | ||||
LDR0.18 | 180 | 126 | 920*760*1600 | 260 | ||||
LDR0.2 | 200 | 144 | 1130*750*1780 | 450 | ||||
LDR0.25 | 250 | 180 | 950*900*1830 | 650 | ||||
LDR0.3 | 300 | 216 | 1320*1040*1920 | 760 | ||||
LDR0.4 | 400 | 288 | 1380*1040*2070 | 890 | ||||
LDR0.5 | 500 | 360 | 1020*890*2350 | 1020 | ||||
WDR0.5 | Horizontal | 500 | 360 | 1755*1180*1510 | 1400 | |||
WDR1.0 | 1000 | 700 | 2530*1380*1480 | 1730 | ||||
WDR2 | 2000 | 1400 | 2530*2000*2080 | 2730 | ||||
WDR3 | 3000 | 2100 | 2630*2210*2160 | 3420 | ||||
WDR4 | 4000 | 2800 | 3680*2360*2380 | 4320 | ||||
WDR5 | 5000 | 3500 | 3980*2580*2560 | 5130 | ||||
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
