Electric Steam Generator Boiler
- Capacity:50kg-20000kg, 35kw-14000kw
- Work Pressure:1bar-20bar
- Heating Temperature:0-300℃
- Application:Food Industry, Brewery, Dairy Products, Laundry, etc
- Features:Stainless portable electrical steam generator / portable steam generator / automatic steam generator / no pollution boiler

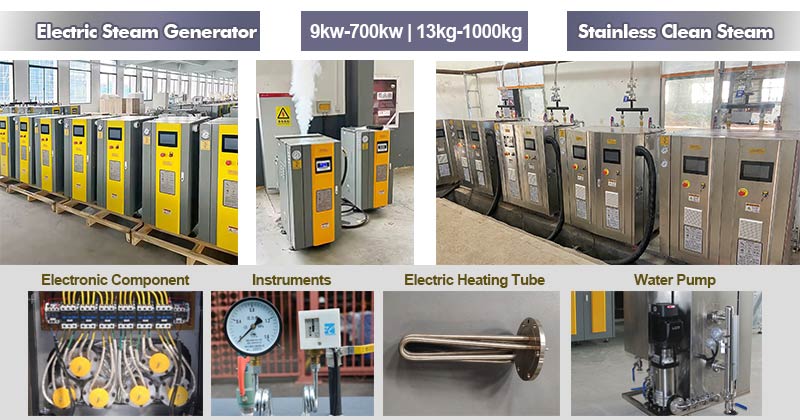

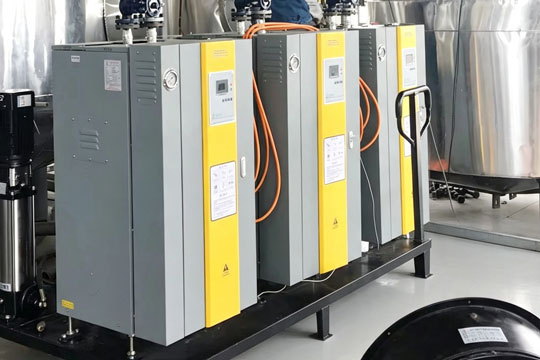

Electric Steam Generator Boiler 35kw-14000kw
LDR electric steam generator, automatic steam generation by electricity power. It's simple structure steam machine, you can use it 100% safety, also its easy to move everywhere by using bottom wheel. Make your best economic and saving money choice-electric steam generator.
Running Cost Electricity Consump
Generally, 100kw electric steam generator consumps 100 kw, in addition, auxiliary power consumption in 6kw-16kw roughly.
1) Thus, 100kw electric steam generator, rough consumption at 106kw.
2) Thus, 300kw electric steam generator, rough consumption is 320kw.
3) Thus, 700kw electric steam generator, rough consumption is 750kw.
Remark: thermal capacity conversion formula: 70kw=100kg=60000kcal=6hp

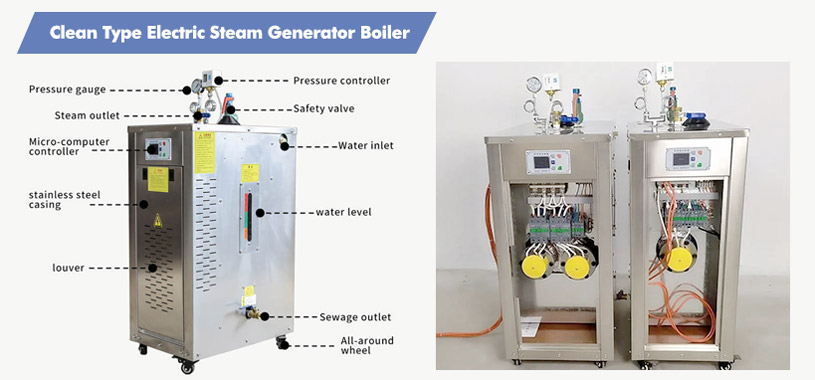

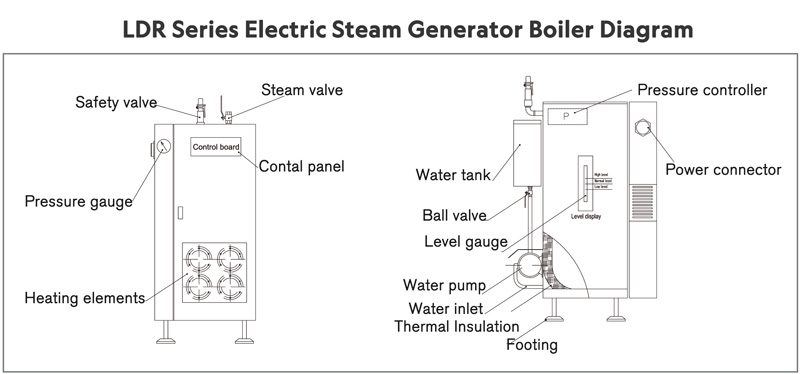

Features LDR Electric Steam Generator
1) Use LCD Automatic Intelligent Electronic Control System
2) The Use of High-quality Core Components—Electric Heating Pipe
3) Use High-quality Components
4) Multiple Safety Interlock Protection
5) Set Reasonable Electric Load, Save Energy & Extend Life Cycle
6) Easy to Install and Use
7) Scientific Design and Attractive Appearance
8) Environmentally Friendly and More Economical
Advantages electric steam generator
(1) Electric steam generator: small size, light weight, complete machine, easy to install
(2) Double safety guarantee for adjustable pressure controller and safety valve
(3) Hydropower independent box, convenient for maintenance, safe and reliable
(4) Adopy high quality seamless stainless steel heating tubes, adjustable power output
(5) Electric heating, no open flame, no safety hazard, with brakes Vientiane casters
(6) Just need five second, it could produce steam output when open it

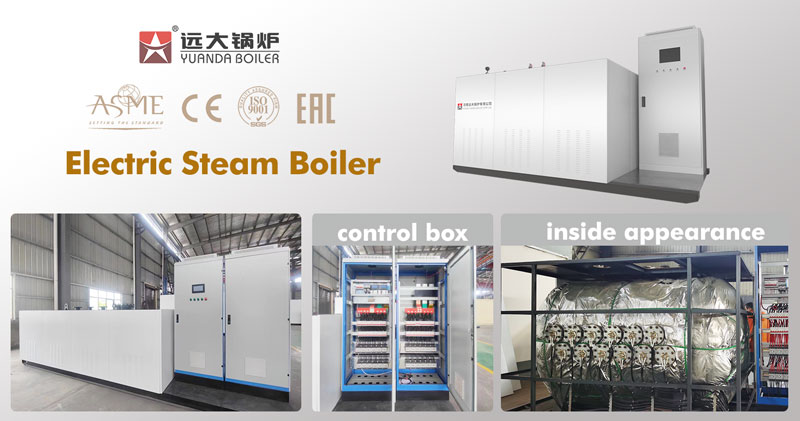

Related Horizontal Electric Boiler
Link: https://www.yd-boiler.com/products/electric-boiler/electric-boiler.html
WDR horizontal electric steam boiler, it's composed of furnace, water supply, self-control, heating and safety protection system. It uses electricity to generate heat and generate steam with a certain pressure. Convenient use, simple operation, economical and wide application fields.
Factory Assurance:
1. Spare parts available at ex-factory price
2. Different voltage available
3. 100% tested before delivery
4. Skid-mounted steam boiler system available
5. Container type steam boiler system available
Safety Features:
1. Real-time monitoring of water level: electronic water-level detecting device
2. Water shortage protection: The combustion control system power will be cut off when there is water shortage along with alarm.
3. Over pressure protection: When the pressure is over the preset value, the combustion control system power will be cut off along with alarm.
4. Steam Safety Valve automatically opens to reduce pressure should excessive steam cause pressure build-up. Steam Pressure Gauge allows visual observation of steam pressure over full range. Manual Reset Pressure Control provides high limit pressure cut-out with manual reset.
Why Choose us ?
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
Electric Steam Generator Technical Parameter Table | |||||||
---|---|---|---|---|---|---|---|
Model | Rated evaporation(KG/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Power(KW) | Thermal efficiency(%) | Water capacity(L) | power supply(V) |
LDR0.034-0.4 | 34 | 0.4 | 150 | 24 | 99.9 | 18 | 380 |
LDR0.05-0.4 | 50 | 0.4 | 150 | 36 | 99.9 | 21 | 380 |
LDR0.065-0.4 | 65 | 0.4 | 150 | 48 | 99.9 | 21 | 380 |
LDR0.1-0.4 | 100 | 0.4 | 150 | 72 | 99.9 | 23 | 380 |
LDR0.15-0.4 | 150 | 0.4 | 150 | 108 | 99.9 | 29 | 380 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
Gas Steam Generator Technical Parameter Table | |||||||
---|---|---|---|---|---|---|---|
Model | Rated evaporation(KG/H) | Water capacity(L) | Saturation temperature(℃) | Use voltage(V) | Thermal efficiency(%) | gas consumption(m³/h) | Boiler weigh(kg) |
LS0.08-0.7-Q | 80 | 2.4 | 170 | 220 | ≥98 | 5 | 52 |
LS0.3-0.7-Q | 300 | 9.6 | 170 | 220 | ≥98 | 20 | 225 |
LS0.6-0.7-Q | 600 | 19 | 170 | 220 | ≥98 | 34 | 415 |
LS1-0.7-Q | 1000 | 24 | 170 | 220 | ≥98 | 52 | 620 |
LSS0.1-0.7 | 100 | 29 | 170 | 220 | ≥96 | 7 | 560 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
Biomass Steam Generator Technical Parameter Table | |||||||
---|---|---|---|---|---|---|---|
Model | Rated evaporation(T/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Thermal efficiency(%) | Water capacity(L) | Fuel consumption(Kg/H) | power supply(V) |
LSG0.08-0.7 | 0.08 | 0.7 | 170 | ≥90 | 29.5 | 12 | 220 |
LSG0.12-0.7 | 0.12 | 0.7 | 170 | ≥90 | 29.5 | 17 | 220 |
LSG0.16-0.7 | 0.16 | 0.7 | 170 | ≥90 | 29.5 | 25 | 220 |
LSG0.23-0.7 | 0.23 | 0.7 | 170 | ≥90 | 29.5 | 33 | 220 |
LSG0.30-0.7 | 0.3 | 0.7 | 170 | ≥90 | 47.5 | 50 | 220 |
LSG0.50-0.7 | 0.5 | 0.7 | 170 | ≥90 | 29.5 | 75 | 220 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
