Electric Heating Water Boiler
- Capacity:35kw-14000kw
- Pressure:0.1-1.6Mpa
- Heating temperature:0-226℃
- Power:Electricity
- Features:Electrical heating water boiler / automatic hot water boiler / portable hot water boiler / no pollution boiler
Electric Heating Boiler Introduction
1. Electric boilers, also said electric heating boiler, that uses electricity as an energy source and converts it to heat energy, output high temperature steam/water/oil.
2. Recently, electric boiler is popular, when boss invest new factory or plan to replace old boiler, they will consider use electricity heating boiler, it is fully-automation, no pollution, easy-operation, high-efficiency, new modern deisgn. Somewhere, electricity cost is cheap in the local, it will be a great choice to get electric boiler.
Running Cost Electric Boiler Consump
Generally, 700kw thermal electric boiler consumps 700 kw, in addition, auxiliary power consumption in 50kw-100kw roughly.
1) Take example, 700kw electric boiler, running at full load, the electricity consumption is around 750KW.

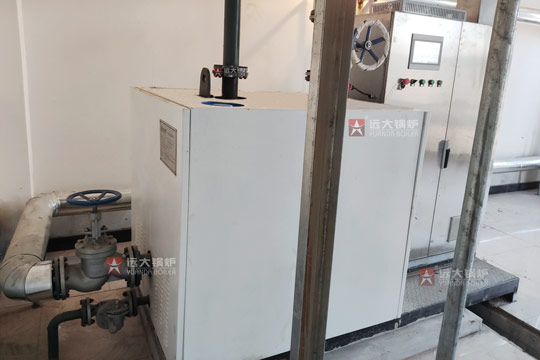

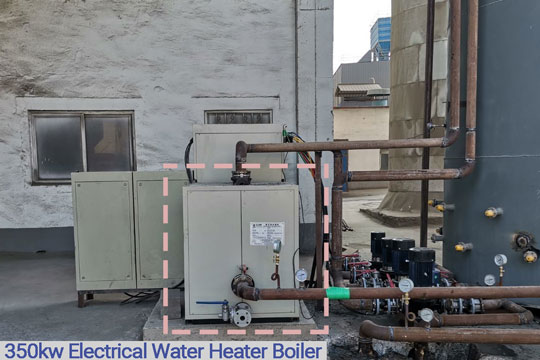

2) Thus, 350kw electric boiler, electricity consumption is 375KW.
3) Thus, 1400kw electric boiler, electricity consumption is 1500KW.

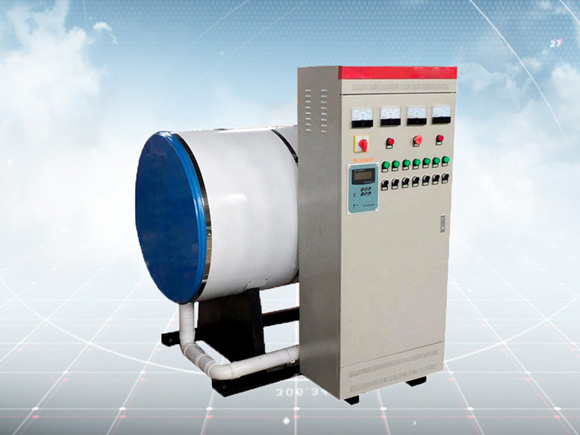

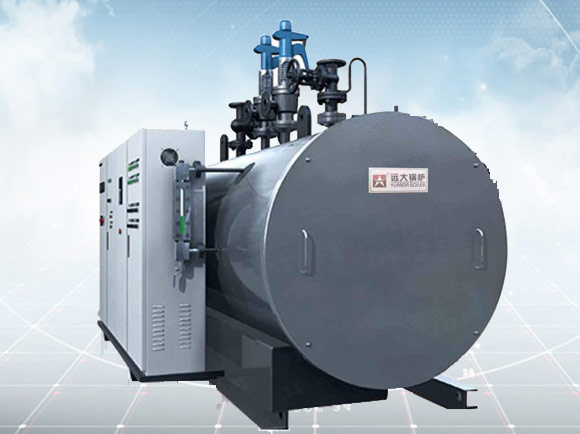

Electric Hot Water Boiler 200kw-70,000kw

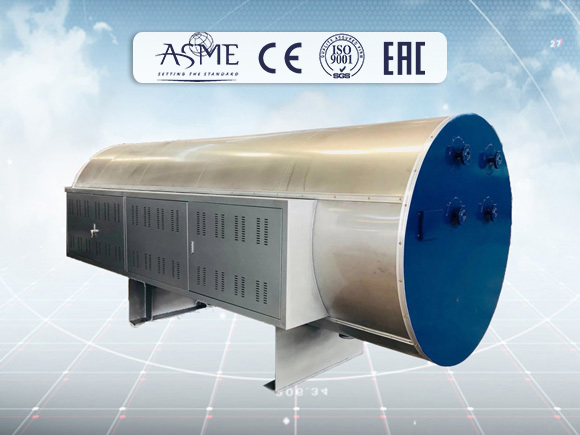

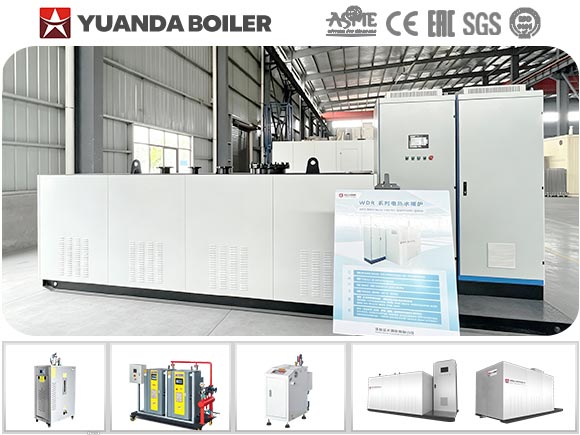

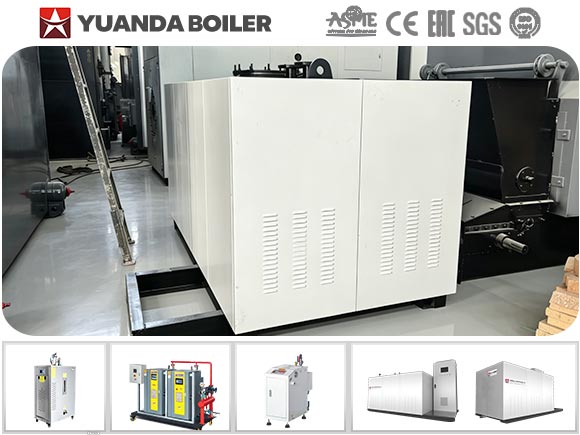

WDR series full automatic electric heating boiler is a kind of new high technology product which takes electricity as energy. It has the advantages of environmental protection, no pollution, no noise, convenient installation,small occupation, full automatic control and high thermal efficiency.
1) Automatic control system, stainless steel plate packing
2) Stainless steel tube type nichrome electric heating tube
Electric Heating Water Generator 50kw-300kw
Electric steam generator is small capacity steam output electric power steam generator, design natural circulation model, there are water tubes inside, has high efficiency reach to 98%.
Small size, light weight, complete machine, easy to install
Dual safety guarantee, Electric heating, safety ensure
Usage Electric Boiler
1. Ironing washing industry---Dry cleaning machine, dryer, washing machine, dehydrator, ironing machine, iron, etc.
2. Electroplating cleaning industry---Bath of plating bath, acid bath, cleaning pool heating constant temperature;
3. Food processing industry---Tofu machine, rice noodle machine, steam box, sterilization tank, chartered plane;
4. Hotels, enterprises and institutions canteen and various service stations disinfection, steamed rice and water supply;
5. Biological chemical---Fermentation tank, reaction kettle, interlayer pot, mixer, emulsifying machine, etc;
6. Packaging machinery---The label machine set standard machine supporting use;
7. Other industries---steam cleaning industry, steam heating or hot water supply, etc.
Watch The Video electric hot water boiler
gas steam generator boiler wood steam generator electric oil boiler electric hot water heating boiler
Why Choose Us ?
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
Global Boiler Service
1. Offer catalogue, various boiler model for choose, inquire one you prefer.
2. Technical discussion on boiler system solution for your company use.
3. Warmly welcome all customers come to visit the production base
4. Trustable after sale service, for boiler installation, training operators.
5. Whole life service for boiler consult, contact us whenever.
We are one of the leading enterprises which first obtained the national boiler manufacturing license in China. Until 2019, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !
Electric Heating Water Boiler Technical Parameter Data | |||||||||
---|---|---|---|---|---|---|---|---|---|
Model | LDR0.06 | LDR0.09 | LDR0.12 | LDR0.18 | LDR0.24 | LDR0.36 | LDR0.48 | LDR0.54 | |
Rated working pressure | MPa | 0.3/0.5/0.7 | |||||||
Staturated water temperature | ℃ | 95/70 | |||||||
Input power | KW | 60 | 90 | 120 | 180 | 240 | 360 | 480 | 540 |
Input current | A | 90 | 135 | 180 | 270 | 360 | 540 | 720 | 810 |
Rated voltage | V | 220/380 (customized) | |||||||
Power×Group | KW×P | 15×4 | 15×6 | 15×8 | 25×6+15×2 | 25×9+15 | 36×10 | 36×12+25×2 | 36×15 |
Diameter water outlet | DN | 50 | 50 | 50 | 50 | 50 | 80 | 80 | 80 |
Diameter water return | DN | 50 | 50 | 50 | 50 | 50 | 80 | 80 | 80 |
Diameter water inlet | DN | 15 | 15 | 15 | 15 | 15 | 25 | 25 | 25 |
Diameter blowoff valve | DN | 25 | 25 | 25 | 40 | 40 | 40 | 40 | 40 |
Diameter safety valve | DN | 15 | 15 | 15 | 25 | 25 | 40 | 40 | 40 |
Overall size | L mm | 750 | 750 | 750 | 1200 | 1200 | 1600 | 1600 | 1600 |
W mm | 650 | 650 | 650 | 1100 | 1100 | 1200 | 1350 | 1350 | |
H mm | 1380 | 1380 | 1380 | 1900 | 1900 | 2000 | 2200 | 2200 | |
Weight | kg | 180 | 200 | 235 | 485 | 525 | 620 | 710 | 820/1350 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
