WNS Liquid Fuel Oil Diesel Gas Fire Tube Boiler
- Our Products：Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Capacity：0.5-50t/h, 350-35000kw, 30-3000hp(bhp)
- Fuel：Gas, lpg, diesel, heavy oil, bunker, biogas, hydrogen, dual fuel
- Structure：Horizontal, Packaged fire tube boiler, Three pass, Wet back
- Manufacture Standard：GB, CE PED, ASME, DOSH, EAC

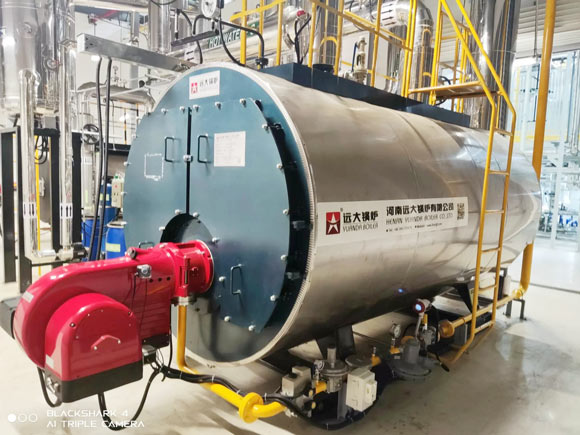

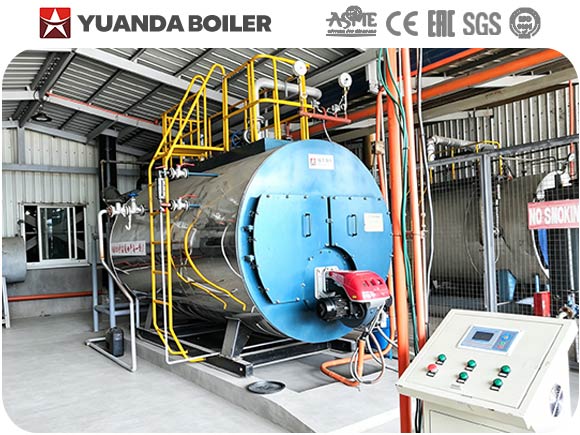

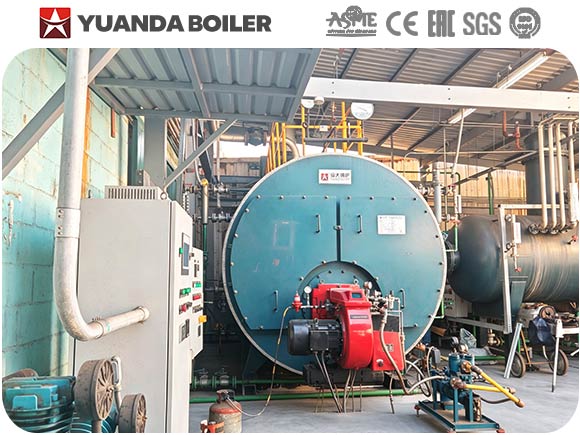

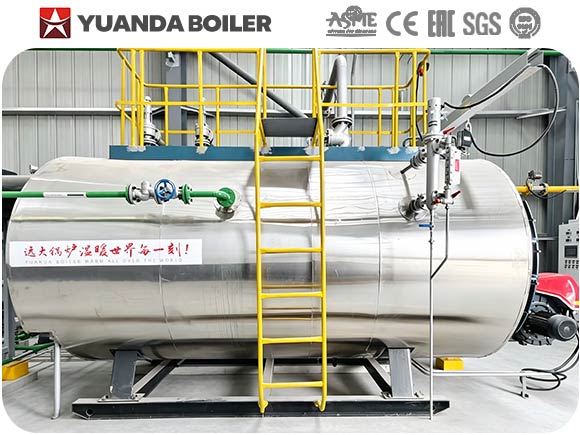

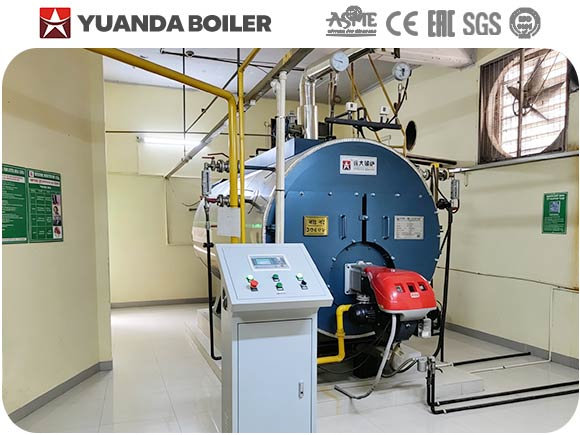

WNS Fire Tube Oil Gas Boiler
WNS Series Fire Tube Boiler is a horizontal, three-pass, wet-back boiler designed for high efficiency, stable operation and easy maintenance.
With flexible component-shipped or skid-mounted configurations, the boiler can be adapted to different transportation and installation requirements. Optional auxiliary equipment is also available to provide a complete boiler system solution.
Hot-Selling Capacities:
500kg | 1000kg | 1500kg | 2000kg | 3000kg | 4000kg | 5000kg | 6000kg | 8000kg | 10ton | 12ton | 15ton | 20ton
350kw | 700kw | 1050kw | 1400kw | 2100kw | 3500kw | 4200kw | 5600kw | 7000kw
With extensive project experience, Yuanda Boiler has supplied boilers to customers in 135 countries and regions worldwide.

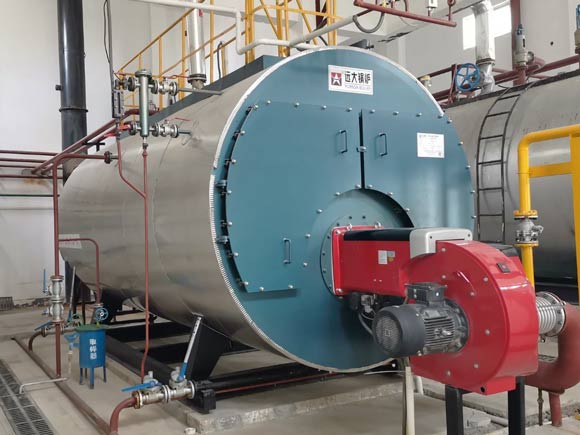

Advantages WNS boiler features

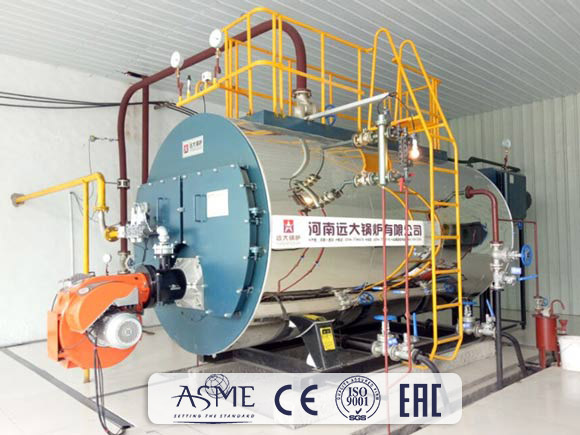

1. 100% Safety Control Boiler & Strict Boiler Quality Control
1) All welding strictly meet the requirements of China NB/T 47014(JB/T 4708)
2) Anti Dry Heating Control System with double safety valves, double water level gauges, double secure of safe operation
3) With explosion-proof door with fire viewer, If burner failure ignition, this door can release the pressure out, protect the damage to welding parts
2. Energy Saving & High Efficiency
1) Spiral fire tube, the advanced technology, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing
2) Spirally corrugated furnace & Wet back structure, increased 10% heating area, avoid damaged by heat expansion, reduce the back tube sheet temperature and protect it from cracking
3. High Quality Steam-Wetness Below 1%
1) We equip a steam separation under the steam output port.
2) With continuous water feed function,Make the water level is stable instead of big differences
3) Bigger water tank design, boiler with bigger water volume and bigger steam space

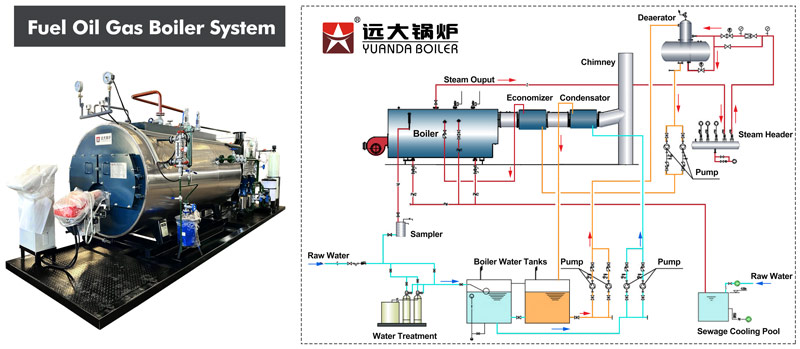

Optional Auxiliary Equipment
Boiler system can be configured with optional auxiliary equipment :
Economizer, Feed Water Pump, Water Softener, Deaerator, Steam/Water Separator, Condensate Return System, Fuel Storage & Supply System, Burner, Chimney, Boiler Control Cabinet, PLC Control System, Chemical Dosing System, Blowdown System, Water Treatment System

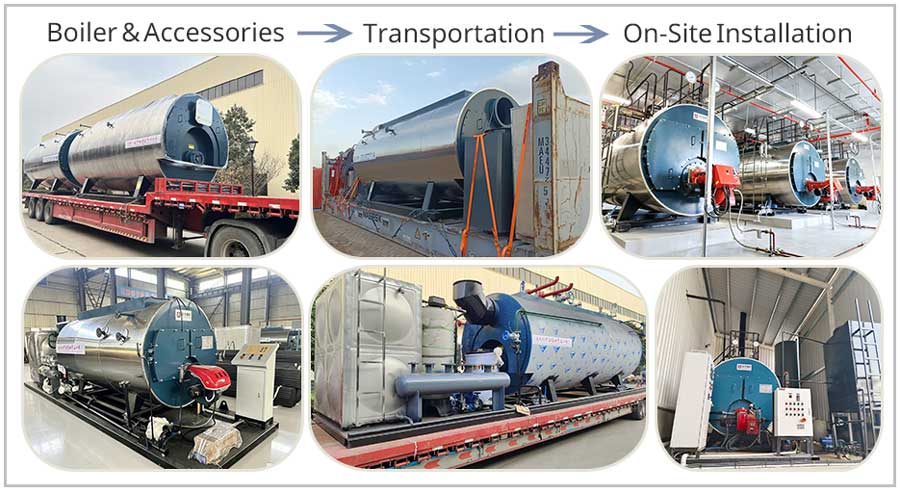

WNS Boiler Configuration Options

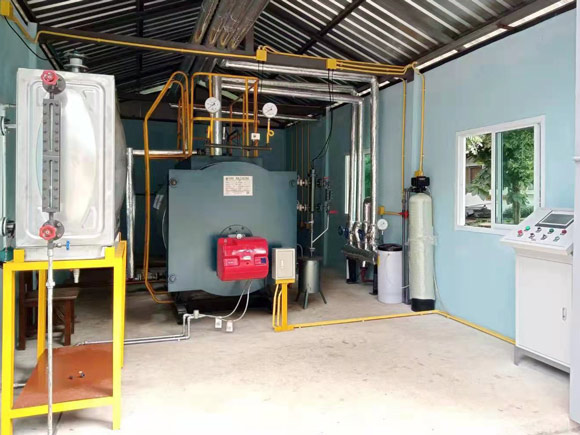

1. Component-by-Component Shipment
The boiler and its accessories are manufactured and shipped separately to the project site. Installation and commissioning are carried out on site by our engineers.

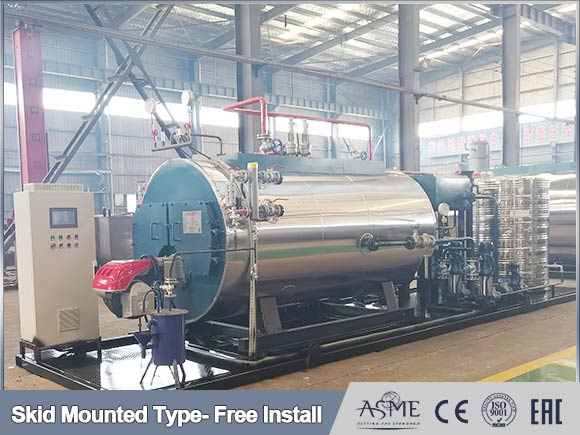

2. Skid-Mounted Configuration
For small-capacity boilers, most components and accessories are pre-installed and assembled at our factory before shipment.
For larger boilers, the system can be divided into several skid-mounted sections for easier transportation and faster on-site installation.
Factory Pre-Assembly → Easier Transportation → Faster On-Site Installation
Watch Video

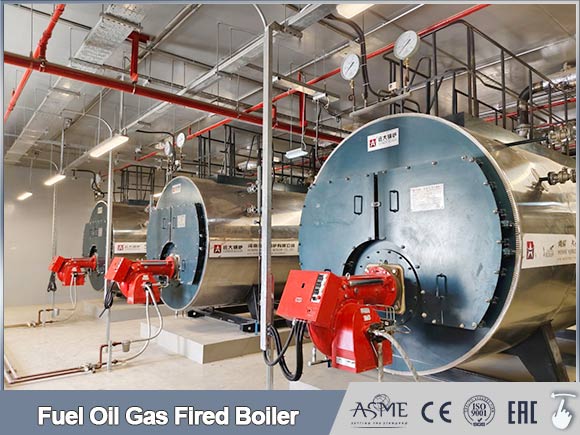

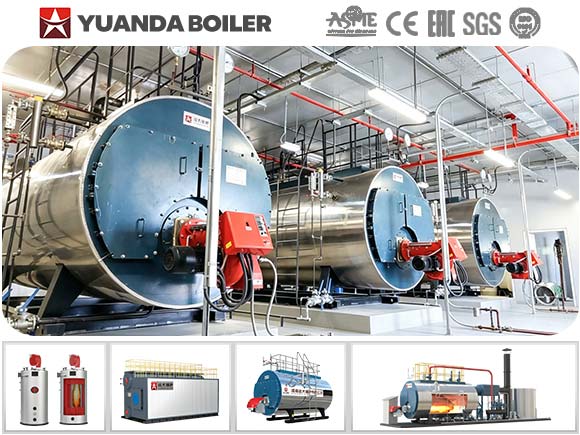

Related Oil Gas Boiler

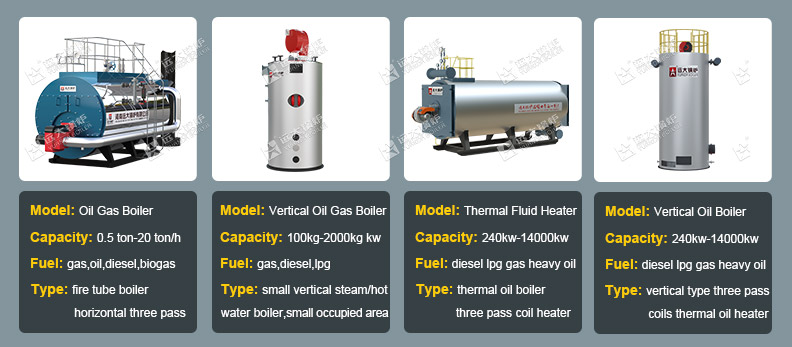

1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Steam boiler, Steam generator, Hot water boiler, Thermal oil boiler
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
|---|---|---|---|---|---|---|---|---|---|
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5 | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3 | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6 | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10 | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15 | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20 | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
