Gas-fired (oil-fired) Boiler

  • Model:WNS SZS LHS
  • Capacity:0.1t/h-50t/h
  • Type:Steam boiler, Hot water boiler
  • Fuel:Natural gas, lpg, diesel, heavy oil, exhaust gas, dual fuel, etc
  • Industry:Foods, Garment, Textile, Paper, Brewery, Ricemill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc
Get price Send Message
Model

Our boilers model WNS, LHS, SZS all use gas/oil burning, meet customer demand in capacity 0.1t/h-50t/h. with modern appearance, compact structure, reasonable heating surface layout and energy saving. You can save 5-10% of running costs! Widely used in various industries, such as Beverage, Textile, Food, Garment, Paper, etc.

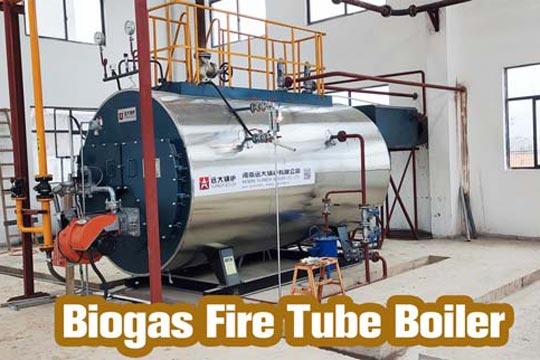

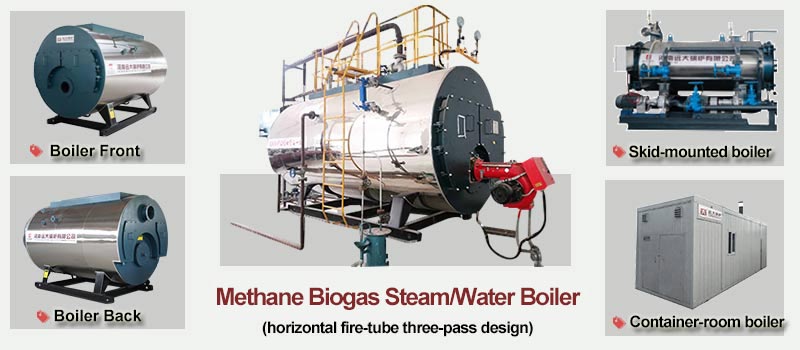

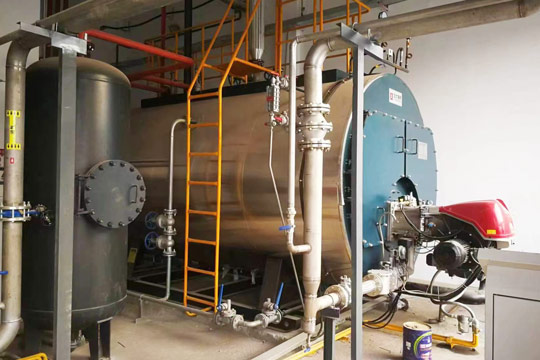

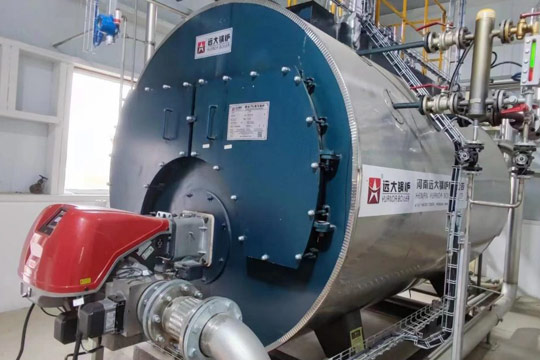

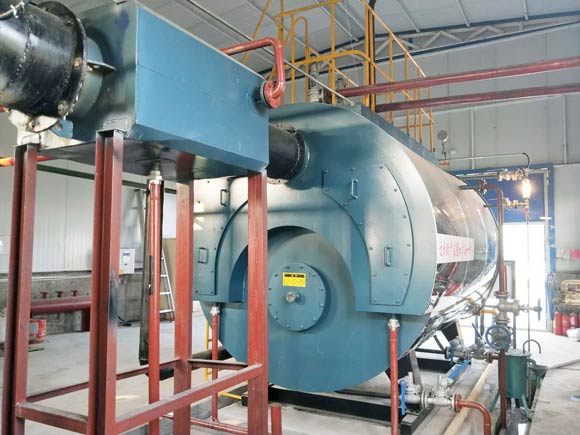

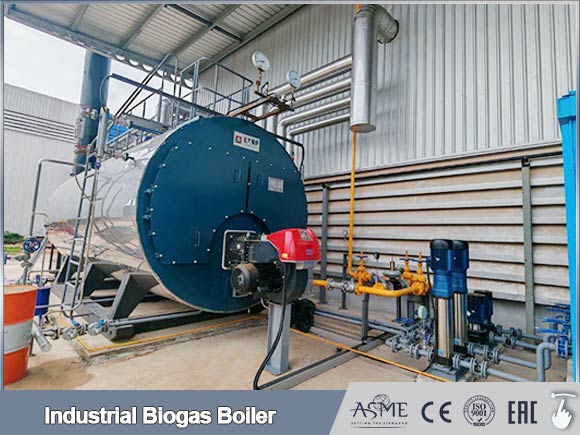

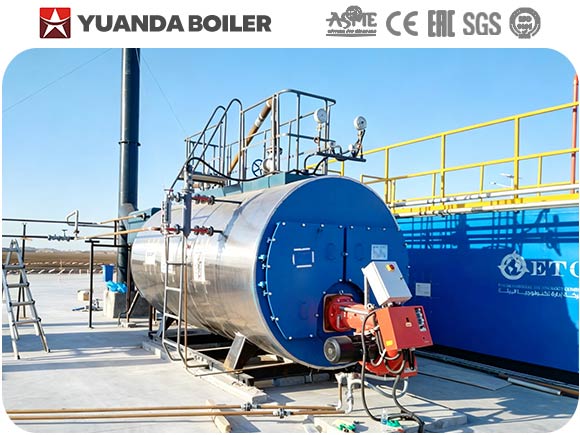

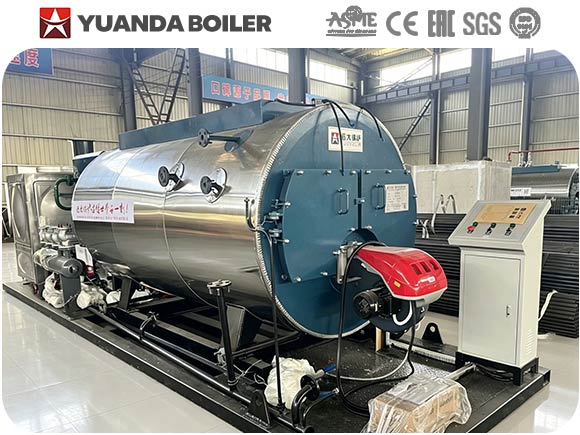

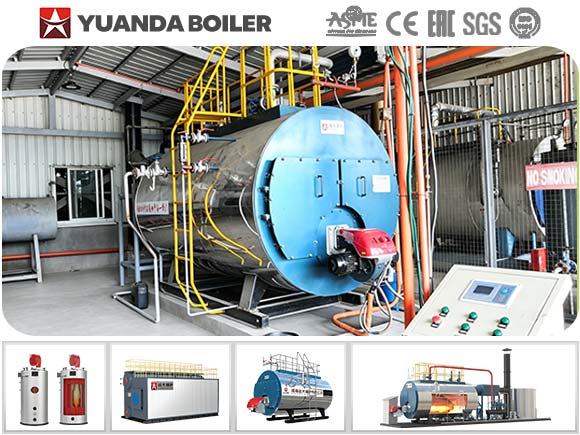

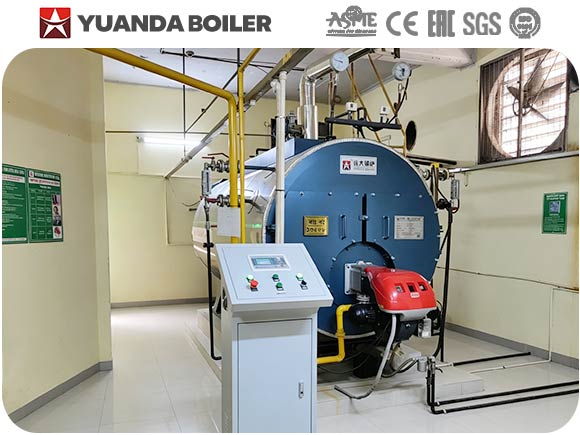

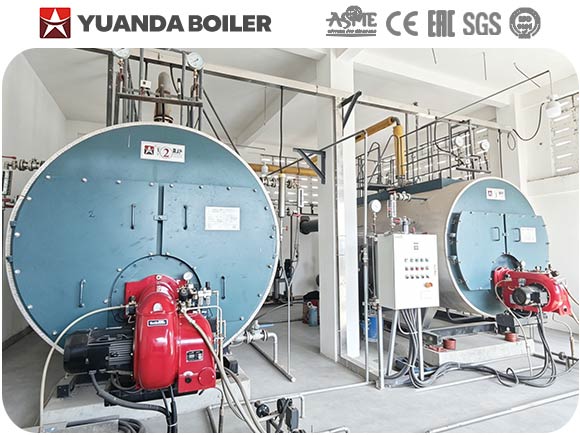

Horizontal Fire tube Gas & Oil Boiler (0.3-50ton/hr)


    WNS series boilers are horizontal three pass fire-tube boilers with wet back structure, Corrugated furnace design and threaded flue tubes, achieve thermal efficiency up to 98%. High efficiency heating equipment with full automatic control system.

     ▪ PLC control system                • Automatic fault identification
     ▪ Data collection analysis         • Internet remote monitoring

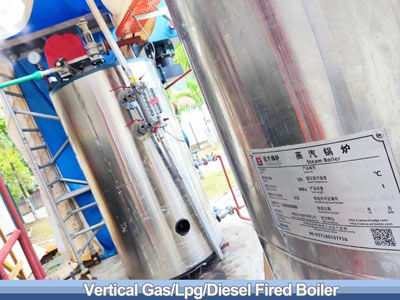

Vertical Tubes Gas & Oil Boiler (100-1000kg/hr)


    Vertical pirotublar boiler, adopt three-pass structure with top-fired burner. The flame can completely spread from the top to the bottom and burn sufficiently. Low heat loss is reduced and higher thermal efficiency 95%.

    • Quick  steam output               • Easy installation & operation
    • Lower fuel consump cost       • Running fully-automatically

Water Tube Gas & Oil Boiler (10-50ton/hr)


    SZS series oil gas fired water tube boiler adopts double drums "D-type" vertical arrangement, full-membrane wall structure, reasonable and compact layout, realize large-capacity boiler overall quick installation, less investment in boiler house infrasturcture and short installation period.

    • Full water membrane wall     • NOx < 30 mg/m³
    • Utilize waste flue gas heat     • Compound water circulation




Feature

Our gas/oil fired boiler has strong adaptability for fuel, could realize fully automatic and safe operation, adopt advanced control system, ensure stable operation. Thermal efficiency at least 5% higher than normal systems, annual fuel cost savings for each 10 tph boiler as high as $ 100,000.


Horizontal Gas/Oil Fired Boiler, Steam output capacity in 300kg-30 000kg per hour.


Parameter
WNS Series Steam Boiler Technology Parameter Table
Boiler model



Rated
capacity
Rating
pressure
Feed
temperature
Steam
temperature
Active grate area Thermal
efficiency
Weight Dimensions
Light oil
Heavy oil   Natural gas   Liquid gas   City gas
t/h MPa Kg/h Kg/h m3/h m3/h m3/h

%

Ton mm
WNS1-1.0-Y(Q)
1 1 20 184 65.5 67.3 84.2 29 176 91 4.3 3561×1690×1910
WNS 2-1.25- Y(Q)
2 1.25 20 194 129.6 132.2 165 57.3 346 92 7.2 4111×1950×2199
WNS3-1.25-Y(Q)
3 1.25 20 194 192 195 250 82 510 92.1 8 4330×2248×2564
WNS4-1.25- Y(Q)
4 1.25 20 194 256 261.9 323.6 109 682 93 9.6 4732×2150×2448
WNS5-1.25- Y(Q)
5 1.25 20 194 318 322 386 140 87 93 12.5 5970×2360×2796
WNS6-1.25- Y(Q)
6 1.25 20 194 380 390.6 450 164 1020 93.2 16.5 5500×2600×2990
WNS8-1.25- Y(Q)
8 1.25 105 194 503 517 642 209 1321 93.5 24.8 6450×2800×3200
WNS10-1.25- Y(Q)
10 1.25 105 194 628 643 805 264 1654 93.5 26.8 6800×2900×3394
WNS15-1.25- Y(Q)
15 1.25 105 194 940 965 1182 400 2417 93.5 38 7150×3200×3540
WNS20-1.25- Y(Q)
20 1.25 105 194 1250 1301 1597 520 3299 93.5 55 8200×3400×3826
