Vertical Coal Hot Water Boiler
- Capacity：300kw-1400kw
- Pressure：0-3.8Mpa; 0-38Bar
- Water Temperature：50-130°C
- Fuel：Coal, charcoal, briquette, wood, biomass, solid waste
- Features：LSG vertical coal wood boiler / water tube coal wood boiler / easy operate / long using lifespan / 100kg-2000kg boiler / 100kw-1400kw boiler

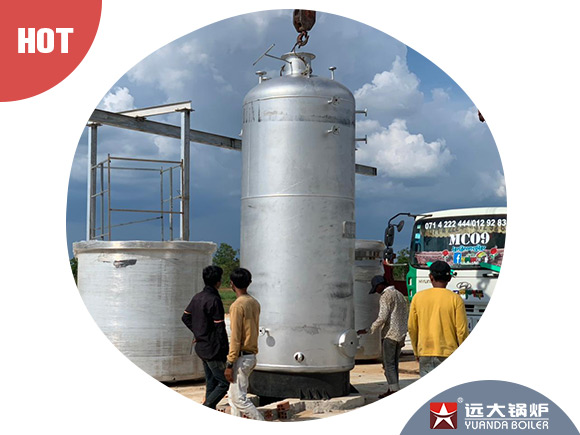

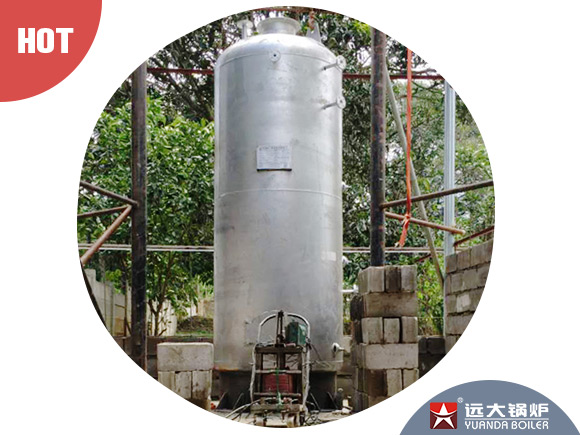

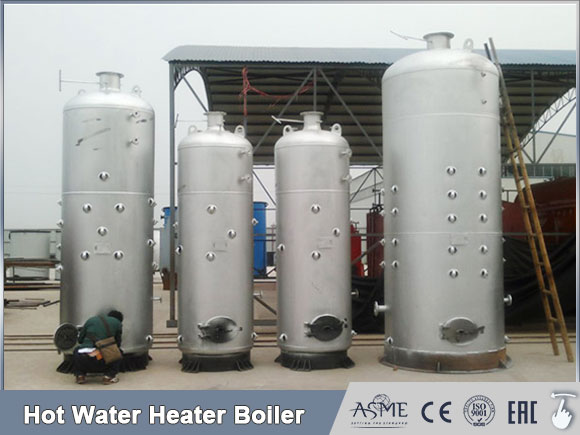

Vertical Coal Hot Water Boiler
(Use coal, charcoal, briquette, wood)
Introduction LSG Series Coal Boiler
Vertical boiler, it burn coal, charcoal, wood, pellets. Heating water to hot water boiler for heating.
Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, horizontal water tube, vertical tube, convection tubes etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.
Advantages LSG Coal Boiler
1. Low pressure operation, safety and quick run-on heating water, generate steam.
2. Vertical type, small area occupied, low investment cost.
3. Small one and simple structure boiler, easy for installation.
4. Double-deck fire grate combustion chamber design, flue gas burn twice, low fuel consumption
Quality Control Strict Standard
1. Strength calculation report with applied materials information.
2. Hydraulic test report: ensure the standard working pressure and safety.
3. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
4. 100% X-ray inspection report (welding seam): to ensure the quality of the entire boiler.
5. Third-party inspection report: by Zhoukou Institute of Special Equipment Inspection & Technical Research.
Yuanda Boiler Boilers Sale Service Already Cover 102 countries !
Why choos us ? Yuanda Boiler
1. Products Certificates Qualifications
Yuanda products comply with international boiler manufacturing inspection standards such as ISO ASME CE SGS DOSH EAC.
2. Professional & Trustable
Yuanda Boiler, has professional technical research and development team, mature production technician team, high-quality raw material suppliers, experienced installation engineer team (have been to more than 50 countries to be responsible for after-sales installation and commissioning services)
3. Yuanda Boiler Since 1956
Till now, Yuanda Boiler has a 66-year history of development, continuous innovation, continuous progress, and never stops. With a large number of loyal boiler users, the good reputation has also driven the promotion of the Yuanda brand, and the market share has been increasing.
4. Reliable Service For Life-time
Before-sale services | on-sale services | after-sale services. We always adhere to the principle of customer-oriented and customer service. Yuanda will provide life service for products forever, keep moving.
Our Boiler Strict Quality Control
1. All materials should be inspected before prodcution and each steel have its ID code which can trace its quality test.
2. 100% Non-Destructive Inspection report of steel plate tube & welding rod.
3. Hydraulic test: make sure strength and tightness of pressure parts.
4. Third part inspection report: By China Henan Boiler Inspection Institute.
Service After-sale Service
1. Full-life After-sale Service
2. Onsite Operation Training Service
3. Online Monitoring System
4. Engineer Abroad Installation and Commissioning Service
5. Training Service Content:
-Boiler basic knowledge
-Boiler structure introduction on site
-Boiler control theory
-Boiler burner theory and adjusting method
-Boiler water treatment introduction and water quality test method
-Boiler operation training
-Boiler room system introduction
-Boiler debugging introduction
-Introduction of Boiler faults, reason and solution
-Field simulation solves all kinds of common failures
-Boiler maintenance introduction
| Vertical Hot Water Boiler Technical Parameter Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | CLSG 0.06-95/70 | CLSG 0.12-95/70 | CLSG 0.24-95/70 | CLSG 0.35-95/70 | CLSG 0.5-95/70 | CLSG 0.6-95/70 | CLSH 0.7-95/70 | CLSH 1.05-95/70 | CLSH 1.4-95/70 |
| Rated Capacity (KW) | 60 | 120 | 240 | 350 | 500 | 600 | 700 | 1050 | 1400 |
| Working Pressure | Atmospheric pressure | ||||||||
| Hot Water Temperature(℃) | 95℃/85℃ | ||||||||
| Return Water Temperature(℃) | 70℃/60℃ | ||||||||
| Thermal Efficiency % | ≥82% | ||||||||
| Dimension(mm) | 800*2200 | 900*2600 | 1100*2800 | 1212*3420 | 1310*3780 | 1416*3780 | 1612*4420 | 1812*5200 | 2016*5300 |
| Weight (kg) | 380 | 550 | 900 | 1893 | 3120 | 3650 | 3821 | 4800 | 5700 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
