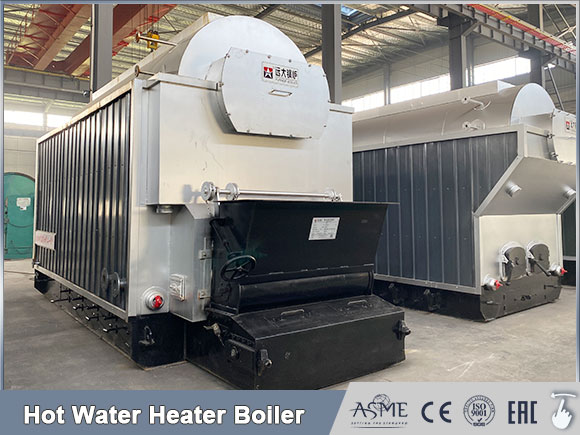

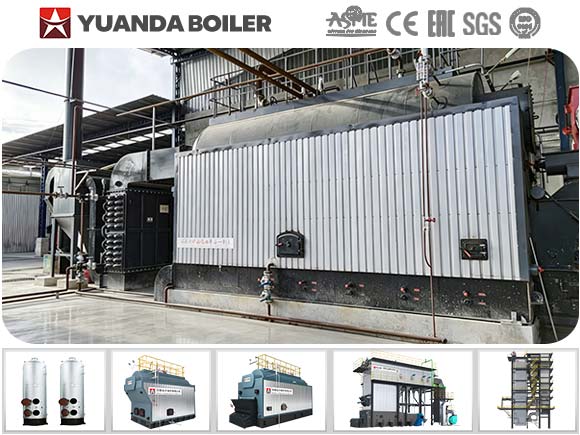

Biomass Boiler

  • Capacity:100kw-28000kw
  • Pressure:0-3.8Mpa; 0-38Bar
  • Water Temperature:50-130°C
  • Fuel:Biomass, wood, ricehusk, shells, pellets, bagasse, jute, coal
  • Features:Automatic biomass boiler / Manual biomass boiler / water tube & fire tube boiler / chain grate biomass hot water boiler
Get price Send Message
Introduction

Automatic Biomass Boiler & Manual Biomass Boiler

Introduce Boiler Structure: DZ series boiler is horizontal three-pass water & fire tube boilers with grate combustion device. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides from a radiation heating surface in the furnace.
dzl dzh boiler,dzh biomass boiler,dzl biomass boilerchain grate biomass boiler,travelling grate biomass boiler,automatic biomass boiler

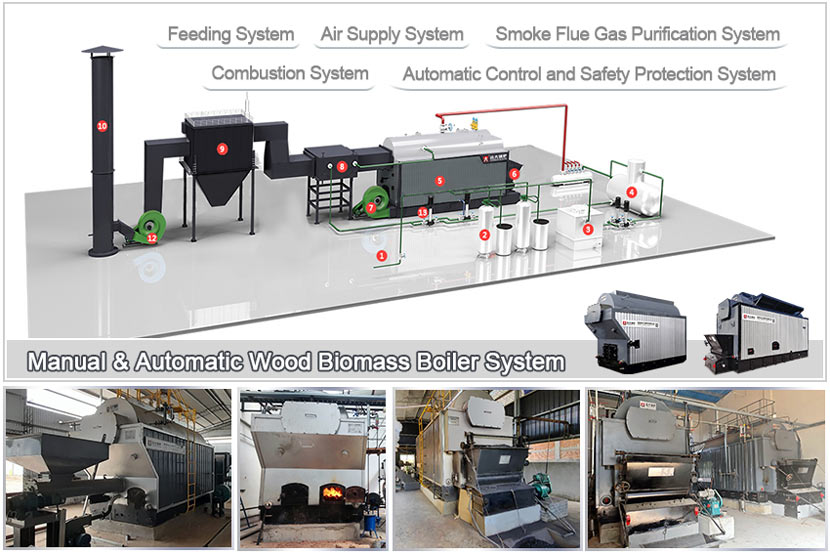

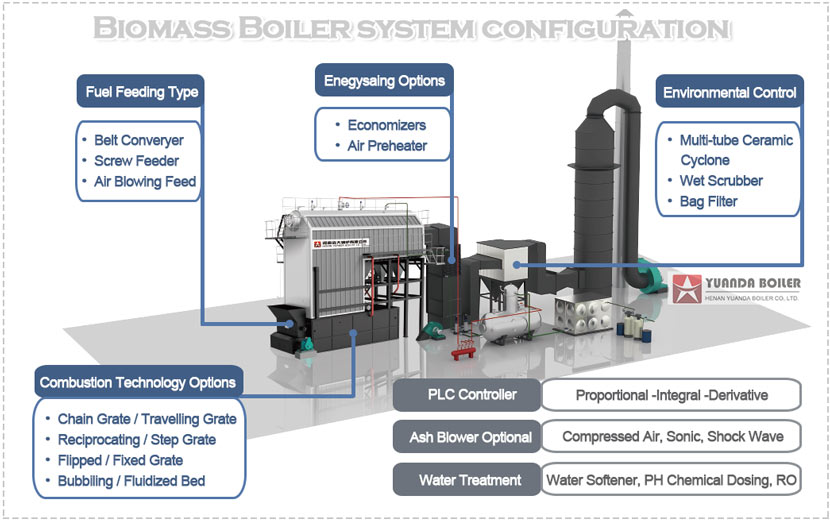

Whole system  boiler & accessories

dzl biomass boiler system,dzl chain grate biomass boiler,dzl biomass fired boiler

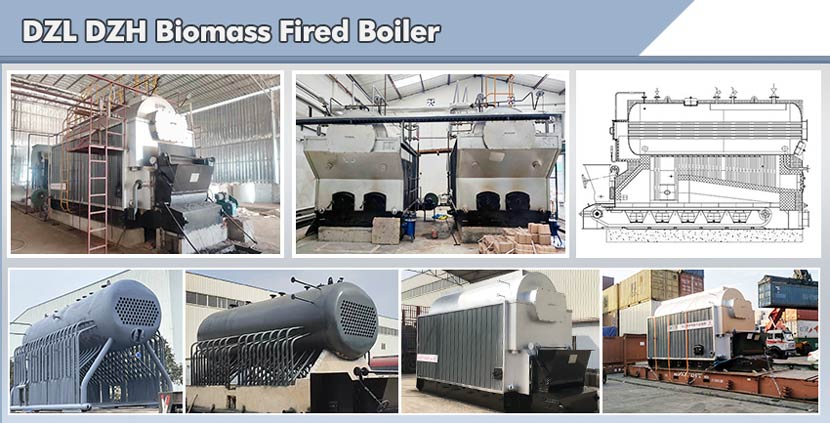

Compare  DZL & DZH biomass boiler

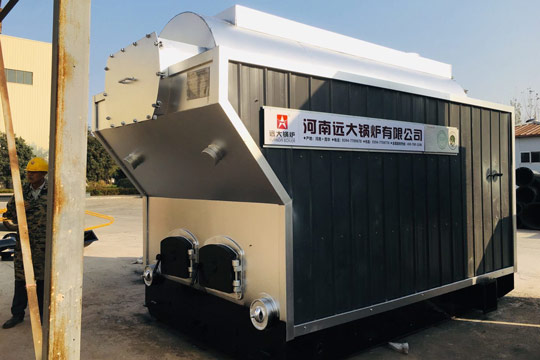

① DZL package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface,while the drum and the water walls on both sides from a radiation heating surface in the furnace.

② DZH manual feed boiler, biomass fired boiler with travelling grate, it's the single drum type horizontal three return boilers with fire tubes and water tubes, radiation heat surface in furnace water wall and stove sides. convection heating surface in furnace flanks and threaded tube.

dzl biomass steam boilerDZH biomass boiler

Features  Design Advantages

1. Smoke and dust separator chamber

Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.

2. Optimized design CAD

Choose the best furnace from dozens of options,improve economical efficiency.

3. Convex tube plate

1) Improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.

2) Prevent tube plate cracking, cancel bracing,simplify the structure.

4. Large size of simple circulation loop drop pipe and lower set box

Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle

5. New pattern of furnace arch

Strengthen the combustion, could burn kinds of fuel: wood, coal and biomass, improve combustion efficiency.

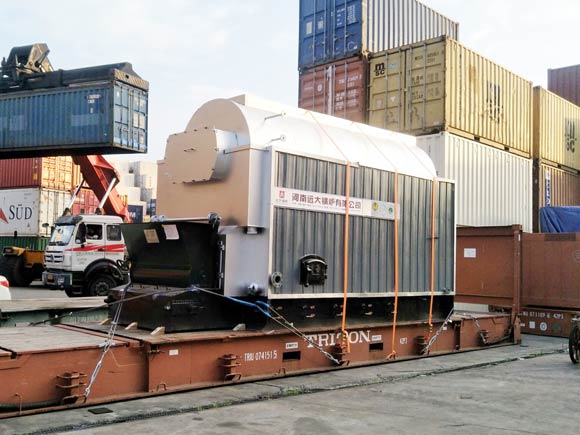

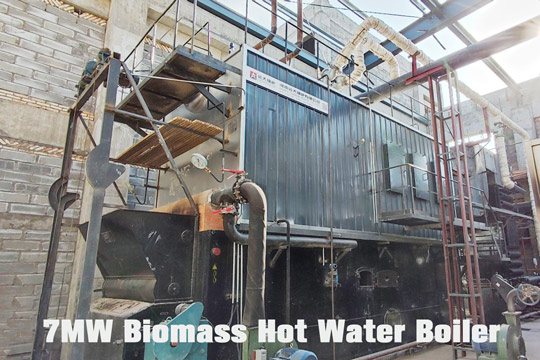

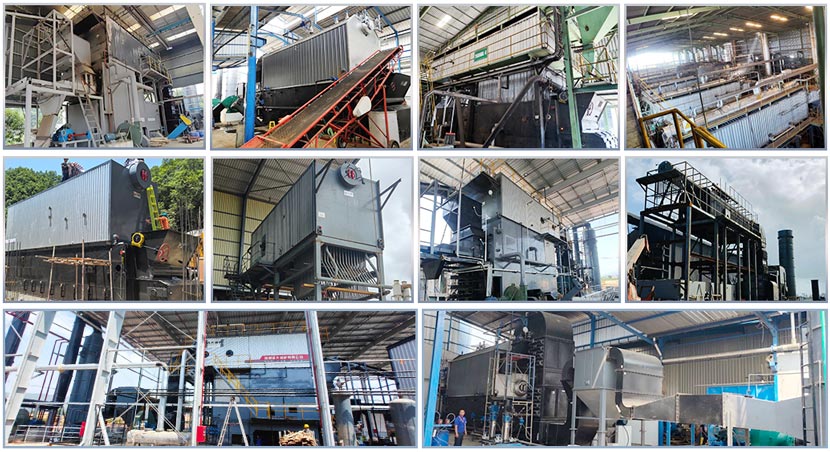

Projects Worldwide Service

automatic biomass steam boilermanual biomass wood boiler

Related

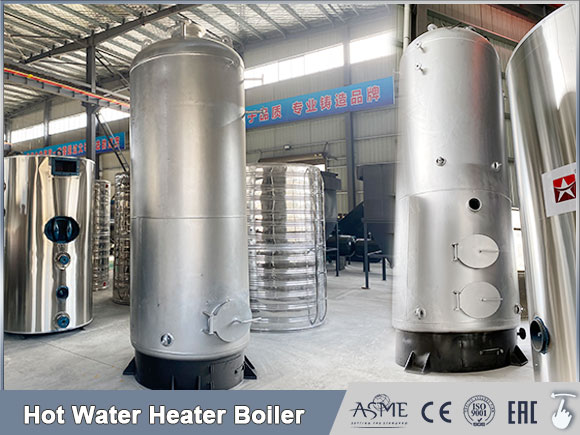

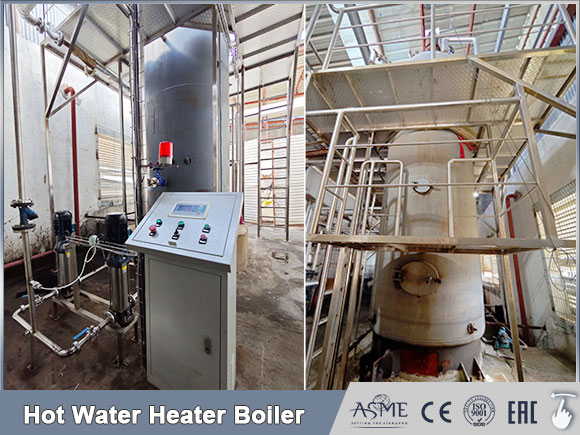

small biomass boiler,vertical biomass boiler,vertical steam boilerszl biomass boiler,szl steam boiler,szl water tube boiler

biomass fired boiler,biomass fire tube boiler,biomass burner boilerbiomass pellets boiler,pellets steam boiler,wood pellets boiler

Our Boiler Strict Quality Control

1. Strength calculation report with applied materials information.

2. Hydraulic test report: ensure the standard working pressure and safety.

3. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.

4. 100% X-ray inspection report (welding seam): to ensure the quality of the entire boiler.

5. Third-party inspection report: by Zhoukou Institute of Special Equipment Inspection & Technical Research.

Why Choose Us ?

1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.

2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.

3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.

4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
yuanda boiler

Service  After-sale Service

1. Full-life After-sale Service

2. Onsite Operation Training Service

3. Online Monitoring System

4. Engineer Abroad Installation and Commissioning Service

5. Training Service Content:

-Boiler basic knowledge

-Boiler structure introduction on site

-Boiler control theory

-Boiler burner theory and adjusting method

-Boiler water treatment introduction and water quality test method

-Boiler operation training

-Boiler room system introduction

-Boiler debugging introduction

-Introduction of Boiler faults, reason and solution

-Field simulation solves all kinds of common failures

-Boiler maintenance introduction

Parameter
Horizontal Hot Water Boiler Technical Parameter Table
Model Rated capacity(MW) Rated pressure (Mpa) Rated output temperature(℃) Rated return water temperature(℃) Thermal efficiency(%) Fuel comsumption(Kg/h) Exhaust temperation(℃) max transportation weigh(t)

DZL0.7 0.7 0.7 95/115 70 >80 181 <130 10
DZL1.4 1.4 1.0  95/115 70 >80 370 <130 22.5
DZL2.8 2.8 1.0  95/115 70 >80 727 <130 26.5
DZL4.2 4.2 1.0  95/115 70 >80 1080 <130 35.7
DZL5.6 5.6 1.0  95/115 70 >80 1390 <130 40.2
DZL7.0 7.0  1.0  95/115 70 >80 1726 <130 25.6
DZL10.5 10.5 1.0  95/115 70 >80 2530 <130 18
DZL14 14 1.0  95/115 70 >80 3390 <130 19.9
Note: Parameter is for reference only, if any changes should follow the factory technical data.
