Caldera Biomasa
- Capacidad：0.1-50t/h, 100-28000kw
- Horsepower：10hp-3000hp(bhp)
- Presion：0-3.8Mpa; 0-38Bar
- Combustible：Biomasa, madera, cascarilla de arroz, cáscaras, pellets, bagazo, etc.
- Certificados：ISO CE ASME EAC Las ventas globales cubren 132 países
Yuanda Wood Biomass Boiler Options
Yuanda Boiler Projects Cover 132 Countries & Regions, Qualified With Internation Standard ISO CE ASME DOSH EAC.

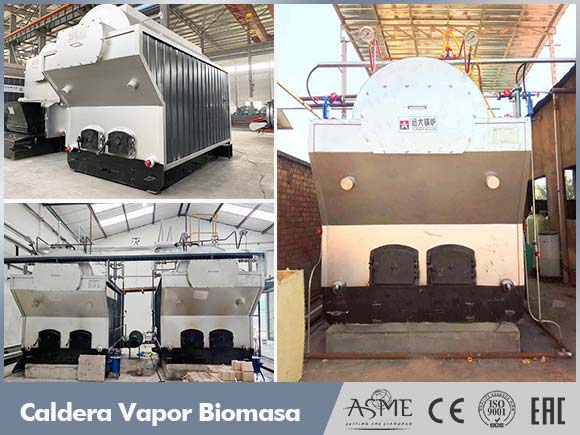

Hot Selling DZL DZH DZG Biomass Boiler
Popular Products: DZL automatic biomass boiler, DZH biomass boiler, DZG biomass boiler, DZW biomass boiler.
DZ series biomass boiler, it is horizontal three-pass water & fire tube boilers with grate combustion device. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides from a radiation heating surface in the furnace.

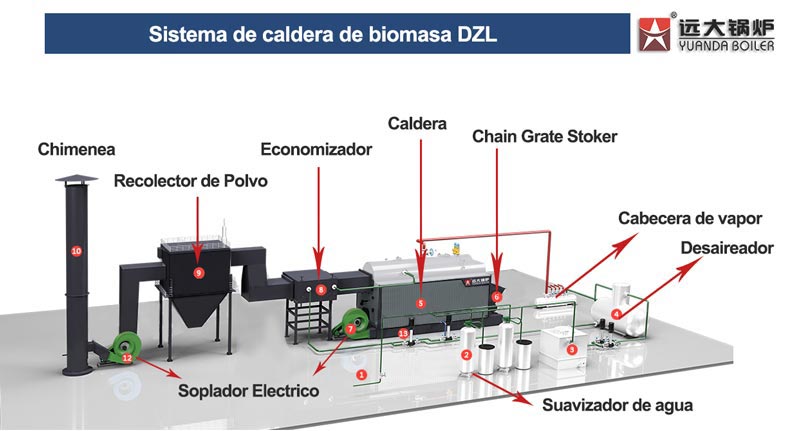

System DZL Boiler
Advantages DZ Series Boiler
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
1) Improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
2) Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. New pattern of furnace arch
Strengthen the combustion, could burn kinds of fuel: wood, coal and biomass, improve combustion efficiency.
Related Caldera de biomasa SZL Water Tube
Caldera de biomasa de tubo de agua tipo "D" o "A" de doble tambor serie SZL.
Catalogo Productos Yuanda
1. Caldera de gas, caldera de GLP, caldera diésel, caldera de gasóleo pesado, caldera de combustible dual.
2. Caldera carbón, caldera leña, caldera biomasa, caldera de cáscara arroz, caldera de cáscara palma, caldera bagazo
3. Caldera eléctrica, Generador de vapor eléctrico, Caldera de agua caliente eléctrica,
4. Caldera Calentador de Aceite Térmico, Calentador de Fluido Térmico, Caldera de Aceite Caliente.
5. Caldera de vapor, caldera de agua caliente, caldera generadora de vapor, caldera combinada de calor y energía, caldera de vapor sobrecalentado
Sobre Yuanda Company Desde 1956
Yuanda calificado con ASME, CE, ISO, EAC, DOSH, TUV, BUV, lo que garantiza alta calidad y cumplimiento de estándares internacionales. Empresa Yuanda establecida desde 1956, más de 65 años de experiencia en la fabricación y 15 años de experiencia en exportación. Hasta ahora, nuestros productos se han exportado a 132 países de todo el mundo, calidad y servicios confiables durante toda su vida útil.
| DZ Series Steam Boiler Technical Parameter Table | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
