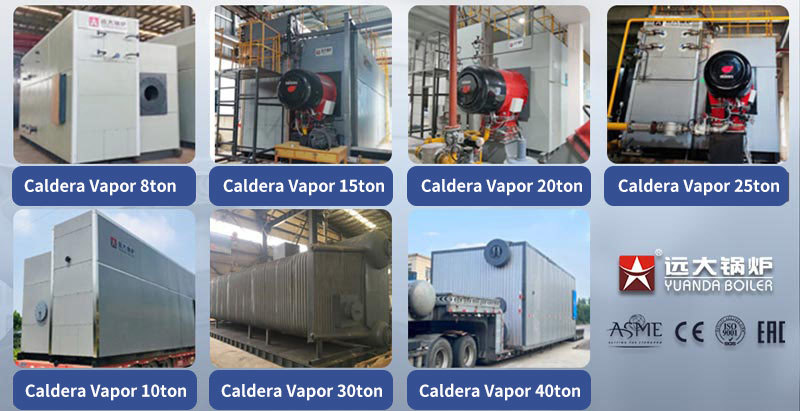

Caldera de Diesel Gas Serie SZS
- Capacidad：8ton-80ton, 500hp-5000hp(bhp)
- Combustible：Gas natural, diésel, petróleo pesado, GLP, combustible dual, etc.
- Presion：1-38Bar
- Medio de calor：Vapor, agua caliente
- Certificados：ISO CE ASME EAC Las ventas globales cubren 132 países

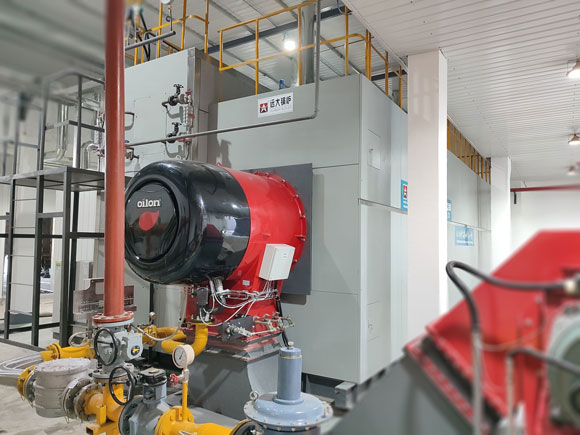

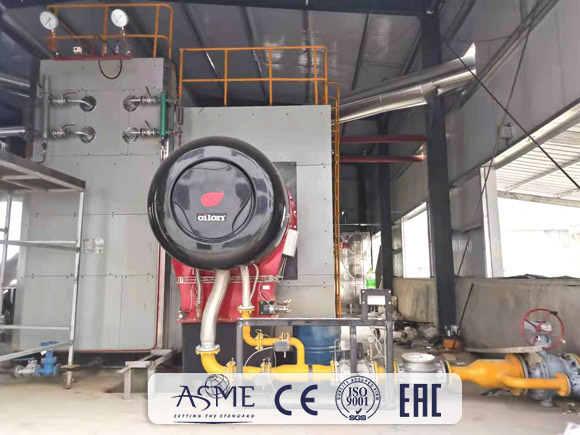

Yuanda SZS Series Boiler Oil Gas Fired Boiler

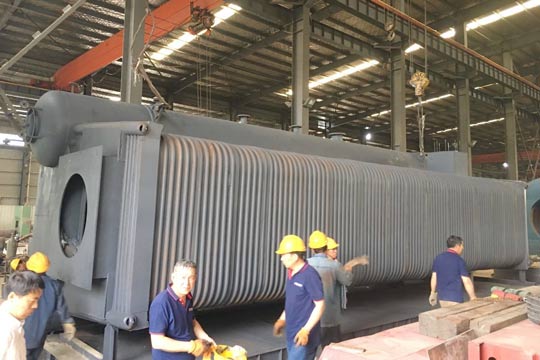

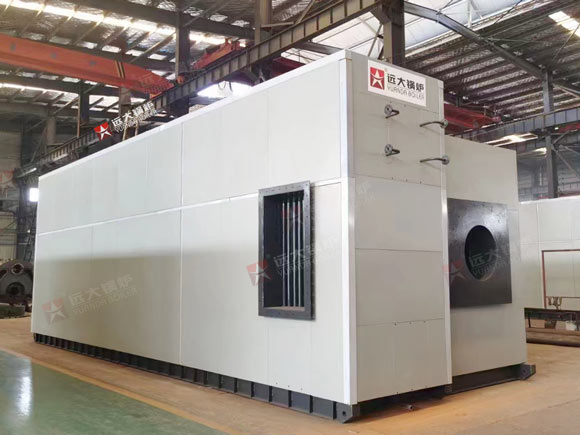

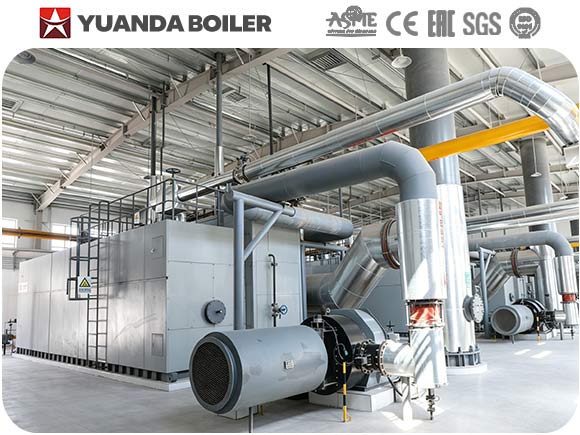

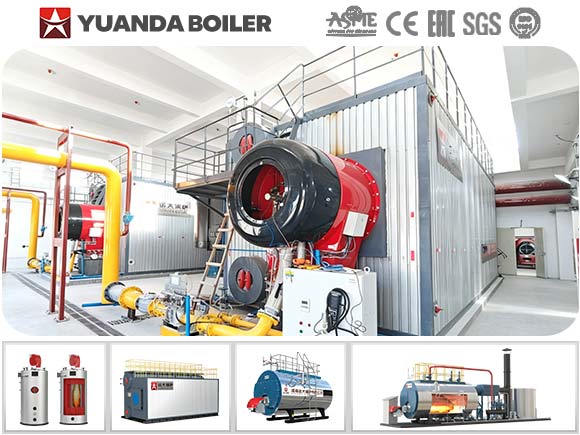

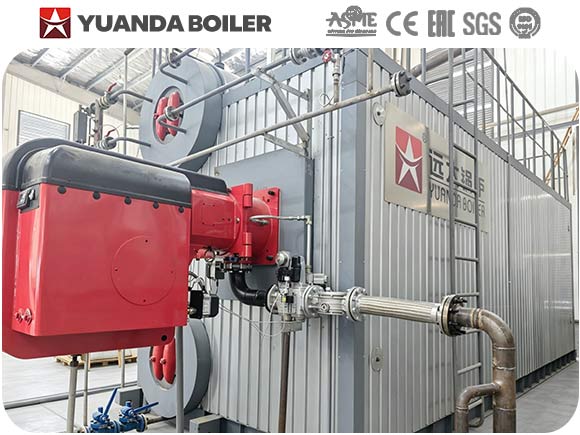

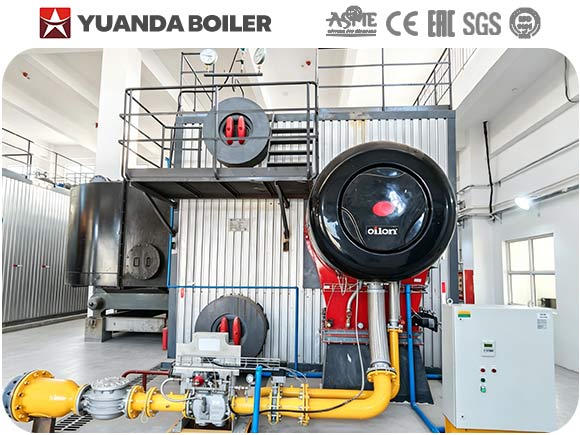

SZS water tube oil gas fired boiler, has double drums "D-type" vertical arrangement, full-membrane type wall structure, reasonable and compact layout, realize large-capacity boiler overall quick installation, less investment in boiler house infrasturcture and short installation period.

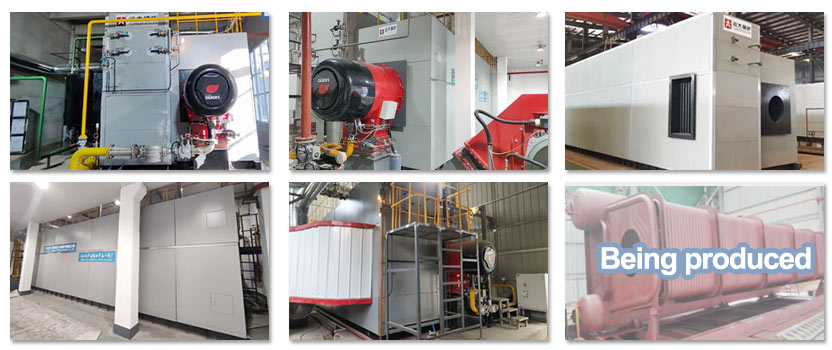

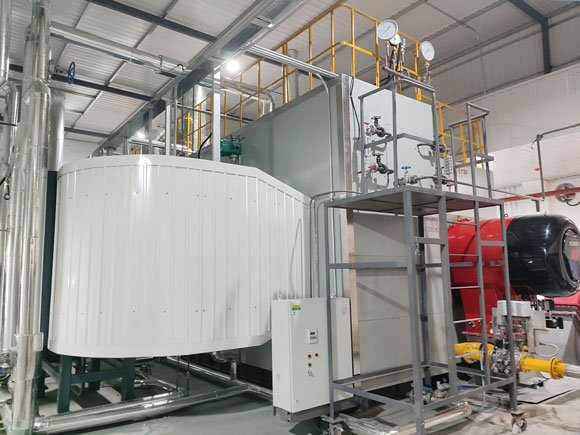

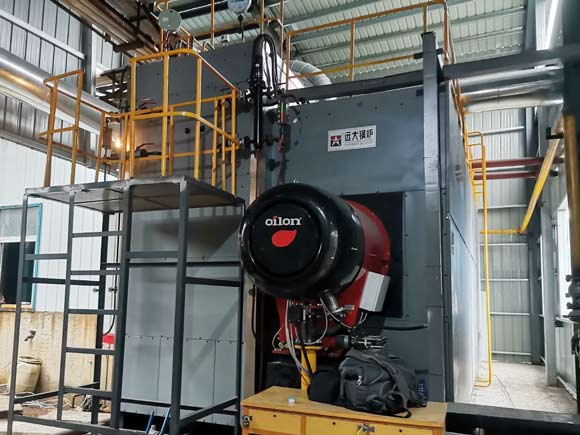

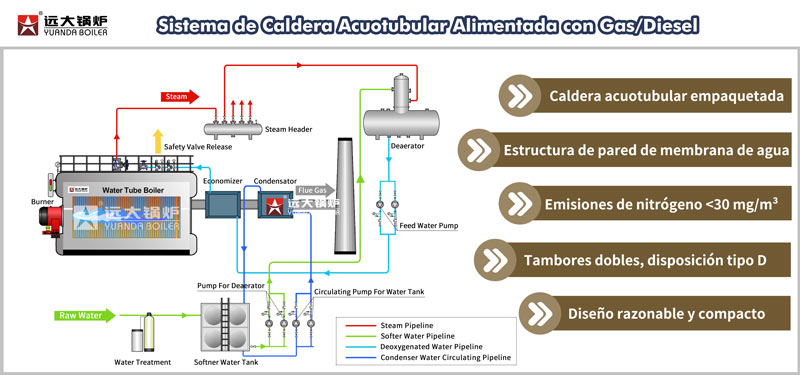

SZS Boiler System Oil Gas Fired Boiler
Boiler & Accessories. (In complete system, some accessories are optional, also can add other accessories)
Advantages of SZS Boiler 8ton-8ton
1. Big combustion chamber furnace, it will be applicable to a variety of fuels. Also it can achieve ultra-low nitrogen emission (NOX<30mg/m3);
2. Whole membrane type water wall structure, is adopted around the furnace. It has good sealing performance, low heat loss, no smoke and smoke leakage;
3. Unique composite water circulation furnace. The high temperature zone in furnace adopts forced circulation to ensure reliable cooling of each part of the heated surface and prevent vaporization;
4. Flue gas condensation recovery device is arranged at the tail of the boiler, which can effectively reduce the exhaust gas temperature and improve the boiler thermal efficiency;
5. 100% Safe and reliable in operation, easy to overhaul. The boiler is equipped with manholes, inspection doors, explosion-proof doors and flame detectors. Multi protections in water level & pressure.
6. High-quality aluminum silicate insulation layer,has good thermal insulation performance. Boiler outer layer uses pressed protective plate, which is beautiful and durable.

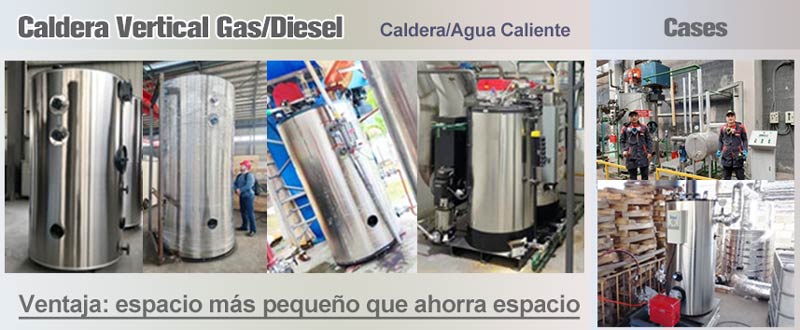

Related LSS Vertical Water Tube Boiler
Vertical Water Tube Once Through Oil Gas Boiler 100kg-2000kg/hour
.jpg)

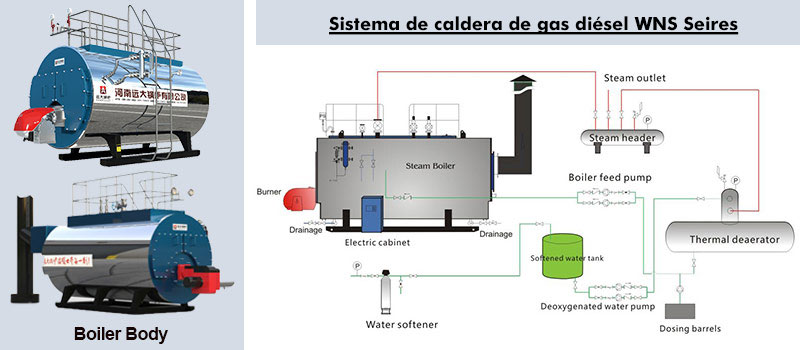

Related WNS Fire Tube Boiler
Horizontal Three Pass Fire Tube Gas/Oil Fired Boiler
Catalogo Productos Yuanda
1. Caldera de gas, caldera de GLP, caldera diésel, caldera de gasóleo pesado, caldera de combustible dual.
2. Caldera carbón, caldera leña, caldera biomasa, caldera de cáscara arroz, caldera de cáscara palma, caldera bagazo
3. Caldera eléctrica, Generador de vapor eléctrico, Caldera de agua caliente eléctrica,
4. Caldera Calentador de Aceite Térmico, Calentador de Fluido Térmico, Caldera de Aceite Caliente.
5. Caldera de vapor, caldera de agua caliente, caldera generadora de vapor, caldera combinada de calor y energía, caldera de vapor sobrecalentado
Sobre Yuanda Company Desde 1956
Yuanda calificado con ASME, CE, ISO, EAC, DOSH, TUV, BUV, lo que garantiza alta calidad y cumplimiento de estándares internacionales. Empresa Yuanda establecida desde 1956, más de 65 años de experiencia en la fabricación y 15 años de experiencia en exportación. Hasta ahora, nuestros productos se han exportado a 132 países de todo el mundo, calidad y servicios confiables durante toda su vida útil.
| SZS Series Steam Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| SZS10 | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 618 | 660 | 36 |
| SZS15 | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 927 | 987 | 45 |
| SZS20 | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1256 | 1316 | 52.6 |
| SZS25 | 25 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1545 | 1660 | 55.3 |
| SZS30 | 30 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1856 | 1981 | 63.7 |
| SZS40 | 40 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 2470 | 2630 | 77.4 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
| SZS Series Hot Water Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(MW) | Rated pressure (Mpa) | Rated output temperature(℃) | Rated return water temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| SZS10.5 | 10.5 | 1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 912 | 975 | 30.8 |
| SZS14 | 14 | 1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 1216 | 1300 | 40.9 |
| SZS17.5 | 17.5 | 1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 1520 | 1625 | 51.3 |
| SZS21 | 21 | 1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 1824 | 1950 | 52.6 |
| SZS29 | 29 | 1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 2432 | 2600 | 69.5 |
| SZS58 | 58 | 1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 4865 | 5200 | 162 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
