Biomass Heating Boiler
- Capacity：40kw-7000kw
- Fuel：Biomass pellets, wood pellets, wood chips, sawdust, solid fuel
- Water Temperature：50-130°C
- Usage：For central heating, district heating, factory productions process
- Brif Intro：Fully automatic biomass hot water boiler, modular integrated type water-tube fire-tube heating, thermal efficiency 85%.
Biomass Heating Boiler
40kw-7000kw Hot Water Boiler
Fully automatic biomass boiler, inner water-tuube & fire-tube heating, compact structure, small size, low noise, high thermal efficiency, modular integrity, good stability, movable type, able to connect with soft or hard pipes, easy to install etc.
Including fixed grate biomass boiler & recirprocating grate biomass boiler, modular integrated type compact structure biomass boiler.
Advantages Biomass Boiler
1. Energy Saving
Compared to expensive electricity power, biomass energy will help saving cost, with a low biomass consumption cost.
2. Efficienct Heat Exchange
Inner structure using water-tube & fire-tube transferring heat, thermal efficiency up tp 85%.
3. Flexible Assembly
Cause its small size appearance, available for nearby installation, it will help save little heat loss in pipelines.
4. Easy Into Use
It don't need set a boiler room, simple to install, one-botton start up/off, automatic ignition, auto-control system.
5. Intelligent Control
Automatic control system for work-pressure, water-level, biomass fuel feeding, combustion stage.

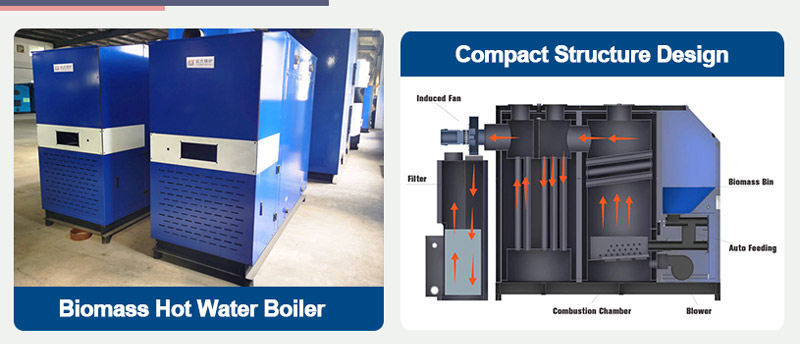

6. Modular Integrated Design
Compact structure, beauty appareance, light weight, available to move everywhere.

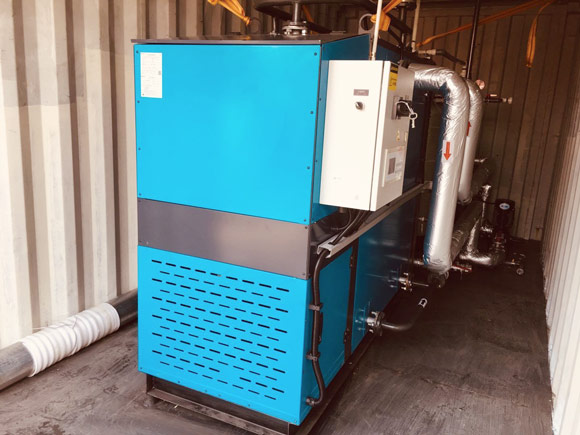

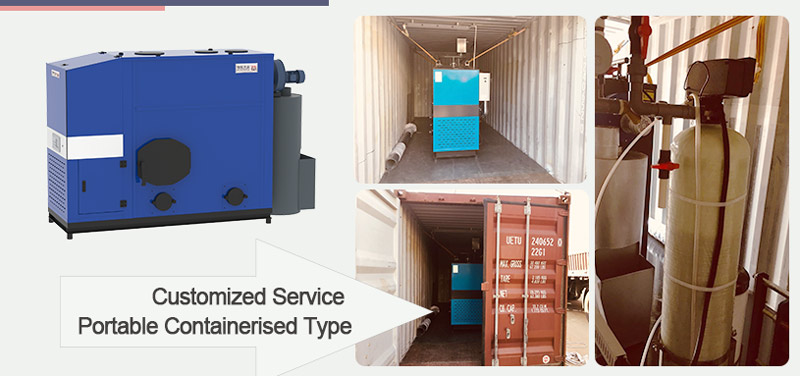

Customized Portable Containerised Heating Boiler
Support customized service. CASE: Hungary 200SETS Biomass Boiler For Central Heating.
Related Biomass Grate Boiler
Horizontal industrial biomass/wood boiler, including fixed grate boiler, travelling grate boiler, chain grate boiler, reciprocating grate boiler. Manual type biomass boiler & Automatic type biomass boiler.
Link: https://www.yd-boiler.com/products/biomass-boiler/dz-series-biomass-boiler.html

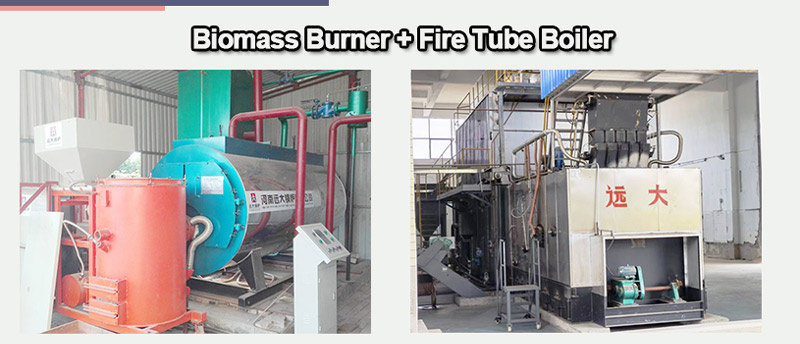

Related Fire Tube Biomass Boiler
Automatic biomass fire tube boiler, special design boiler with external burner. Biomass burner supply heat energy to fire tube boiler, three pass design boiler with higher heat efficiency, help saving energy.
Link: Link: https://www.yd-boiler.com/products/biomass-boiler/biomass-burner-boiler.html
Why Choose Us ?
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
Global Boiler Service
1. Offer catalogue, various boiler model for choose, inquire one you prefer.
2. Technical discussion on boiler system solution for your company use.
3. Warmly welcome all customers come to visit the production base
4. Trustable after sale service, for boiler installation, training operators.
5. Whole life service for boiler consult, contact us whenever.
6. Yuanda products have covered all provinces and cities of China and have been exported to 102 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !
| Model | CWHS-0.041 | CWHS-0.058 | CWHS-0.088 | CWHS-0.12 | CWHS-0.175 | CWHS-0.24 | CWHS-0.35 | CWHS-0.54 | CWHS-0.7 | CWHS-1.05 | CWHS-1.4 | CWHS-1.75 | CWHS-2.1 | CWHS-2.8 | CWHS-4.2 | CWHS-5.6 | CWHS-7.2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working pressure | Atmospheric TYPE | |||||||||||||||||
| Thermal efficiency | 0.93 | |||||||||||||||||
| Reted output (kw) | 41 | 58 | 88 | 120 | 150 | 240 | 350 | 540 | 700 | 1050 | 1400 | 1750 | 2100 | 2800 | 4200 | 5600 | 7200 | |
| Rated out put （×10⁴kcal） | 3.5 | 5 | 7.5 | 10 | 15 | 20 | 30 | 45 | 60 | 90 | 120 | 150 | 180 | 240 | 360 | 480 | 600 | |
| Heating area ㎡ | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 | 24000 | 36000 | 48000 | 60000 | |
| Rated voltage（V） | 220V 380V | |||||||||||||||||
| Induced fan power（W） | 120 | 180 | 250 | 250 | 370 | 550 | 750 | 1100 | 1500 | 2200 | 3000 | 4000 | 7500 | 11000 | 18500 | 18500 | 21000 | |
| Fd fan power（W） | 85 | 120 | 240 | 240 | 320 | 400 | 500 | 550 | 550 | 2200 | 2200 | 3000 | 5500 | 7500 | 11000 | 15000 | 15000 | |
| Chimney Diameter（mm） | 114 | 140 | 165 | 165 | 165 | 165 | 165 | 273 | 273 | 273 | 273 | 325 | 325 | 375 | 700 | 800 | 900 | |
| Circulating water volume（T） | 0.875 | 1.25 | 1.875 | 2.5 | 3.75 | 5 | 7.5 | 11.25 | 15 | 30 | 30 | 37.5 | 45 | 60 | 90 | 120 | 150 | |
| Water inlet and outlet diameter（mm） | 39 | 51 | 51 | 51 | 68 | 68 | 76 | 89 | 89 | 108 | 108 | 140 | 140 | 140 | 180 | 203 | 228 | |
| Dust collector | Φ380×1050 | Φ380×1050 | Φ400×1170 | Φ400×1170 | Φ460×1220 | Φ460×1300 | Φ480×1600 | Φ700×1750 | Φ700×1800 | Φ800×2100 | Φ800×2040 | Φ800×2085 | Φ900×2090 | Φ900×2095 | Φ1000×2180 | Φ1000×2250 | Φ1000×2300 | |
| Fuel consumption（kg/h） | 6.7 | 9.5 | 14 | 19 | 29 | 38 | 57 | 86 | 114 | 171 | 229 | 286 | 343 | 457 | 686 | 914 | 1143 | |
| Boiler size | L（mm） | 1725 | 1780 | 1950 | 1965 | 2135 | 2230 | 2330 | 2735 | 2935 | 3260 | 3110 | 3750 | 4010 | 4340 | 5200 | 5600 | 6300 |
| W（mm） | 700 | 700 | 800 | 763 | 850 | 975 | 1100 | 1170 | 1300 | 1470 | 1560 | 1720 | 1850 | 1980 | 2500 | 2800 | 3250 | |
| H（mm） | 1335 | 1420 | 1370 | 1460 | 1600 | 1890 | 2100 | 2200 | 2400 | 2270 | 2245 | 2535 | 2600 | 2880 | 3380 | 3500 | 3800 | |
| Fuel silo size | L（mm） | Integrated design of boiler and silo | 1250 | 1250 | 1600 | 1600 | 1500 | 1500 | 1700 | 1980 | ||||||||
| W（mm） | 1160 | 1160 | 1200 | 1200 | 1450 | 1450 | 1650 | 1700 | ||||||||||
| H（mm） | 2110 | 2110 | 2330 | 2330 | 2980 | 2980 | 3380 | 3680 | ||||||||||
| Shipping weight（kg） | 350 | 450 | 700 | 850 | 1100 | 1300 | 1800 | 2400 | 3000 | 4000 | 5000 | 5800 | 6800 | 12000 | 15000 | 18000 | 20000 | |
| Note: If any changes should follow the factory technical data. pls contact us to get technical parameter. | ||||||||||||||||||
