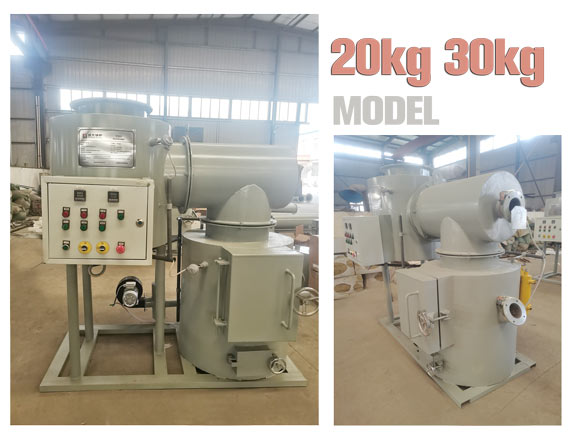

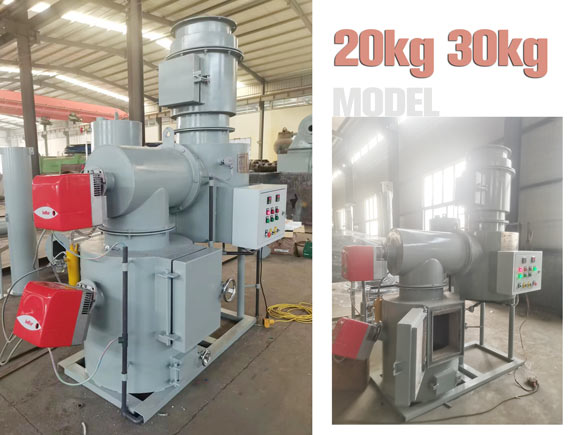

20kg 30kg 50kg/hour Incinerator
- Disposal：Medical waste, pets, animal carcass, sludge oil, solid waste
- Ability：20kg/hr-1000kg/hr
- Burning Temperature：800-1300°C
- Used in：Hospitals, farms, slaughterhouses, enterprises...
- Advantages：Multi-functions incinerator, its a ideal waste treatment device, strictly obey to environment emission, no smoke, no smell, no pollution.
Medical Waste Incinerator 20kg-1000kg/hour

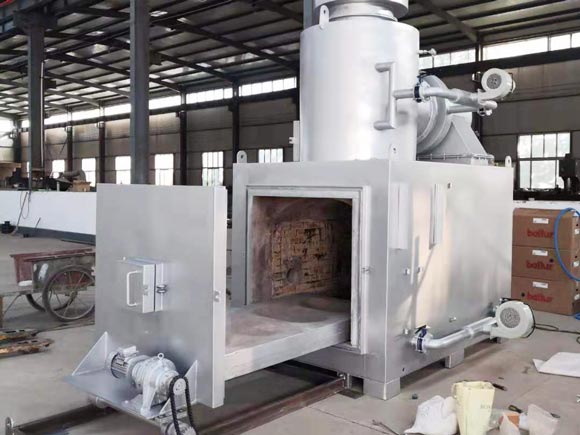

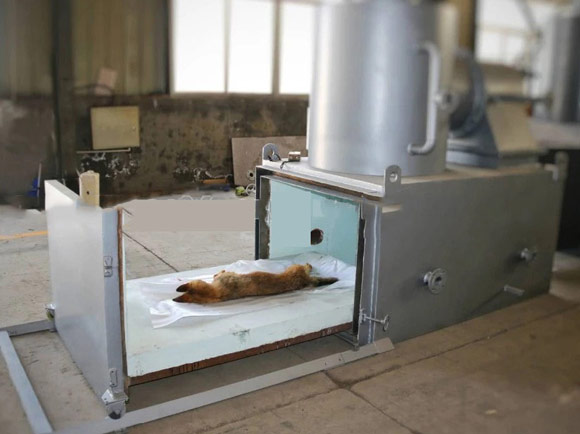

Pet/Animal Carcass Incinerator 20kg-1000kg/batch
YDF Series Furnaces Incinerator for waste incineration & animal cremation are designed according to the CE directive and regulation. Common way to dispose of various wastes and animal carcasses in a pollution-free way to achieve the purpose of no environmental pollution.
1. Specific hospital waste and other hospital waste
2. Medical, Clinical, Pathological, Healthcare Waste
3. Biomedical Refuse (Red Bag) Waste
4. Biological and Biohazard Waste
5. Needle and Sharps Disposal
6. Food Waste, Industrial Solid Waste
7. Pet, Animal Waste, Animal Carcass
Characteristics of Incinerator
1. Combustion chamber up to 1200ºC with a two tier system: mixed solid waste and char is incinerated in the superior tier
2. Grate ash collection to the lower tier: a drawer compartment for easy ash cleaning
3. After burner chamber: generated gases, fumes and smoke exhaust from the main chamber is processed and eliminated through high-temperature burn-out
4. Front-loading through side pantograph or hinged door
5. Configuration: Floor stand (castor wheels option)
6. Affordable, easy to operate and maintain

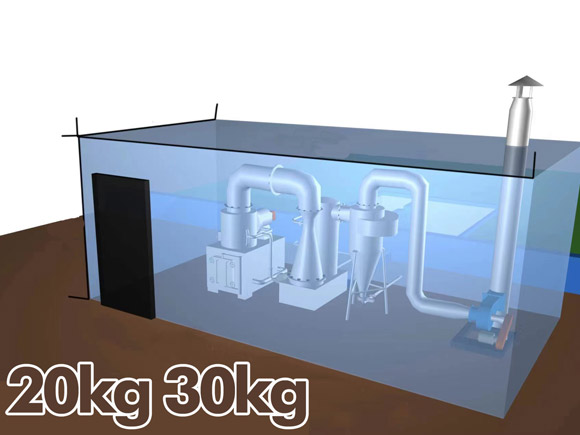

Projects Site
Incinerator Spare Parts
Some Spare Parts With Incinerator
| Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
|---|---|---|---|---|---|---|---|---|
| Processing Capacity (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
| Working Hours Per Batch Cycle* (min) | 90-120 | |||||||
| Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
| Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
| Temperature (℃) | Primary Chamber | 900 | ||||||
| Second Chamber | 1300 | |||||||
| Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
| Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
| Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
| Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
| Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
| FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
| Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
| Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
| Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
| Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
| Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) | |||||||
