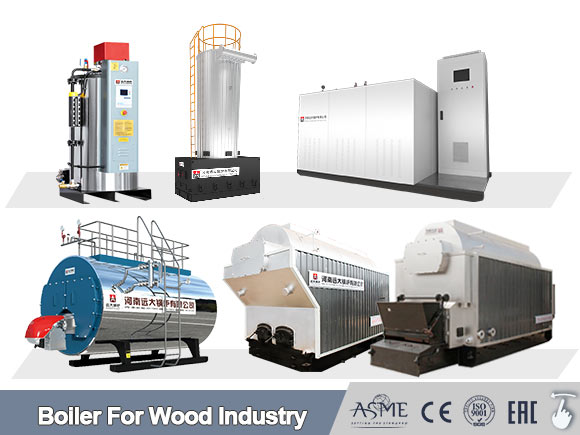

Plywood Boiler
- Capacity：200kw-21000kw, 200000kcal-18million kcal
- Fuel：Biomass Wood Coal Ricehusk Bagasse, Oil Gas, Electricity
- Structure：Vertical, Horizontal
- Efficiency：>86%
- Manufacture Standard：GB, CE PED, ASME, EAC
Thermal Oil Boiler For Plywood Factory
Thermal Oil Boiler provides stable high-temperature heat source (150 to 320℃) for veneer hot press and drying machines.
Hot Selling is Thermal Oil Boiler powered by wood chips, pellets, biomass fuel.
We have vertical and horizontal type thermal oil boiler, please choose suitable one.

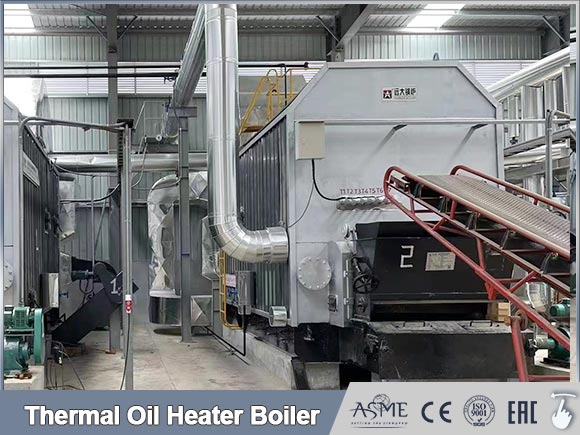

YLW Wood/Biomass Thermal Oil Boiler

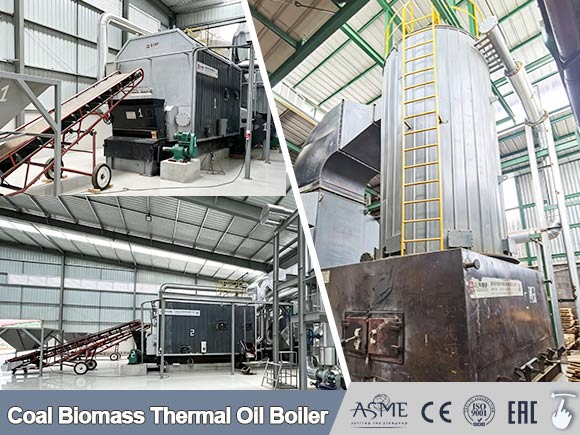

YLW/YWW/YGW Coal / Biomass Thermal Oil Boiler is a horizontal thermal oil heating system designed for large-capacity and high-temperature industrial applications. Adopts a Chain Grate or Reciprocating Grate or Fixed Grate combustion system, ensuring stable combustion, high thermal efficiency, and reliable long-term operation.
1. Horizontal three-pass coil structure
2. Customized manual or automatic fuel feeding
3. High-quality steel coils with excellent heat transfer
4. PLC or semi-automatic control system available
Packaging & Delivery:

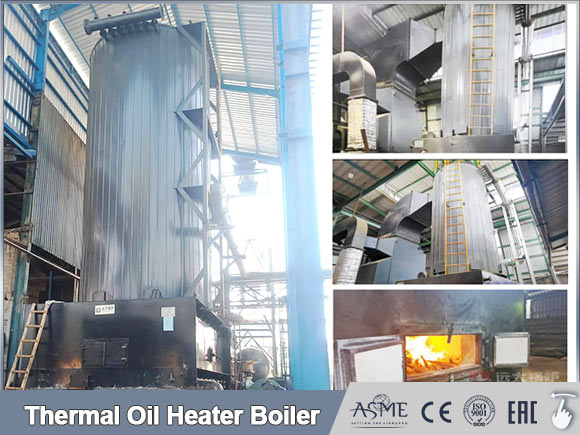

Hot Sell YGL vertical thermal oil boiler
YGL Vertical thermal oil boiler, reducing occupy area, heating oil temperature up to 100°C-320°C at low pressure, hot oil circulating from boiler to tank to equipment use.
1) Less occupied area, saving space
2) Manual feeding (labor-working)
3) Easy Operation

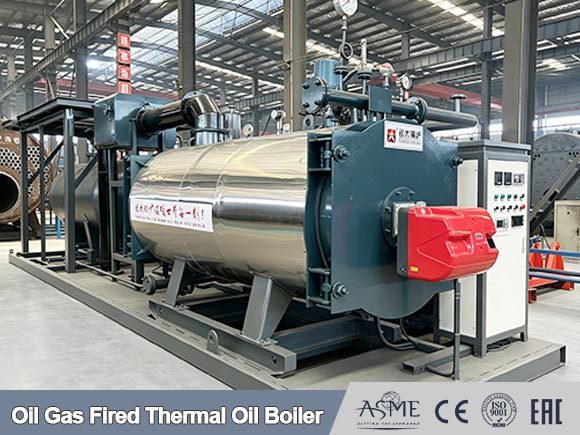

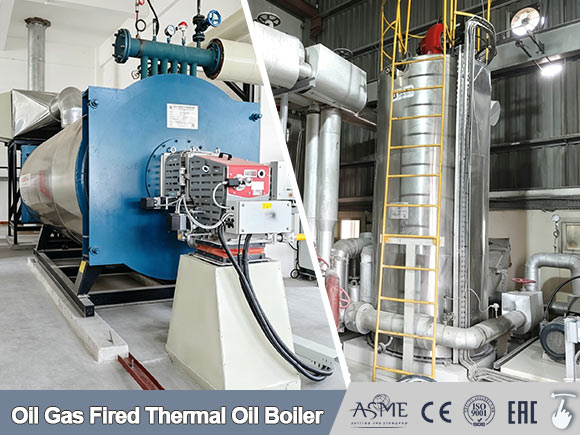

Related Diesel/Gas Thermal Oil Boiler
Fuel Oil Gas Powered Thermal Oil Boiler. Adopt vertical or horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| Horizontal Solid Fuel Thermal Oil Boiler | Rated power(MW) | Rated pressure (Mpa) | Thermal oil temperature(℃) | Thermal efficiency(%) | Thermal oil circulation flow(m³/h) | Fuel comsumption(Kg/h) | max transportation weigh(t) |
|---|---|---|---|---|---|---|---|
| YLW-700 | 0.7 | 0.8/1.0 | 250-320 | ＞83 | 45.7 | 187 | 16.9 |
| YLW-1400 | 1.4 | 0.8/1.0 | 250-320 | ＞83 | 87.4 | 373 | 22 |
| YLW-2400 | 2.4 | 0.8/1.0 | 250-320 | ＞83 | 149.8 | 621.3 | 28.6 |
| YLW-2900 | 2.9 | 0.8/1.0 | 250-320 | ＞83 | 155 | 756 | 24.2 |
| YLW-4200 | 4.2 | 0.8/1.0 | 250-320 | ＞83 | 225 | 989.3 | 30 |
| YLW-5600 | 5.6 | 0.8/1.0 | 250-320 | ＞83 | 336 | 1196 | 33.6 |
| YLW-7000 | 7 | 0.8/1.0 | 250-320 | ＞83 | 383.5 | 1657.4 | 18.2 |
| YLW-8400 | 8.4 | 0.8/1.0 | 250-320 | ＞83 | 536.2 | 1926.2 | 24.3 |
| YLW-10500 | 10.5 | 0.8/1.0 | 250-320 | ＞83 | 686.6 | 2442.6 | 27.5 |
| YLW-14000 | 14 | 0.8/1.0 | 250-320 | ＞83 | 869.1 | 3230 | 31 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
