China Top3 - Yuanda Steam Boiler & Hot Water Boiler & Thermal Oil Boiler & YDF Incinerator
- Hot Products：Steam Boiler, Hot Water Boiler, Thermal Oil Boiler, Incinerator
- Fuel Power：Oil Diesel Gas Biogas Electric Wood Biomass Coal Ricehusk Sawdust Agro-waste
- Capacity：10kg-75000kg
- Certificates：ISO CE ASME DOSH EAC
- Send Inquiry via Email：shirley@yuanda-boiler.com
Henan Yuanda Boiler Corp Ltd.
Yuanda Boiler Qualified With ISO CE ASME EAC, Global Sale Service Cover 135 Countries.

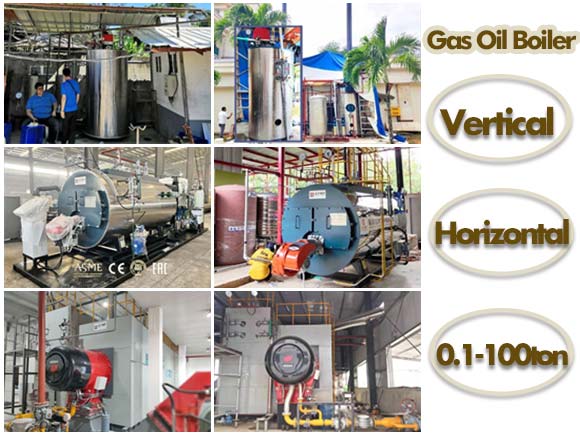

Oil Gas Boiler
1. Small Vertical gas/lpg/diesel fired boiler, Vertical Steam Generator Boiler, Vertical Hot Water Boiler.
2. Horizontal WNS series fire tube hot-water steam boiler, horizontal three pass corrugated furnace boiler, wet back structure boiler, higher thermal efficiency & lower consumption.
3. SZS series water tube boiler, Large furnace water membrane wall sturcture boiler, adopts double drums "D-type" vertical arrangement. 10ton-50ton, 7mw-35mw.

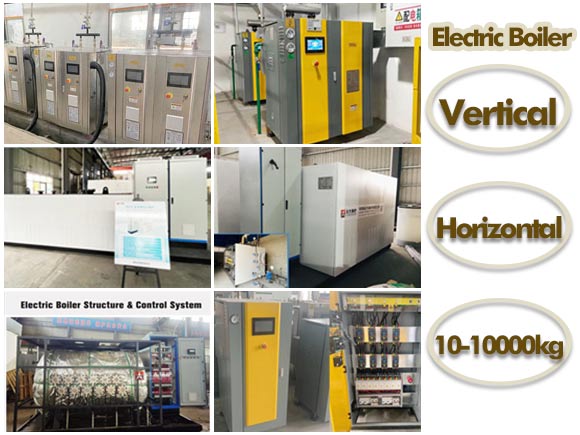

Electrical Boiler
Industrial Electric Boilers, use electricity as an energy source and converts it to heat energy, generating hot steam/water/oil.

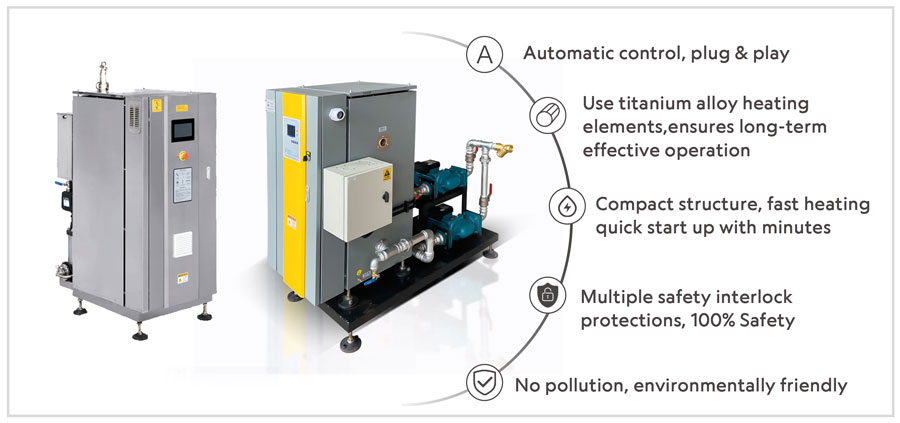

1. Electric Steam Generator 9kw-700kw 13kg-1000kg. Small Size Vertical steam generating machine, portable with wheels, easy to install & operate. Fast steam & Clean steam generating & low electricity cost.

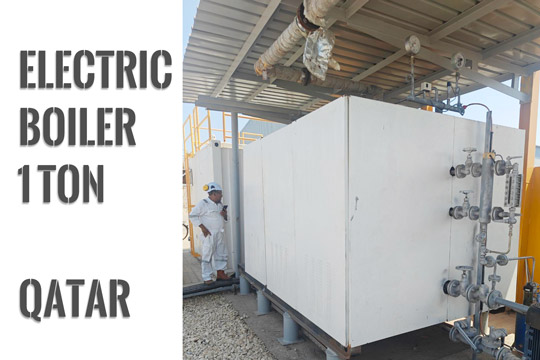

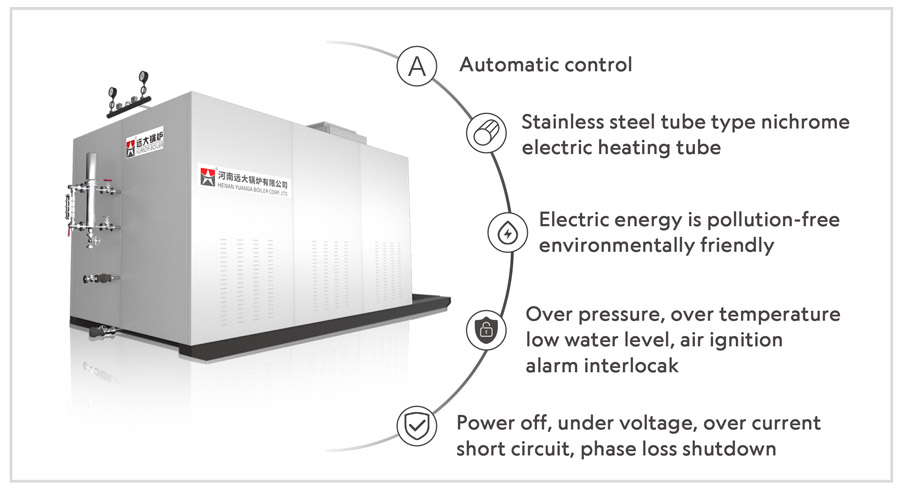

2. Horizontal electric heated boiler 0.3ton-10ton 250kw-7000kw. Fully automatic integrated stainless steel tube heating boiler, no pollution no noise, convenient installation, small occupation, high thermal efficiency.

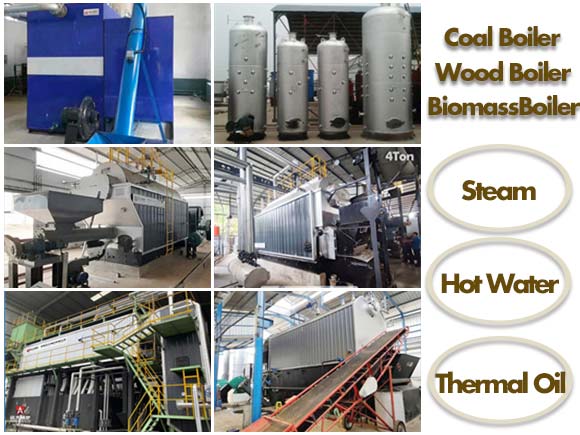

Coal Biomass Boiler
Boiler burning Coal, Woodchips, Biomass Pellets, Ricehusk
1. Vertical wood coal steam boiler, in 100kg 200kg 300kg 500kg 1000kg. Manual feeding coal woodchips fired steam boiler.
2. Automatic biomass burner boiler, wood biomass pellet burner boiler, husk burner boiler.
3. 1ton-75ton coal biomass boiler, widely for factory productions heat & power generation.
DZL DZH DZG DZW Series Coal Biomass Wood Boiler
SZL SZW Series Water Tube Boiler

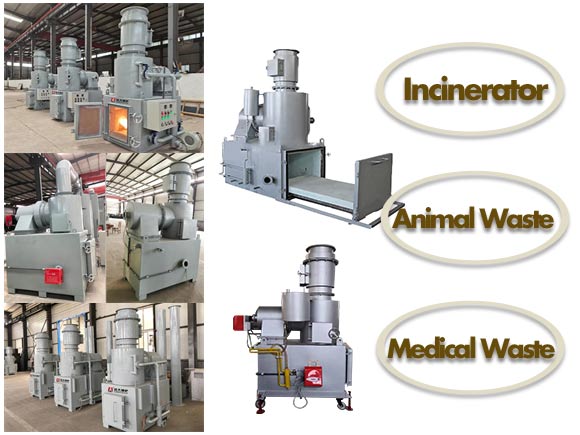

Industrial Incinerator
For general waste, medical waste, animal waste, pet cat dog, paper plastic garbage, chemical solid waste, etc.
1. Medical Waste Incinerator, adisposal waste 20kg-750kg/batch per hour, double chambers, high temperature 1200°C.
2. Pet Animal Incinerator, 30kg 50kg 100kg Pet Incinerator, 200kg 300kg 500kg Animal Waste Incinerator.
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| Gas Oil Steam Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| WNS0.5 | 0.5 | 0.1mpa-3.8mpa | 100°C-450°C | 20°C/104°C | ＞98 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | ＞98 | 64.5 | 70.1 | 5.5 | |||
| WNS2 | 2 | ＞98 | 129.3 | 140.3 | 8 | |||
| WNS3 | 3 | ＞98 | 192.9 | 212.1 | 10.7 | |||
| WNS4 | 4 | ＞98 | 258.2 | 283.4 | 11.6 | |||
| WNS6 | 6 | ＞98 | 388.6 | 424.2 | 17.5 | |||
| WNS8 | 8 | ＞98 | 514.6 | 566.3 | 22.5 | |||
| WNS10 | 10 | ＞98 | 641.7 | 707.8 | 26.8 | |||
| WNS15 | 15 | ＞98 | 960.1 | 1061.7 | 35.2 | |||
| WNS20 | 20 | ＞98 | 1276.2 | 1415.8 | 45.5 | |||
| SZS10 | 10 | ＞98 | 618 | 660 | 36 | |||
| SZS15 | 15 | ＞98 | 927 | 987 | 45 | |||
| SZS20 | 20 | ＞98 | 1256 | 1316 | 52.6 | |||
| SZS25 | 25 | ＞98 | 1545 | 1660 | 55.3 | |||
| SZS30 | 30 | ＞98 | 1856 | 1981 | 63.7 | |||
| SZS40 | 40 | ＞98 | 2470 | 2630 | 77.4 | |||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
