Laundry Water Steam Boiler
- Capacity:70kw-7000kw 100kg-10000kg
- Fuel/Power:Gas Lpg Diesel, Electricity, Coal Wood Biomass
- Wate/Steam Temp.:65°C-230°C
- Type:Vertical or Horizontal
- Certificates:ISO CE ASME DOSH EAC etc.
Hot Sell Laundry Water Steam Boiler

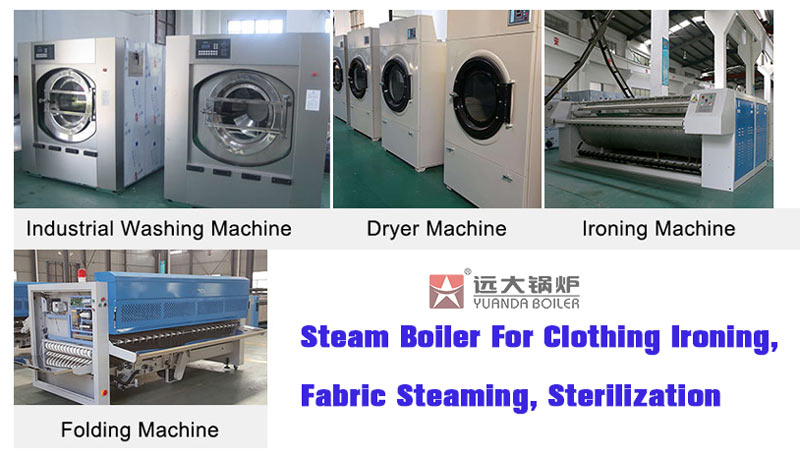

Industrial water steam boiler, supply Hot Steam for Clothing Ironing, Fabric Steaming, Sterilization, etc.
Choose Boiler Ask Price
We supply steam boilers, could generating steam in scale of 100kg/hr-10000kg/hr.
1. If you already purchased laundry eqiupment, it could be easier to know how many kg steam required per hour.
2. If not purchased laundry equipment yet, just consult the laundry equipment supplier who knows the steam demand.
3. Need budget price Or you need quote with specifications detailed list, leave message or contact shirley@yuanda-boiler.com

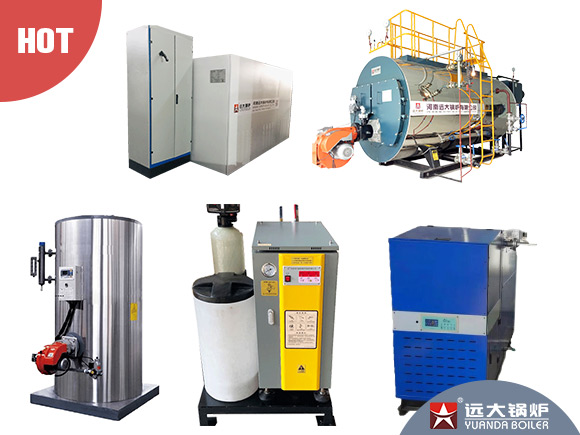

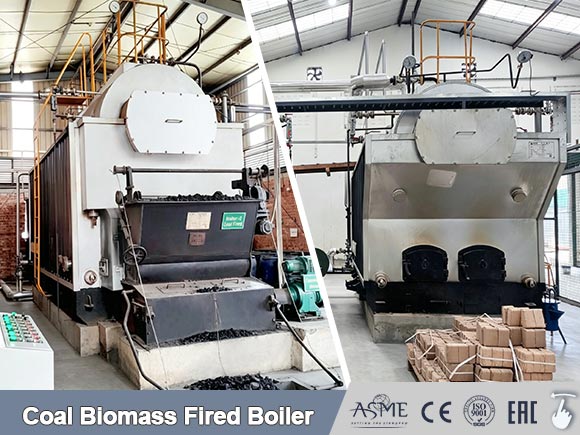

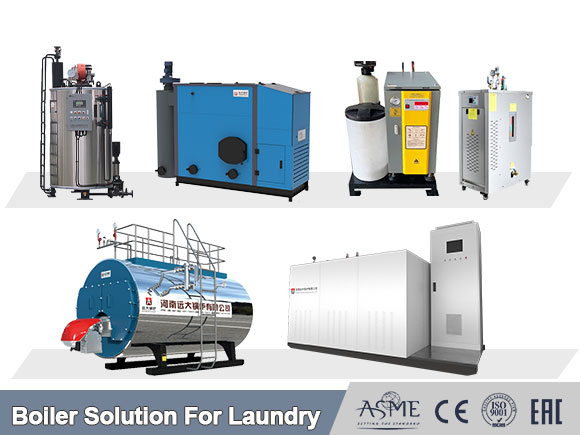

Laundry use water steam boiler (available by gas, diesel, lpg, electric, wood, coal, biomass)

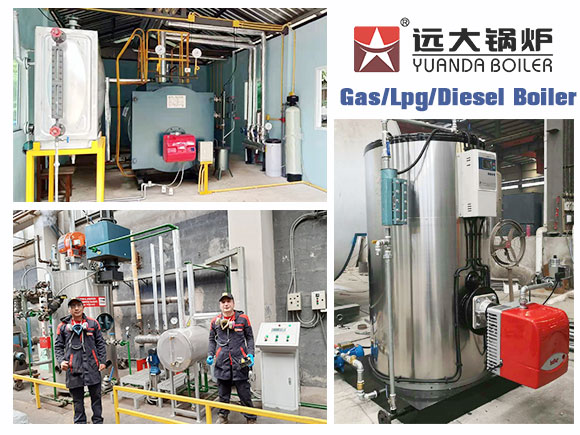

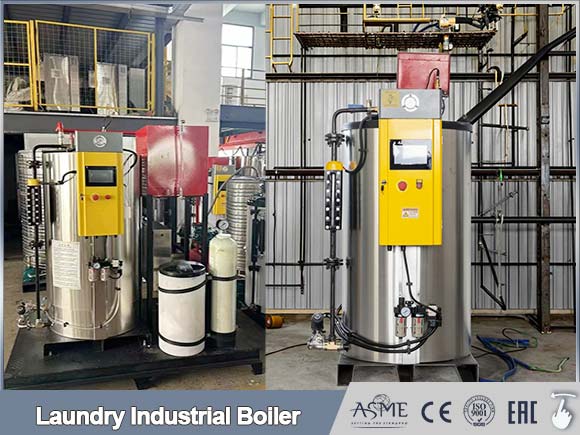

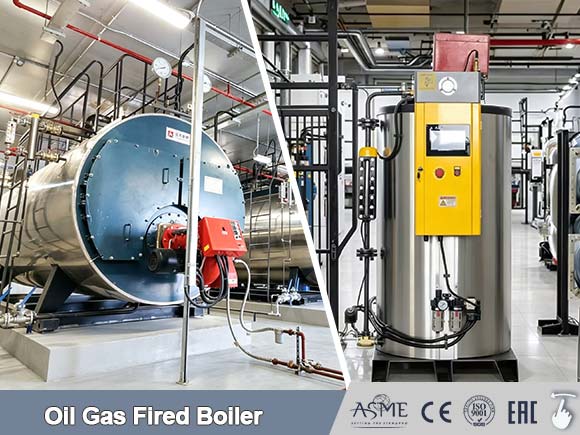

Model ① Gas/Lpg/Diesel boiler 100kg-20000kg

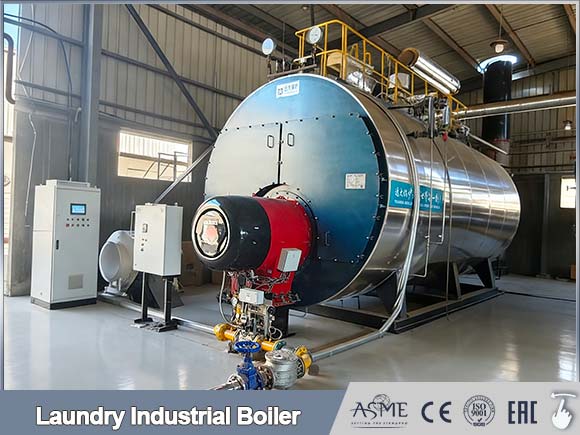

Automatic gas/lpg/diesel burner boiler, in Vertical or Horizontal.
With advantages of low NOx emission environment friendly, High thermal efficiency help saving energy, easier operation, simple structure, mature services for boiler installation work.

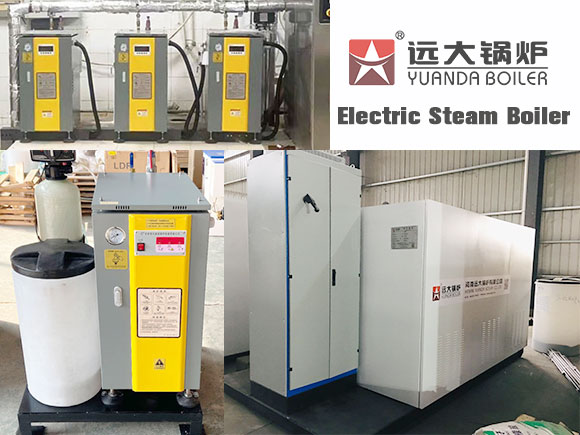

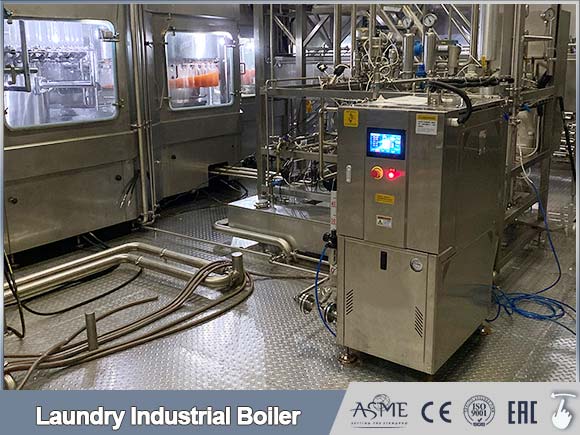

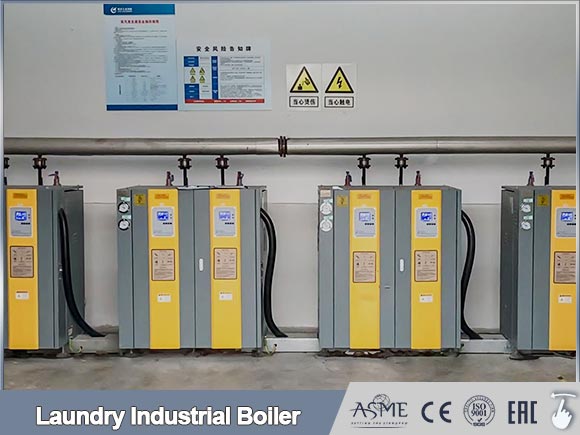

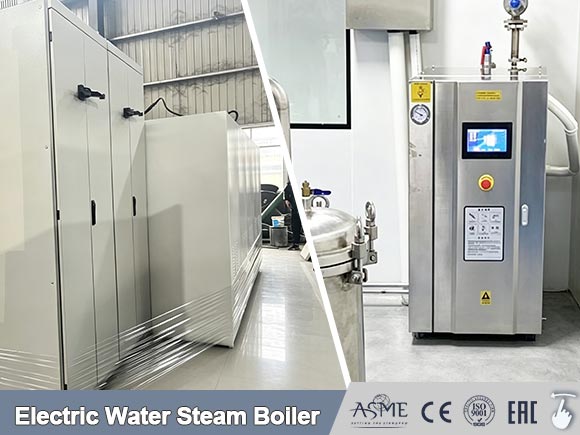

Model ② Electric Steam Boiler 30kg-5000kg
Electric steam generator boiler, is fully automatic running boiler, Intelligent Control & High Quality Material & One Button Quick Running & No Pollution & Small Size Occupied Area & Tailor-made Services Support.

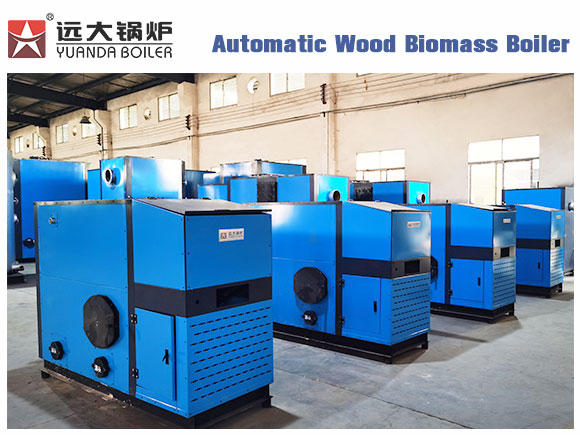

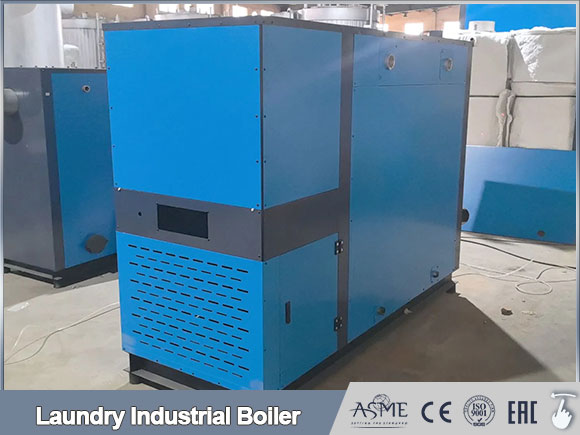

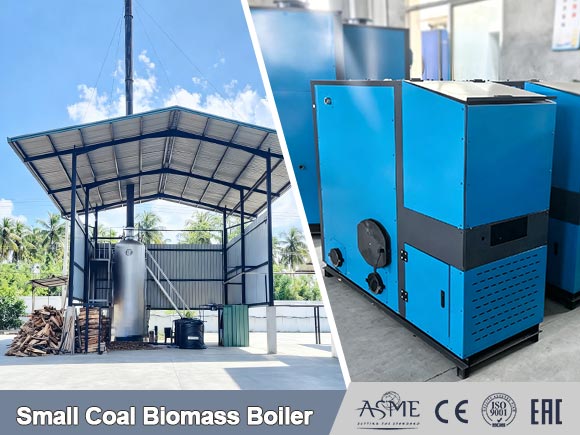

Model ③ Automatic Wood Biomass Boiler
Fully automatic biomass steam generator boiler, modular integrated type water-tube fire-tube heating steam generator.
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.

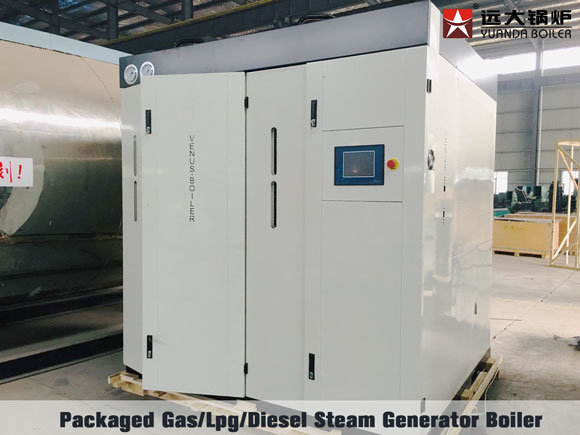

Lpg/Gas/Diesel Fired Steam Generator Boiler | |||||||||
---|---|---|---|---|---|---|---|---|---|
Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.25-0.7-Y.Q | LSS0.3-0.7-Y.Q | LSS0.5-0.7-Y.Q | ||
Project | Unit | ||||||||
Rated evaporation | Kg/h | 50 | 100 | 125 | 200 | 250 | 300 | 500 | |
Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 | 14 | 16 | 20 | 33 |
Natural gas | Nm³/h | 3.5 | 7.3 | 9.2 | 14.5 | 19 | 22 | 36.5 | |
LPG | Nm³/h | 3.3 | 5.7 | 7.2 | 11.4 | 7.5 | 17.3 | 28.7 | |
City gas | Nm³/h | 8.5 | 18 | 22.5 | 34 | 43 | 52 | 88 | |
Water capacity | L | 29 | 49.3 | 49.3 | 49.5 | 49.5 | 49.5 | 49.6 | |
a Main steam valve diameter | DN | 15 | 25 | 25 | 32 | 32 | 32 | 50 | |
b Safety valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 40 | |
c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
d Blowoff Valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 25 | |
Chimney diameter | DN | 80 | 125 | 125 | 150 | 150 | 150 | 250 | |
Overall size | L | mm | 820 | 880 | 900 | 1400 | 1500 | 1500 | 1800 |
W | mm | 890 | 1100 | 1150 | 1000 | 1100 | 1200 | 1300 | |
H | mm | 1600 | 1800 | 1900 | 1000 | 2200 | 2200 | 2350 | |
Weight | kg | 180 | 220 | 240 | 850 | 1150 | 1200 | 1680 |
