Palm Oil Boiler
- Fuel：oil, gas, coal, biomass, palm kernel shells, EFB waste, palm fiber
- Capacity：0.5ton-80ton
- Pressure：0.1mpa-3.8mpa
- Application：palm oil mills, palm fruit processing plants, edible oil factories, and biomass power generation
- Manufacture Standard ：GB, ISO, CE, ASME, DOSH, EAC
Industrial Boiler For Palm Oil Industry
Yuanda boilers solution for palm oil mills, palm fruit processing plants, edible oil factories, and biomass power generation projects.
Boiler Types: steam boiler, thermal oil boiler.
Product: Biomass Fired Boiler
Capacity: 0.5 ton-75 ton

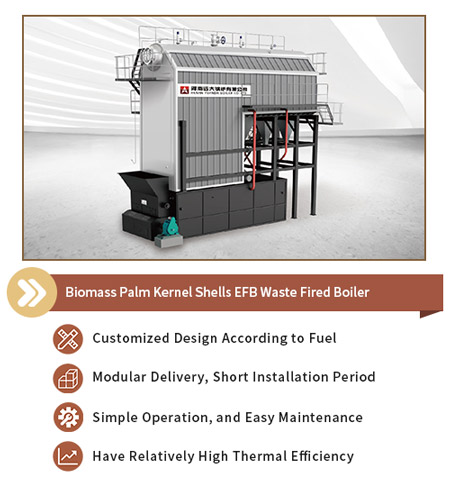

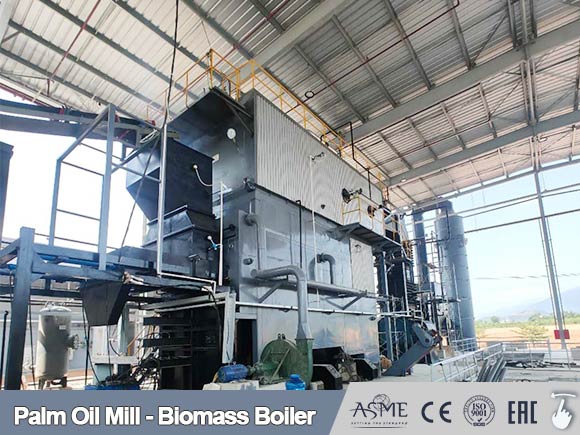

The boiler system uses palm fiber, palm shell, empty fruit bunches (EFB), and other biomass waste as fuel to generate stable steam and heat energy for palm oil production processes.

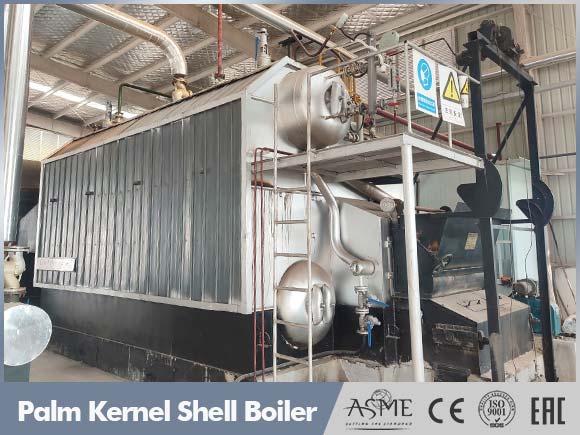

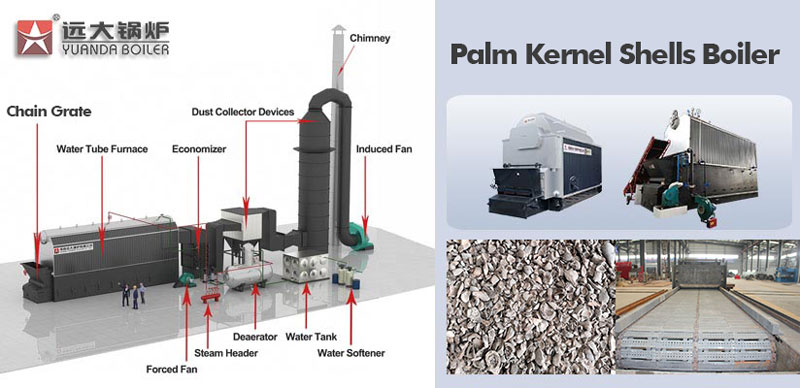

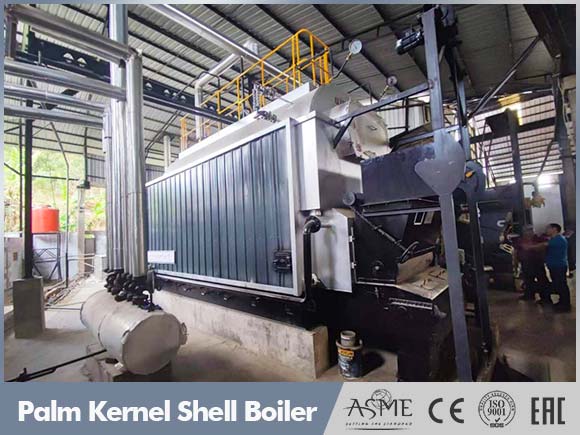

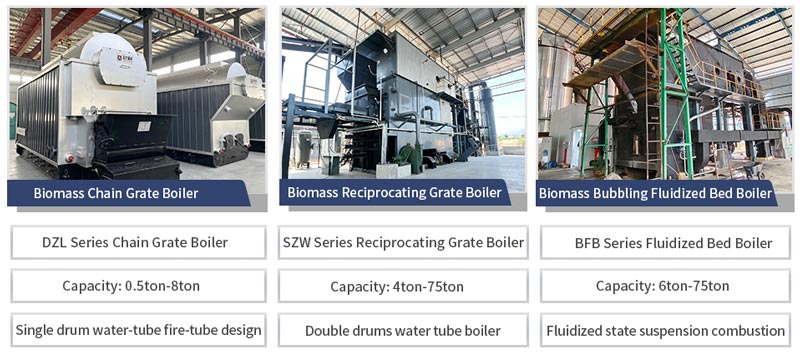

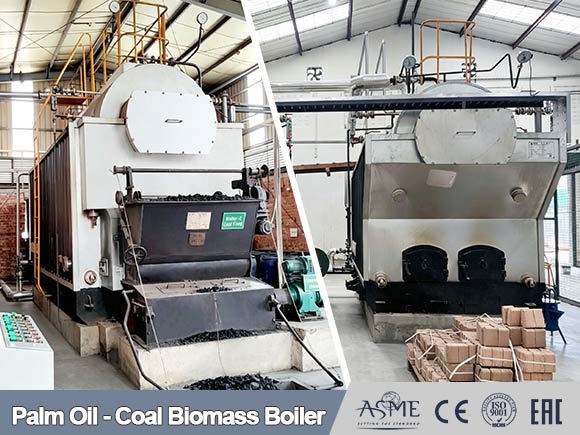

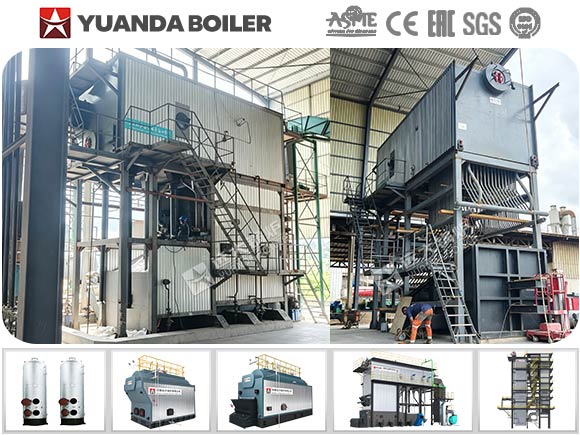

Biomass Stoker Boiler

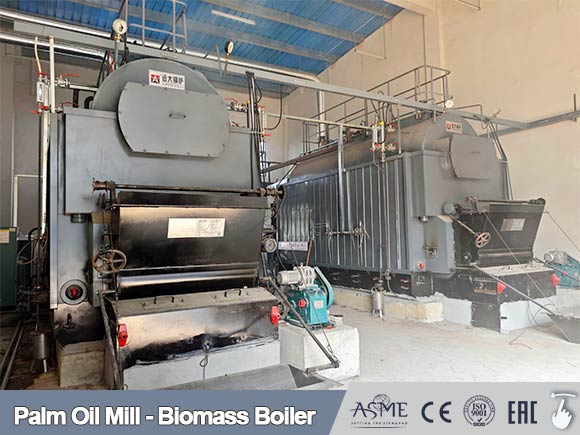

DZL/DZW/SZL/SZW series Boiler
1. DZ series biomass boiler, it is horizontal three-pass water & fire tube boilers with grate combustion device. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides from a radiation heating surface in the furnace.
2. SZL/SZW Series water tube boiler, adopt a double-drum offset furnace structure (D-type or A-type) and are available with chain grate or reciprocating grate stokers, delivering high efficiency, reliable operation, and eco-friendly, energy-saving performance.
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
1) Improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
2) Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. New pattern of furnace arch
Strengthen the combustion, could burn kinds of fuel: wood, coal and biomass, improve combustion efficiency.

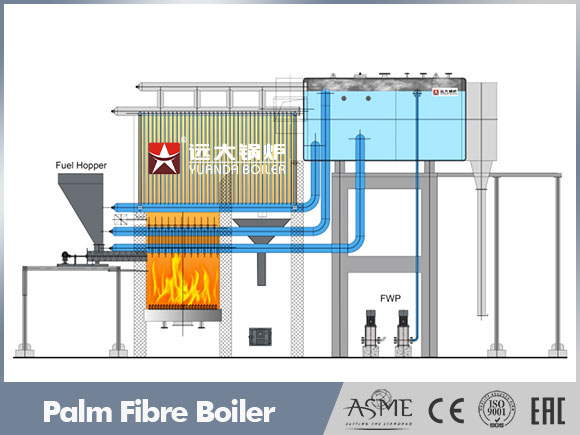

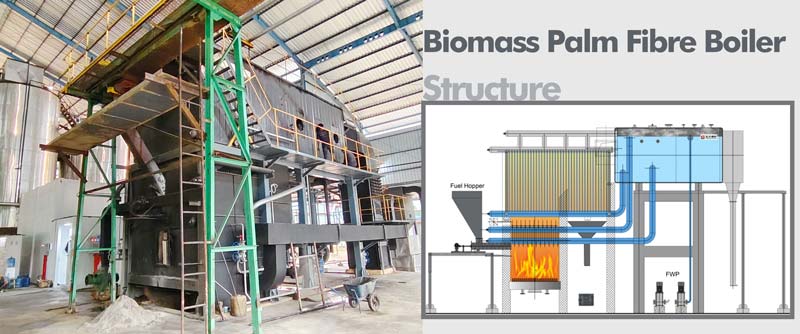

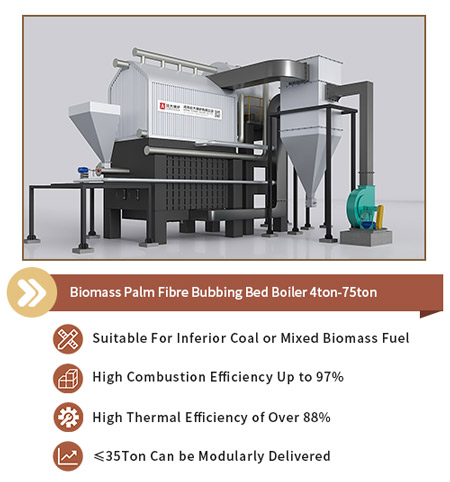

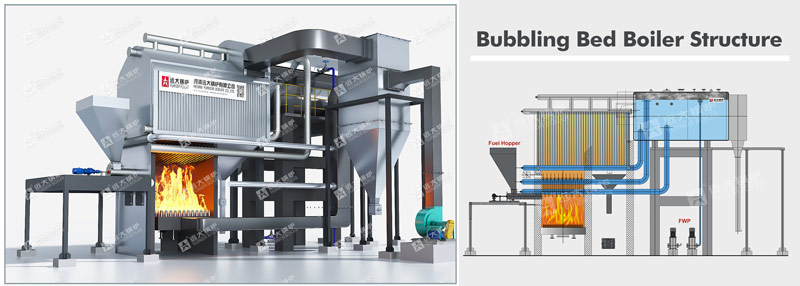

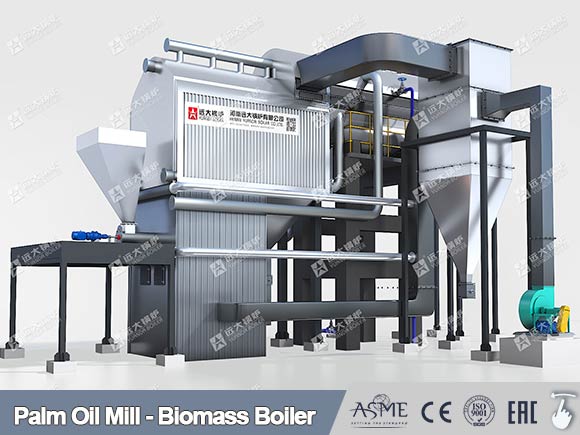

BFB Fluidized Bed Biomass Boiler

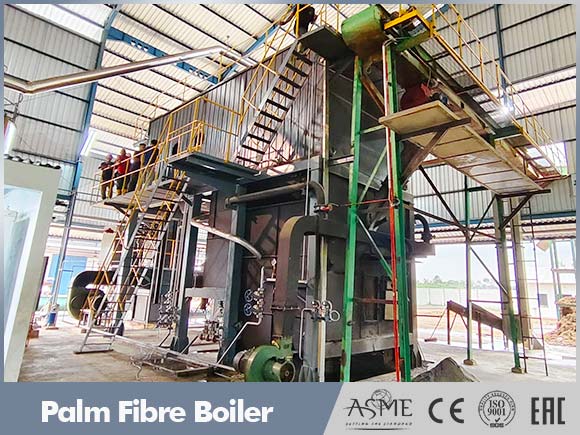

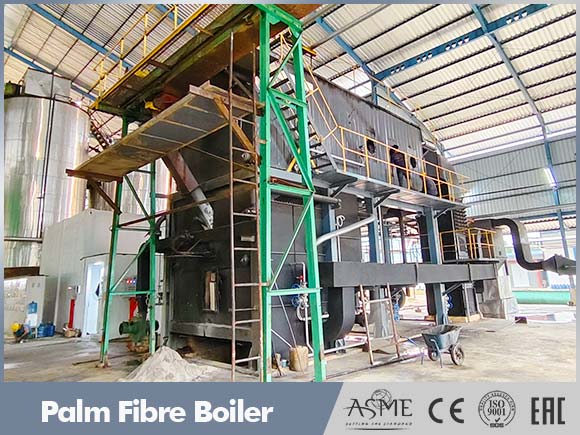

Bubbling Fluidized Bed Biomass Palm Fibre Boiler 4ton-75ton/h
1. Wide fuel adaptability
2. Suitble for inferior coal or mixed biomass fuel
3. High combustion efficiency up to 97%
4. High thermal efficiency of over 88%
5. ≤35Ton can be modularly delivered.

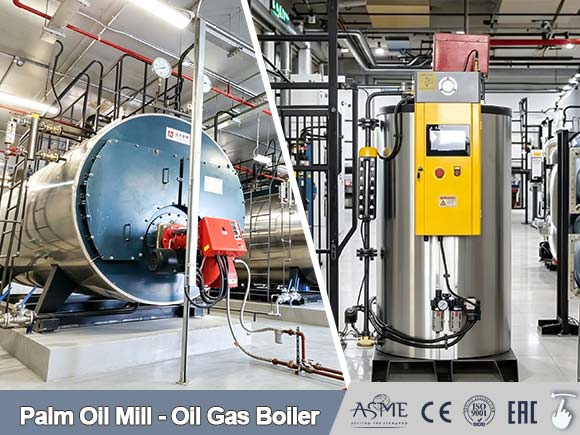

Product: Oil Gas Fired Steam Boiler
Fuel: diesel, lpg, gas, biogas, hydrogen, exhaust gas, heavy oil
Structure: vertical or horizontal, fire tube or water tube design
Fire Tube Oil Gas Boiler
WNS series horizontal oil gas powered fire-tube (smoke-tube) boiler. Equipped with three-pass corrugated furnace and wet-back structure for enhanced heat transfer, higher thermal efficiency, and lower fuel consumption.
Note: It offers stable and reliable operation, and can be customized as mobile containerized or skid-mounted units, fully pre-installed in the factory for quick and easy on-site deployment.
Water Tube Oil Gas Boiler
SZS series oil and gas fired boiler is a double-drum water tube boiler designed for high efficiency, safe operation, and stable steam output.
With a membrane water-cooled wall structure and advanced combustion system, the boiler achieves high thermal efficiency while reducing fuel consumption and emissions.
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| SZL Series Steam Boiler Technical Parameter Table | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| SZL2 | 2 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞83.13 | 6.76 | 130.7 | 385.8 | 22 |
| SZL4 | 4 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞84.23 | 5.1 | 142 | 807 | 29 |
| SZL6 | 6 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞84.81 | 8.4 | 142 | 1209 | 34 |
| SZL8 | 8 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞85.02 | 9.4 | 149.1 | 1563.9 | 40.5 |
| SZL10 | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.2 | 8.35 | 152.7 | 2149.3 | 24 |
| SZL12 | 12 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.56 | 12.8 | 148.7 | 2399.7 | 37 |
| SZL15 | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.29 | 15.2 | 149.8 | 2568.4 | 24.7 |
| SZL20 | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.8 | 15.5 | 147.4 | 4266.9 | 26 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
