Industrial Water Steam Boiler
- Hot Selling：Oil Gas Boiler, Electric Boiler, Coal Boiler, Wood Biomass Boiler, Steam Genertor, Thermal Oil Boiler
- Capacity ：13kg-100000kg, 0.1ton-100ton
- Power：9kw-35000kw, 5hp-5000hp
- Pressure：1bar-45bar
- Manufacture Standard：GB, ISO, CE, ASME, DOSH, EAC
Industrial Boiler
Fuel power: oil, gas, diesel, hfo, waste oil, biogas, hydrogen | electricity | coal, wood, biomass, ricehusk, palm fiber, palm kernel shells, EFB, bagasse, coconut shell, etc.
Option: Liquid Fuel Oil Gas Fired Boiler
Typical fuel: diesel, gas, biogas, lpg, heavy oil, kerosene oil, waste oil, exhaust gas, hydrogen
Boiler structure: vertical or horizontal

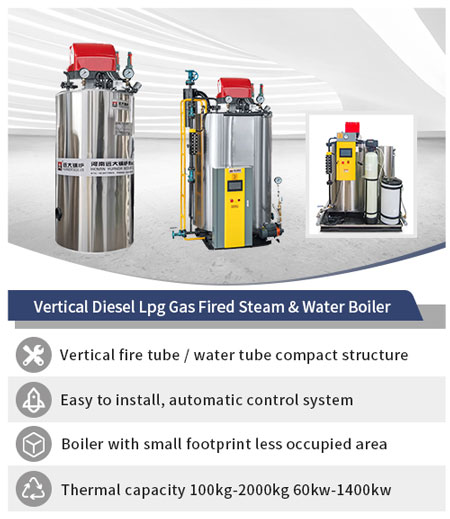

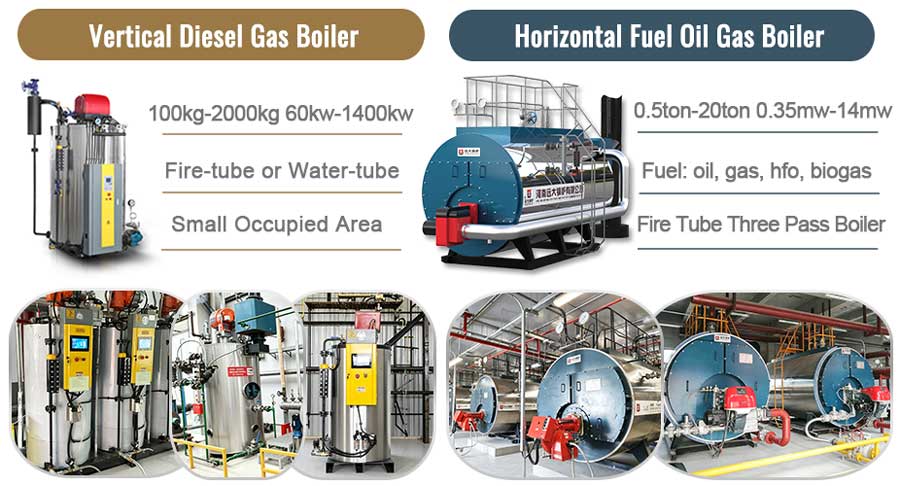

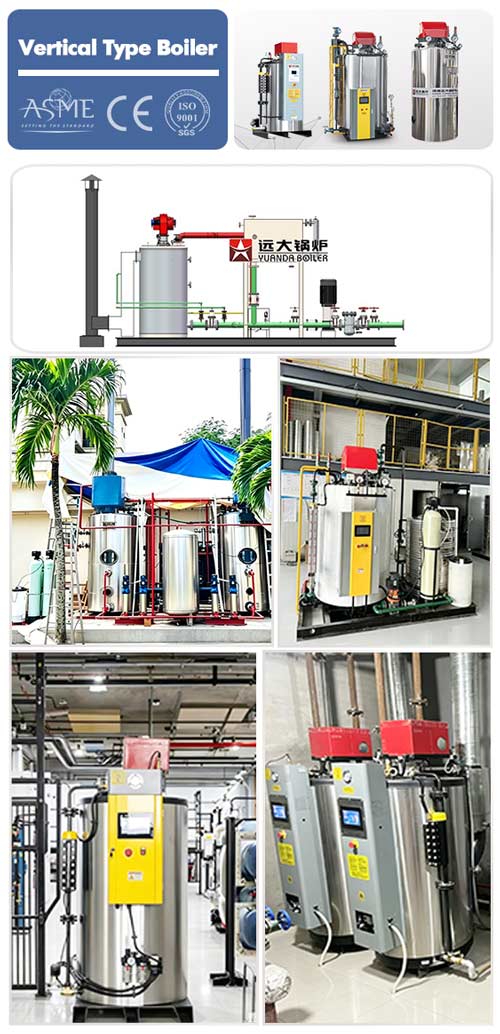

1. Vertical Hot Water and Steam Generator Boiler
Vertical type low pressure (1bar-15bar) two pass fire tube boilers, applicable to various fuels such as diesel, natural gas LPG. With advantages of low cost, smaller area occupied, and quick steam generation.

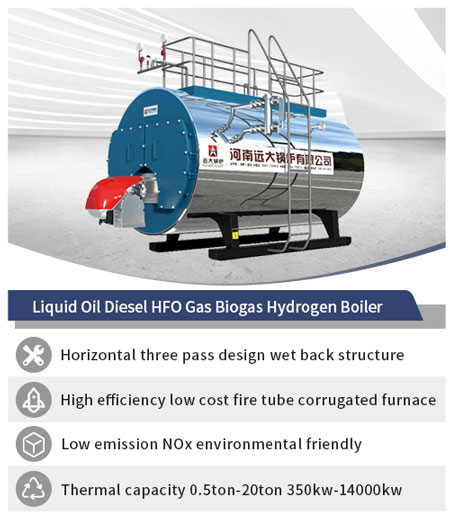

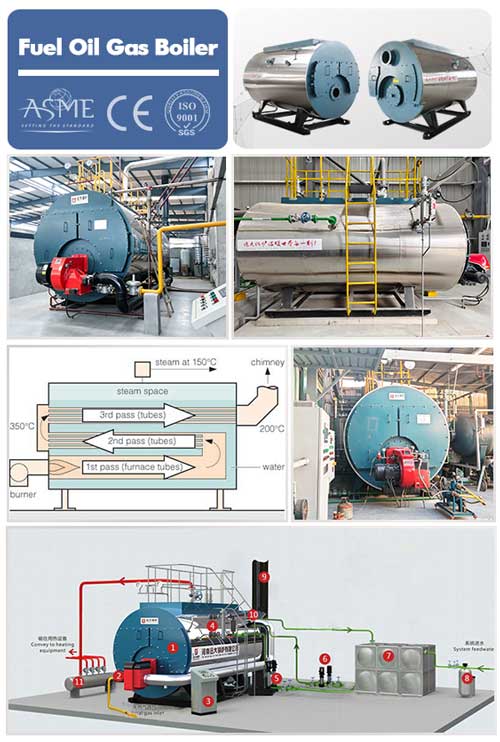

2. WNS Fire Tube Three Pass High Efficiency Boiler
Horizontal combustion furnace boiler with gas or oil burner, delivering superior thermal efficiency to lower fuel costs and ensure stable operation with a lifespan of over 25 years.
1. Compact horizontal fire tube structure
2. High thermal efficiency and energy saving
3. Fully automatic and easy operation
4. Stable steam and hot water output
5. Low noise and clean combustion
6. Easy installation and maintenance
7. Widely used in various industries
.jpg)
Option: Electric Boiler
Heating medicum: Hot water, Steam, Thermal oil

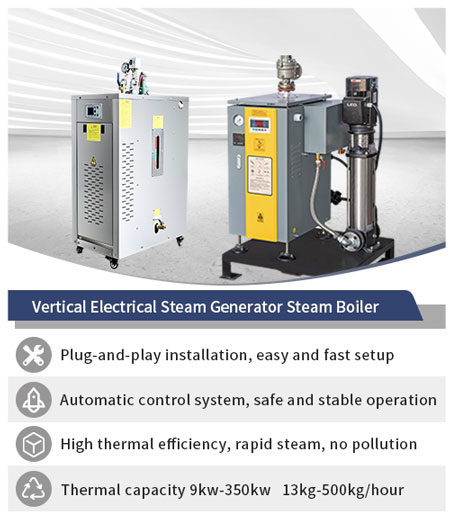

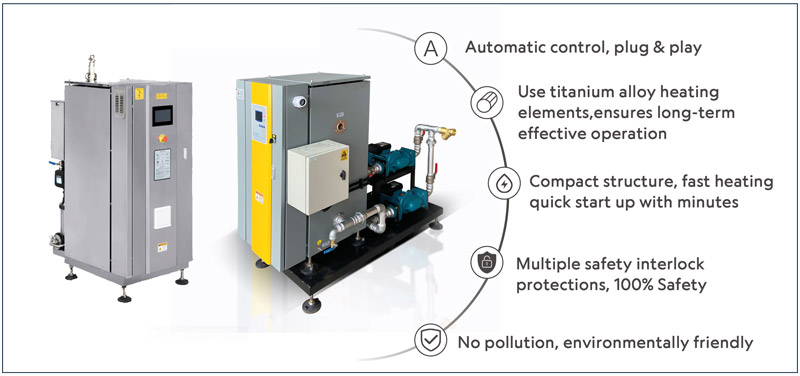

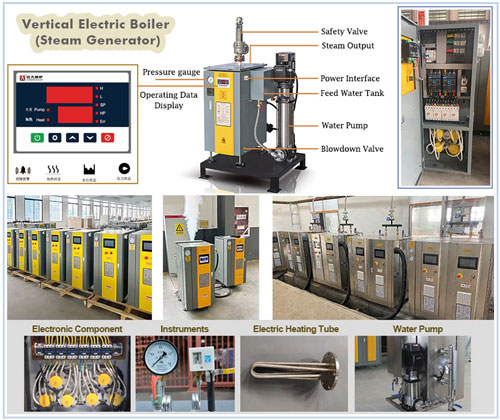

1. LDR Series Vertical Electric Steam Generator Boiler
Small size steam generator boiler, Simple structure, qiuck startup, one-button start on, small footprint, thermal efficiency reach to 98%.

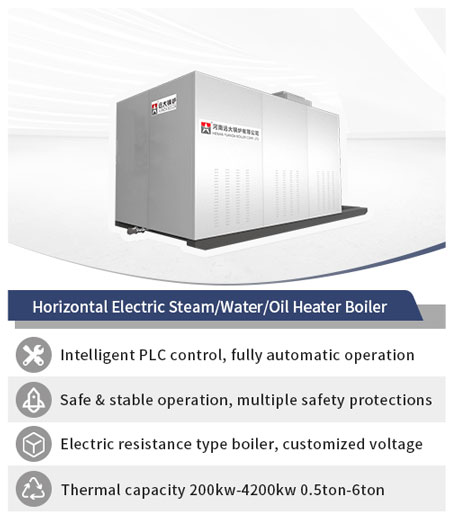

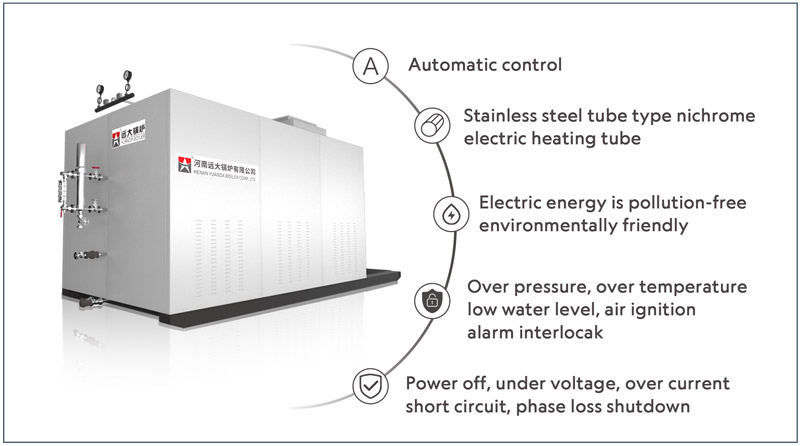

2. WDR Series Horizontal Electric Heated Boiler
Large electricity heating steam boiler and hot water boiler. 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton.

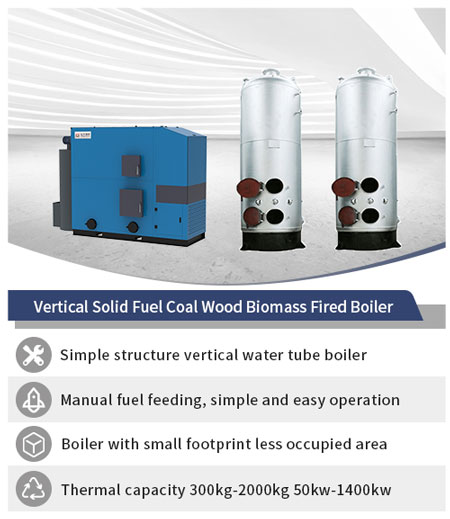

Option: Coal/Wood/Biomass Boiler
Typical fuel: wood, coal, charcoal, briquette, sawdust, pellets, ricehusk, palm kernel shells, palm fibre, cashew nut shells, bagasse
Combustion technology options: chain grate, fixed grate, reciprocating/step grate, bubbling / fluidized bed

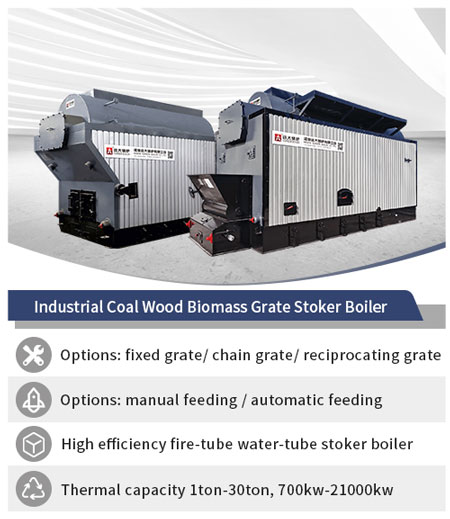

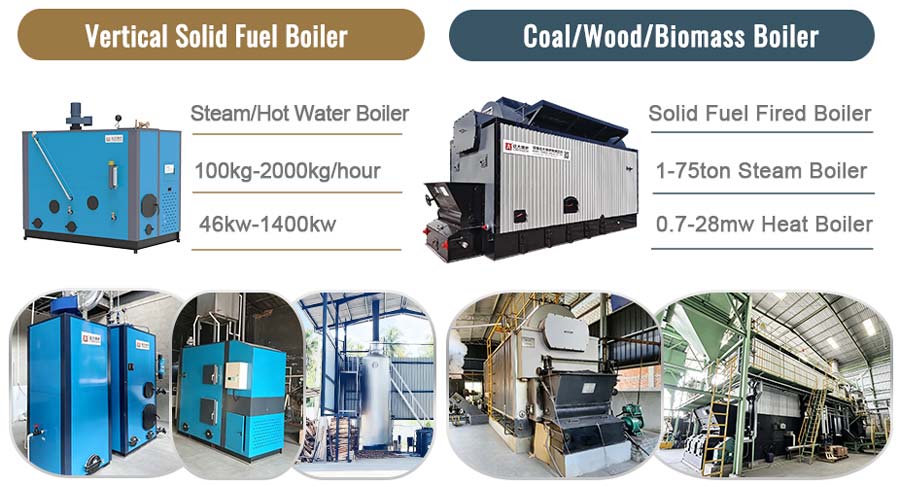

Horizontal Coal Wood Biomass Boiler
Capacity: 1ton-40ton, 700kw-28000kw
Industrial coal and biomass fired boiler, available in water tube and fire tube structures, high thermal efficiency, stable operation, and reduced fuel costs.

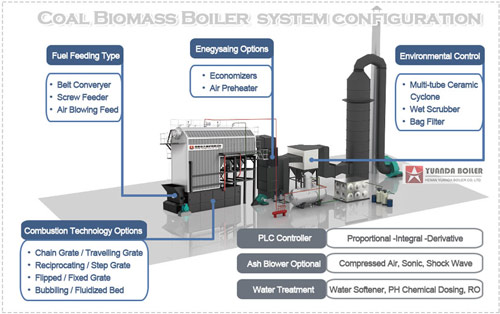

Water Tube Coal Biomass Boiler
Coal Biomass-to-Steam Solutions for Process Heat & Power Generation
Coal and biomass boiler system designed to generate steam for process heating and power generation, improving overall energy efficiency and reducing fuel costs.
Yuanda Service
Looking For A Reliable Boiler Manufacturer?
Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
Oil Gas Fired Boiler
Electric Boiler
Solid Fuel Wood Coal Biomass Boiler
| Gas Oil Fired Steam Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| WNS0.5 | 0.5 | 0.1mpa-3.8mpa | 100°C-450°C | 20°C/104°C | ＞98 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | ＞98 | 64.5 | 70.1 | 5.5 | |||
| WNS2 | 2 | ＞98 | 129.3 | 140.3 | 8 | |||
| WNS3 | 3 | ＞98 | 192.9 | 212.1 | 10.7 | |||
| WNS4 | 4 | ＞98 | 258.2 | 283.4 | 11.6 | |||
| WNS6 | 6 | ＞98 | 388.6 | 424.2 | 17.5 | |||
| WNS8 | 8 | ＞98 | 514.6 | 566.3 | 22.5 | |||
| WNS10 | 10 | ＞98 | 641.7 | 707.8 | 26.8 | |||
| WNS15 | 15 | ＞98 | 960.1 | 1061.7 | 35.2 | |||
| WNS20 | 20 | ＞98 | 1276.2 | 1415.8 | 45.5 | |||
| SZS10 | 10 | ＞98 | 618 | 660 | 36 | |||
| SZS15 | 15 | ＞98 | 927 | 987 | 45 | |||
| SZS20 | 20 | ＞98 | 1256 | 1316 | 52.6 | |||
| SZS25 | 25 | ＞98 | 1545 | 1660 | 55.3 | |||
| SZS30 | 30 | ＞98 | 1856 | 1981 | 63.7 | |||
| SZS40 | 40 | ＞98 | 2470 | 2630 | 77.4 | |||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
