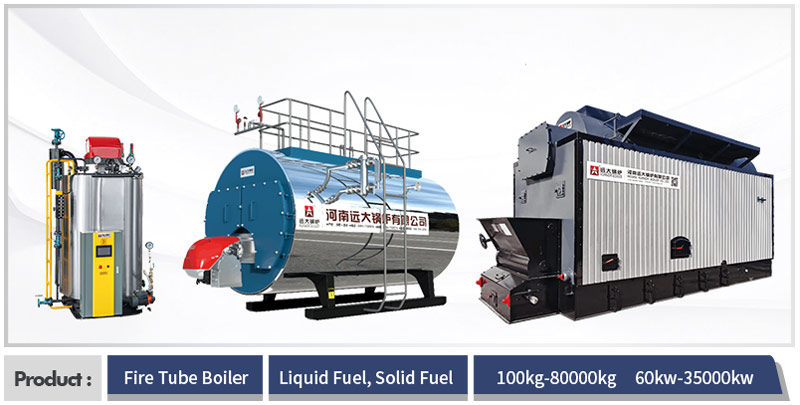

Fire Tube Boiler
- Our Products ：Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Fuel：Gas Lpg Diesel Oil, Coal Wood Biomass
- Capacity：100kg-50000kg
- Structure：Vertica, Horizontal
- Manufacture Standard ：GB, ISO, CE, ASME, DOSH, EAC
Most Popular Fire Tube Oil Gas Boiler

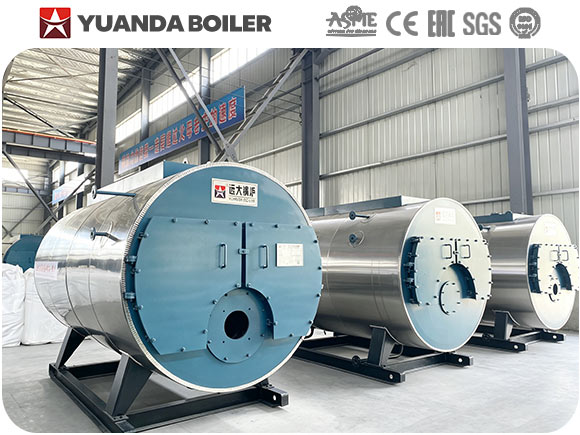

WNS Series Fire Tube Boiler is a horizontal, three-pass, wet-back boiler designed for high efficiency, stable operation and easy maintenance.

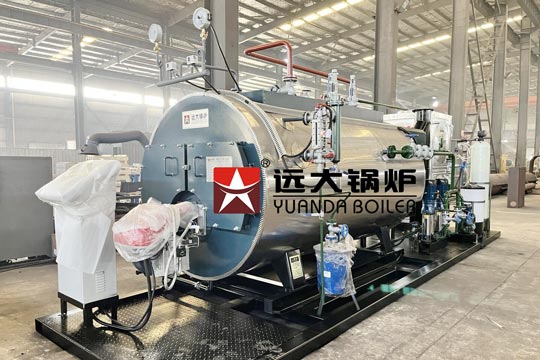

With flexible component-shipped or skid-mounted configurations, the boiler can be adapted to different transportation and installation requirements. Optional auxiliary equipment is also available to provide a complete boiler system solution.
Hot-Selling Capacities:
500kg | 1000kg | 1500kg | 2000kg | 3000kg | 4000kg | 5000kg | 6000kg | 8000kg | 10ton | 12ton | 15ton | 20ton
350kw | 700kw | 1050kw | 1400kw | 2100kw | 3500kw | 4200kw | 5600kw | 7000kw
With extensive project experience, Yuanda Boiler has supplied boilers to customers in 135 countries and regions worldwide.
Advantages WNS boiler features
1. 100% Safety Control Boiler & Strict Boiler Quality Control
1) All welding strictly meet the requirements of China NB/T 47014(JB/T 4708)
2) Anti Dry Heating Control System with double safety valves, double water level gauges, double secure of safe operation
3) With explosion-proof door with fire viewer, If burner failure ignition, this door can release the pressure out, protect the damage to welding parts
2. Energy Saving & High Efficiency
1) Spiral fire tube, the advanced technology, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing
2) Spirally corrugated furnace & Wet back structure, increased 10% heating area, avoid damaged by heat expansion, reduce the back tube sheet temperature and protect it from cracking
3. High Quality Steam-Wetness Below 1%
1) We equip a steam separation under the steam output port.
2) With continuous water feed function,Make the water level is stable instead of big differences
3) Bigger water tank design, boiler with bigger water volume and bigger steam space
Optional Auxiliary Equipment
Boiler system can be configured with optional auxiliary equipment :
Economizer, Feed Water Pump, Water Softener, Deaerator, Steam/Water Separator, Condensate Return System, Fuel Storage & Supply System, Burner, Chimney, Boiler Control Cabinet, PLC Control System, Chemical Dosing System, Blowdown System, Water Treatment System

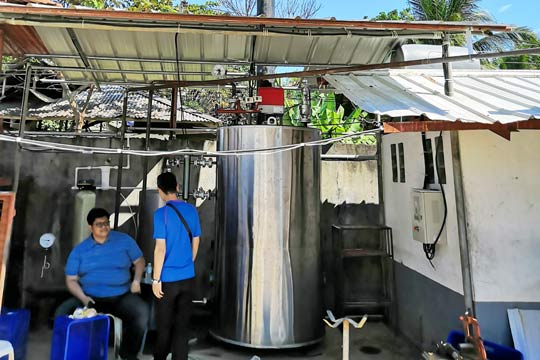

Related Vertical Diesel Gas Boiler

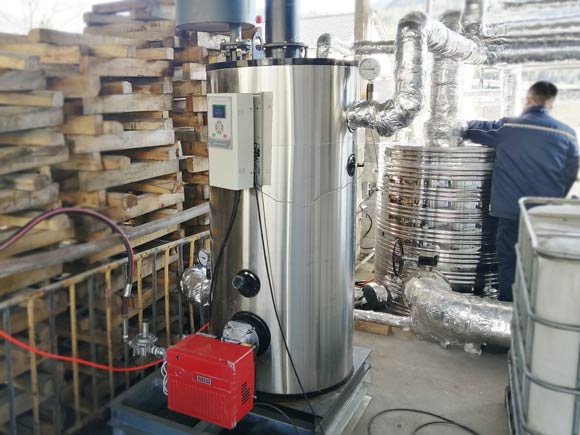

Vertical gas/diesel fired steam and hot water boiler, vertical type low pressure (1bar-15bar) two pass fire tube boilers, applicable to various fuels such as diesel, natural gas, and so on. The boiler has advantages of low cost, smaller area occupied, and quick steam generation.

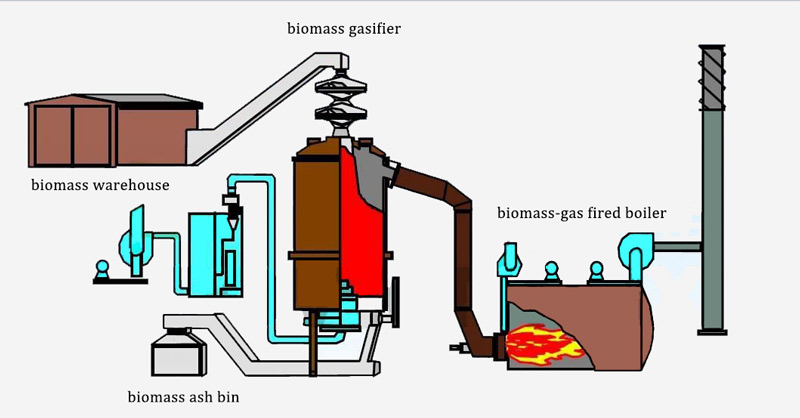

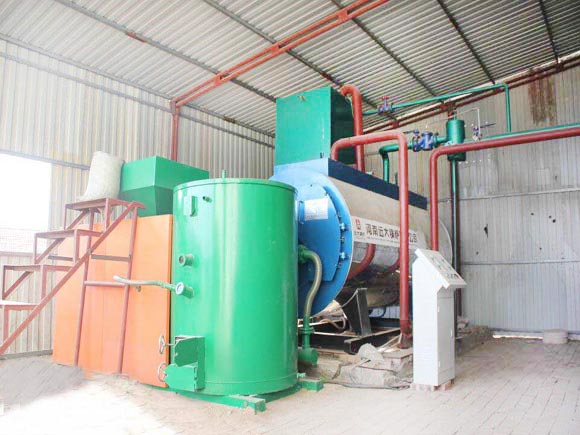

Related Biomass Fire Tube Boiler

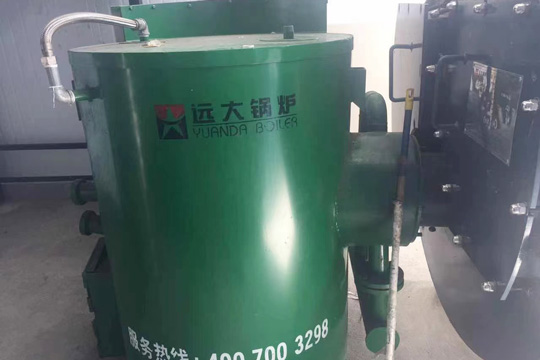

Biomass Burner Boiler is an energy-efficient boiler solution designed for industrial applications using renewable biomass fuels. The system combines a reliable fire-tube boiler with a dedicated biomass burner.
The biomass burner is designed for continuous and efficient combustion, while the multi-pass fire-tube structure provides effective heat transfer and high thermal efficiency.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
Inquiry Leave Message
1. Any plans to repalce old boiler ? New factory need boiler ? expansion or new business
2. Which industry business need boilers ? lets' talk about some details
3. Are there some technical requirments ? then we could offer quotation accordingly
4. Do you need our suggestion on how to choose a suitable boiler ? waiting for your message
Inquiry Email Address: shirley@yuanda-boiler.com
| Oil Gas Boiler | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
|---|---|---|---|---|---|---|---|---|---|
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5 | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3 | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6 | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10 | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15 | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20 | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
