Caldera Quemador De Biomasa
- Capacidad：0.5ton-10ton, 350kw-7000kw
- Presion：0-3.8Mpa
- Temperatura de calor：0-380°C
- Combustible：Pellets de madera de biomasa, aserrin, cáscara de arroz, residuos solidos.
- Certificados：ISO CE ASME EAC Las ventas globales cubren 132 países
Biomass Burner Boiler Pellets/Husk/Woodchips

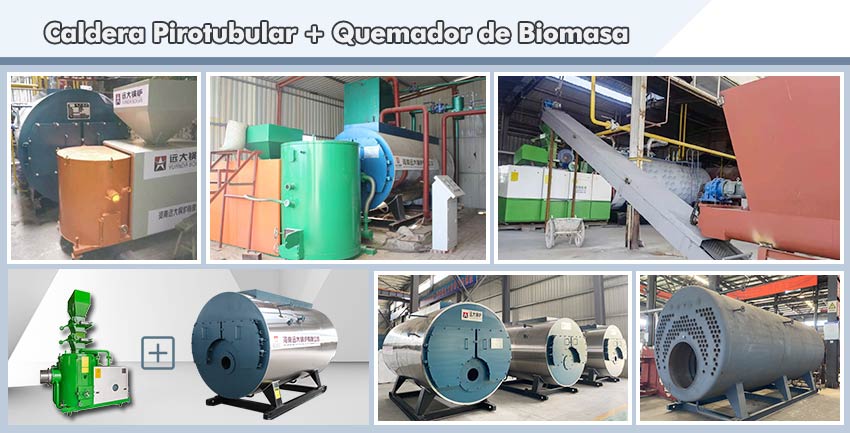

Super Advantage: Showing in picture, the wns fire tube boiler plus different burner, you will have a different boiler. Once you don't burn biomass, replace with gas/oil burner, it becomes gas/oil fired boiler.

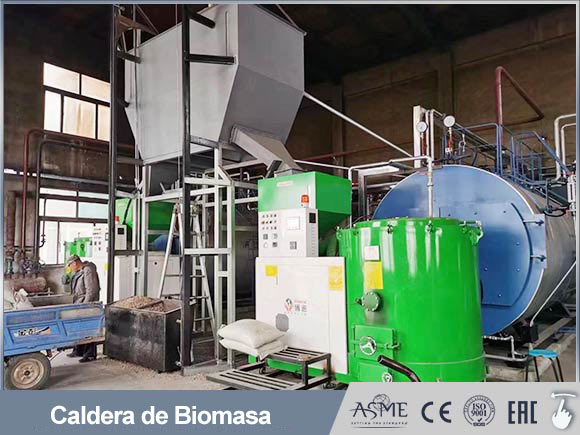

Biomass Burner Boiler, husk/pellets fuel is sent into boiler combustion chamber by feeder, fuel combustion process is like to gas/oil burning automatically in boiler; Our WNS model boiler work with biomass burner, could achieve higher heat efficiency up to 90% comparing with normal biomass burning directly boiler. If you have interest, inquire to know more by shirley@yuanda-boiler.com
Features Biomass Burner Boiler
1. The biomass burning boiler Integrated the advantages of chain type biomass boiler and gas boiler.It is biomass fuel boiler of low cost, energy conservation, environmental protection and thermal efficiency can reach above 90%.
2. Installation is simple, maintenance is convenient.
3. The structure of three return, threaded pipe technology and the characteristics of the wet back structure, increase the heating area. improve the efficiency of the boiler.
Why Choose Burner Some Advantages
1. Low carbon and environmental protection: low carbon emission, renewable fuel, low nitrogen oxide emission, no sulfur emission.
2. Gasification combustion: segmented combustion, low temperature combustion in the furnace, and secondary high temperature combustion at the burner.
3. Various fuels: it can burn biomass wood chips, wood blocks, briquette, biomass pellets and other fuels.
4. Wide range of applications: boilers, drying, hot blast stoves, kilns, annealing furnaces, incinerators, aluminum bar heating furnaces, etc.
5. High efficiency and energy saving: Compared with natural gas, it saves more than 50% energy, and it saves about 30% compared with biomass pellet fuel.
Catalogo Productos Yuanda
1. Caldera de gas, caldera de GLP, caldera diésel, caldera de gasóleo pesado, caldera de combustible dual.
2. Caldera carbón, caldera leña, caldera biomasa, caldera de cáscara arroz, caldera de cáscara palma, caldera bagazo
3. Caldera eléctrica, Generador de vapor eléctrico, Caldera de agua caliente eléctrica,
4. Caldera Calentador de Aceite Térmico, Calentador de Fluido Térmico, Caldera de Aceite Caliente.
5. Caldera de vapor, caldera de agua caliente, caldera generadora de vapor, caldera combinada de calor y energía, caldera de vapor sobrecalentado
Sobre Yuanda Company Desde 1956
Yuanda calificado con ASME, CE, ISO, EAC, DOSH, TUV, BUV, lo que garantiza alta calidad y cumplimiento de estándares internacionales. Empresa Yuanda establecida desde 1956, más de 65 años de experiencia en la fabricación y 15 años de experiencia en exportación. Hasta ahora, nuestros productos se han exportado a 132 países de todo el mundo, calidad y servicios confiables durante toda su vida útil.
| Boiler model | Rated capacity |
Rating pressure |
Feed temperature |
Steam temperature |
Pellet consumption | Thermal efficiency |
Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|
| t/h | MPa | ℃ | ℃ | Kg/h |
% |
Ton | mm | |
| WNS1-1.0-T | 1 | 1 | 20 | 184 | 150 | 91 | 4.3 | 3561×1690×1910 |
| WNS 2-1.25- T | 2 | 1.25 | 20 | 194 | 300 | 92 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-T | 3 | 1.25 | 20 | 194 | 450 | 92.1 | 8 | 4330×2248×2564 |
| WNS4-1.25- T | 4 | 1.25 | 20 | 194 | 600 | 93 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- T | 5 | 1.25 | 20 | 194 | 750 | 93 | 12.5 | 5970×2360×2796 |
