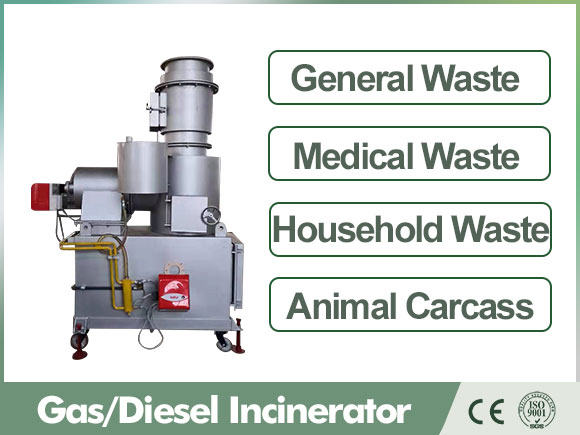

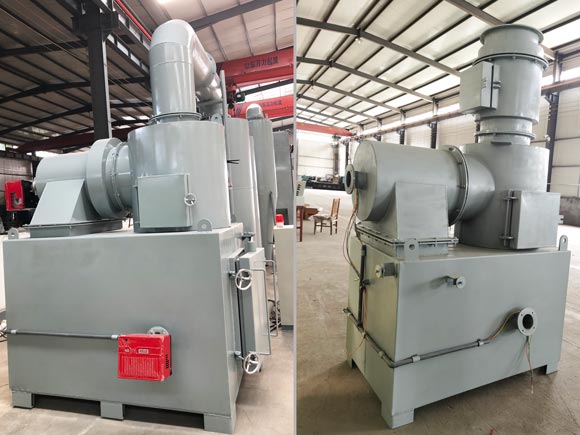

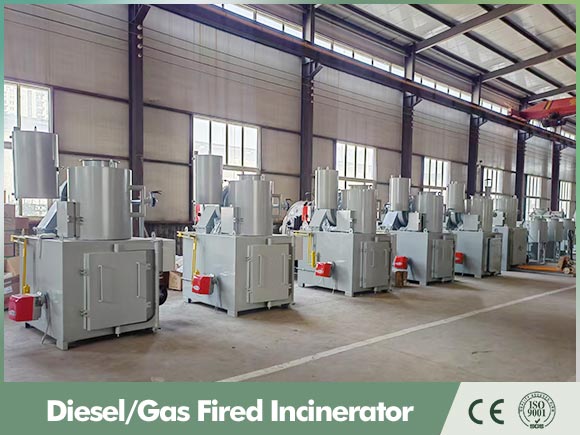

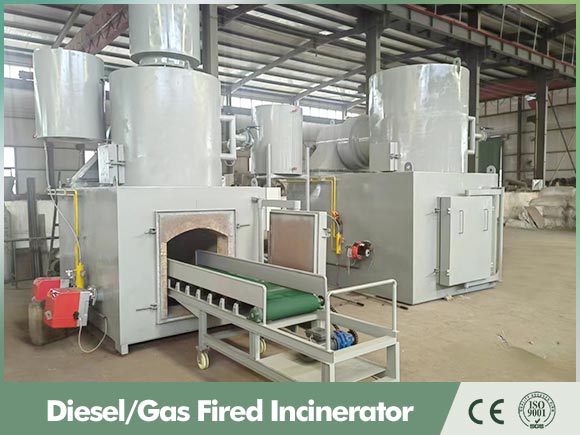

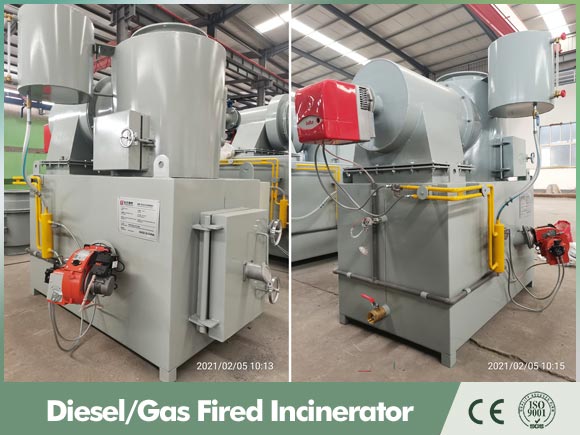

Gas Diesel LPG Fired Medical Waste Incinerator
- Automation:Semi-Automatic
- Burning Rate:20kg-1000kg/hr
- Burning Temperature:850-1300°C
- Material:Carbon Steel with High Temperature Refractory
- Certification:GMA, QS, UL, FDA, ISO, CE
Email:
Tel/whatsapp:
Introduction

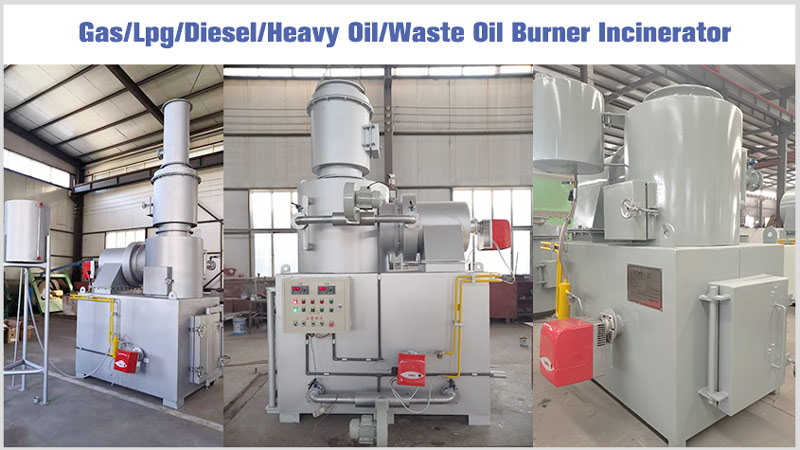

Gas Lpg Diesel Oil Fired Incinerator 20kg-1000kg/hour
Advantages & Features
1. Fully closed operation, suitable for handling infectious medical waste to avoid secondary pollution.
2. Superior technologies make smoke emission and soot content lower than the national emission standards.
2. Small size and small floor area, also is portable type, you can use it flexiablely.
3. There will be no smoke, no smell and no pollution after burning of waste.

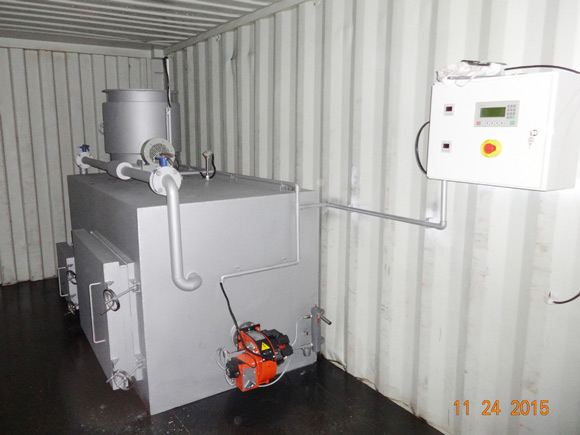

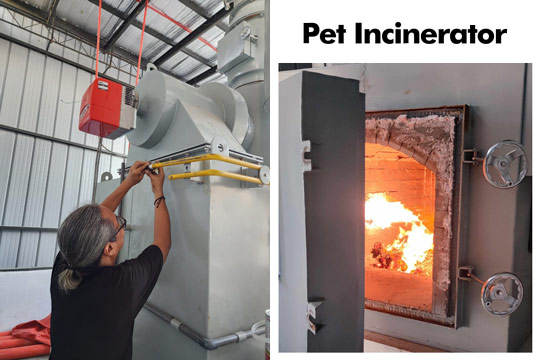

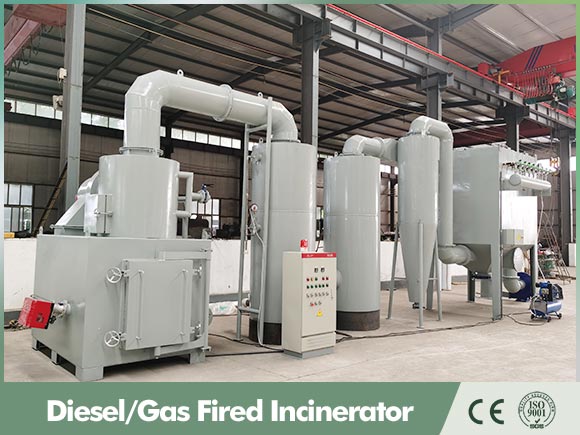

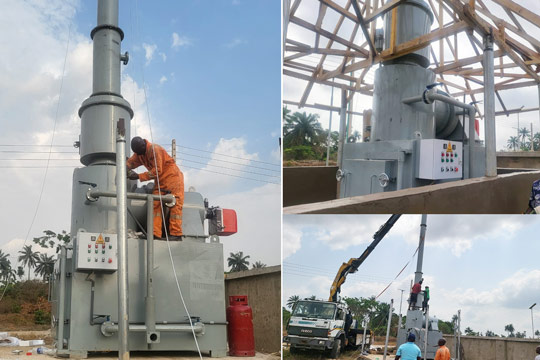

Projects Site
Incinerator Spare Parts
Some Spare Parts With Incinerator
360° Show
Parameter
Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
---|---|---|---|---|---|---|---|---|
Processing Capacity (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
Working Hours Per Batch Cycle* (min) | 90-120 | |||||||
Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
Temperature (℃) | Primary Chamber | 900 | ||||||
Second Chamber | 1300 | |||||||
Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) |
