Portable Traile Waste Incinerator and Mobile Containerised Waste Incinerator

Types：Trailer Incinerator, Mobile Containerised Incinerator

Incinerator For：Hospital medical waste, dead pet animal carcass, paper/plastic waste, household waste, domestic garbage, general waste

Disposal in：5-6 times one day around 10kg-5000kg

Working：Semi-Automatic

Manufacture Standard：ISO CE

Get price Send Message

Email:

shirley@yuanda-boiler.com

Tel/whatsapp:

+86-18236986701

Introduction Incinerators Technial Parameter Product Case Inquiry

Introduction

Portable Medical Waste Incinerator 20kg-1000kg/hour

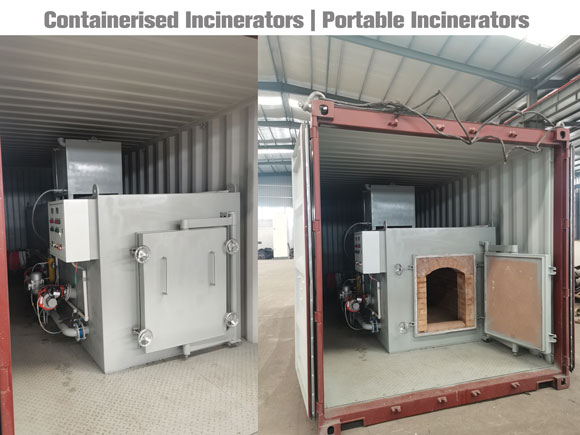

Containerised mobile incinerator or skid mounted wheels type incinerator, for waste incineration. portable incinerator,containerised incinerator,medical incinerator

Advantages & Features

1. Smokeless and Odorless, No Blank Smoke

High-temperature pyrolysis gasification technology+mixed incineration+burnout treatment.

Single/double/multi-stage flue gas treatment.

Enclosed burning, avoid secondary pollution.

2. High Temperature Pyrolysis Process

Double chamber for incineration.

The chamber temperature up to 1300°C, retention 2 seconds.

3. Low Consump Cost

With first-class Itlay Baltur burner, ensure good qualtiy.

Primary combustion chamber automatically starts and stops, effectively utilizing high-temperature flue gas, save fuel.

4. Safe 100%, Good Quality

Use ceramic fiber sealing tape rather than asbestos material. And high-strength refractory materials.

Security protection: auto ignition, auto control and temperature monitoring, automatic power cut off.

5. Easy to Install and Operate

Pre-assembled and well-debugged in our factory.

Simple to install the incinerator by Installation Steps.

china incinerator,gas fired incinerator,diesel incinerator
medical waste incinerators, pets cremation

incinerator advantage

Projects Site

incinerators

Incinerator Spare Parts

Some Spare Parts With Incinerator

incinerator spare parts,medical incinerator parts,hospital incinerator parts

Incinerators

Yuanda YDF Incinerators Equipment

gas oil burner incinerator,gas fired incinerator,oil fired incinerator

Incinerator with filtration system

china incinerator,smokeless waste incinerator,garbage incinerator furnace

Parameter

Models		YDF-20	YDF-30	YDF-50	YDF-100	YDF-150	YDF-300	YDF-500
Processing Capacity (kg/batch)		10-20	20-30	30-50	50-100	100-150	200-300	300-500
Working Hours Per Batch Cycle* (min)		90-120
Primary Chamber Volume (m3)		0.2	0.38	0.5	1	1.5	2.4	3.5
Waste Feeding Gate Size (mm)		380 x 480	480 x 600	620 x 800	700 x 900	760 x 960	900 x 1100	1080 x 1280
Temperature (℃)	Primary Chamber	900
Temperature (℃)	Second Chamber	1300
Smoke Residence Time (s)		> 2 sec in second chamber
Applicable Waste Type		Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component
Primary Burner - Baltur Italy		BTL-6, 0.11kw	BTL-6, 0.11kw	BTL-10, 0.11kw	BTL-10, 0.11kw	BTL-10, 0.11kw	BTL-10, 0.11kw	BTL-14, 0.18kw
Second Burner - Baltur Italy		BTL-10, 0.11kw	BTL-14, 0.18kw	BTL-14, 0.18kw	BTL-20, 0.18kw	BTL-20, 0.18kw	BTL-26, 0.25kw	BTL-35, 0.37kw
Total Diesel** Consumption (litre/h)		11-18	11-18	14-23	16-35	16-35	20-40	38-57
FD Fan Power (kw)		0.37	0.37	0.55	0.75	0.75	0.75	0.75+0.75
Applicable Voltage		380V 3Phase / 220V 1Phase
Outer Dimensions (m)		1.6 x 1.3 x 2.65	1.45 x 0.9 x 2.6	1.8 x 1.2 x 3	1.86 x 1.4 x 3.2	2.1 x 1.5 x 3.5	2.25 x 1.6 x 3.8	3.0 x 2.0 x 4.8
Chimney Dimensions (mm)		φ280 x 6000	φ280 x 6000	φ300 x 9000	φ330 x 9000	φ380 x 9000	φ400 x 9000	φ460 x 9000
Weight (kg)		2000	3000	5000	6800	8000	9600	15000
Manufacturing Standard		GB 18484-2020 (equals to EPA or EU standards)

Product case

mobile incinerator,containerised incinerator,portable mobile incinerator

500kg/hour Diesel Gas Fired Mobile Waste Incinerator In Container

pet incinerator furnace,50kg waste incinerator,animals carcass incinerator

YDF 20kg 30kg 50kg Pet Cremation Incinerator Furnace Installation in Philippines

container room medical waset incinerator,containerised medical incinerator,hospital incinerator

Containerised Medical Waste Incinerator 300kg/hr Portable Hospital Waste Incinerator
