Small & Large Pet Animal Incinerator
- Incinerator For:Pet, Small & Large Cat Dog, Animals Pig Sheep Cow Chicken Fish Carcass Waste
- Power:Gas, Diesel, Waste Oil, Lpg, Heavy Oil
- Different Volume:In 20kg 30kg 50kg 100kg 150kg 200kg 300kg 500kg
- Working:Semi-automatic, manual
- Manufacture Standard:ISO CE

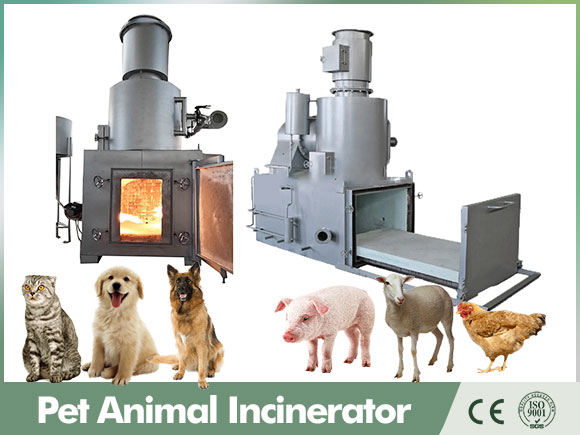

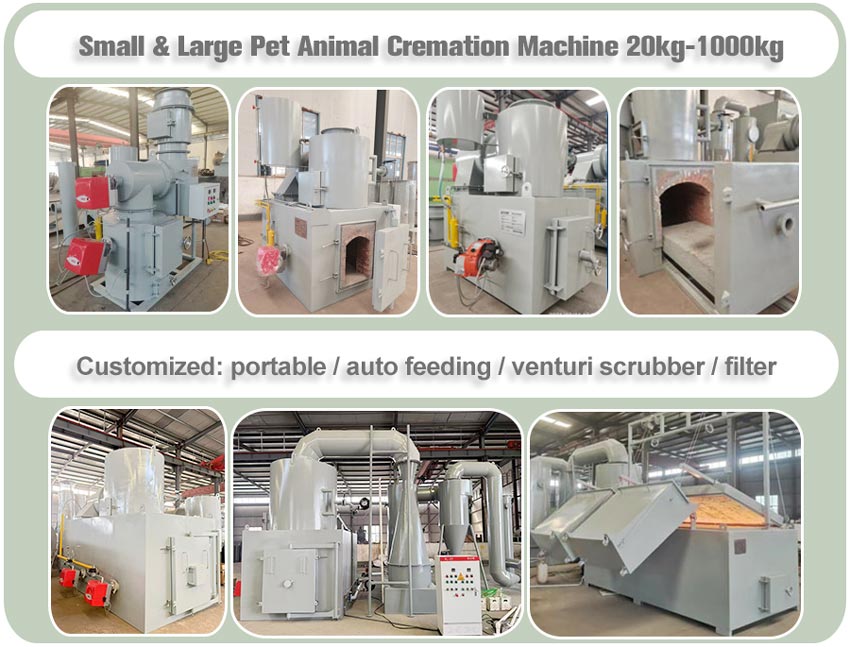

Small & Large Pet Animal Incinerator | Animal Cremation Equipment
Our pet animal incinerator is designed for safe, efficient, and environmentally friendly disposal of animal remains.
Suitable for both small pets and large animals, it is widely used in veterinary clinics, pet cremation centers, farms, and animal waste treatment facilities.

No Pollution Incinerator
With high-temperature combustion and low-emission design, our system ensures complete cremation while meeting environmental standards.

Types of Animal Waste Treated:
* Pet remains (dogs, cats, small animals)
* Large animal carcasses (cattle, pigs, sheep)
* Poultry waste
* Veterinary waste
* Animal by-products and organic waste

Advantages & Features
1. Smokeless and Odorless, No Blank Smoke
High-temperature pyrolysis gasification technology+mixed incineration+burnout treatment.
Single/double/multi-stage flue gas treatment.
Enclosed burning, avoid secondary pollution.
2. High Temperature Pyrolysis Process
Double chamber for incineration.
The chamber temperature up to 1300°C, retention 2 seconds.
3. Low Consump Cost
With first-class Itlay Baltur burner, ensure good qualtiy.
Primary combustion chamber automatically starts and stops, effectively utilizing high-temperature flue gas, save fuel.
4. Safe 100%, Good Quality
Use ceramic fiber sealing tape rather than asbestos material. And high-strength refractory materials.
Security protection: auto ignition, auto control and temperature monitoring, automatic power cut off.
5. Easy to Install and Operate
Pre-assembled and well-debugged in our factory.
Simple to install the incinerator by Installation Steps.

Trustable Sale Services
1. Global Project Experience

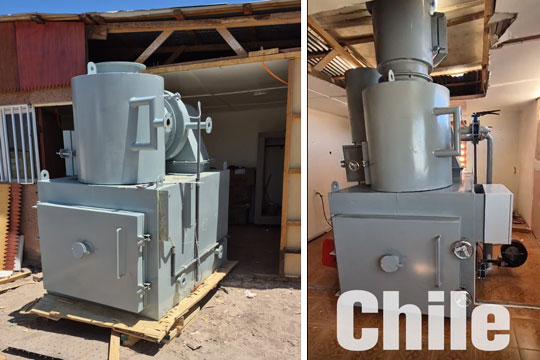

Our incinerators are trusted and widely used in over 70 countries and regions, serving veterinary clinics, farms, pet cremation centers, and government waste management projects.
2. Customized Solutions for Different Needs
We provide tailored incineration solutions based on:
* Animal type (pets, poultry, livestock)
* Capacity requirements
* Local environmental regulations
From small clinic units to large industrial systems, we match the right solution to your project.
3. Flexible Installation Options
* Fixed installation
* Skid-mounted units
* Containerized incinerators
* Easy to transport, install, and operate in different project conditions.

Incinerator Spare Parts
Some Spare Parts With Incinerator

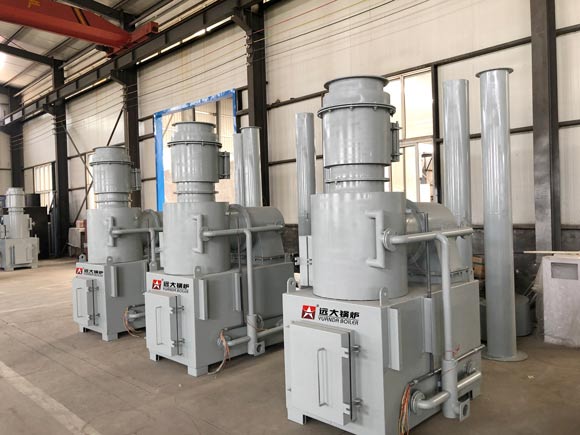

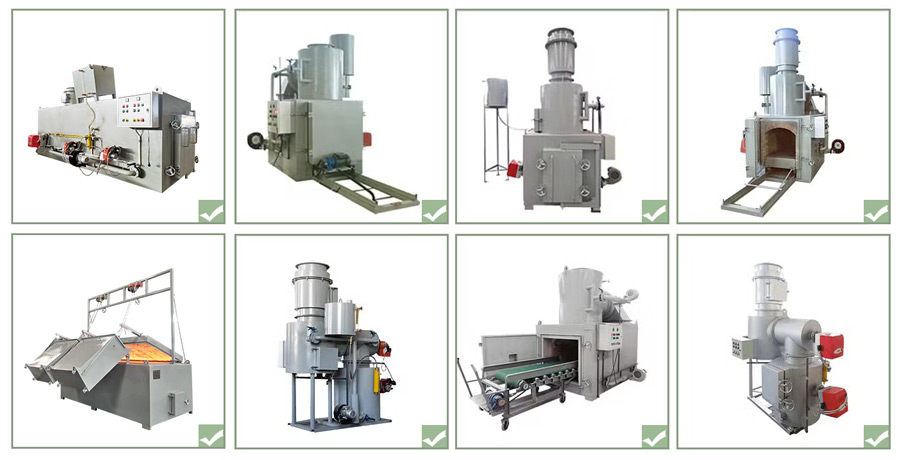

Yuanda YDF Incinerators Equipment

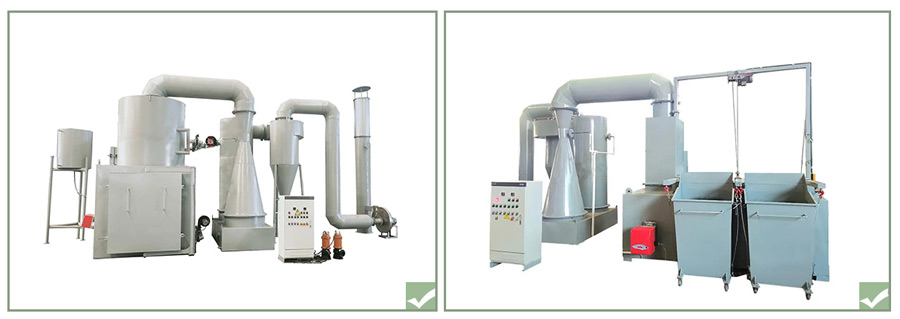

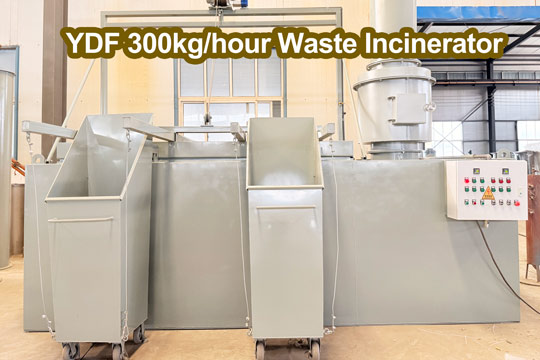

Incinerator with filtration system

| Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
|---|---|---|---|---|---|---|---|---|
| Processing Capacity (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
| Working Hours Per Batch Cycle* (min) | 90-120 | |||||||

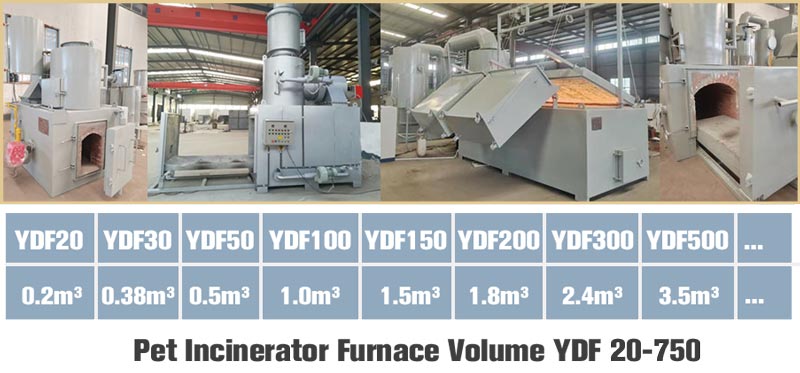

| Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
| Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
| Temperature (℃) | Primary Chamber | 900 | ||||||
| Second Chamber | 1300 | |||||||
| Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
| Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
| Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
| Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
| Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
| FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
| Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
| Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
| Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
| Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
| Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) | |||||||
