Chain Grate Boiler
- Fuel：biomass, wood, coal, ricehusk, biomass pellet, solid waste
- Capacity：0.5ton-75ton, 0.35mw-49mw
- Pressure：0.7mpa-3.8mpa
- Manufacture Standard：GB, CE PED, ASME, EAC, DOSH, CRN | Yuanda Has Served Customers Across 135 Countries & Regions
Chain Grate Boiler
Yuanda Company manufacture Steam boiler & Hot water boiler & Thermal oil boiler & Hot air generator.
Hot Selling: DZL series chain grate boiler & SZLseries chain grate boiler

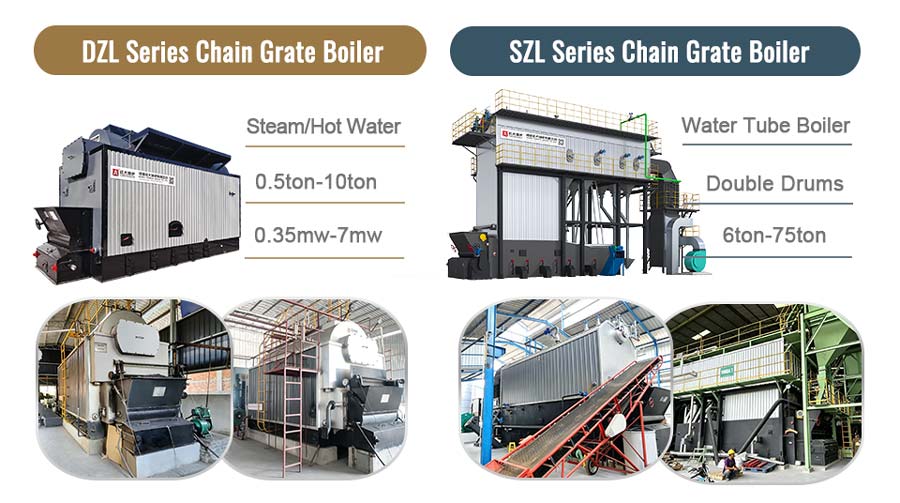

Introduce DZL Chain Grate Boiler
DZ series chain grate coal/biomass fired boiler, it is horizontal three-pass water & fire tube boilers with chain grate combustion device. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides from a radiation heating surface in the furnace.
Comsbution Device options: Chain grate, Reciprocating grate, Fixed grate, Travelling grate.
Boiler Structure Features
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
1) Improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
2) Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. New pattern of furnace arch
Strengthen the combustion, could burn kinds of fuel: wood, coal and biomass, improve combustion efficiency.

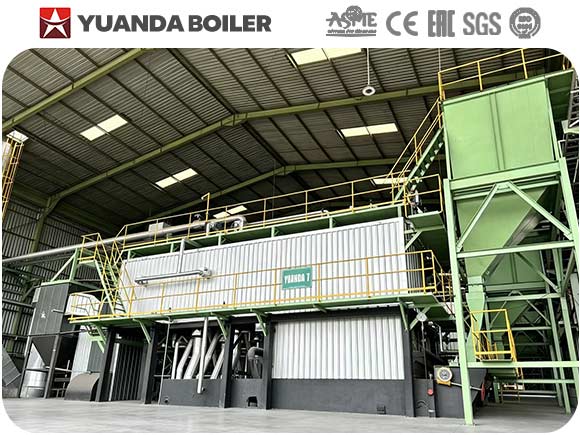

Introduce SZL Water Tube Chain Grate Boiler
SZL series water tube coal/biomass fired boiler, is double drums offset furnace structure ("D" type or "A" type), membrane water wall panel structure, with Chain Grate or Reciprocating Grate Stoker. Boiler with advantages of high technology, environmental and energy saving.
Combustion stokers: Chain Grate, Reciprocating Grate
Boiler Structure Features
1. High-efficiency water-tube structure
SZL and SZW series boilers adopt a water-tube design with a large heating surface, providing efficient heat transfer, rapid steam generation, and stable operation.
2. Optimized furnace and combustion system
The spacious furnace provides sufficient combustion space and residence time, promoting complete biomass combustion, improving fuel utilization, and reducing unburned fuel loss.
3. Reliable and durable construction
The membrane water-wall structure provides good sealing and reduces heat loss. The boiler is designed for continuous industrial operation with high structural strength and long service life.
4. Lower fuel and operating costs
High combustion efficiency and good heat-transfer performance help reduce biomass consumption and operating costs, making SZL/SZW boilers an economical solution for industries with abundant biomass fuel.
The total project cost depends on boiler capacity, fuel type, working pressure, automation level, auxiliary equipment, installation requirements and local regulations.
Videos Yuanda Projects
View More by https://www.youtube.com/@yuandaboiler
About us Yuanda Boiler
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | Feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | Max transportation weigh(t) |
|---|---|---|---|---|---|---|---|---|---|
| DZH1 | 1 | 1.0mpa-4.5mpa | 100°C-450°C | 20/104°C | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZH2 | 2 | ＞82 | 4.75 | 126.41 | 386.47 | 15 | |||
| DZH4 | 4 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 | |||
| DZH6 | 6 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 | |||
| DZL1 | 1 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 | |||
| DZL2 | 2 | ＞82 | 4.77 | 106.34 | 393.77 | 22 | |||
| DZL4 | 4 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 | |||
| DZL6 | 6 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 | |||
| DZL8 | 8 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 | |||
| SZW6 | 6 | ＞87 | 8.4 | 142 | 1209 | 34 | |||
| SZW8 | 8 | ＞87 | 9.4 | 149.1 | 1563.9 | 40.5 | |||
| SZW10 | 10 | ＞87 | 8.35 | 152.7 | 2149.3 | 24 | |||
| SZW12 | 12 | ＞87 | 12.8 | 148.7 | 2399.7 | 37 | |||
| SZW15 | 15 | ＞87 | 15.2 | 149.8 | 2568.4 | 24.7 | |||
| SZW20 | 20 | ＞87 | 15.5 | 147.4 | 4266.9 | 26 | |||
| SZW25 | 25 | ＞87 | ...... | ||||||
| DHW35 | 35 | ＞87 | |||||||
| DHW45 | 45 | ＞87 | |||||||
| DHW55 | 55 | ＞87 | |||||||
| DHW65 | 65 | ＞87 | |||||||
| DHW75 | 75 | ＞87 | |||||||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
