High Pressure STEAM Boiler
- Capacity：2ton-50ton/hour
- Working Pressure：1bar-38Bar
- Fuel：Gas lpg Oil diesel; coal biomass wood pellets, solid waste
- Structure：Double Drums "A" or "D"
- Certificates：ISO CE ASME DOSH EAC Global Sales Cover 132 Countries
High Pressure Steam Boiler 2ton-50ton/hour

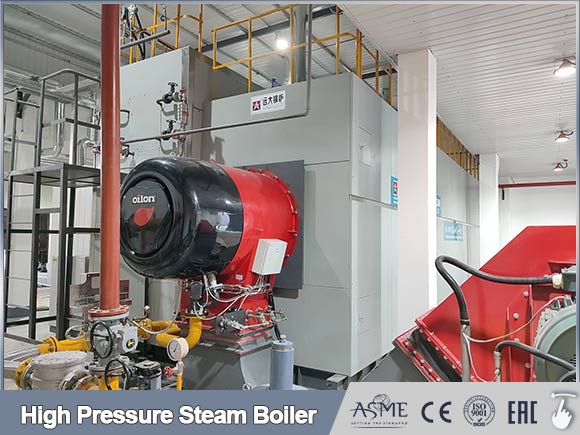

Option: High Pressure Oil Gas Fired Boiler

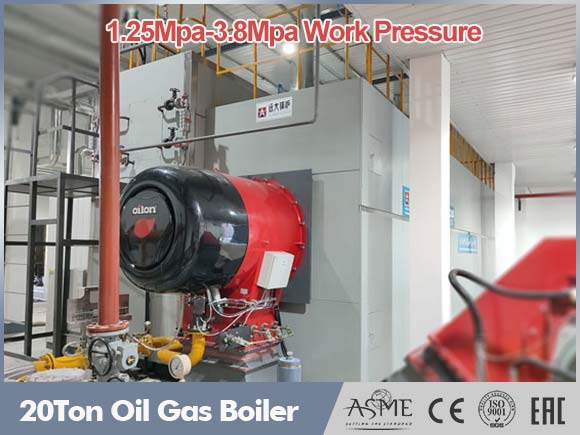

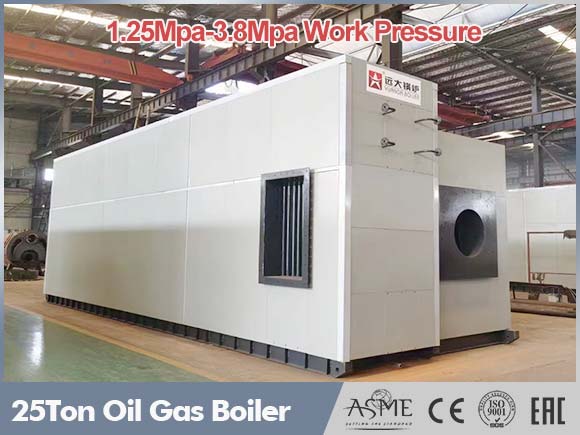

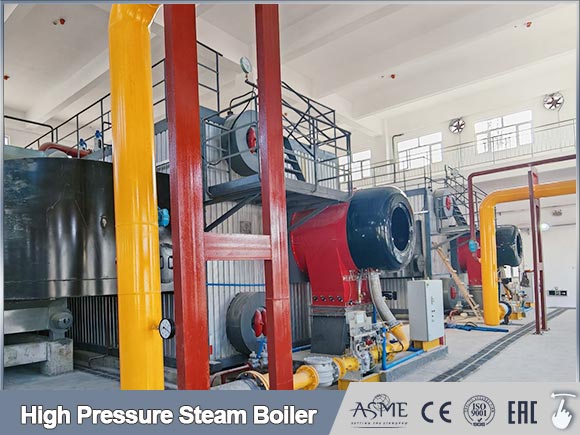

SZS water tube oil gas boiler, adopts double drums "D-type" vertical arrangement, full-membrane wall structure, reasonable and compact layout, realize large-capacity boiler overall quick installation, less investment in boiler house infrasturcture and short installation period.

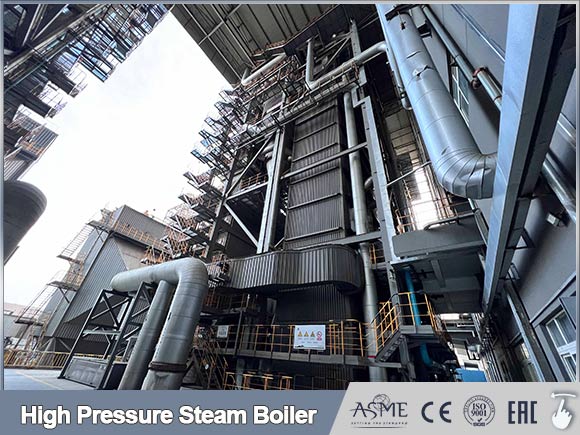

Option: High Pressure Coal/Biomass Fired Boiler

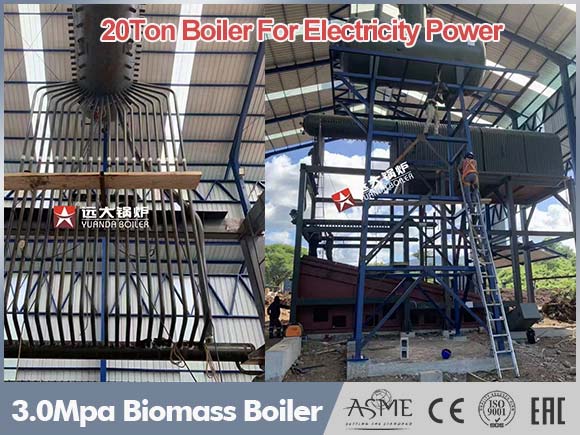

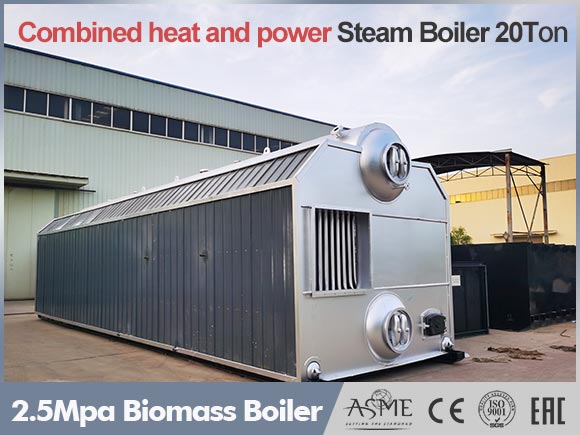

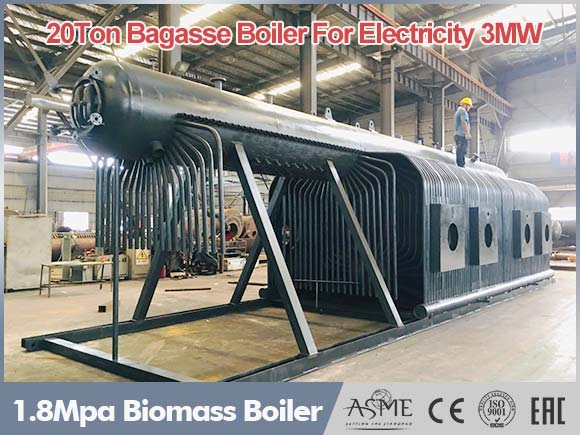

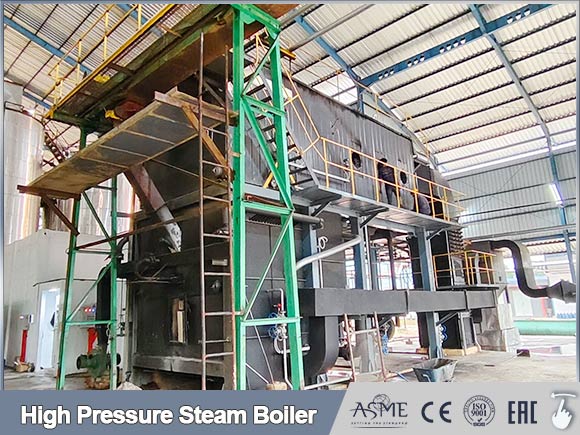

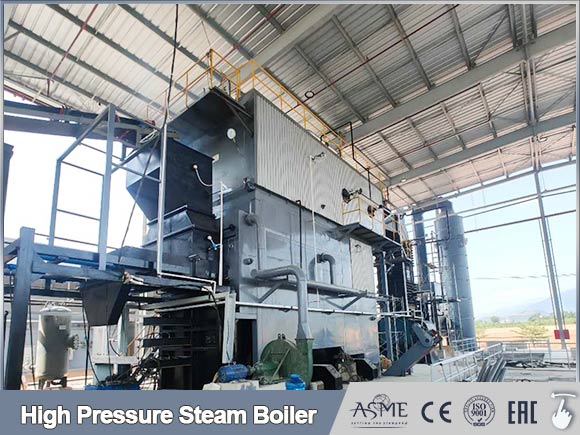

SZL/SZW Series chain/reciprocating grate water tube boiler, coal or biomass fired boiler, suitabel capacity in 2ton-50ton, It have double drums and water membrane wall inner structure, special stove furnace design greatly improve heat efficiency and make long using lifespan.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
Inquiry Leave Message
1. Any plans to repalce old boiler ? New factory need boiler ? expansion or new business
2. Which industry business need boilers ? lets' talk about some details
3. Are there some technical requirments ? then we could offer quotation accordingly
4. Do you need our suggestion on how to choose a suitable boiler ? waiting for your message
Inquiry Email Address: shirley@yuanda-boiler.com
| SZS Series Oil Gas Steam Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| SZS10 | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 618 | 660 | 36 |
| SZS15 | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 927 | 987 | 45 |
| SZS20 | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1256 | 1316 | 52.6 |
| SZS25 | 25 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1545 | 1660 | 55.3 |
| SZS30 | 30 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1856 | 1981 | 63.7 |
| SZS40 | 40 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 2470 | 2630 | 77.4 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
